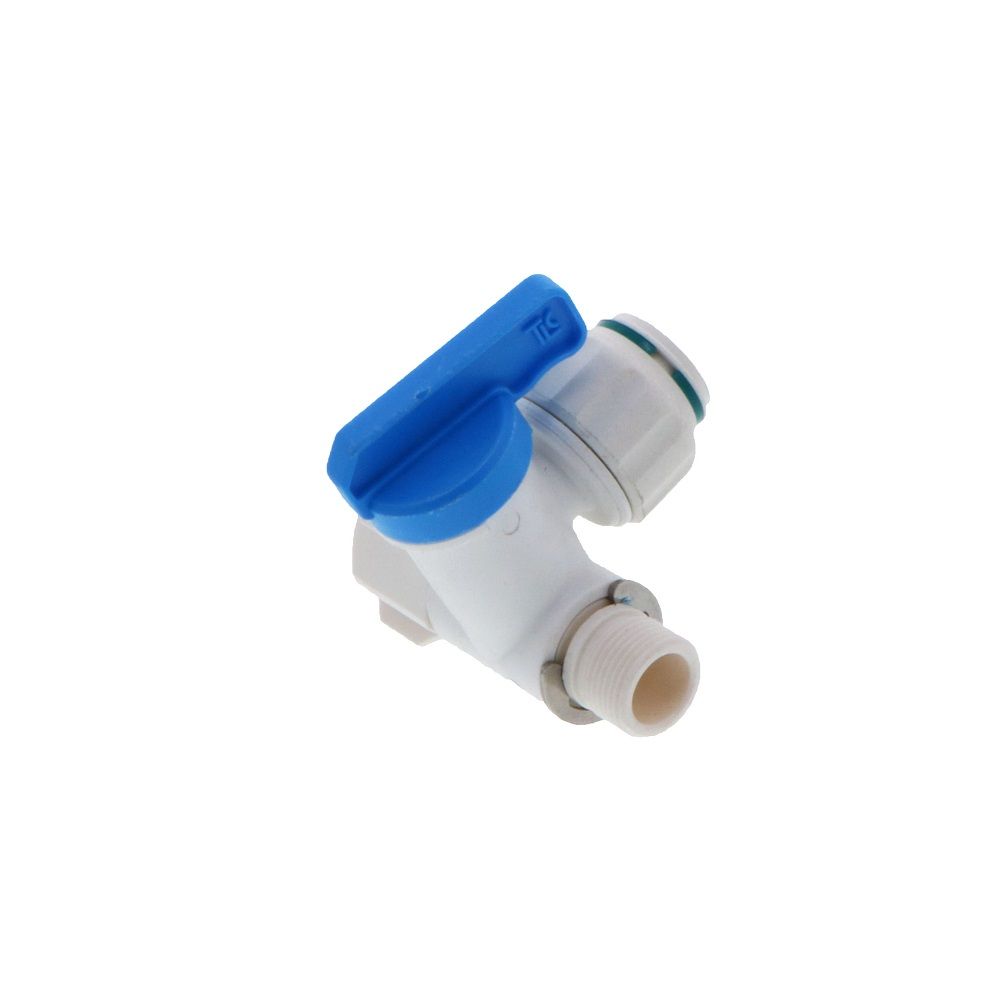

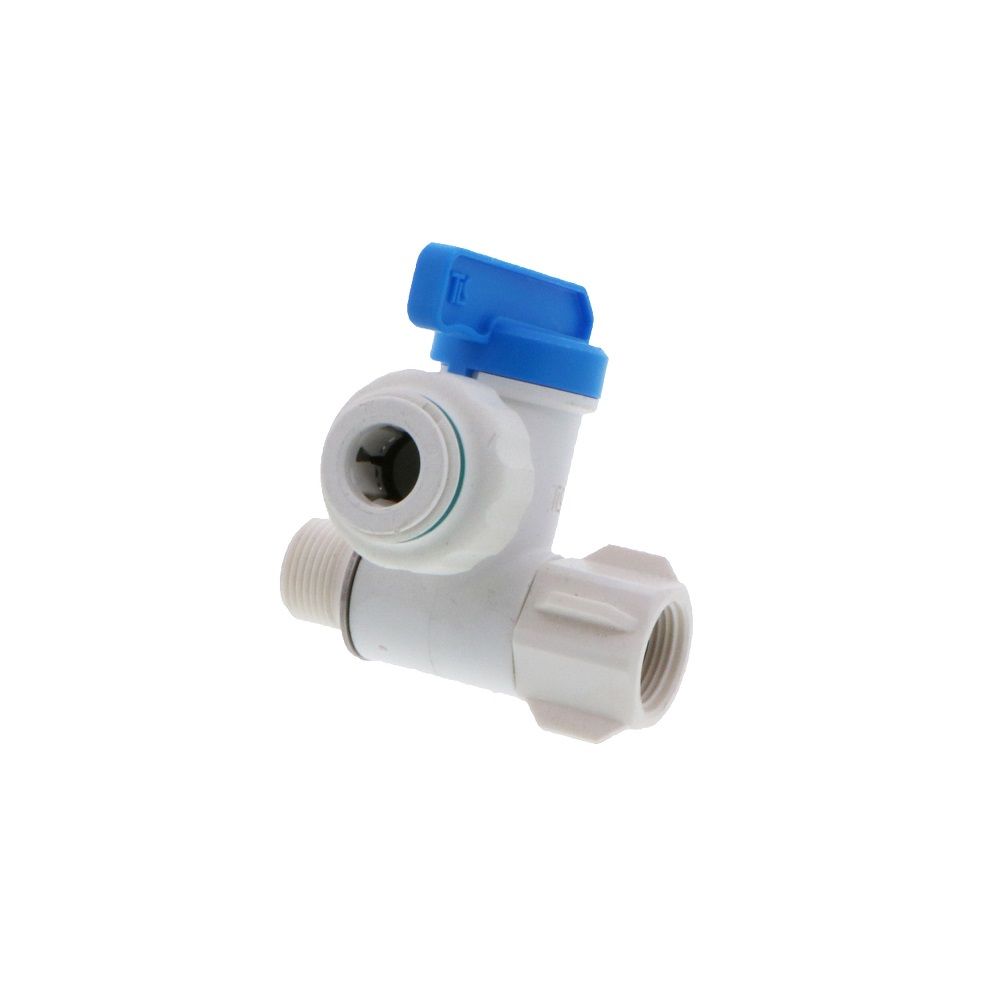

Twistloc AVA-6713CP Angle Stop Adapter Valve 3/8 x 3/8 x 3/8
Part Number: AVA-6713CP
Alt. Part Number: AVA6713CP
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
- 3/8" Male Compression Connection
- 3/8" Female Compression Connection
- 3/8" OD JG Connection
- Polypropylene Body
- Polysulfone Shaft
- EPDM O-Rings
- Stainless Steel Gripper
- 145 Max. Working Pressure @ 68° F
- 58 Max. Working Pressure @ 140° F
- Made with same quality materials required by NSF-61

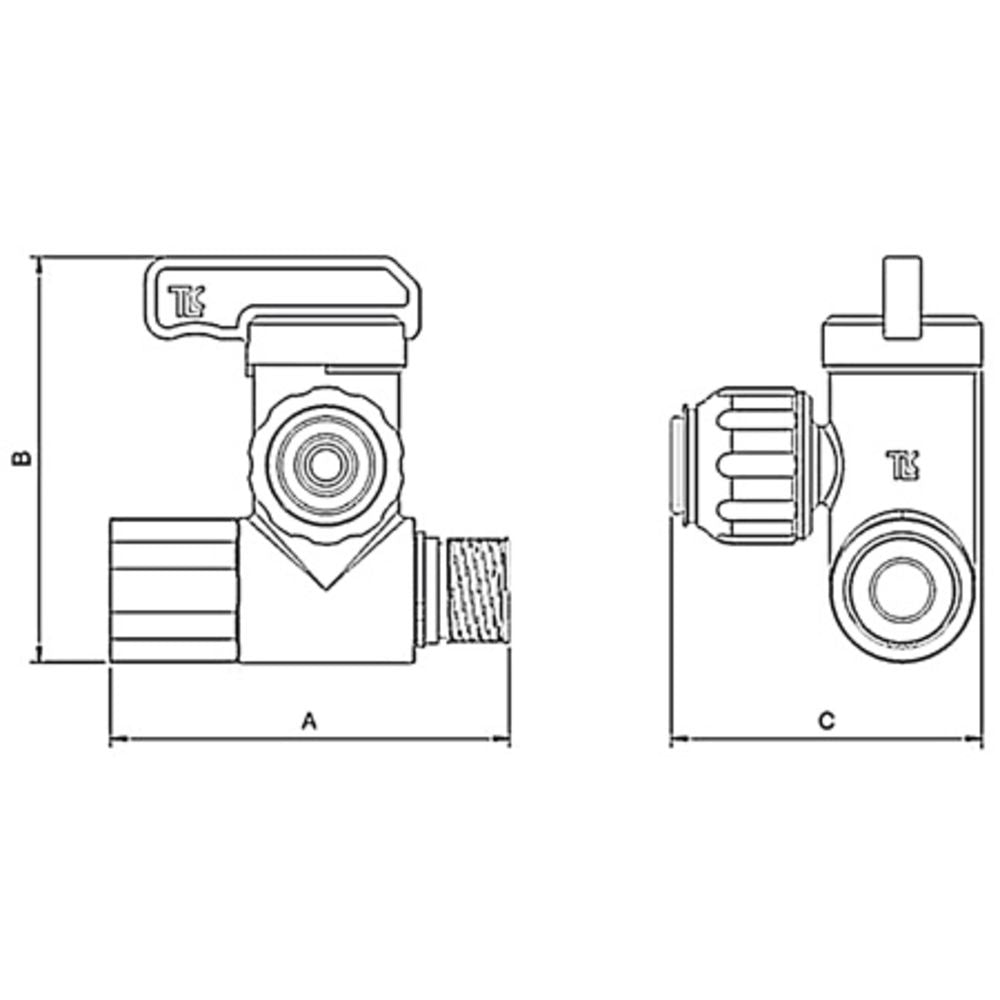

| Part# | A | B | C |
| AVA-6713CP | 2 3/16" | 2 1/4" | 1 7/8" |
WARNING!
| Product Details | |
|---|---|
Application | Water Supply |
Body Material | Polypropylene |
Inlet Connection | 3/8" Compression |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 58 |
Min Temp (°F) | 68 |
O-Rings | EPDM |
Outlet Connection | 3/8" Compression |
Push-In Size | 3/8" OD |
Size | 3/8" |
Color / Finish | White |
Connection Type | Compression |
Origin | Korea |
| Warranty & Certifications | |
Certifications | NSF-61 |
| Shipping Dimensions | |
Shipping Length | 0.367 in. |
Shipping Width | 0.341 in. |
Shipping Height | 0.138 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 0.1617 |
| Product Details | |
|---|---|
Application | Water Supply |
Body Material | Polypropylene |
Inlet Connection | 3/8" Compression |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 58 |
Min Temp (°F) | 68 |
O-Rings | EPDM |
Outlet Connection | 3/8" Compression |
Push-In Size | 3/8" OD |
Size | 3/8" |
Color / Finish | White |
Connection Type | Compression |
Origin | Korea |
| Warranty & Certifications | |
Certifications | NSF-61 |
| Product Weight & Dimensions | |
Product Weight (lbs) | 1.617 |
| Product Details | |
|---|---|
Application | Water Supply |
Body Material | Polypropylene |
Inlet Connection | 3/8" Compression |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 58 |
Min Temp (°F) | 68 |
O-Rings | EPDM |
Outlet Connection | 3/8" Compression |
Push-In Size | 3/8" OD |
Size | 3/8" |
Color / Finish | White |
Connection Type | Compression |
Origin | Korea |
| Warranty & Certifications | |
Certifications | NSF-61 |
| Product Weight & Dimensions | |
Product Weight (lbs) | 8.085 |
| Product Details | |
|---|---|
Application | Water Supply |
Body Material | Polypropylene |
Inlet Connection | 3/8" Compression |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 58 |
Min Temp (°F) | 68 |
O-Rings | EPDM |
Outlet Connection | 3/8" Compression |
Push-In Size | 3/8" OD |
Size | 3/8" |
Color / Finish | White |
Connection Type | Compression |
Origin | Korea |
| Warranty & Certifications | |
Certifications | NSF-61 |
| Shipping Dimensions | |
Shipping Length | 7.5 in. |
Shipping Width | 11 in. |
Shipping Height | 6.1 in. |
| Product Weight & Dimensions | |
Product Height | 6.1 in. |
Product Length | 7.5 in. |
Product Width | 11 in. |
Product Weight (lbs) | 14 |
- 3/8" Male Compression Connection
- 3/8" Female Compression Connection
- 3/8" OD JG Connection
- Polypropylene Body
- Polysulfone Shaft
- EPDM O-Rings
- Stainless Steel Gripper
- 145 Max. Working Pressure @ 68° F
- 58 Max. Working Pressure @ 140° F
- Made with same quality materials required by NSF-61
| Part# | A | B | C |
| AVA-6713CP | 2 3/16" | 2 1/4" | 1 7/8" |
