Trojan UV Lamp 602803 for UVMax-A System

Part Number: 602803

Alt. Part Number: 602725

In Stock

out of stock

In Stock

$99.00

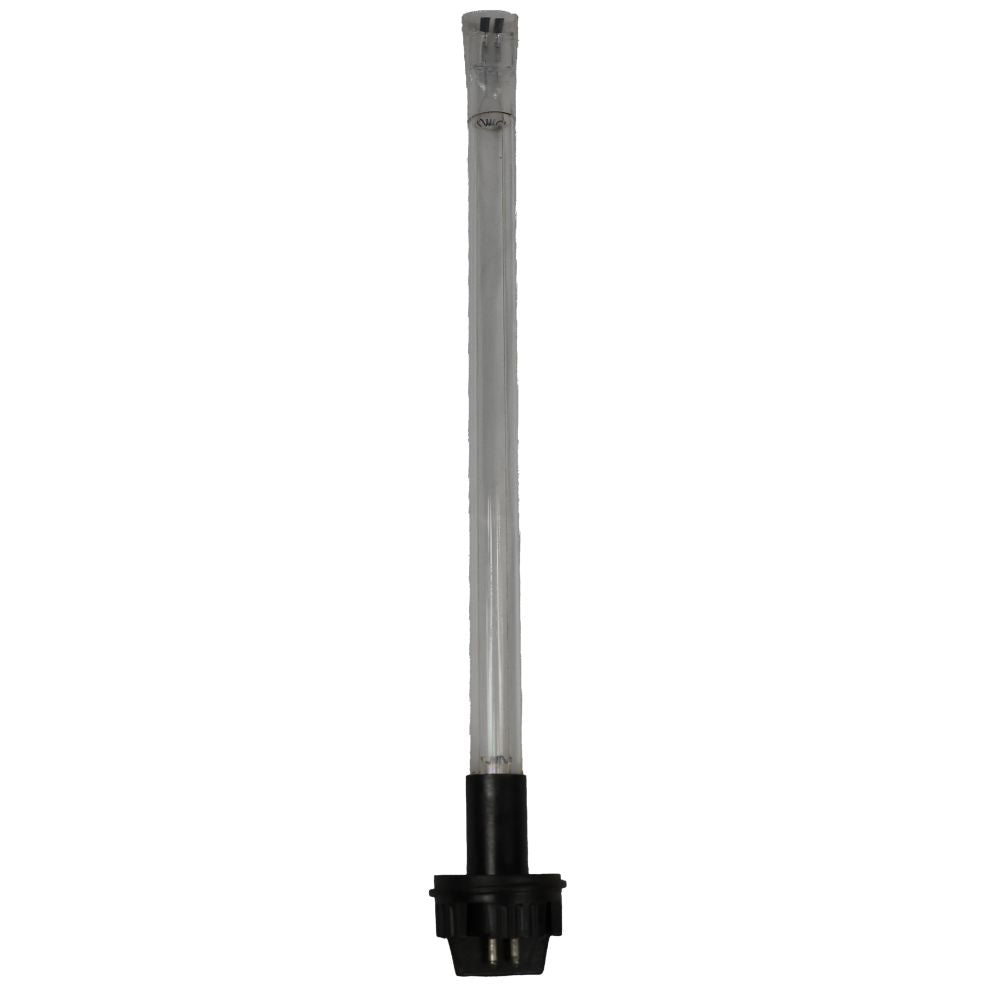

The Trojan 602803 Lamp is an original replacement UV bulb for use with Trojan UVMax-A water disinfection system. When you buy a Genuine Trojan 602803 UV lamp you can be assured of the performance, safety, and warranty of your system.

Specifications:
  • Genuine Trojan UV Lamp for UVMax-A system
  • 2 O-rings included with lamp
  • Long-life coated for stability, longer life and increased efficiency with bulb life up to up to 9,000 hours

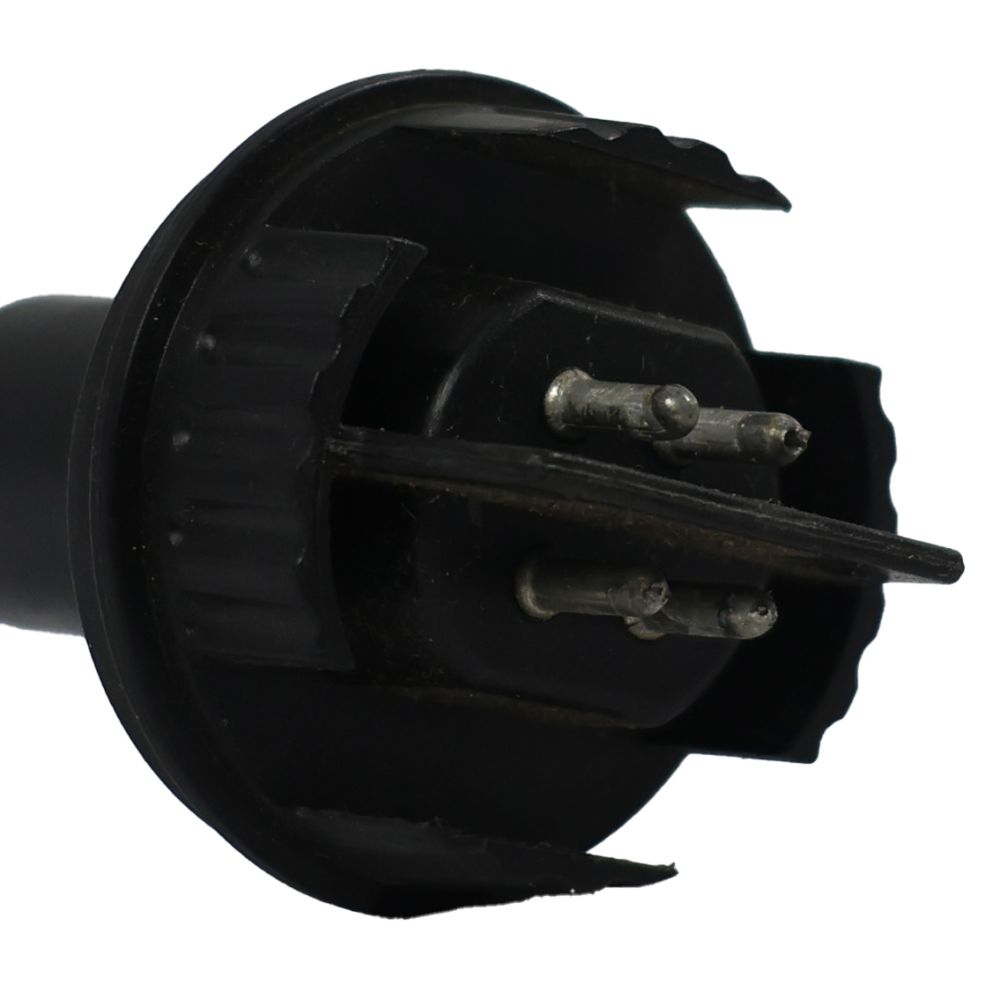

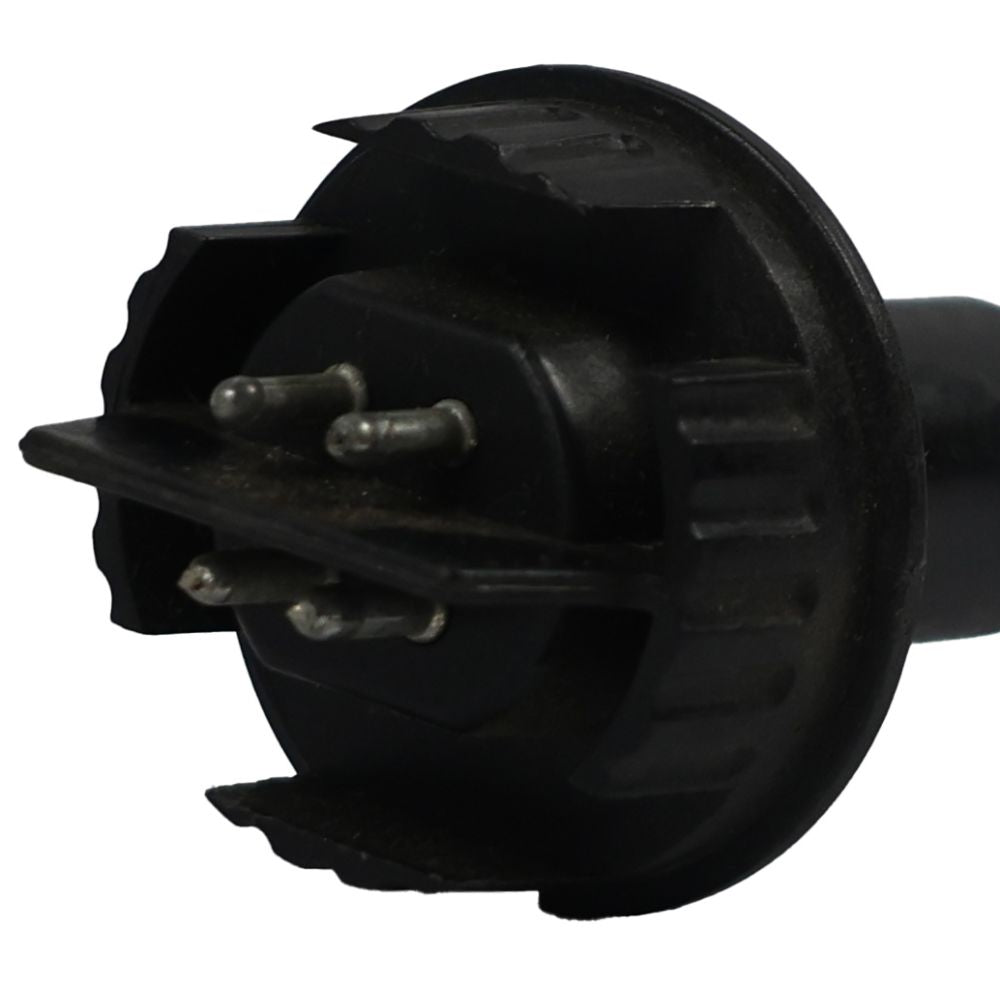

  • Low pressure output lamp with a black base
  • Environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps

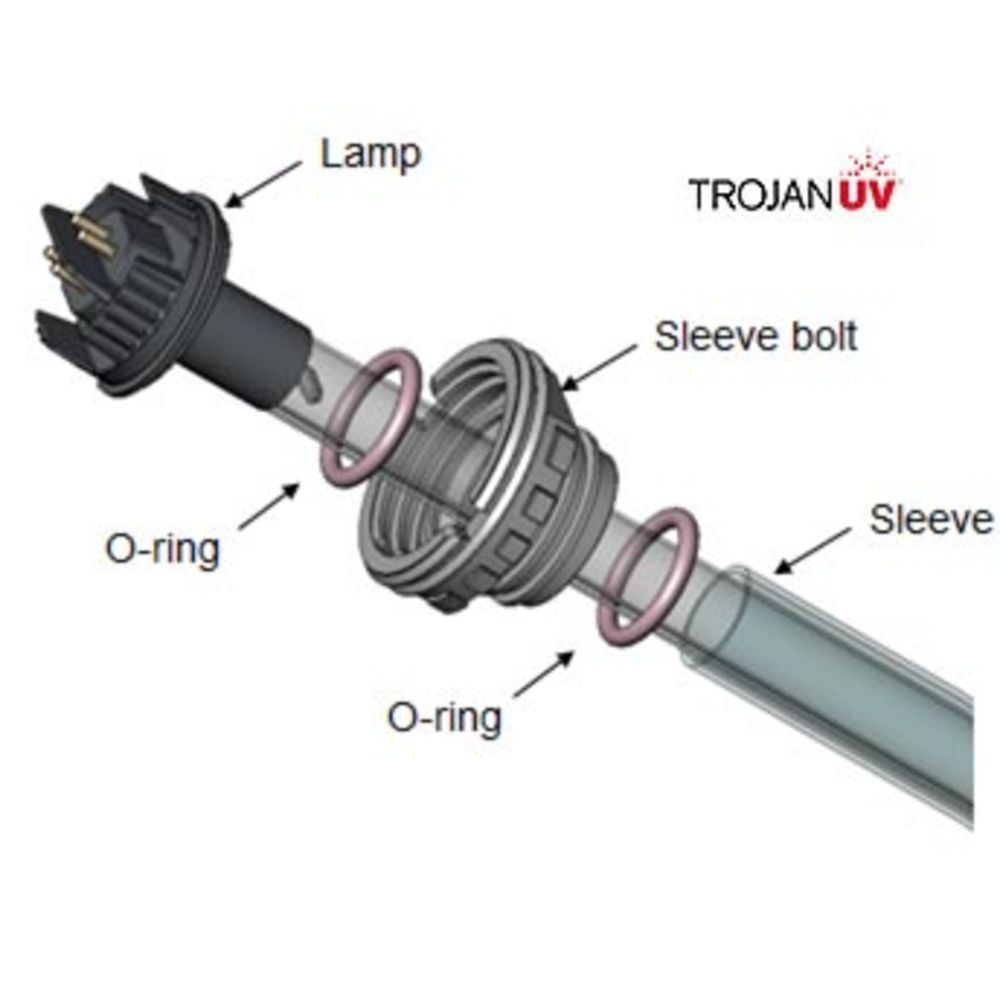

Trojan UV Lamp 602803 Replacement Diagram:
Replacing your 602803 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening.


Weight & Dimensions

Height (inches)

3.25

Length (inches)

25.25

Weight (lbs)

0.04375

Width (inches)

3.25

Details

Application

Germicidal (254nm), Preheat

Capacity

9,000 Hours

Pin Configuration

4 Pin

Power

14 W

Change Frequency

9,000 Hours


Trojan

Trojan




The Trojan 602803 Lamp is an original replacement UV bulb for use with Trojan UVMax-A water disinfection system. When you buy a Genuine Trojan 602803 UV lamp you can be assured of the performance, safety, and warranty of your system.

Specifications:
  • Genuine Trojan UV Lamp for UVMax-A system
  • 2 O-rings included with lamp
  • Long-life coated for stability, longer life and increased efficiency with bulb life up to up to 9,000 hours
  • Low pressure output lamp with a black base
  • Environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps


Trojan UV Lamp 602803 Replacement Diagram:
Replacing your 602803 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening.

Weight & Dimensions

Height (inches)

3.25

Length (inches)

25.25

Weight (lbs)

0.04375

Width (inches)

3.25

Details

Application

Germicidal (254nm), Preheat

Capacity

9,000 Hours

Pin Configuration

4 Pin

Power

14 W

Change Frequency

9,000 Hours
