Toray

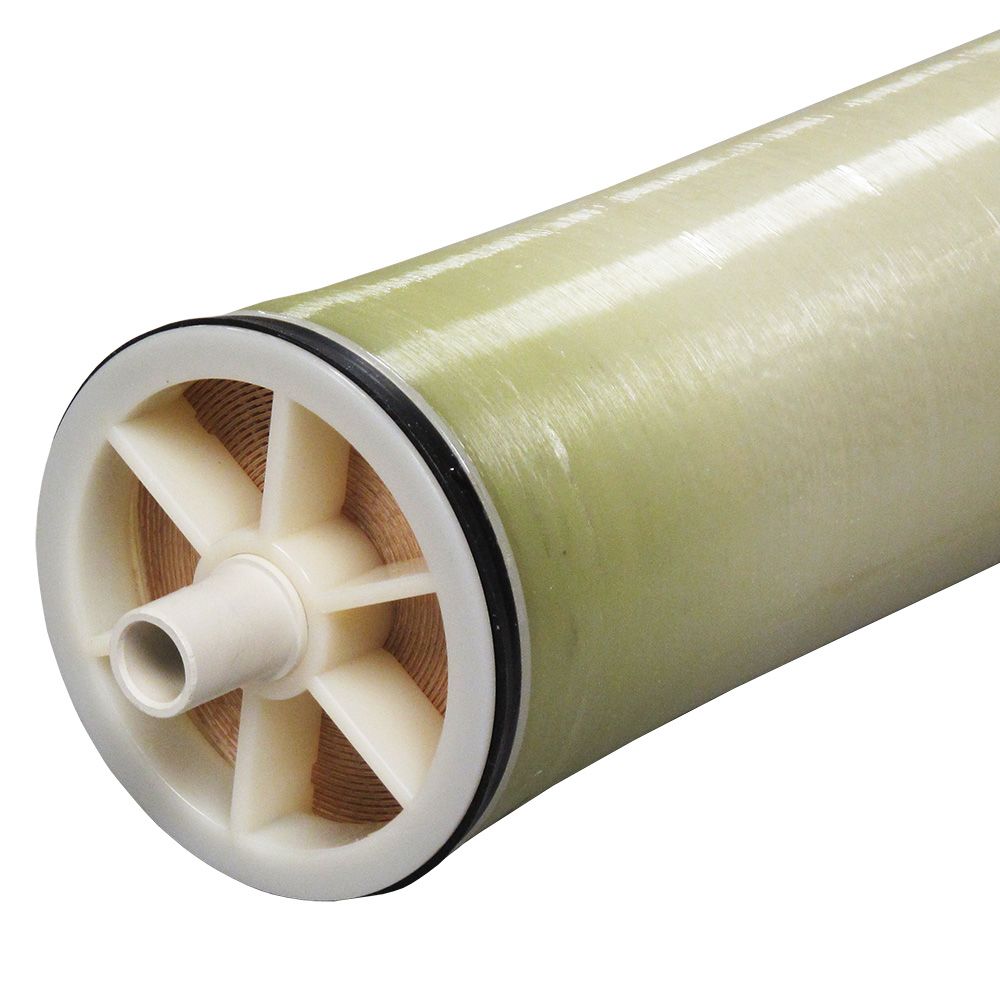

Toray TMG10 2400 gpd Brackish Water Membrane 4 x 40

Part Number: TMG10

Alt. Part Number: CDTMG10

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Toray TMG10D 2850 gpd Brackish Water Membrane 4 x 40 as a substitute.


The Toray TMG10 2400 gpd Brackish Water Membrane is designed to be used on water sources with low salinity (<2,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Permeate Flow Rate: 2400 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 110 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water




Weight & Dimensions

Weight (lbs)

10.5

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

365

Diameter

4"

Flow Rate

2400 GPD

Origin

USA

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Feed Spacer Thickness

31 mil

Inlet Pressure

110 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-11


Toray

Toray





The Toray TMG10 2400 gpd Brackish Water Membrane is designed to be used on water sources with low salinity (<2,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Permeate Flow Rate: 2400 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 110 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



NOTE: This item is discontinued. We recommend the Toray TMG10D 2850 gpd Brackish Water Membrane 4 x 40 as a substitute.

Weight & Dimensions

Weight (lbs)

10.5

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

365

Diameter

4"

Flow Rate

2400 GPD

Origin

USA

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Feed Spacer Thickness

31 mil

Inlet Pressure

110 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-11
