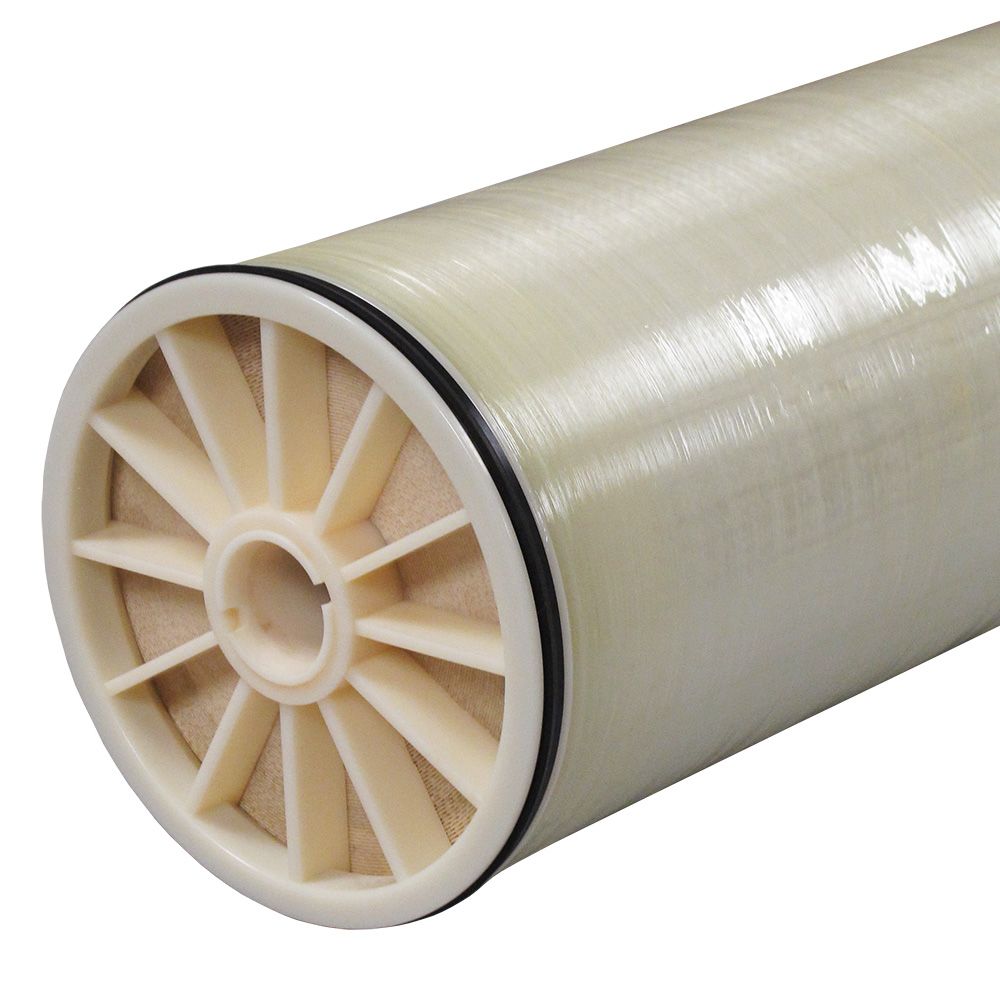

Toray TM720N-400 10200 gpd Brackish Water Membrane 8 x 40

Part Number: TM720N-400

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Toray TM720D-400 11000 gpd Brackish Water Membrane 8 x 40 as a substitute.

The Toray TM720N-400 10200 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Thicker Feed Spacer than TM720-400: 34 mil
  • Permeate Flow Rate: 10200 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 225 psi
  • Dimensions: 8" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



Compatible with:
Filmtec MembranesBW30-400/34

Weight & Dimensions

Weight (lbs)

36

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Diameter

8"

Flow Rate

10,200 GPD

Origin

USA

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Feed Spacer Thickness

34 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Permeate Tube Diameter

1-1/8"

Ph Range

2-11


Toray

Toray

Toray

Toray




The Toray TM720N-400 10200 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Thicker Feed Spacer than TM720-400: 34 mil
  • Permeate Flow Rate: 10200 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 225 psi
  • Dimensions: 8" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



Compatible with:
Filmtec MembranesBW30-400/34

NOTE: This item is discontinued. We recommend the Toray TM720D-400 11000 gpd Brackish Water Membrane 8 x 40 as a substitute.

Weight & Dimensions

Weight (lbs)

36

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Diameter

8"

Flow Rate

10,200 GPD

Origin

USA

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Feed Spacer Thickness

34 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Permeate Tube Diameter

1-1/8"

Ph Range

2-11
