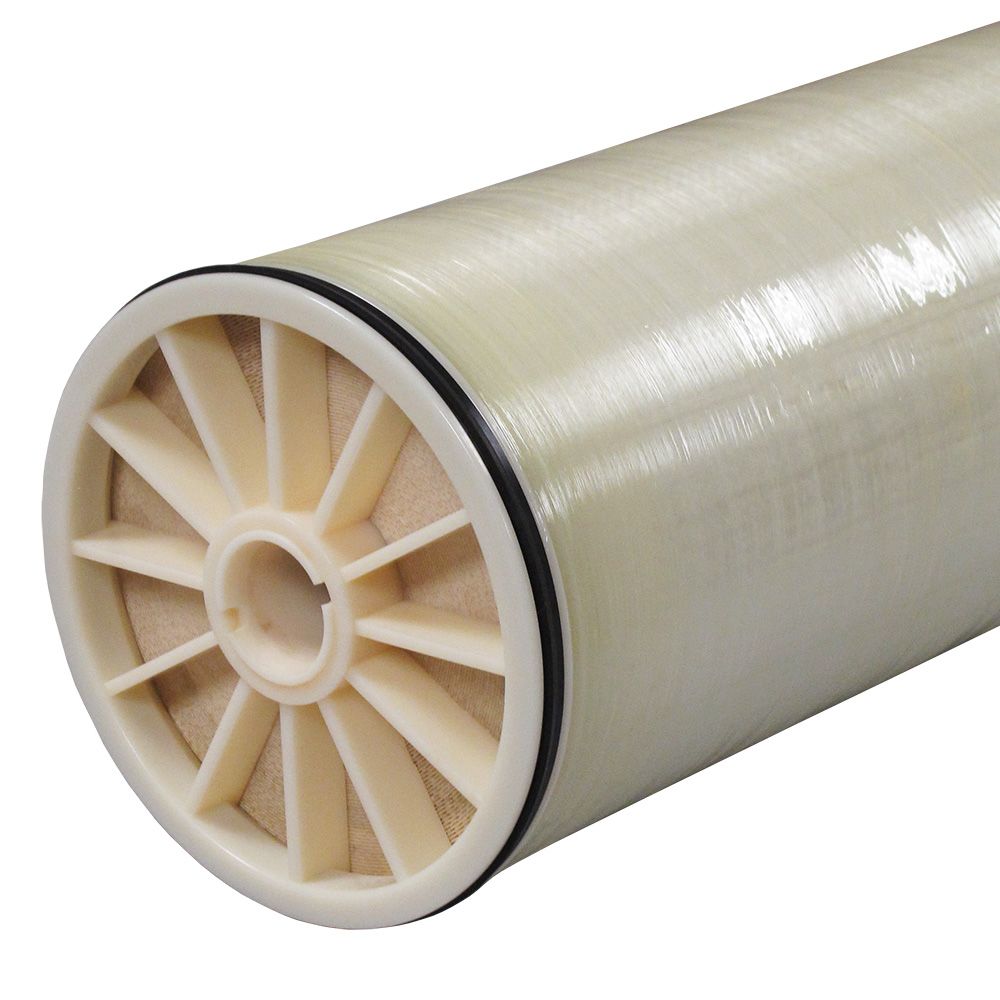

Toray TM720D-400 11000 gpd Brackish Water Membrane 8 x 40

Part Number: TM720D-400

Alt. Part Number: TM720N-400

In Stock

out of stock

In Stock

$529.99


The Toray TM720D-400 10,200 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Dimensions: 8" x 40"
  • Applied Pressure: 225 psi
  • Chlorine Tolerance: 0 ppm
  • Membrane Type: Polyamide Composite
  • Maximum Operating Temperature: 113° F
  • Permeate Flow Rate: 11,000 gallons per day
  • Applications: Tap Water, Brackish Water, Well Water, & Surface Water

Compatible with: Filmtec Membranes | BW30-400 & BW30-400/34i, GE Water | AG8040F-400, Hydranautics Membranes | CPA2 & CPA3, Koch Membrane Systems | 8822HR-400, TriSep Membranes | 8040-ACM2-UWA & 8040-ACM3-TSA


Weight & Dimensions

Approx Length (Inches)

8 Inches

Details

Diameter

40 Inches

Flow Rate

11,000 Gallons per day

Material Of Construction

Cross Linked Fully Aromatic Polyamide Composite

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

400 Square Feet

Average Nacl Rejection

99.8 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Feed Spacer Thickness

34 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Sanitation And Sterilization

Hydrogen Peroxide @ 0.2% and 77° F (25°C); Formaldehyde at 0.5 - 3%

Ph Range

2-11


Toray

Toray

Toray

Toray





The Toray TM720D-400 10,200 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Dimensions: 8" x 40"
  • Applied Pressure: 225 psi
  • Chlorine Tolerance: 0 ppm
  • Membrane Type: Polyamide Composite
  • Maximum Operating Temperature: 113° F
  • Permeate Flow Rate: 11,000 gallons per day
  • Applications: Tap Water, Brackish Water, Well Water, & Surface Water

Compatible with: Filmtec Membranes | BW30-400 & BW30-400/34i, GE Water | AG8040F-400, Hydranautics Membranes | CPA2 & CPA3, Koch Membrane Systems | 8822HR-400, TriSep Membranes | 8040-ACM2-UWA & 8040-ACM3-TSA

Weight & Dimensions

Approx Length (Inches)

8 Inches

Details

Diameter

40 Inches

Flow Rate

11,000 Gallons per day

Material Of Construction

Cross Linked Fully Aromatic Polyamide Composite

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

400 Square Feet

Average Nacl Rejection

99.8 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Feed Spacer Thickness

34 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Sanitation And Sterilization

Hydrogen Peroxide @ 0.2% and 77° F (25°C); Formaldehyde at 0.5 - 3%

Ph Range

2-11
