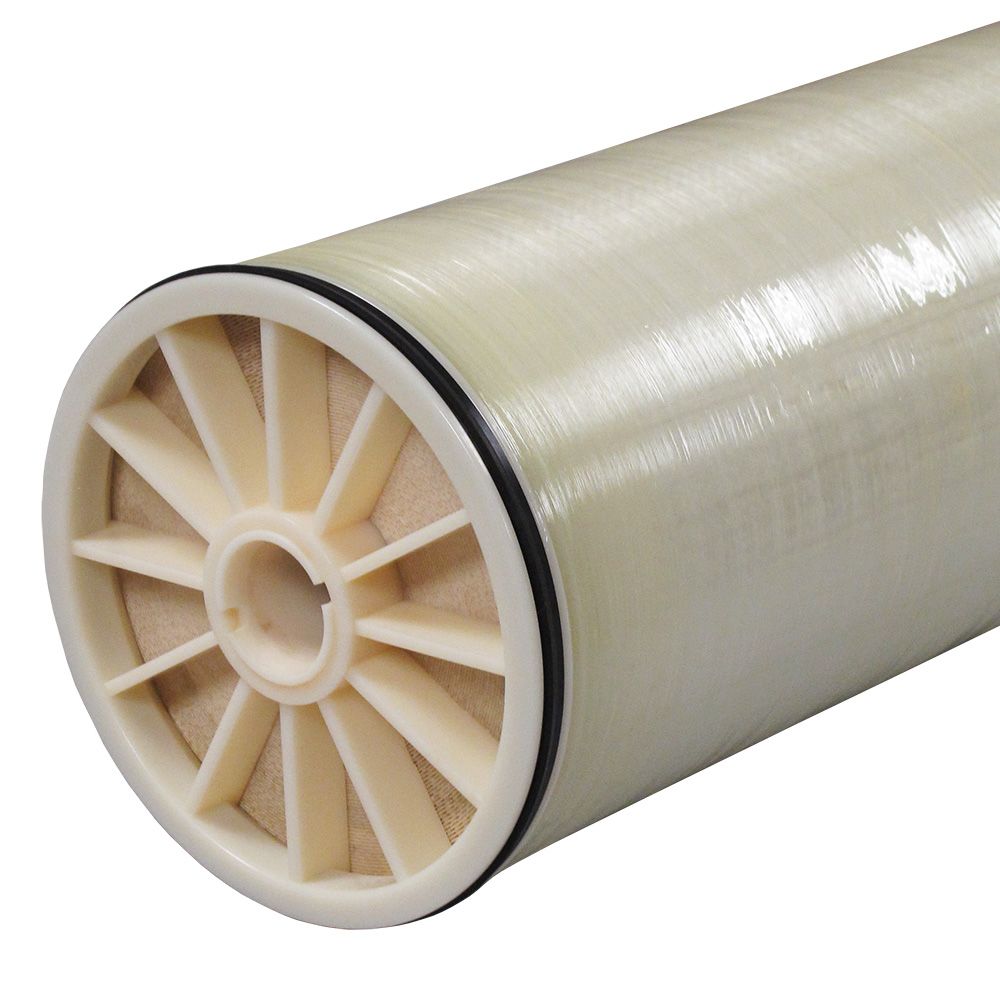

Toray TM720D-440 11300 gpd Brackish Water Membrane 8 x 40

The Toray TM720D-440 11300 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.
Specifications:

Permeate Flow Rate: 11300 gallons per day
Membrane Type: Polyamide Composite
Applied Pressure: 225 psi
Dimensions: 8" x 40"
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Tap Water, Brackish Water, Well Water, Surface Water

Compatible with:

Filmtec Membranes

BW30-440

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	440 sq. ft.
Average Nacl Rejection	0.99
Cleaning Ph Range	1-12
Direction	Outside - In
Feed Spacer Thickness	28 mil
Feed Water Concentration	2,000 mg/l Nacl
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Material Of Construction	Cross-Linked Polyamide
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	20 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Min Flow Rate	9,000 gpd (34.1m3 /d)
Minimum Salt Rejection Cl- (%)	0.99
Permeate Flow Rate	11,300 gpd (42.6)
Permeate Tube Diameter	1-1/8"
Ph Range	2-11
Recovery Rate	0.15
Sanitation And Sterilization	Hydrogen Peroxide @ 0.2% and 77° F (25°C) Formaldehyde at 0.5 - 3%
Stabilized Salt Rejection Cl- (%)	0.997
Diameter	8"
Origin	USA
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	40
