Titan Basement Submersible Sump Pump 1/3 HP - Vertical Float
This item is discontinued. We recommend the Titan Basement Submersible Sump Pump 1/3 HP - Tethered Float as a substitute.
Additional Specifications:
- Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance.
- Stainless steel hardware for long lasting durability.
- Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller.
- Thermoplastic vortex impeller designed for high lift and flow capacity.
- Carbon / ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage.
- Upper and lower NSK ball bearings for improved pump performance and extended operating life.
- Piggyback tethered float switch
- 1-1/2" or 1-1/4" NPT discharge.
- 10 foot power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection of the home and basement sump pump.
- Two Year Warranty
- To compare The Titan home and basement sump pump to the Zoeller 49, Little Giant ES33, and other submersible sump pumps see the main Sump Pump category.
Weight & Dimensions
Approx Height (Inches) | 11" |
Approx Length (Inches) | 11" |
Approx Width (Inches) | 7-3/4" |
Weight (lbs) | 12.3 |
Details
Flow Rate | 53.3 GPM |
Housing Material | Aluminum Die Casting/Thermoplastics |
Inlet/Outlet Connection | 1-1/4" FPT; 1-1/2" FPT |
Internal Component Material | Glass-filled Thermoplastic Impeller |
Liquid Temperature | 32-140 °F |
Max Head Pressure | 23 ft. |
Power | 1/3 hp |
Power Source | 10', 3-prong |
Size | 1-1/4"; 1-1/2" |
Voltage | 115VAC |
Warranty & Certifications
Warranty | 2 Years |

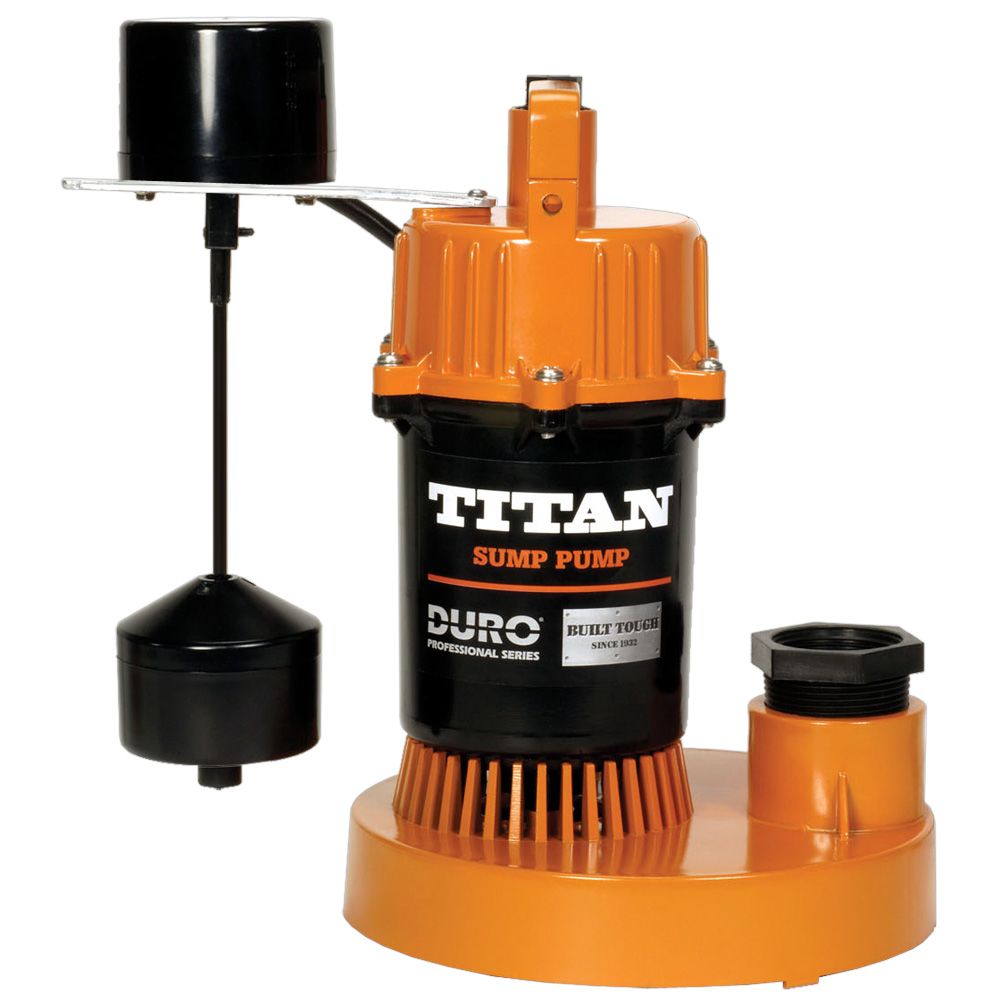

The Titan DSB250V Home and Basement Submersible Sump Pump is designed for quick and simple installation, easy maintenance and smooth operation. Since 1932 Titan Sump Pumps has one of the lowest failure rates . The DSB250V has a vertical float switch that controls the 1/3 HP pump which operates at a flow rate of 53.3GPM.
Additional Specifications:
- Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance.
- Stainless steel hardware for long lasting durability.
- Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller.
- Thermoplastic vortex impeller designed for high lift and flow capacity.
- Carbon / ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage.
- Upper and lower NSK ball bearings for improved pump performance and extended operating life.
- Piggyback tethered float switch
- 1-1/2" or 1-1/4" NPT discharge.
- 10 foot power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection of the home and basement sump pump.
- Two Year Warranty
- To compare The Titan home and basement sump pump to the Zoeller 49, Little Giant ES33, and other submersible sump pumps see the main Sump Pump category.
NOTE: This item is discontinued. We recommend the Titan Basement Submersible Sump Pump 1/3 HP - Tethered Float as a substitute.
Weight & Dimensions
Approx Height (Inches) | 11" |
Approx Length (Inches) | 11" |
Approx Width (Inches) | 7-3/4" |
Weight (lbs) | 12.3 |
Details
Flow Rate | 53.3 GPM |
Housing Material | Aluminum Die Casting/Thermoplastics |
Inlet/Outlet Connection | 1-1/4" FPT; 1-1/2" FPT |
Internal Component Material | Glass-filled Thermoplastic Impeller |
Liquid Temperature | 32-140 °F |
Max Head Pressure | 23 ft. |
Power | 1/3 hp |
Power Source | 10', 3-prong |
Size | 1-1/4"; 1-1/2" |
Voltage | 115VAC |
Warranty & Certifications
Warranty | 2 Years |
