Additional Specifications:
- Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance.
- Stainless steel hardware for long lasting durability.
- Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller.
- Thermoplastic vortex impeller designed for high lift and flow capacity.
- Carbon / ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage.
- Upper and lower NSK ball bearings for improved pump performance and extended operating life.
- Piggyback tethered float switch
- 1-1/2" or 1-1/4" NPT discharge.
- 10 foot power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection for your basement home sump pump.
- Two Year Warranty
- To compare The Titan home and basement sump pump to the Zoeller 49, Little Giant ES33, and other submersible sump pumps see the main Sump Pump category.
Weight & Dimensions
Approx Height (Inches) | 11" |
Approx Width (Inches) | 7-3/4" |
Weight (lbs) | 12.3 |
Details
Amps | 4.7 Amps |
Housing Material | Aluminum Die Casting/Thermoplastics |
Inlet/Outlet Connection | 1-1/4" FPT, 1-1/2" FPT |
Internal Component Material | Glass-filled Thermoplastic Impeller |
Liquid Temperature | 32-140 °F |
Max Head Pressure | 26 ft. |
Power | 1/2 hp |
Power Source | 10', 3-prong |
Size | 1-1/4", 1-1/2" |
Connection Type | Female (FPT) |
Flow Rate | 55.8 GPM |
Type | Sump Pump |
Voltage | 115VAC |
Warranty & Certifications
Warranty | 2 Years |

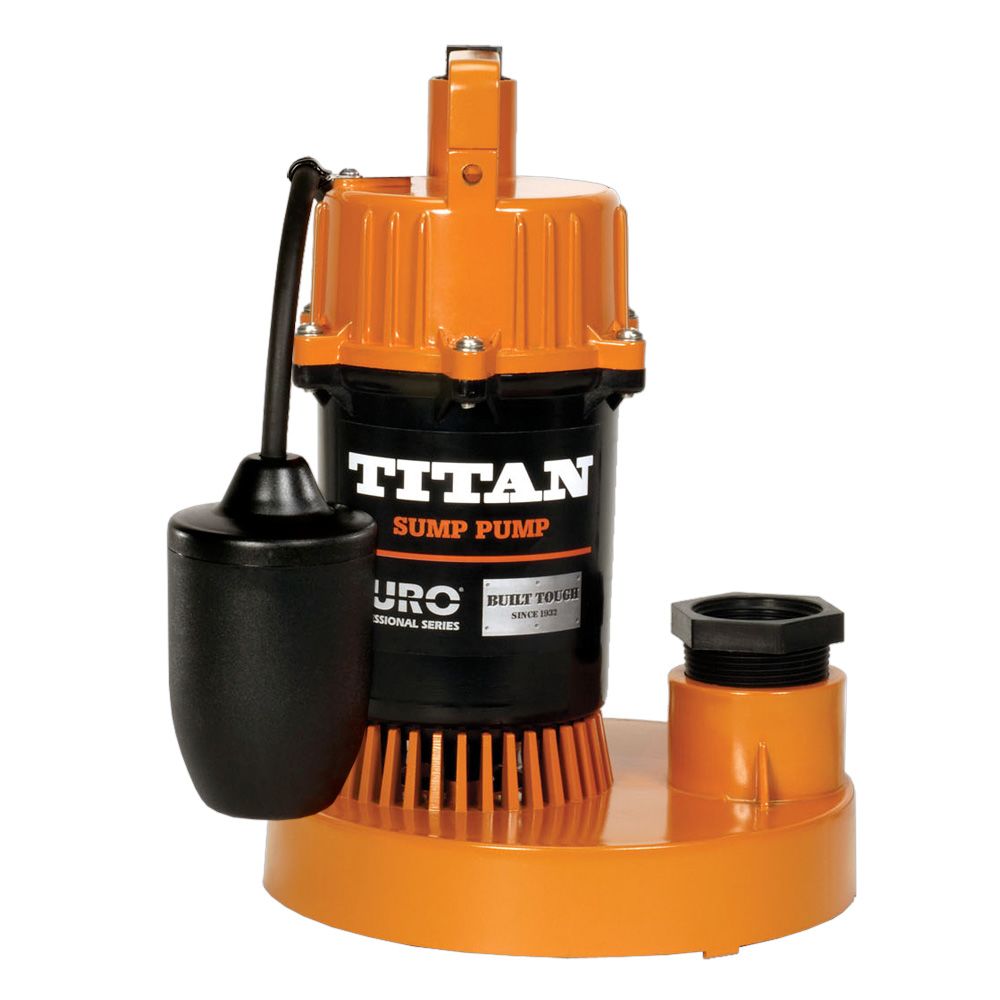

The Titan DSB370 Home and Basement Submersible Sump Pump is designed for quick and simple installation, easy maintenance and smooth operation. Since 1932 Titan Sump Pumps has one of the lowest failure rates . The DSB370 has a piggyback tethered float switch that controls the 1/2 HP pump which operates at a flow rate of 55.8GPM.
Additional Specifications:
- Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance.
- Stainless steel hardware for long lasting durability.
- Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller.
- Thermoplastic vortex impeller designed for high lift and flow capacity.
- Carbon / ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage.
- Upper and lower NSK ball bearings for improved pump performance and extended operating life.
- Piggyback tethered float switch
- 1-1/2" or 1-1/4" NPT discharge.
- 10 foot power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection for your basement home sump pump.
- Two Year Warranty
- To compare The Titan home and basement sump pump to the Zoeller 49, Little Giant ES33, and other submersible sump pumps see the main Sump Pump category.
NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.
Weight & Dimensions
Approx Height (Inches) | 11" |
Approx Width (Inches) | 7-3/4" |
Weight (lbs) | 12.3 |
Details
Amps | 4.7 Amps |
Housing Material | Aluminum Die Casting/Thermoplastics |
Inlet/Outlet Connection | 1-1/4" FPT, 1-1/2" FPT |
Internal Component Material | Glass-filled Thermoplastic Impeller |
Liquid Temperature | 32-140 °F |
Max Head Pressure | 26 ft. |
Power | 1/2 hp |
Power Source | 10', 3-prong |
Size | 1-1/4", 1-1/2" |
Connection Type | Female (FPT) |
Flow Rate | 55.8 GPM |
Type | Sump Pump |
Voltage | 115VAC |
Warranty & Certifications
Warranty | 2 Years |
