SUEZ

SUEZ Osmonics Desal AG8040F-400 10,500 GPD RO Membrane Element

Part Number: 1206784

Alt. Part Number: 3032518

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The SUEZ Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures  are desired.

Specifications:
  • High Flux and Excellent NaCL Rejection
  • Thin-Flim Reverse Osmosis Membrane Element
  • 10,500 Gallons Per Day
  • Dimensions: 8" x 40"
  • Male End Connections
  • Fiberglass Outer Wrap
  • 28 mil Feed Spacers
  • Operating Pressures as low as 200 PSIG

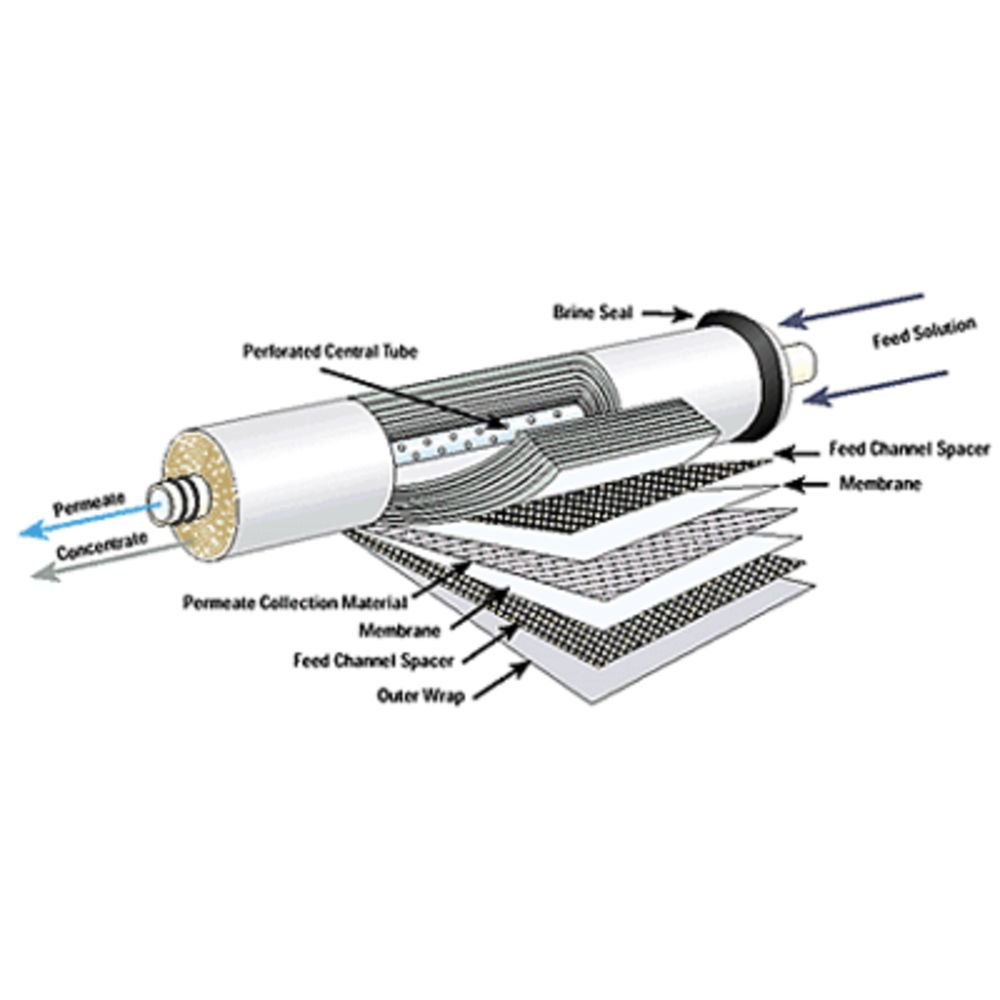

Element Membrane Diagram (not the encapsulated model):


Weight & Dimensions

Approx Length (Inches)

40"

Weight (lbs)

32

Details

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Cleaning Ph Range

2-11.5

Inlet Pressure

225 PSI

Inner/Outer Wraps

Fiberglass

Max Feed Silt Density Index

<3 Silt Density Index

Max Feed Water Turbidity

<1 Nephelometric Turbidity Units

Max Pressure Drop

10 PSI Differential

Max Pressure (Psi)

600

Max Temp (°F)

122

Ph Range

4-11

Diameter

7.88"

Flow Rate

10500 GPD


SUEZ




The SUEZ Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures  are desired.

Specifications:
  • High Flux and Excellent NaCL Rejection
  • Thin-Flim Reverse Osmosis Membrane Element
  • 10,500 Gallons Per Day
  • Dimensions: 8" x 40"
  • Male End Connections
  • Fiberglass Outer Wrap
  • 28 mil Feed Spacers
  • Operating Pressures as low as 200 PSIG


Element Membrane Diagram (not the encapsulated model):

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Length (Inches)

40"

Weight (lbs)

32

Details

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Cleaning Ph Range

2-11.5

Inlet Pressure

225 PSI

Inner/Outer Wraps

Fiberglass

Max Feed Silt Density Index

<3 Silt Density Index

Max Feed Water Turbidity

<1 Nephelometric Turbidity Units

Max Pressure Drop

10 PSI Differential

Max Pressure (Psi)

600

Max Temp (°F)

122

Ph Range

4-11

Diameter

7.88"

Flow Rate

10500 GPD
