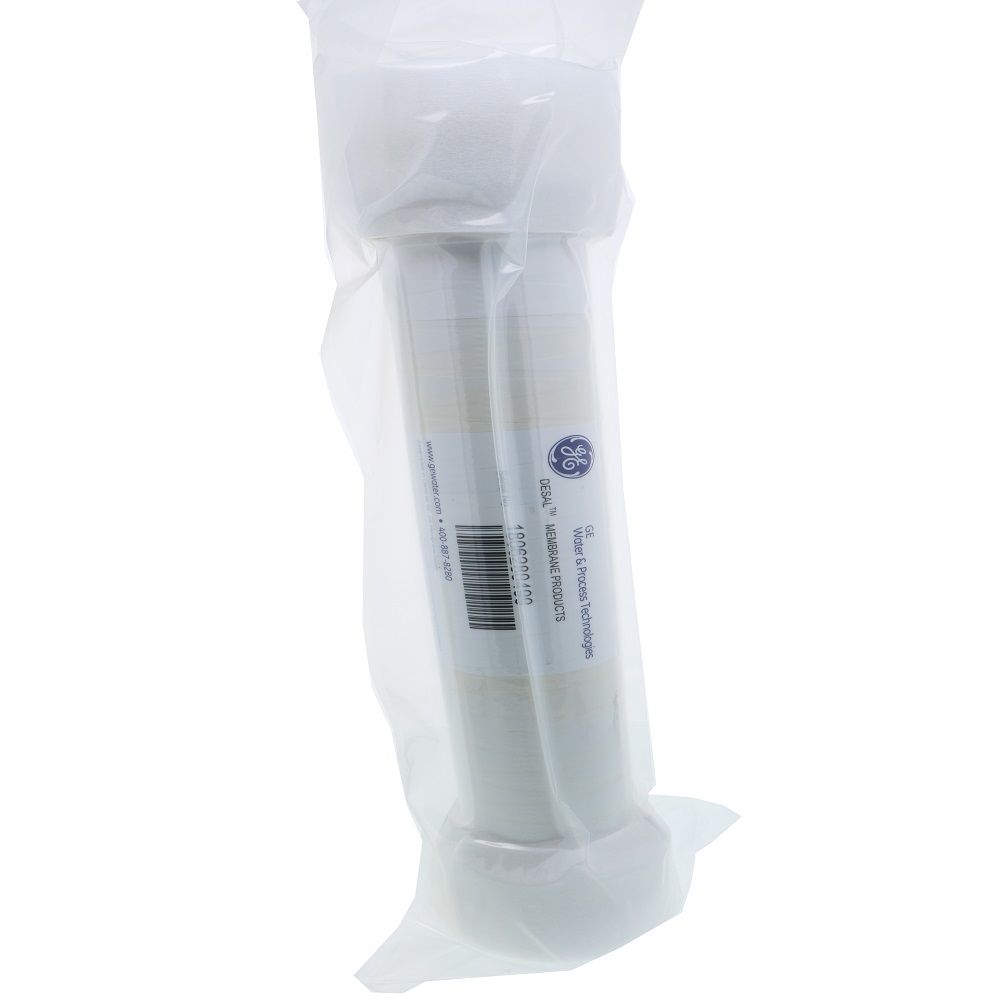

SUEZ Osmonics Desal AG3218TM 755 GPD RO Membrane Element
Part Number: 1206739
Alt. Part Number: AG3218TM, AG3218T
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- High Flux and Excellent NaCL Rejection
- Thin-Film Reverse Osmosis Membrane Element
- 755 Gallons Per Day
- Dimensions: 3.2" x 18"
- Male End Connections
- Tape Outer Wrap
- 28 mil Feed Spacers
- Operating Pressures as low as 200 PSIG
Element Membrane Diagram (not the encapsulated model):

Product Details | |
---|---|
Active Area | 29 sq. ft. |
Average Nacl Rejection | 0.99 |
Chlorine Tolerance | 1,000 ppm-hrs |
Direction | Outside - In |
Inlet Pressure | 200 PSI |
Inner/Outer Wraps | Tape |
Max Pressure (Psi) | 450psi |
Max Temp (°F) | 122 °F |
Membrane Type | Spiral Wound |
Permeate Tube Diameter | 3/4" |
Cartridge Style | Drop-in |
Diameter | 3.2" |
Shipping Dimensions | |
Shipping Length | 25.75 in. |
Shipping Width | 5 in. |
Shipping Height | 5.25 in. |
Product Weight & Dimensions | |
Product Height | 4.5 |
Product Length | 22.5 |
Product Width | 4.5 |
Product Weight (lbs) | 3.041 |
Specifications:
- High Flux and Excellent NaCL Rejection
- Thin-Film Reverse Osmosis Membrane Element
- 755 Gallons Per Day
- Dimensions: 3.2" x 18"
- Male End Connections
- Tape Outer Wrap
- 28 mil Feed Spacers
- Operating Pressures as low as 200 PSIG
Element Membrane Diagram (not the encapsulated model):

Product Details | |
---|---|
Active Area | 29 sq. ft. |
Average Nacl Rejection | 0.99 |
Chlorine Tolerance | 1,000 ppm-hrs |
Direction | Outside - In |
Inlet Pressure | 200 PSI |
Inner/Outer Wraps | Tape |
Max Pressure (Psi) | 450psi |
Max Temp (°F) | 122 °F |
Membrane Type | Spiral Wound |
Permeate Tube Diameter | 3/4" |
Cartridge Style | Drop-in |
Diameter | 3.2" |
Shipping Dimensions | |
Shipping Length | 25.75 in. |
Shipping Width | 5 in. |
Shipping Height | 5.25 in. |
Product Weight & Dimensions | |
Product Height | 4.5 |
Product Length | 22.5 |
Product Width | 4.5 |
Product Weight (lbs) | 3.041 |
