Veolia Osmonics Desal AK3218TM RO Membrane Element 700 GPD LP-DRY

The Veolia Osmonics Desal A-Series is a family of Thin-Film RO membrane elements that offer excellent sodium chloride rejection and high flux. They are an excellent choice for applications where the highest solute rejection is not needed, but a low operating pressure is desired. These elements offer significant energy savings since they can achieve good rejection at operating pressures as low as 100 psig.

Specifications:

High Flux and Excellent NaCL Rejection
Thin-Film Reverse Osmosis Membrane Element
700 Gallons Per Day
Dimensions: 3.2" x 18"
Male End Connections
Tape Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 200 PSIG

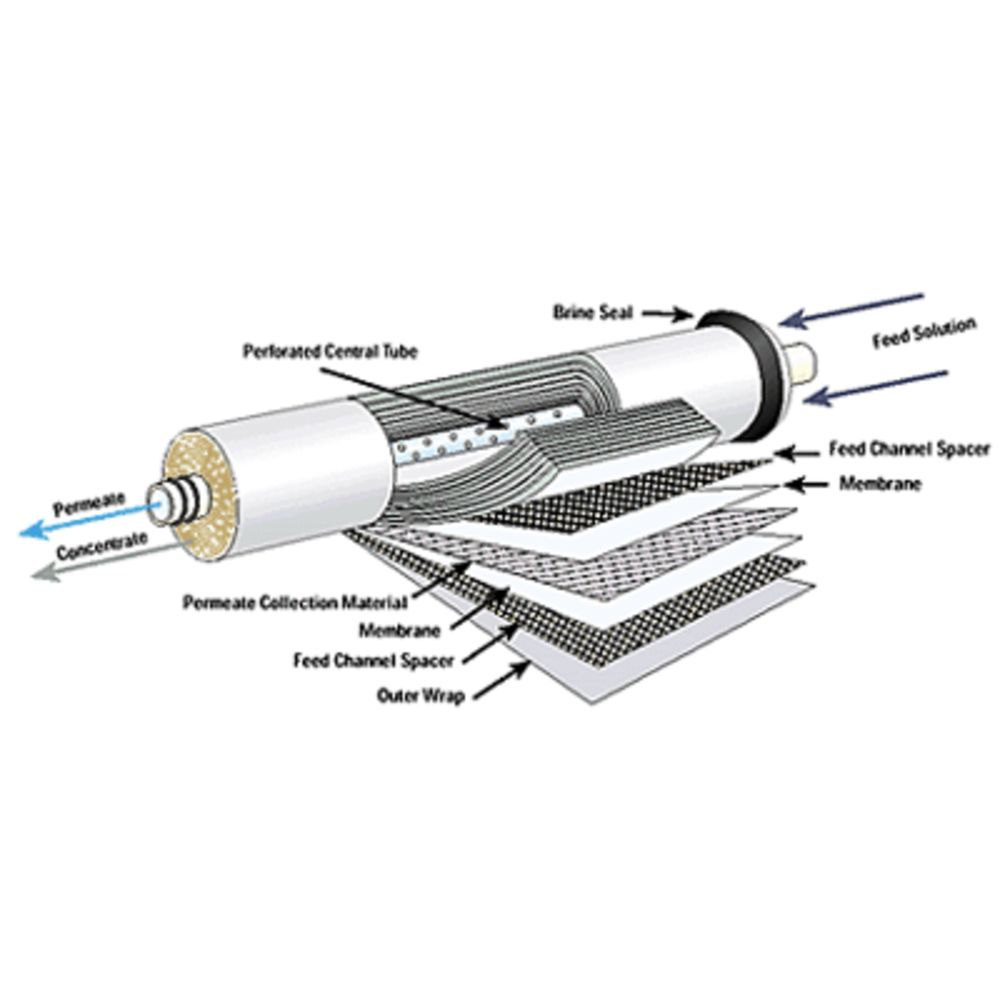

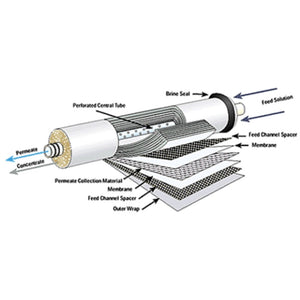

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	39 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	1-12
Direction	Outside - In
Feed Water Temperature	77°F
Inner/Outer Wraps	Tape
Max Feed Silt Density Index	<5 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure (Psi)	400psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Permeate Flow Rate	700 gpd (2.6)
Permeate Tube Diameter	3/4"
Ph Range	3-10
Recovery Rate	0.15
Cartridge Style	Drop-in
Diameter	3.2"
Shipping Dimensions
Shipping Length	25.75 in.
Shipping Width	5 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	22.125
Product Width	4.5
Product Weight (lbs)	3.064

Veolia Osmonics Desal AK3218TM RO Membrane Element 700 GPD LP-DRY Manual
