Sterilight SCMV-320 Cobalt Plus System w/UV Monitor NSF Class B 6.9 gpm

Part Number: SCMV-320

In Stock

out of stock

In Stock

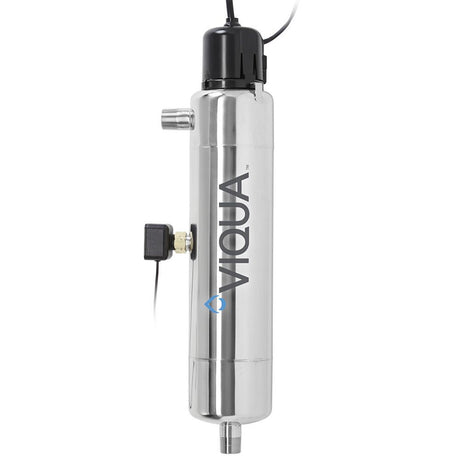

This item is discontinued. We recommend the Viqua D4-V Plus NSF Class B UV Water System Powered By UVMax 8.9 gpm...

The Sterilight SCMV-320 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Specifications:
  • NSF Standard 55 Class B Certified
  • Sterilum-HO UV lamps - high output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.




Weight & Dimensions

Weight (lbs)

16

Approx Length (Inches)

22.8"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

6.9 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Power

42 W

Size

3/4", 1"

Voltage

120 V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class B

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Sterilight

Sterilight




The Sterilight SCMV-320 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Specifications:
  • NSF Standard 55 Class B Certified
  • Sterilum-HO UV lamps - high output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.



NOTE: This item is discontinued. We recommend the Viqua D4-V Plus NSF Class B UV Water System Powered By UVMax 8.9 gpm as a substitute.

Weight & Dimensions

Weight (lbs)

16

Approx Length (Inches)

22.8"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

6.9 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Power

42 W

Size

3/4", 1"

Voltage

120 V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class B

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
