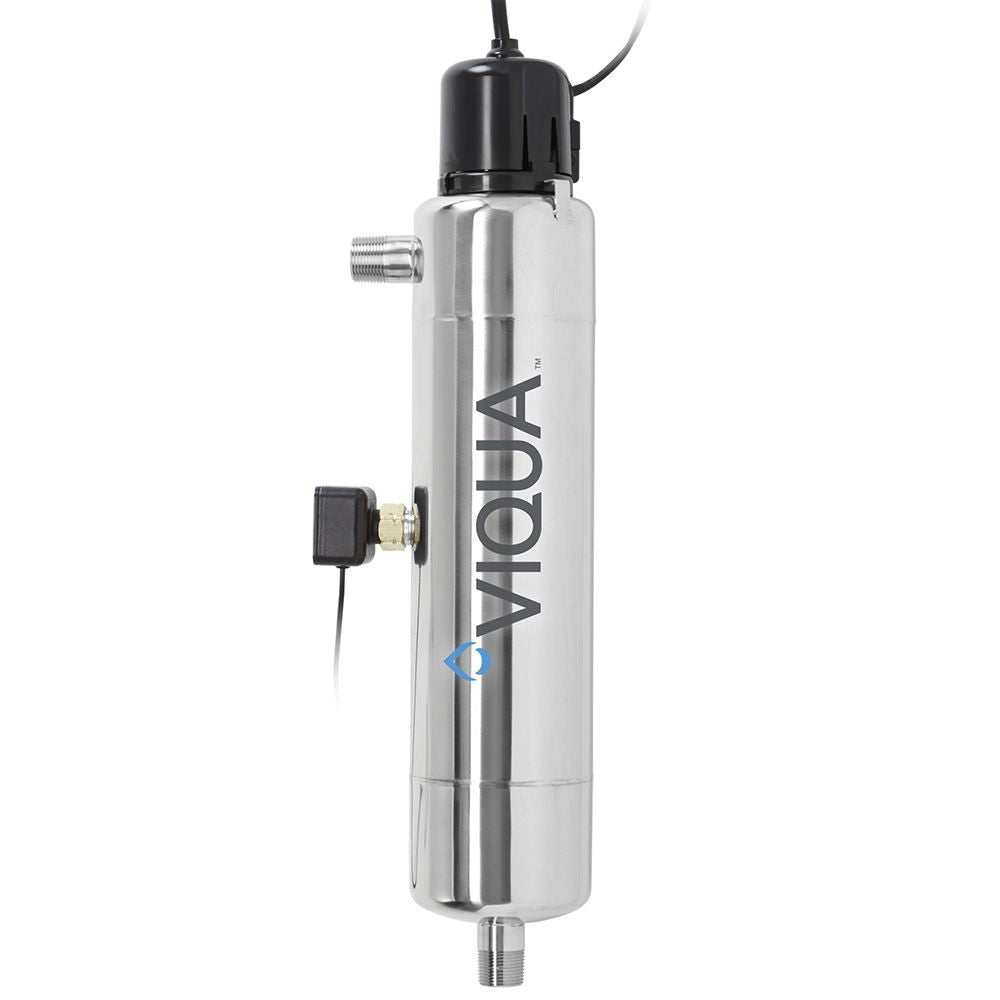

Viqua D4-V Plus NSF Class B UV Water System Powered By UVMax 8.9 gpm

Part Number: 660042-R

Alt. Part Number: SSMV-24

In Stock

out of stock

In Stock

$1,089.00


Viqua D4-V Plus disinfection water system is a whole house ultraviolet system that offers a 8.9 gpm flow rate and removes harmful bacteria, virus, and microorganisms. The Viqua D4-V Plus compact design, simple installation, and low cost of operation is ideal for small to medium size home. Drink confidently with Viqua's D4-V Plus high-output ultraviolet water purification system.

Features:
  • UV intensity monitor with diagnostic test
  • Viqua controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component
  • Lamp timer reset button and mute button to silence audio alarm
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
  • Three Year Warranty
  • Tested and certified by NSF International against NSF/ANSI Standard 55 for Disinfection Performance, Class B

NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm2) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm2) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602805 Trojan Lamp and the 602732 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for D4-V Plus includes:
  • Trojan Lamp (1): 602805
  • Trojan Quartz Sleeve (1): 602732
  • Trojan O-Rings (2): 2045


Weight & Dimensions

Approx Length (Inches)

20.5 Inches

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Flow Rate

8.9 Gallons Per Minute (16mJ/cm2 Dose)

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

125 PSI

Power

50 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards; NSF/ANSI Standard 55, Class B

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors


Viqua





Viqua D4-V Plus disinfection water system is a whole house ultraviolet system that offers a 8.9 gpm flow rate and removes harmful bacteria, virus, and microorganisms. The Viqua D4-V Plus compact design, simple installation, and low cost of operation is ideal for small to medium size home. Drink confidently with Viqua's D4-V Plus high-output ultraviolet water purification system.

Features:
  • UV intensity monitor with diagnostic test
  • Viqua controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component
  • Lamp timer reset button and mute button to silence audio alarm
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
  • Three Year Warranty
  • Tested and certified by NSF International against NSF/ANSI Standard 55 for Disinfection Performance, Class B

NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm2) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm2) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602805 Trojan Lamp and the 602732 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for D4-V Plus includes:
  • Trojan Lamp (1): 602805
  • Trojan Quartz Sleeve (1): 602732
  • Trojan O-Rings (2): 2045

Weight & Dimensions

Approx Length (Inches)

20.5 Inches

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Flow Rate

8.9 Gallons Per Minute (16mJ/cm2 Dose)

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

125 PSI

Power

50 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards; NSF/ANSI Standard 55, Class B

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
