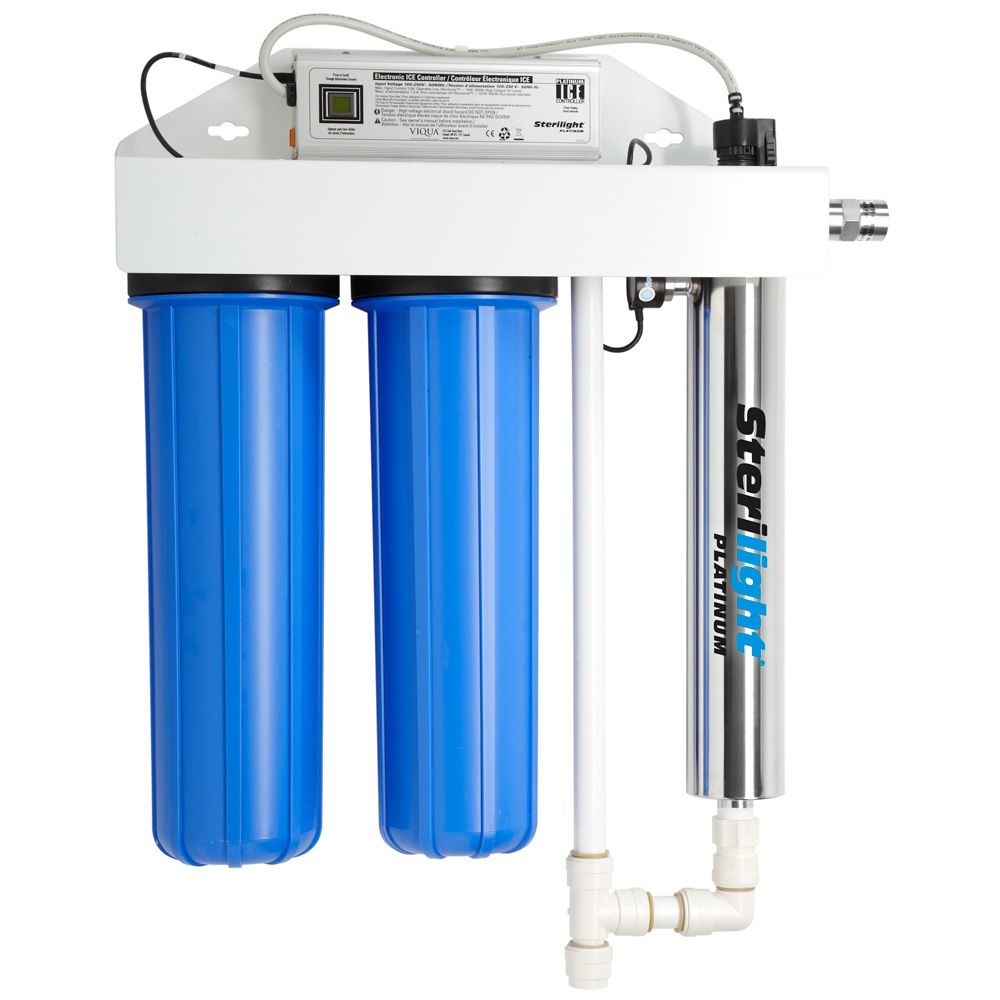

Sterilight Platinum SPV410-IHS22 Integrated Home System 5.9 gpm

Part Number: SPV410-IHS22

In Stock

out of stock

In Stock

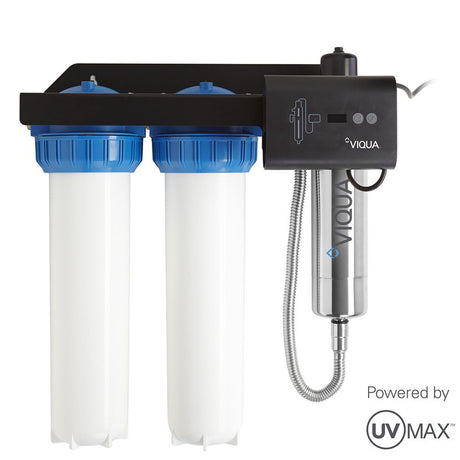

This item is discontinued. We recommend the Viqua IHS22-D4 UV Water Purification and Filter System Powered by UVMax as a substitute....

The Sterilight Platinum SPV410-IHS22 Integrated Home System is designed to ensure quality drinking water in any residential application. This system incorporates two 20" high flow housings with a Sterilight SPV-410 Platinum Series UV system to provide a comprehensive whole house solution. The system is monitored to ensure that the UV lamp is working properly, and alerts you if any maintenance is required.

Specifications:
  • The SPV-410 UV system used is NSF/ANSI Standard 55 Class A certified to operate at 5.9 gpm @ a 40 mJ/cm² UV dose
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow
  • Equipped with the Flow-Pace sensor which decreases the UV intensity when the system is not in use to conserve energy
  • Seven year warranty on reactor chamber for unparalleled protection
  • 316L stainless steel reactor chamber and flow restrictors
  • Comes complete with 20" high flow sediment and carbon prefilters to improve the taste and odor of your drinking water
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications

Features:
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.
Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.
Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
Water Quality Guidelines:
  • Iron: < 0.3 ppm (0.3 mg/L)
  • Manganese: <0.05 ppm (0.05 mg/L)
  • Hardness: < 7 gpg (120 mg/L)
  • Tannins: < 0.1 ppm (0.1 mg/L)
  • Turbidity: <1 NTU
  • UV Transmittance: > 75%




Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor, Lamp Timer, Flow Pacing - Sensor, Diagnostic Check, Dry Contacts, Flow Restrictor

Flow Rate

5.9 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

60 W

Size

3/4", 1"

Voltage

90 - 265V

Inlet/Outlet Connection

3/4" FPT, 1" MPT


Sterilight

Sterilight




The Sterilight Platinum SPV410-IHS22 Integrated Home System is designed to ensure quality drinking water in any residential application. This system incorporates two 20" high flow housings with a Sterilight SPV-410 Platinum Series UV system to provide a comprehensive whole house solution. The system is monitored to ensure that the UV lamp is working properly, and alerts you if any maintenance is required.

Specifications:
  • The SPV-410 UV system used is NSF/ANSI Standard 55 Class A certified to operate at 5.9 gpm @ a 40 mJ/cm² UV dose
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow
  • Equipped with the Flow-Pace sensor which decreases the UV intensity when the system is not in use to conserve energy
  • Seven year warranty on reactor chamber for unparalleled protection
  • 316L stainless steel reactor chamber and flow restrictors
  • Comes complete with 20" high flow sediment and carbon prefilters to improve the taste and odor of your drinking water
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications

Features:
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.
Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.
Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
Water Quality Guidelines:
  • Iron: < 0.3 ppm (0.3 mg/L)
  • Manganese: <0.05 ppm (0.05 mg/L)
  • Hardness: < 7 gpg (120 mg/L)
  • Tannins: < 0.1 ppm (0.1 mg/L)
  • Turbidity: <1 NTU
  • UV Transmittance: > 75%



NOTE: This item is discontinued. We recommend the Viqua IHS22-D4 UV Water Purification and Filter System Powered by UVMax as a substitute.

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor, Lamp Timer, Flow Pacing - Sensor, Diagnostic Check, Dry Contacts, Flow Restrictor

Flow Rate

5.9 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

60 W

Size

3/4", 1"

Voltage

90 - 265V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Documentation
