Stenner Pumps

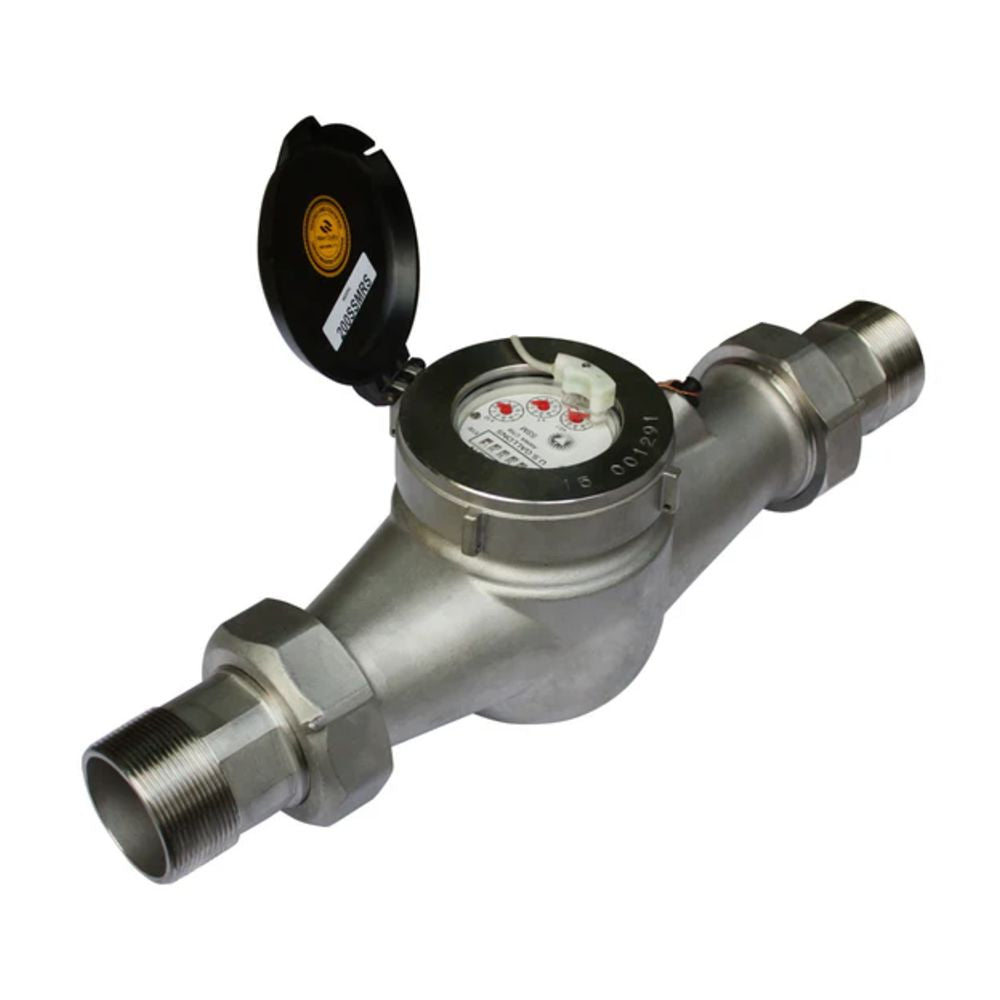

Stenner Stainless Steel Water Meter

Part Number: SSMRS20-1PPG
Product image 1
Your price:
Stainless Steel Flow Rates:
  • Continuous Flow: 80 gallons per minute
  • Flow Range: 2 – 160 gallons per minute
  • Pulses per Gallon: 1,2,4
* The size of the meter should be based upon continuous flow and gallons per minute as opposed to pipe size.


Specifications:

  • Accuracy: ±1.5% max. flow rate when operating between minimum and maximum flow range
  • Temperature Range: 35 -122°F (1.7 -50°C), protect the meter from freezing
  • Maximum Operating Pressure: 150 psi (10.3 bar)
  • Maximum Current: 20mA
  • Maximum Voltage: 24VDC or VAC
  • Sensor: Reed switch, dry contact type, normally open
  • Cable Length: 6 ft (2 m)

Materials of Construction:

  • Body: Stainless Steel
  • Internal: Engineered thermoplastic
  • Magnet: Alnico
