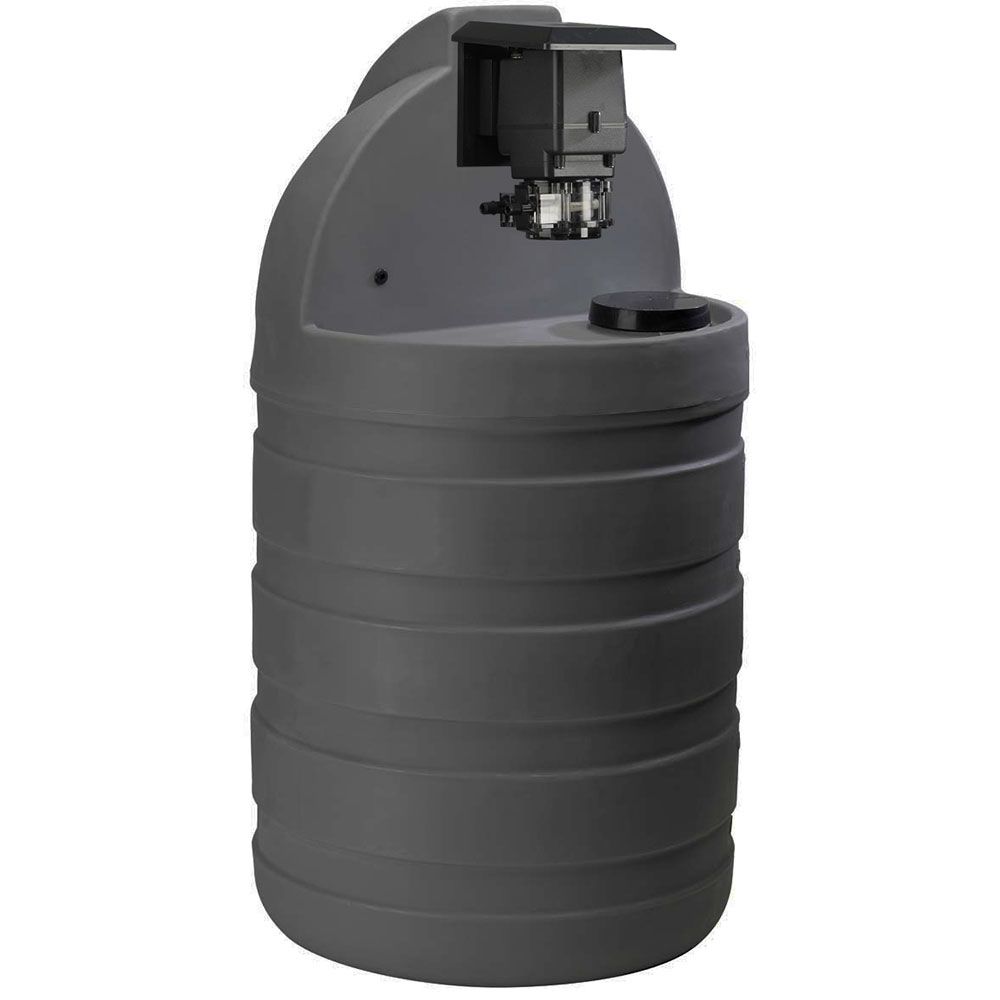

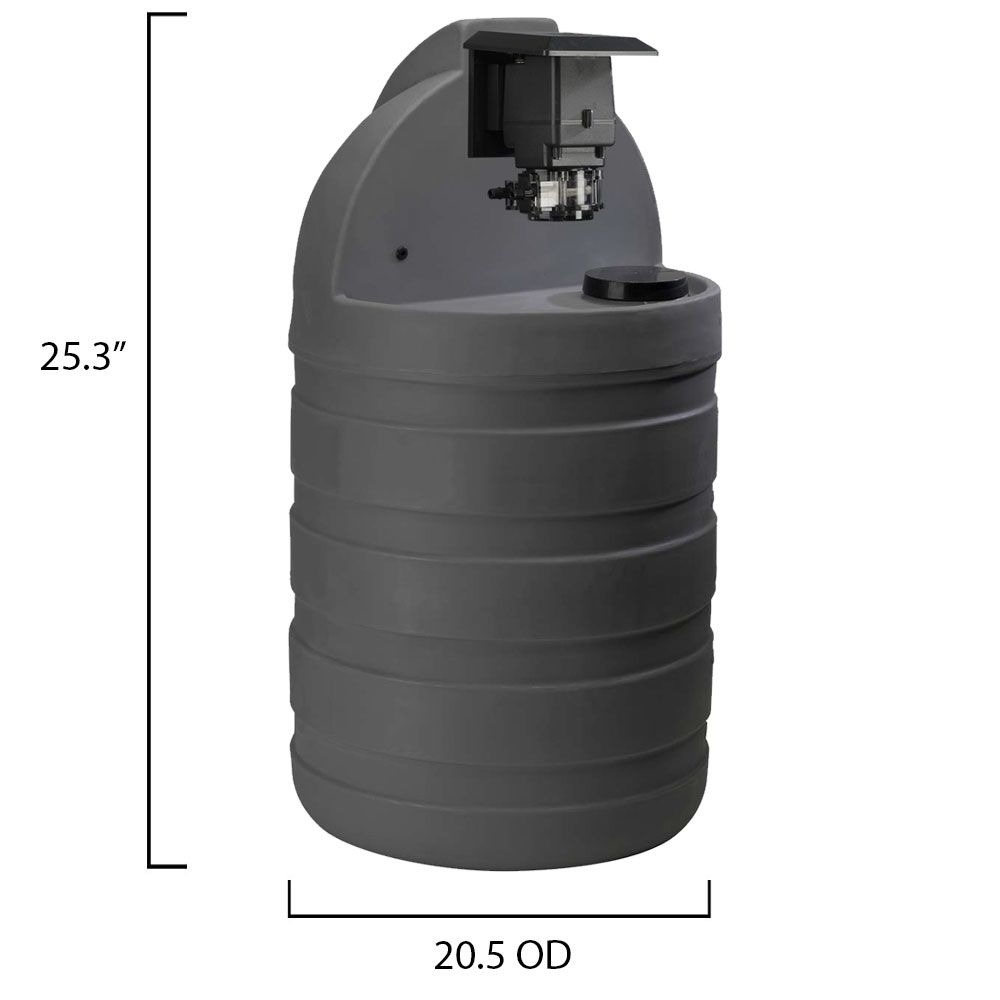

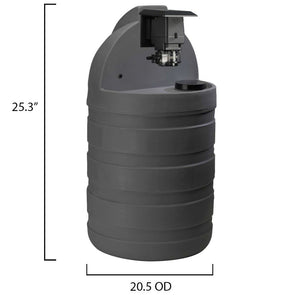

Stenner Single Head Fixed Output Pump with 30 Gallon Tank #1 Tube 3 GPD System

Name: Stenner Single Head Fixed Output Pump with 30 Gallon Tank #1 Tube 3 GPD System
Brand: Stenner Pumps
SKU: S3G45MFH1B2SUAA
Price: 738.42 USD
Availability: InStock

Part Number: S3G45MFH1B2SUAA

1 3

Stenner Pumps

Stenner Single Head Fixed Output Pump with 30 Gallon Tank #1 Tube 3 GPD System

Part Number: S3G45MFH1B2SUAA

MSRP: $1,036.53

$738.42

Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

Expected Ship Date: December 28, 2025

Product not eligible for free shipping

You May Also Need

Optional Accessory
Stenner Santoprene Replacement Pump Tube #1

Regular price From $37.55
Optional Accessory
Stenner Rain Roof for all Classic Pumps

Regular price $16.71
Optional Accessory
Stenner Pump Cover for Classic Series Adjustable 45 & 85 Pumps

Regular price $18.00
Optional Accessory
Stenner Classic Series Motor Service Kit for Classic Series Pumps 220V

Regular price $128.56
Optional Accessory
Stenner Check Valve, Santoprene Duckbill, ferrule 1/4 inch

Regular price From $18.80
Optional Accessory
Stenner UCFC5AD Main Shaft for Single Head Adjustable Rate Pumps

Regular price $39.55
Optional Accessory
Stenner Santoprene Check Valve Duckbill

Regular price From $12.36
Optional Accessory
Stenner Check Valve, Santoprene Duckbill, ferrule 3/8 inch

Regular price From $23.25

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

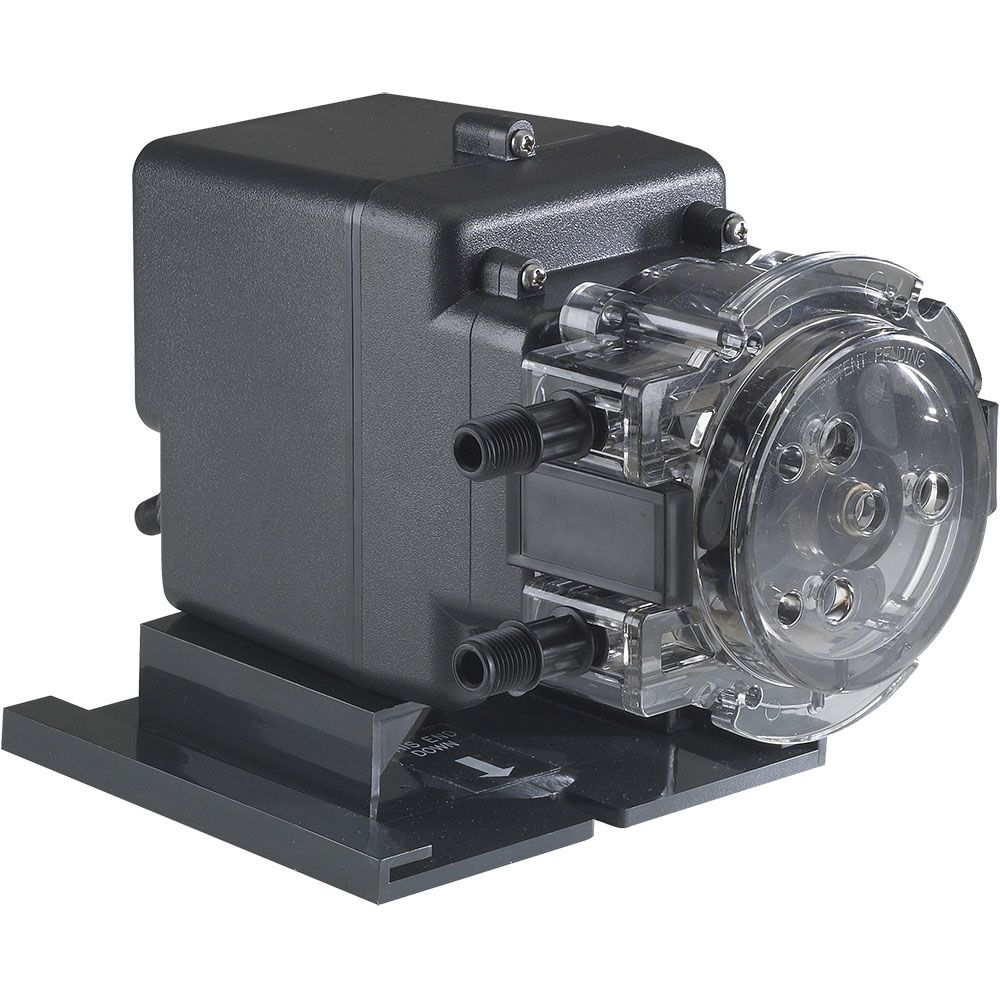

The Stenner S3G45MFH1B2S Single Head Fixed Output Pump with 30 gallon tank features the Stenner Classic 45MPHP2 Series peristaltic pump. These pumps remain the most popular pump with installers. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and is NSF 61 & 372 certified.

Features:

Stenner S3G45MFH1B2S Pumps are small but powerful. The Stenner S3G45MHF1B2S can be utilized for proportional dosing.
Stenner S3G45MFH1B2S 30-Gallon Tank is safe and UV resistant.
The Stenner S3G45MFH1B2S 30-Gallon Tank is a gray UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene, which is critical for potable water.
Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4" UV Black), 1 additional pump tube, and manual.

Additional Specifications:

Pump Capacity: 3 gpd
Max Temperature: 104°F
Cord Length: 10 foot cord
Tube Material: Santoprene
Tank Material: Polyethylene
Working Pressure: 26-100 psi
Electrical: 220V / 60Hz
Classic Series: Classic 45MPHP2 Single head fixed output
Tank Certification: NSF 61 & 372 approved

Specifications

Product Details
Ambient Temperature Range	Max 125 °F
Amps	0.17 Amps
Housing Material	PC (pump), HDPE (tank)
Motor Rpm	26 RPM
Pump Max Flow Rate (Gpm)	3
Pump Max Pressure (Psi)	100
Series	45
Size	Tube #1
Suction Lift	Self prime up to 25 ft.
Voltage Type	AC
Sub-Type	Chemical Injecting System
Type	Single Head Pump
Voltage	220VAC
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	23 in.
Shipping Height	38 in.
Product Weight & Dimensions
Product Weight (lbs)	32

Downloads

Stenner Single Head Fixed Output Pump with 30 Gallon Tank #1 Tube 3 GPD System Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

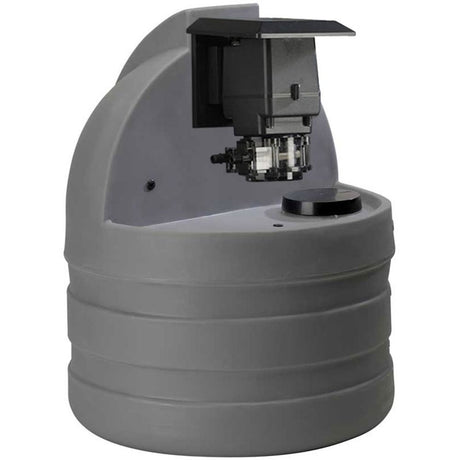

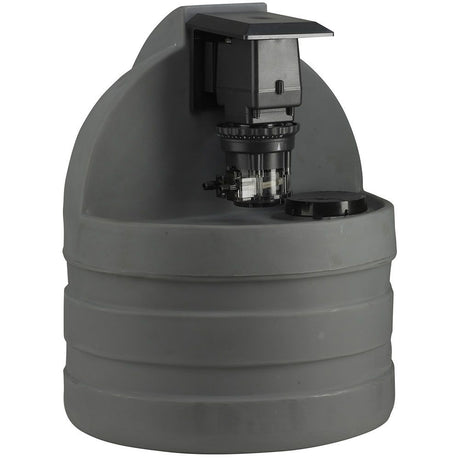

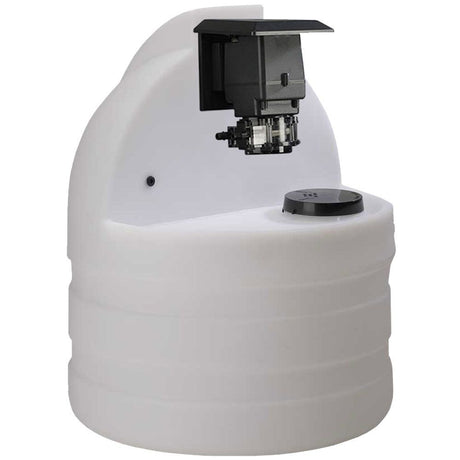

Facet	Stenner Pumps Stenner Single Head Fixed Output Pump with 30 Gallon Tank #1 Tube 3 GPD System Regular price $738.42 Part #: S3G45MFH1B2SUAA Current Product	Stenner Pumps Stenner Single Head Fixed Output Pump with 15 Gallon Tank #1 Tube 3 GPD System 5.0 Regular price $681.99 Very low stock Part #: S1G45MFL1A2SUAA View details	Stenner Pumps Stenner Single Head Adjustable Pump with 15 Gallon Tank #1 Tube 0.2 - 3 GPD System Regular price $801.81 Part #: S1G45MJH1B2STAA View details	Stenner Pumps Stenner Single Head Fixed Output Pump with 15 Gallon Tank #1 Tube 3.0 GPD System Regular price $681.99 Very low stock Part #: S1N45MFL1A1SUAA View details
