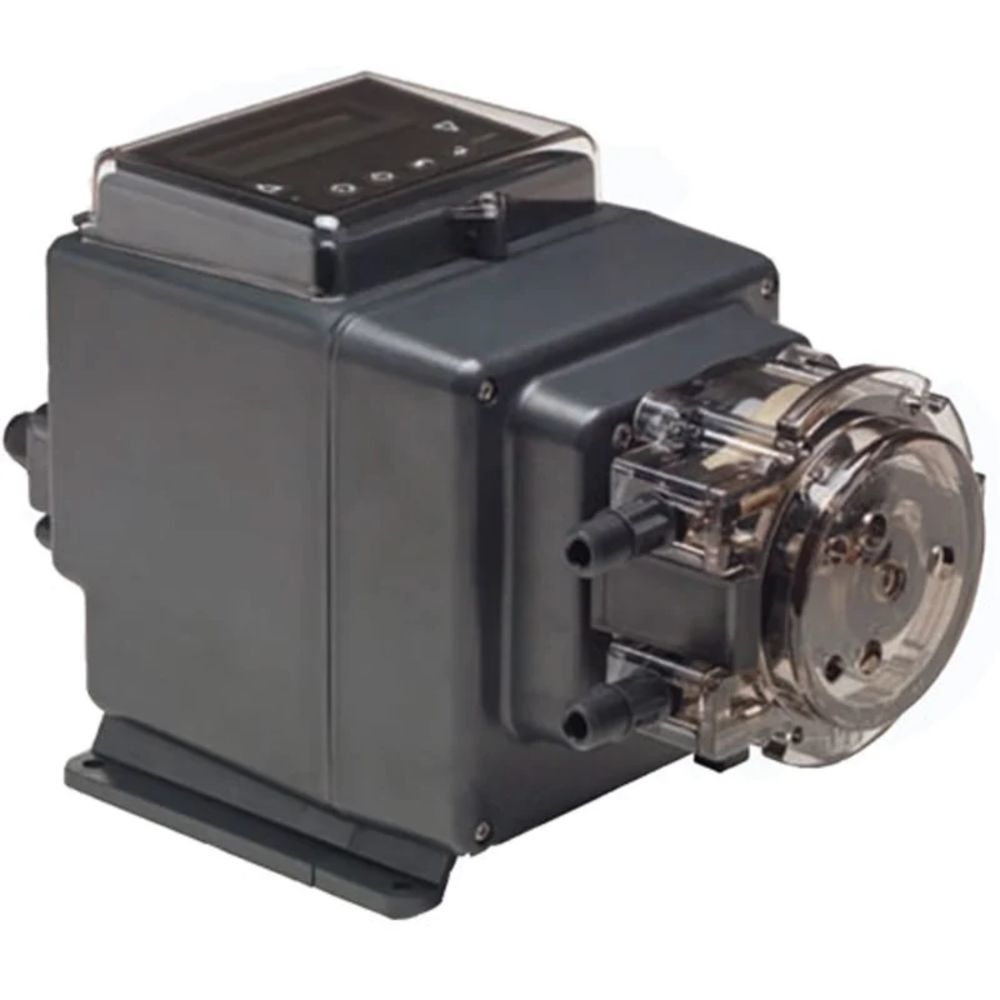

The S Series metering pump is designed for demanding applications with a robust totally enclosed housing, built to the NEMA 4X standard. The pump has backup capability to seamlessly transfer operation from the primary to a backup pump when needed. With the OLED display on the control panel and the programmable output relays, an operator can monitor the performance status of the pump. The password protection prevents unauthorized access to the programmed settings. The pump interfaces with process control systems utilizing a 4-20mA output signal and three programmable output relays. Applications include but are not limited to return wastewater treatment, additive injection in a manufacturing process, liquid biocide injection in cooling towers. Program the pump for your application with the digital keypad. Select from nine modes of operation and several pump status indicators.
Specifications:

• Maximum Working Pressure: 100 psi

• Maximum Operating Temperature: 125°F

Accessories Included:

• 3 Connecting Nuts 1/4" & 3 Ferrules 1/4" or 6 mm Europe or 3 Connecting Nuts & 2 Adapters 3/8"

• 1 Duckbill Check Valve 100 psi (6.9 bar) max.

• 1 Weighted Suction Line Strainer 1/4", 3/8" or 6 mm

• 20' Suction/Discharge Tubing 1/4" or 3/8", white or UV black or 20' Suction/Discharge Tubing, white, 6 mm

• Additional Pump Tube

• 2 Additional Latches

• 1 Mounting Bracket


• 1 Quick Start Guide
