Stenner Pumps

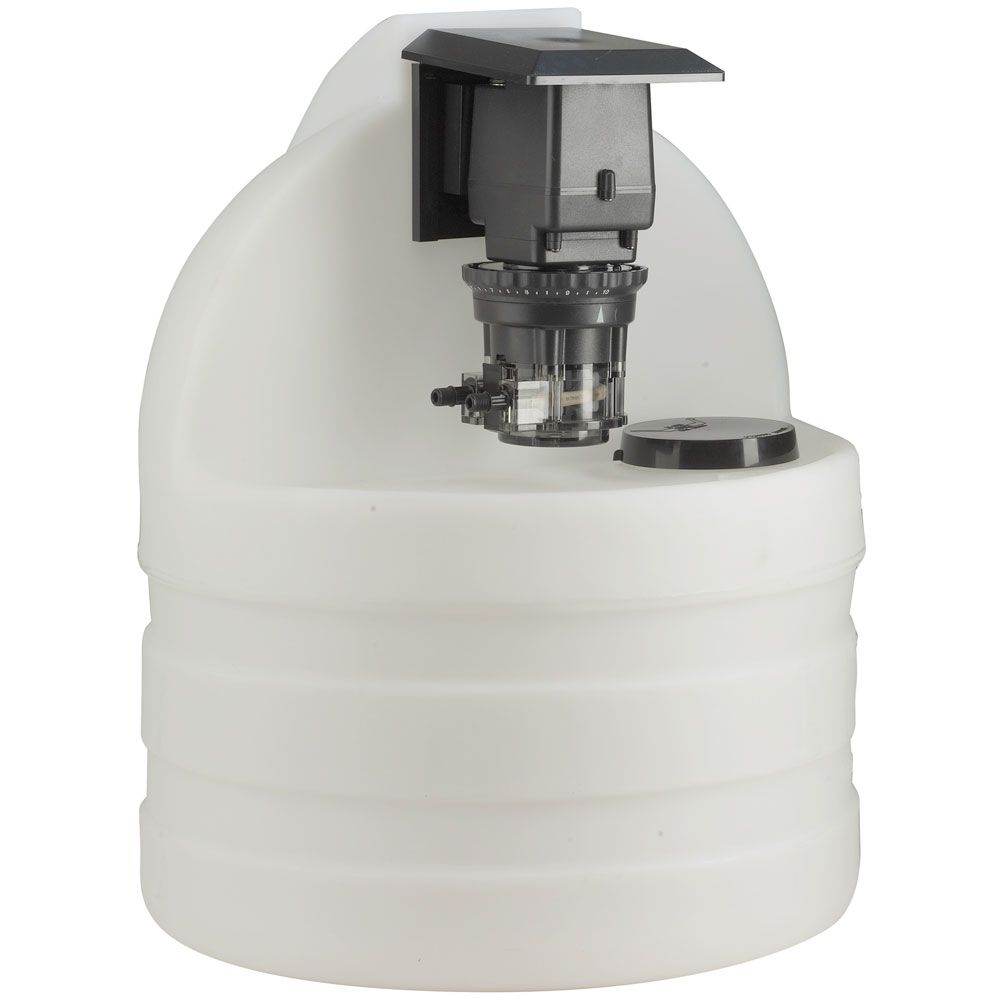

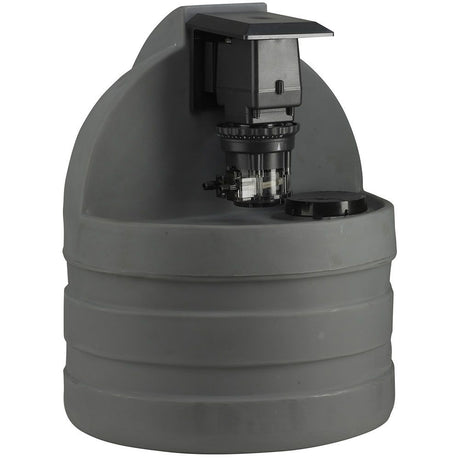

Stenner Single Head Adjustable Pump with 15 Gallon Tank #1 Tube 0.2 - 3 GPD System - 120 volt

Part Number: S1N45MJH1A1S

In Stock

out of stock

In Stock

$526.99


    Stenner S1N45MJH1A1S single head adjustable pump system is perfect for accurate and repeat injection of chemicals or liquid. This pump is built with three detachable components: the motor, feed rate control and pump head. All Stenner pumps have a 3-point roller design in the pump head, which acts as check valve to prevent back flow or loss of prime. The motor rotates at a fixed RPM which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump head. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self-priming feature that delivers a constant flow unaffected by the outlet. This system comes pre-assembled for quick and easy installation.
    Features:
    • Tube Size: #1
    • Stenner Pump System includes:
    • 45MHP2 Series Adjustable Stenner Pump
    • 15 gallon tank system
    • Accessory kit
    Specifications:

    Pump
    • Series: 45MH1 Series Classic Single Head Adjustable Pump
    • Pump Capacity: 0.2 to 3 gpd
    • Suction and Discharge Tubing: 1/4" Santoprene
    • Connections: 1/4" ferrule
    • Max Working Pressure: 100 psi
    • Max Temperature: 125°F
    • Housing Material: Polycarbonate
    • Tube Material: Santoprene
    • Pump Head Rollers: HDPE
    • Self-priming, can run dry without damage
    • UL Listed

    Tank
    • Capacity: 15 gallons
    • Tank Material: Polyethylene
    • Grommets: Viton
    • Screws: Stainless steel
    • Childproof Lid: Polypropylene
    • Color: Translucent white
    • Includes rain roof to protect motor
    • NSF 61 certified

    Accessory Kit
    • 1/4" connecting nuts (3)
    • 1/4" ferrules (3)
    • Injection check valve 100 psi
    • 1/4" weighted suction line strainer
    • 20' roll suction/discharge tubing 1/4"
    • Additional pump tube
    • Additional Latches (2)
    • Mounting bracket
    • Manual


    Weight & Dimensions

    Approx Height (Inches)

    6.0 Inches

    Approx Length (Inches)

    10.6 Inches

    Approx Width (Inches)

    5.3 Inches

    Details

    Ambient Temperature Range

    Up to 125 Degrees Fahrenheit

    Amps

    0.17 Amps

    Flow Rate

    0.2-3 GPD

    Housing Material

    PC (pump), HDPE (tank)

    Max Operating Pressure

    100 PSI

    Type

    Peristaltic

    Valve Type

    Santoprene

    Voltage

    120VAC

    Motor Rpm

    26 Rotations Per Minute

    Suction Lift

    25 ft Max

    Warranty & Certifications

    Certifications

    UL Listed


    Stenner

    Stenner

    Stenner
