Stenner Pumps

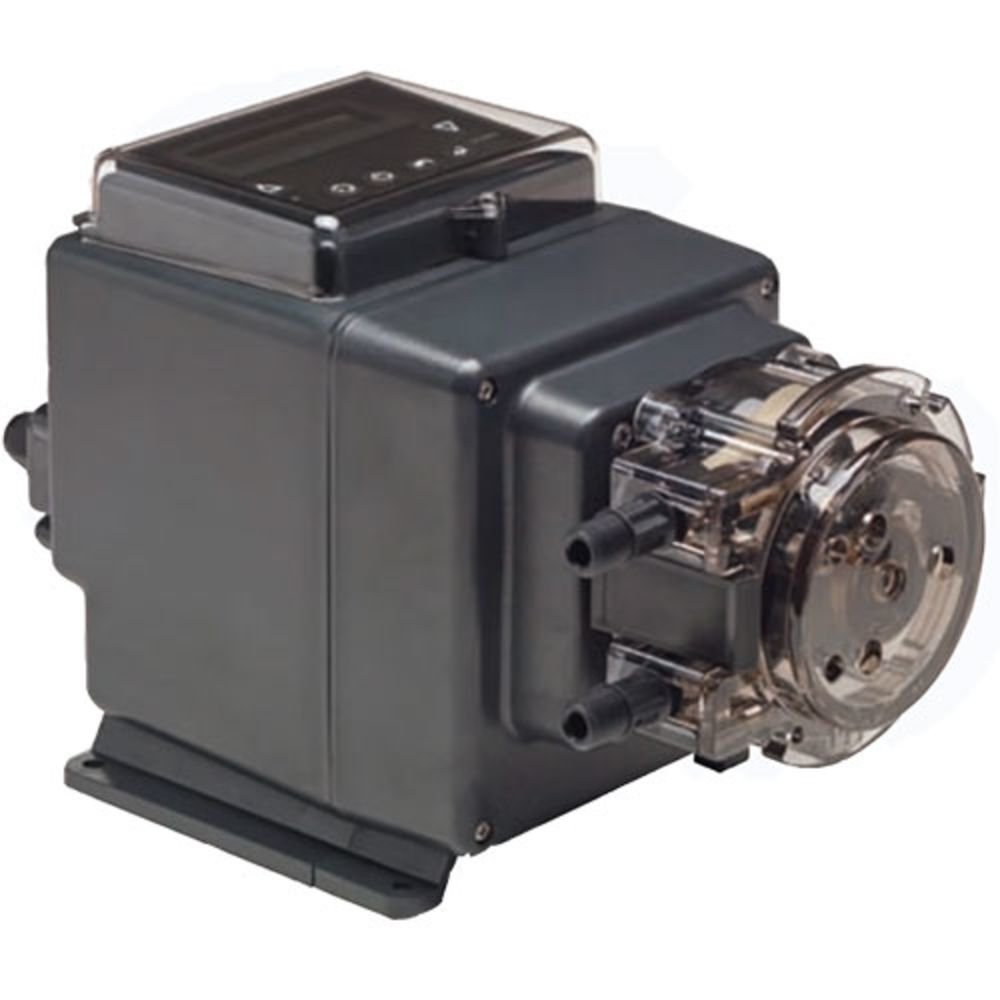

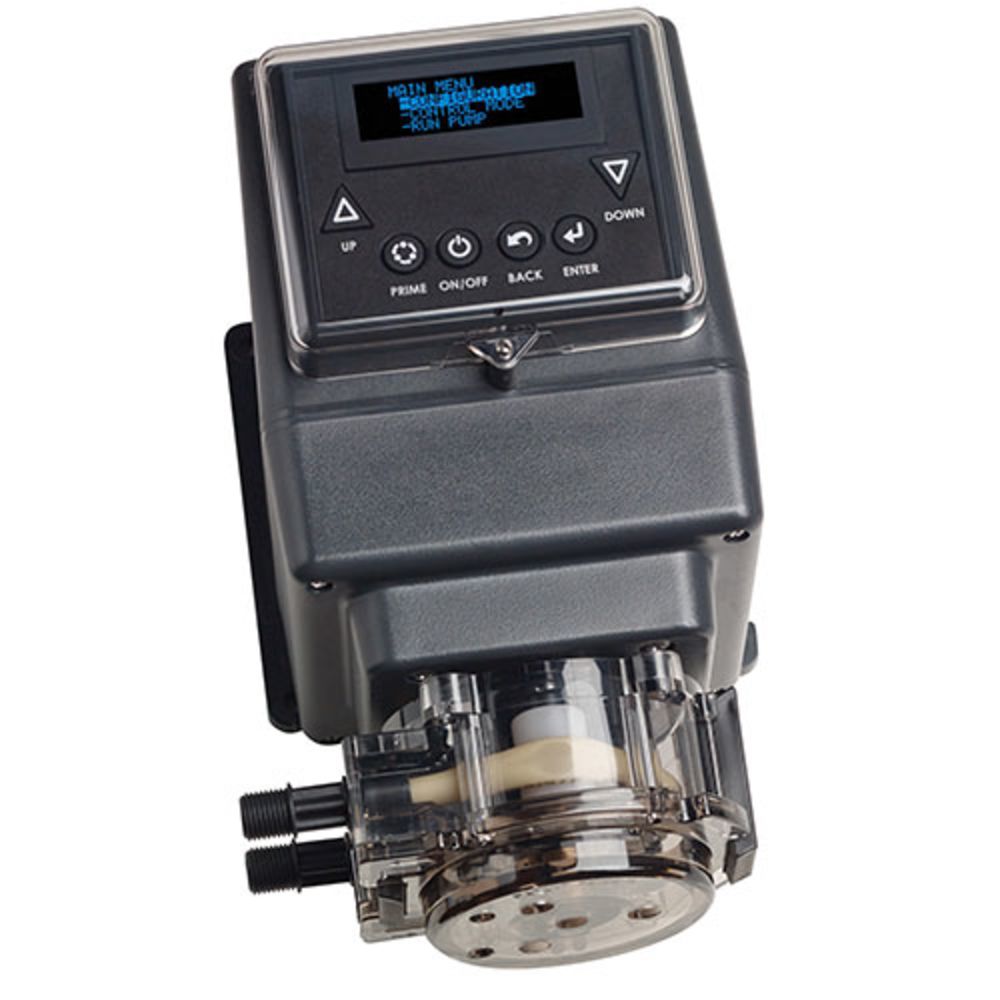

STENNER S-Series Programmable Output Pump 40 GPD #7 120V, 1/4" UV Black

Part Number: S3007AA201N

In Stock

out of stock

In Stock

$824.47


The S Series Variable Speed Pump is an advanced peristaltic metering pump designed to interface with process control systems. The S3002 prevents unauthorized access to programmed settings because of password protection. This programmable pump features a transfer function that will activate a relay to start a back-up S Series pump. The S Series pumps can be programmed to respond based on a selected pump condition such as tube leak, tube change, standby, repeat pulse, run, mode change, low or high signal, low or high flow, drive fault, signal overrun, transfer and off.

Application:
The totally enclosed pump is outdoor rated and built to NEMA 4X for demanding applications. Additional agency listings include NSF 61 & 372, cULus indoor/outdoor; CE IP65 is also available with selected voltages. The brushless DC motor is equipped with ball bearing support and the switch power mode offers energy efficiency. The splined shaft designed pump head and roller assembly allow smooth installation and replacement. Tube replacement is fast and easy with the patent pending QuickPro® pump head.
Features:
  • Treatment of return wastewater before it can be processed for further usage
  • Injection of liquid biocides in cooling towers for prevention of Legionnaires disease
  • Corrosion, scale, and algae control on plumbing fixtures and water supply equipment
  • Metering additives specific to a manufacturing process
  • pH control for process water or metal plating discharge water
Specifications:
  • Max Pressure: 100 PSI
  •  Electrical: 120V/ 60HzElectrical: 120V/ 60Hz
  •  Flow: 40 GPD Connection
  •  Tubing: #7 tube, 1/4" BlackTube
  •  Material: Santoprene®Maximum
  •  Operating Temperature: 104° F (40° C)
  •  Compatible Pump Series: Classic & S Series
  •  Includes: Santoprene pump tube, duckbill, and 1/4" Ferrules


Weight & Dimensions

Approx Height (Inches)

7.2 Inches

Approx Length (Inches)

11 Inches

Approx Weight

9 Lbs

Approx Width (Inches)

5.9 Inches

Details

Ambient Temperature Range

Up to 104 Degrees Fahrenheit

Amps

0.6 Amps

Flow Rate

40 GPD

Housing Material

Polycarbonate

Max Operating Pressure

100 PSI

Outlet Size

1/4"

Type

Variable Speed Booster, Peristaltic

Valve Type

Santoprene

Voltage

120VAC

Power Source

120V 60Hz: SJTOWA

Motor Rpm

45 Rotations Per Minute

Suction Lift

25 ft Max


STENNER

STENNER

STENNER
