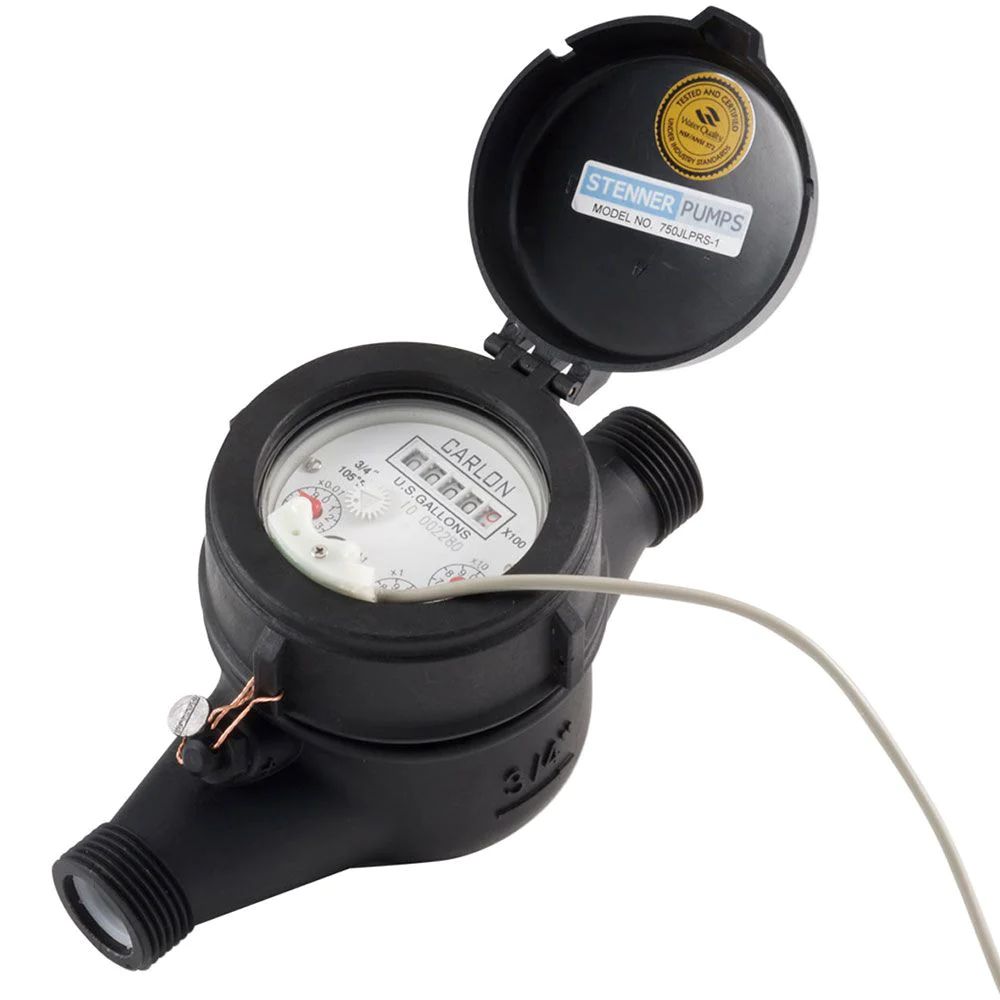

The Stenner JLP0750-10PPG is an extremely durable and inexpensive plastic water meter. This 3/4" meter utilizes a reed switch that provides a pulsing dry contact signal. A signal is sent by the meter to actuate the pump to dose according to the water volume. This 10 pulse-per-gallon (PPG) water meter features a cable length of 6 feet. It is best to choose the meter size based on the continuous flow rate and not the pipe size.

Extends The Life of Your Pump. The Stenner JLP0750-10PPG contains a reed switch for dry contact signal for sensing when the water meter will open and close based on water volume. This helps to extend the the life of your pump.

Easy Installation. The Stenner JLP0750-10PPG 3/4" Water Meter is made for easy and convenient installation for mounting to a wall or other fixture.

WQA Certified. This product is certified to meet NSF/ANSI 372 criteria for low-lead content. WQA's Gold Seal Product Certification Program ensures that the product is constructed or formulated from safe materials, the claims listed on the packaging are backed by test data, and the product will hold up under normal usage conditions.


Additional Specifications:

• Thread size: 3/4" MPT
• Accuracy: ±2%
• Max Temperature: 122° F
• Max Pressure: 150 PSI
• Flow Rate: 0.25 to 22 GPM
• Max Current: 20mA
• Max Voltage: 24VDC or VAC
• Cable Length: 6 ft (2m) standard
• Body Material: Nylon
• Internal Material: Thermoplastic
• Magnet: Alnico
