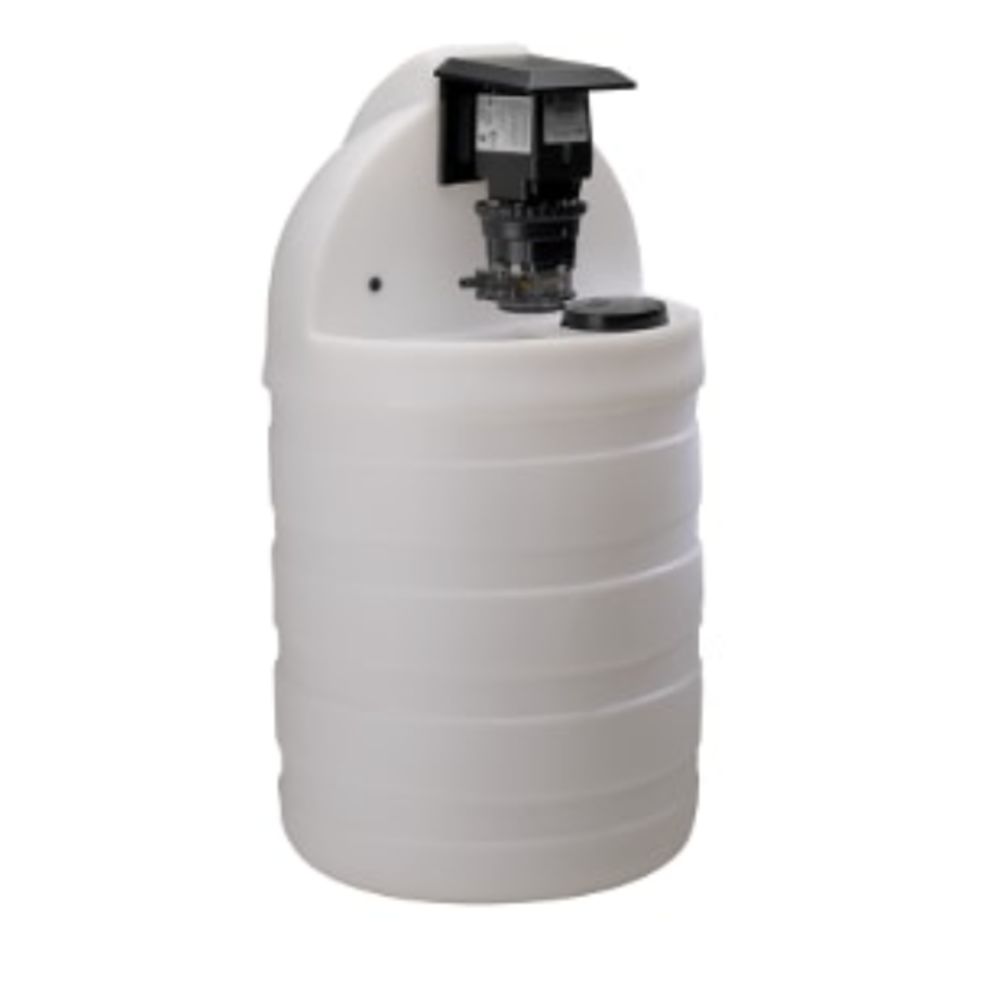

The Stenner Econ T Series S3NE20T4G81S Pump and Tank System is intended for use with indoor or outdoor applications that require timed injection. This system offers flexible scheduling and automatic dosing control. Solutions do not come in contact with the pump's moving parts and are injected through a food grade peristaltic tube.

The Stenner Econ T Series S3NE20T4G81S Pump and Tank System can be utilized for livestock water treatment or any light duty applications requiring a dosing schedule.

• Continuous delivery of live vaccines; no water consumption calculations necessary.
• Scheduled Injection for scale and algae control for evaporative cooling cells.
• Repeatable chemical dosing for effective poultry hatchery dip tank disinfection.

Benefits:

• Preassembled: The pump is shipped pre-mounted to the solution tank to save time and money on installations.
• Easy Maintenance: Pump head requires no valves, allows for easy maintenance.
• Self-priming: Self-Priming against maximum working pressure, foot valve not required.
• Quick Release Pump Head: Almost effortless tube replacement with patented quick release pump head.

How Timed Injection Works:

• There are 24 independent programmable on and off events within a 7 day period. The minimum is 1 minute up to a maximum of 23 hours and 59 minutes within each programmed event. Each event can be programmed for a specific ON time and a specific OFF time in increments by hour and minute.
• The control panel with an LCD display has a programmable clock using a 24 hour format and a battery backup to maintain the internal time and programmed event settings. The display indicators represent the days of the week, operating mode and the events.
• During operation, the panel displays the current day, time and mode of operation.

System Includes:

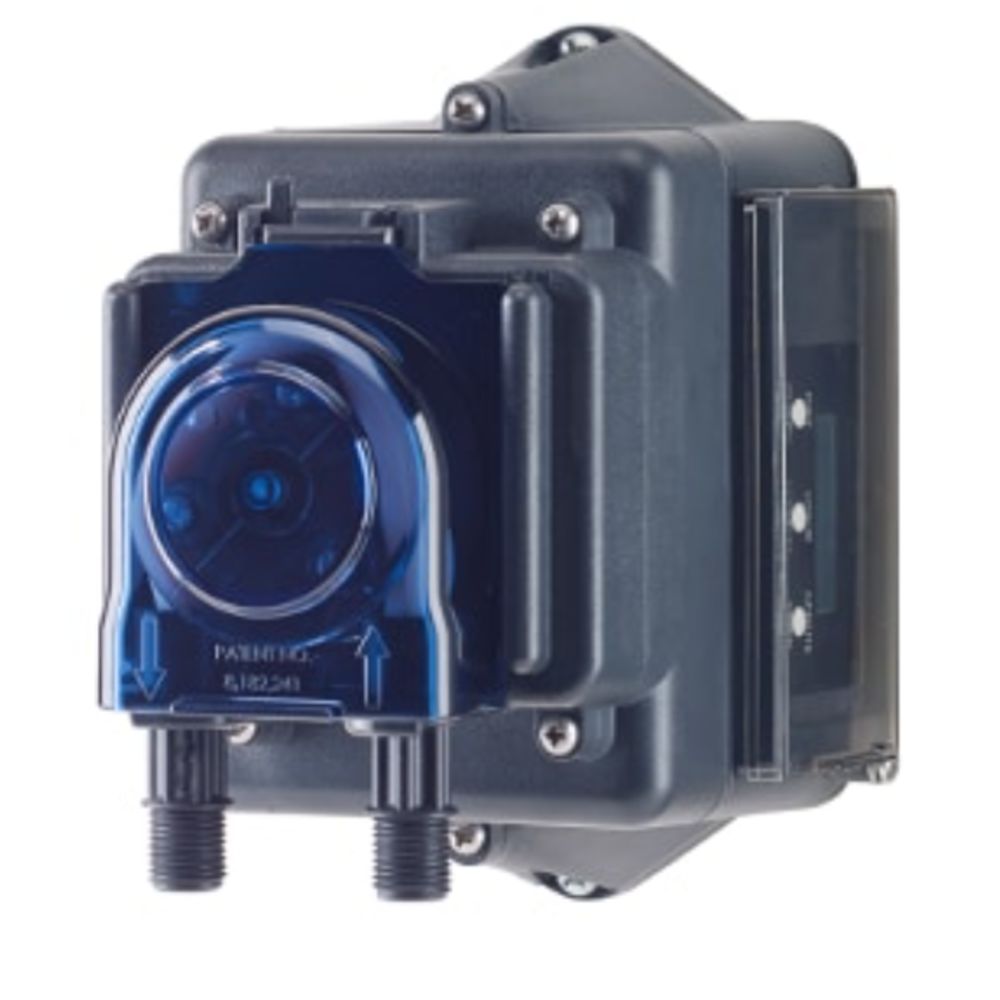

• (1) Stenner Econ T Series Pump
• (1) 30 Gallon Tank
• (3) Connecting Nuts
• (3) 1/4" Ferrules
• (1) Injection Check Valve/Injection Fitting
• (1) Weighted Suction Line Strainer
• (1) Additional Pump Tube
• 20 feet of 1/4" Suction/Discharge Tubing
• Installation Manual
