Stenner Pumps

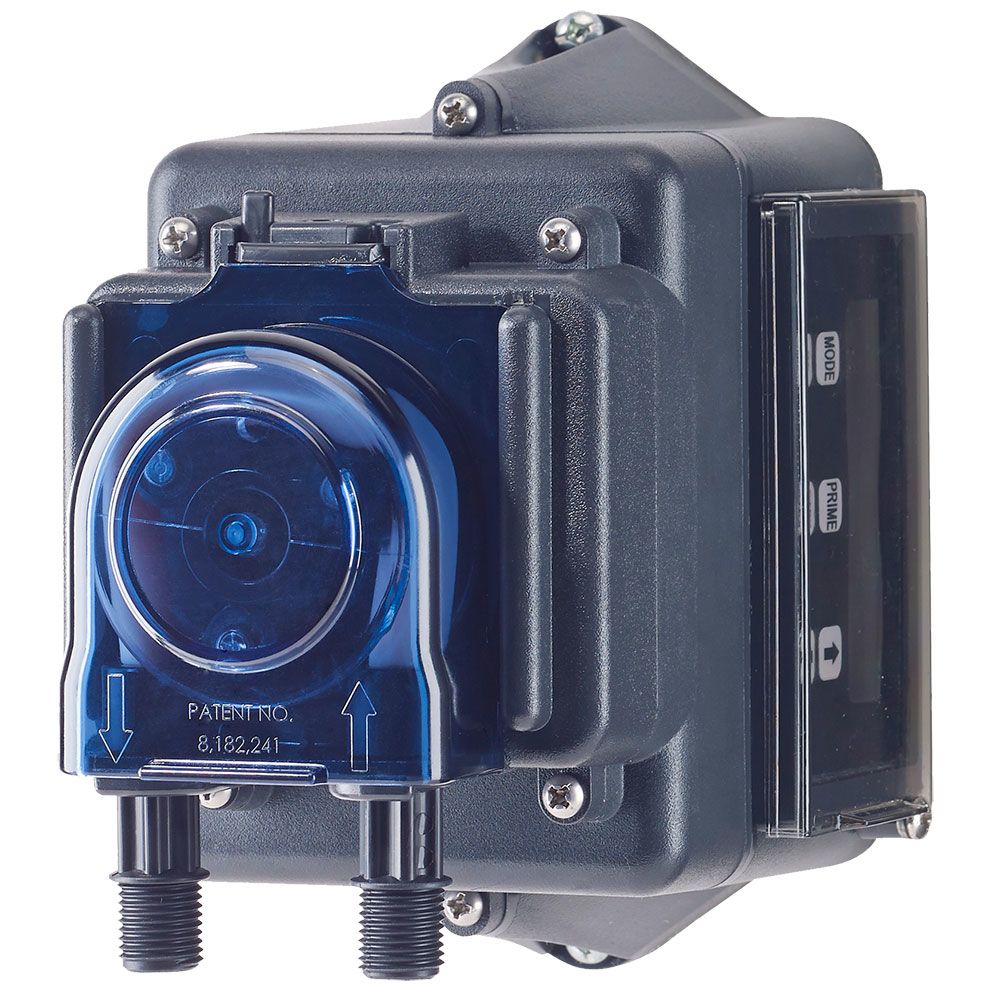

Stenner Econ Integrator Proportional Pump 30 GPD #H Tube 120V

Part Number: E20RHH81S

In Stock

out of stock

In Stock

$275.50


The Stenner E20RHH81S Econ Integrator is a proportional pump which is ideal for use in livestock operations when an existing water meter is utilized to tally water consumption to a controller. This flow activated pump can be used with meter systems or other control systems that respond to flow.

Econ Integrator for light duty applications. The Stenner E20RHH81S Econ Integrator Pump is designed for light duty applications such as livestock operations.    Econ
Integrator features an internal relay function. The Stenner E20RHH81S Econ Integrator Pump features an internal relay function and can work with multiple pumps which can be activated by one meter.
Econ Integrator has three operating modes. The Stenner E20RHH81S Econ Integrator pump has three operating modes. The three operating modes are Seconds, Flow Switch or Auxiliary power.  Specifications:
  • CE listed
  • Tube Size: H
  • Cord Length: 10 feet
  • Self-priming to 25 feet
  • Pump Capacity: 30.0 GPD
  • Max Working Pressure: 80 psi
  • Output Reproducibility: ± 2%


Weight & Dimensions

Approx Height (Inches)

5.9 Inches

Approx Length (Inches)

5.4 Inches

Approx Width (Inches)

3.7 Inches

Cord Length

10 Feet

Details

Ambient Temperature Range

Up to 104 Degrees Fahrenheit

Flow Rate

30 GPD

Housing Material

Polycarbonate

Max Operating Pressure

80 PSI

Type

Variable Speed Booster; Peristaltic

Valve Type

Santoprene

Voltage

120VAC

Suction Lift

25 ft Max

Warranty & Certifications

Certifications

WQA and UL listed


Stenner

Stenner





The Stenner E20RHH81S Econ Integrator is a proportional pump which is ideal for use in livestock operations when an existing water meter is utilized to tally water consumption to a controller. This flow activated pump can be used with meter systems or other control systems that respond to flow.

Econ Integrator for light duty applications. The Stenner E20RHH81S Econ Integrator Pump is designed for light duty applications such as livestock operations.    Econ
Integrator features an internal relay function. The Stenner E20RHH81S Econ Integrator Pump features an internal relay function and can work with multiple pumps which can be activated by one meter.
Econ Integrator has three operating modes. The Stenner E20RHH81S Econ Integrator pump has three operating modes. The three operating modes are Seconds, Flow Switch or Auxiliary power.  Specifications:
  • CE listed
  • Tube Size: H
  • Cord Length: 10 feet
  • Self-priming to 25 feet
  • Pump Capacity: 30.0 GPD
  • Max Working Pressure: 80 psi
  • Output Reproducibility: ± 2%

Weight & Dimensions

Approx Height (Inches)

5.9 Inches

Approx Length (Inches)

5.4 Inches

Approx Width (Inches)

3.7 Inches

Cord Length

10 Feet

Details

Ambient Temperature Range

Up to 104 Degrees Fahrenheit

Flow Rate

30 GPD

Housing Material

Polycarbonate

Max Operating Pressure

80 PSI

Type

Variable Speed Booster; Peristaltic

Valve Type

Santoprene

Voltage

120VAC

Suction Lift

25 ft Max

Warranty & Certifications

Certifications

WQA and UL listed
