Stenner Pumps

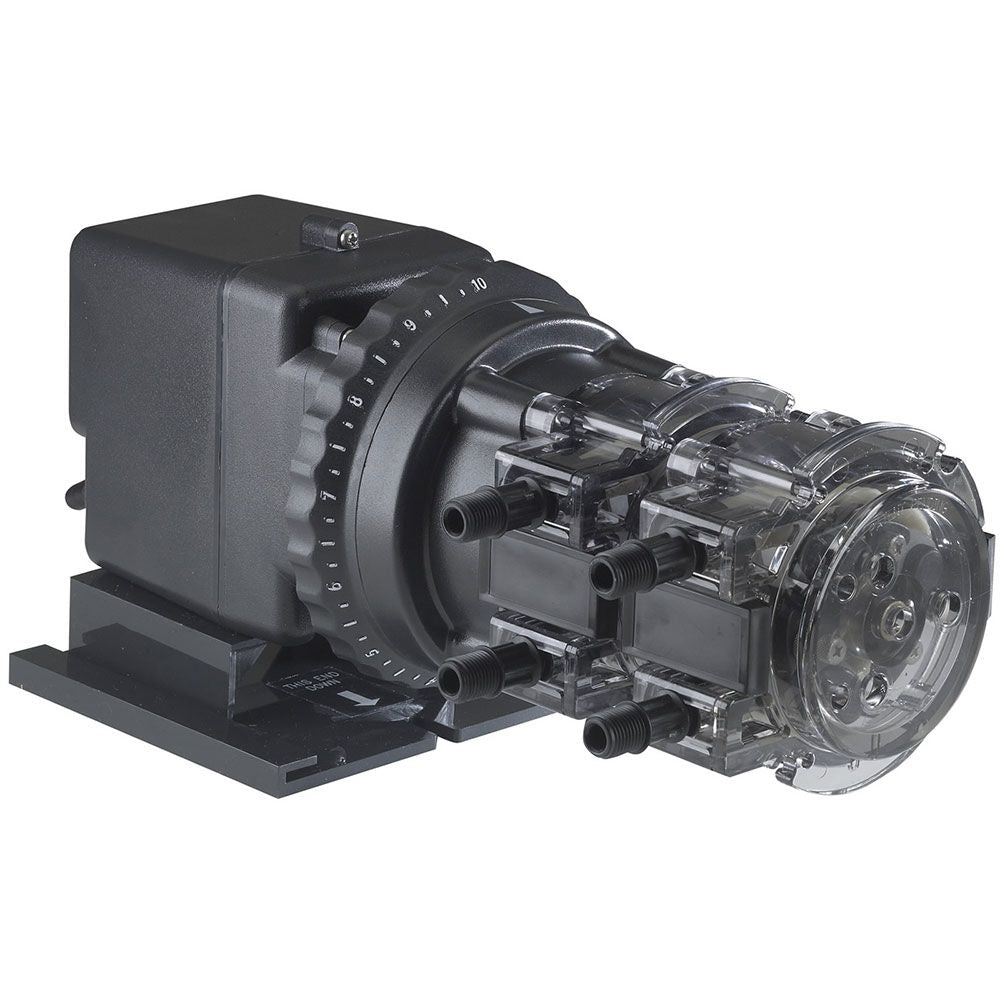

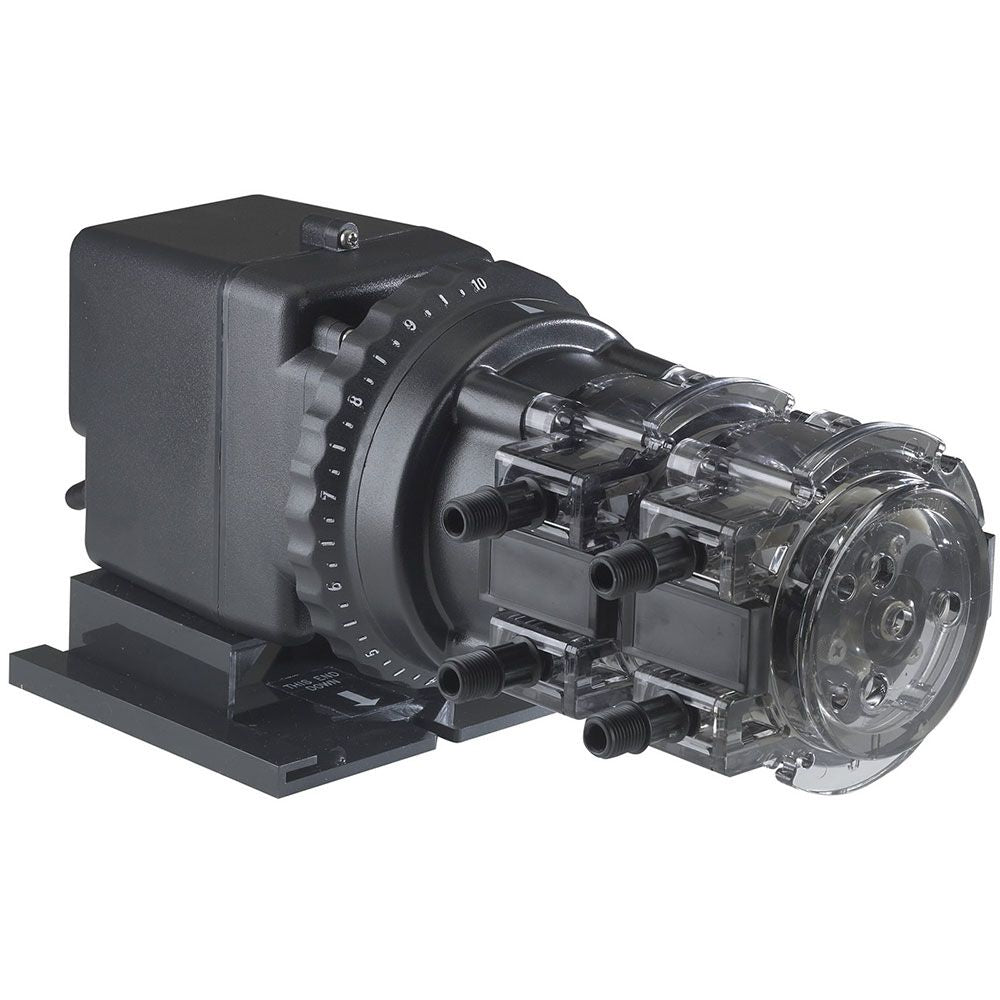

Stenner Double Head Adjustable Output Pump 8.5 - 170 GPD #5 Tube 220V

Part Number: 170JL5B4S

In Stock

out of stock

In Stock

$598.99


The Stenner 170JL5B4S is a double head adjustable peristaltic pump. This Classic Series pump has a single adjustable head that features an external adjustable dial ring on the feed rate control and is able to pump up to 170 gallons per day (GPD). This versatile pump can withstand pressures from 0 to 25 PSI.


Features:
  • The Stenner 170JL5B4S is for light duty applications: The Stenner 170JL5B4S is designed for light duty applications both indoor and outdoor. This pump is excellent for drinking water disinfection, livestock water, or many other applications.
  • The Stenner 170JL5B4S is certified by WQA: The Stenner 170JL5B4S by WQA against NSF/ANSI Standard 61.
  • The Stenner 170JL5B4S utilized for proportional dosing: The Stenner 170JL5B4S is a double head adjustable output pump that will work with 7.5, 15, and 30 gallon tanks.

Specifications:
  • CE listed
  • Cord Length: 10 feet
  • Pump Tube Number: 5
  • Self-priming to 25 feet
  • Capacity: 8.5 to 170 gpd
  • Output Reproducibility: ± 2%
  • Max Working Pressure: 25 psi


Details

Ambient Temperature Range

Up to 125 Degrees Fahrenheit

Flow Rate

8.5 - 170 GPD

Housing Material

Polycarbonate

Max Operating Pressure

25 PSI

Type

Peristaltic

Valve Type

Santoprene

Voltage

220VAC

Motor Rpm

26 Rotations Per Minute

Suction Lift

Self prime up to 25 ft


Stenner

Stenner





The Stenner 170JL5B4S is a double head adjustable peristaltic pump. This Classic Series pump has a single adjustable head that features an external adjustable dial ring on the feed rate control and is able to pump up to 170 gallons per day (GPD). This versatile pump can withstand pressures from 0 to 25 PSI.


Features:
  • The Stenner 170JL5B4S is for light duty applications: The Stenner 170JL5B4S is designed for light duty applications both indoor and outdoor. This pump is excellent for drinking water disinfection, livestock water, or many other applications.
  • The Stenner 170JL5B4S is certified by WQA: The Stenner 170JL5B4S by WQA against NSF/ANSI Standard 61.
  • The Stenner 170JL5B4S utilized for proportional dosing: The Stenner 170JL5B4S is a double head adjustable output pump that will work with 7.5, 15, and 30 gallon tanks.

Specifications:
  • CE listed
  • Cord Length: 10 feet
  • Pump Tube Number: 5
  • Self-priming to 25 feet
  • Capacity: 8.5 to 170 gpd
  • Output Reproducibility: ± 2%
  • Max Working Pressure: 25 psi

Details

Ambient Temperature Range

Up to 125 Degrees Fahrenheit

Flow Rate

8.5 - 170 GPD

Housing Material

Polycarbonate

Max Operating Pressure

25 PSI

Type

Peristaltic

Valve Type

Santoprene

Voltage

220VAC

Motor Rpm

26 Rotations Per Minute

Suction Lift

Self prime up to 25 ft
