Stenner Pumps

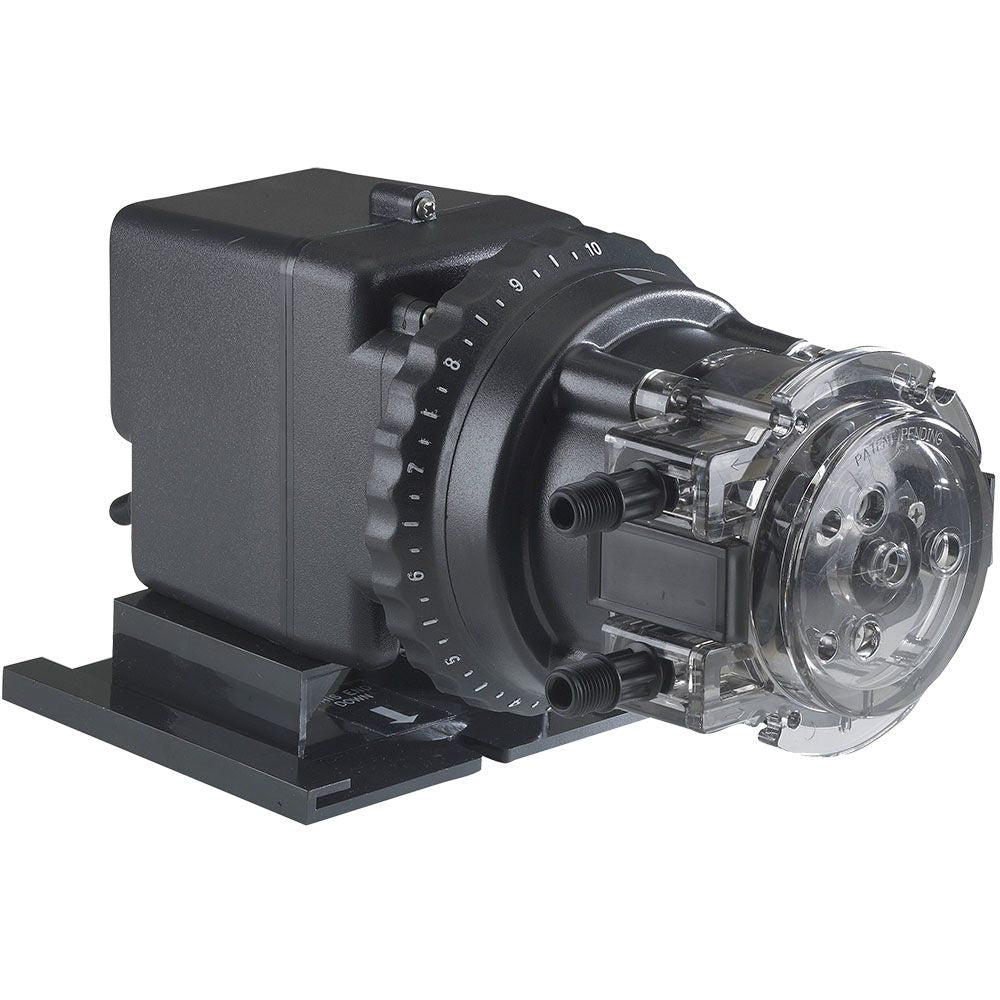

Stenner 45MHP22 Single Head Adjustable Pump 1.1 to 22.0 GPD #1 Tube 120V

Part Number: 45MJH7A1S

In Stock

out of stock

In Stock

$333.85

Intended Use;
The Stenner 45MHP22 is a single head Adjustable Pump. This Classic Series pump has a single adjustable head that features an external adjustable dial ring on the feed rate control and is able to pump up to 1.1 to 22.0 gallons per day (GPD). This versatile pump can withstand pressures from 26 to 100 PSI.
Features:
  • The Stenner 45MHP22 is for light duty applications. The Stenner 45MHP22 is designed for light duty applications both indoor and outdoor. This pump is excellent for drinking water disinfection, livestock water, or many other applications.
  • The Stenner 45MHP22 was tested by WQA. The Stenner 45MHP22 has been tested by WQA against NSF/ANSI Standard 61.
  • The Stenner 45MHP22 utilized for proportional dosing. The Stenner 45MHP22 is a fixed output pump that will work with 7.5, 15, and 30 gallon tanks.

Additional Specifications:
  • Type: Single head peristaltic
  • Output Control: Adjustable output
  • Electrical: 120 VAC 60 Hz
  • Material: Santoprene tube
  • Pump Tube Number: 1
  • Capacity: 1.1 to 22.0 GPD
  • Max Working Pressure: 26-100 psi


Weight & Dimensions

Approx Weight

9 lbs

Details

Ambient Temperature Range

Up to 125 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

1.1 - 22 GPD

Housing Material

Polycarbonate

Max Operating Pressure

100 PSI

Type

Peristaltic

Valve Type

Santoprene

Voltage

120VAC

Motor Rpm

26 Rotations Per Minute

Warranty & Certifications

Certifications

NSF/ANSI Standard 61


Stenner

Stenner




Intended Use;
The Stenner 45MHP22 is a single head Adjustable Pump. This Classic Series pump has a single adjustable head that features an external adjustable dial ring on the feed rate control and is able to pump up to 1.1 to 22.0 gallons per day (GPD). This versatile pump can withstand pressures from 26 to 100 PSI.
Features:
  • The Stenner 45MHP22 is for light duty applications. The Stenner 45MHP22 is designed for light duty applications both indoor and outdoor. This pump is excellent for drinking water disinfection, livestock water, or many other applications.
  • The Stenner 45MHP22 was tested by WQA. The Stenner 45MHP22 has been tested by WQA against NSF/ANSI Standard 61.
  • The Stenner 45MHP22 utilized for proportional dosing. The Stenner 45MHP22 is a fixed output pump that will work with 7.5, 15, and 30 gallon tanks.

Additional Specifications:
  • Type: Single head peristaltic
  • Output Control: Adjustable output
  • Electrical: 120 VAC 60 Hz
  • Material: Santoprene tube
  • Pump Tube Number: 1
  • Capacity: 1.1 to 22.0 GPD
  • Max Working Pressure: 26-100 psi

Weight & Dimensions

Approx Weight

9 lbs

Details

Ambient Temperature Range

Up to 125 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

1.1 - 22 GPD

Housing Material

Polycarbonate

Max Operating Pressure

100 PSI

Type

Peristaltic

Valve Type

Santoprene

Voltage

120VAC

Motor Rpm

26 Rotations Per Minute

Warranty & Certifications

Certifications

NSF/ANSI Standard 61
