Square D

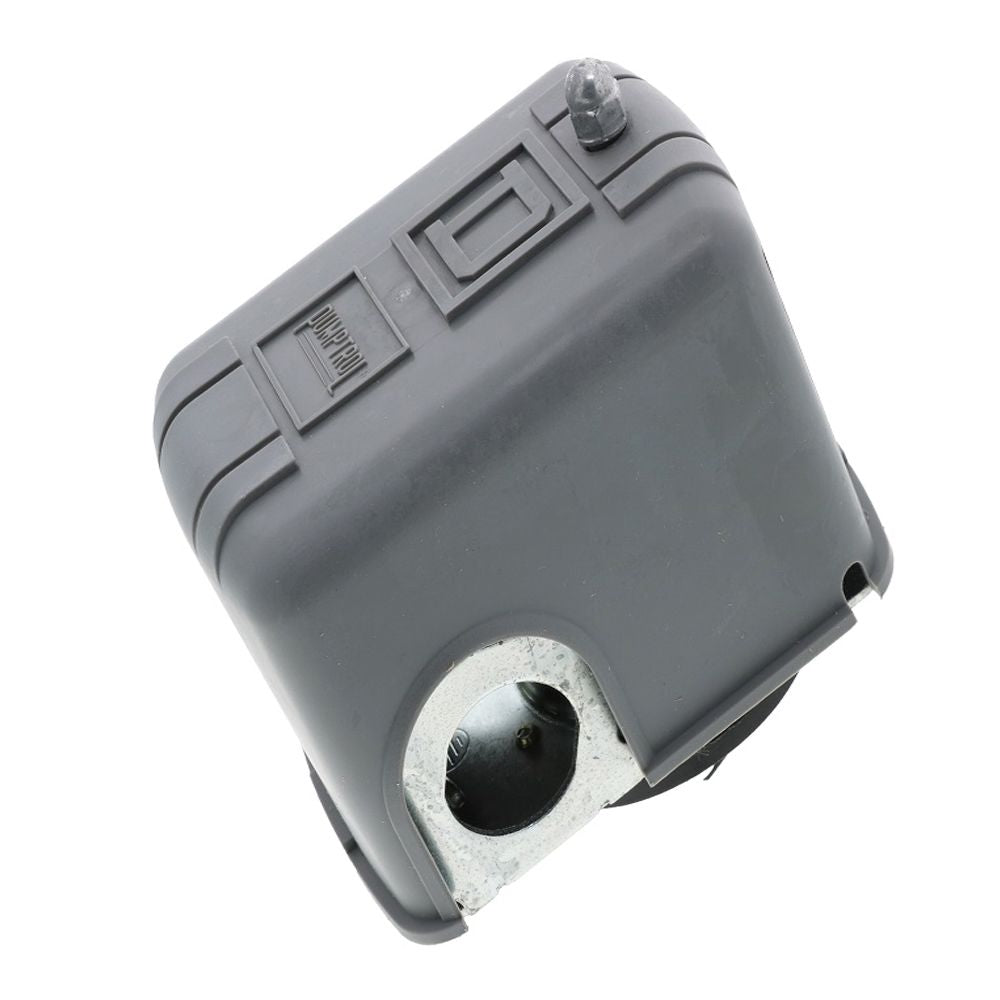

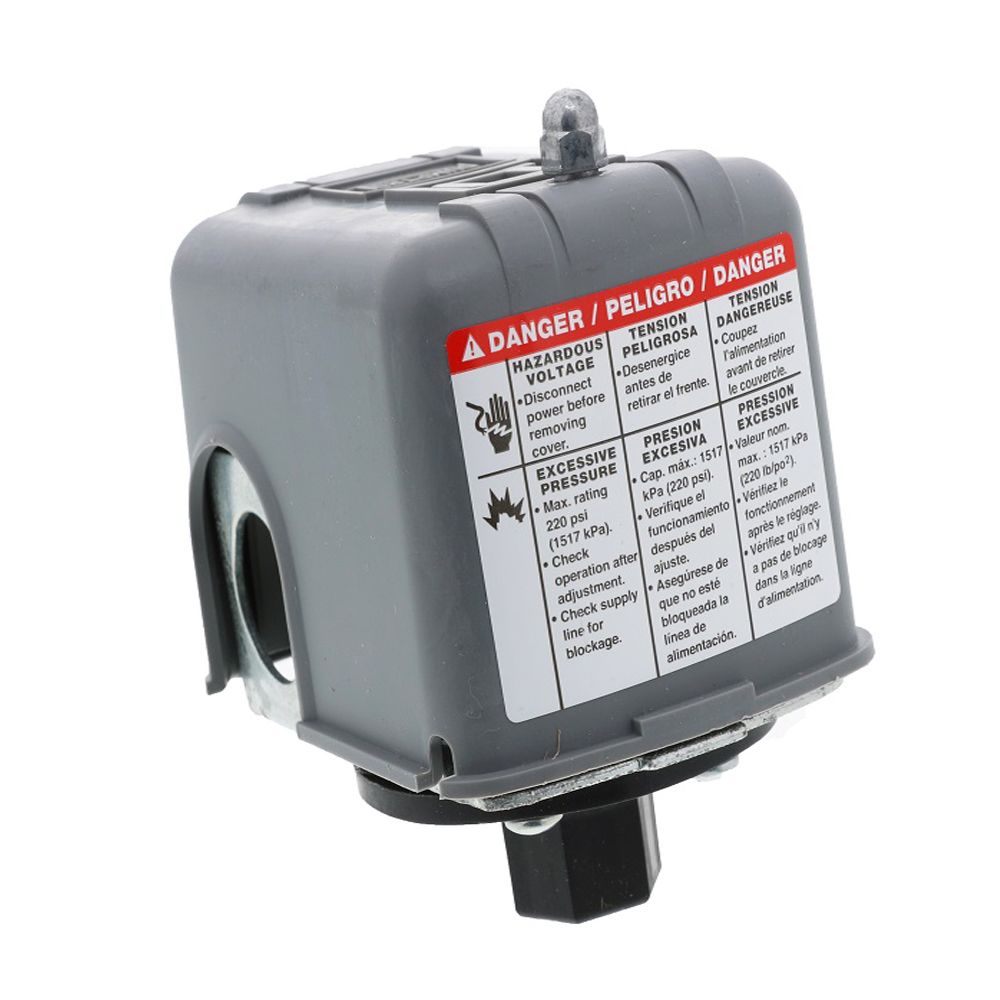

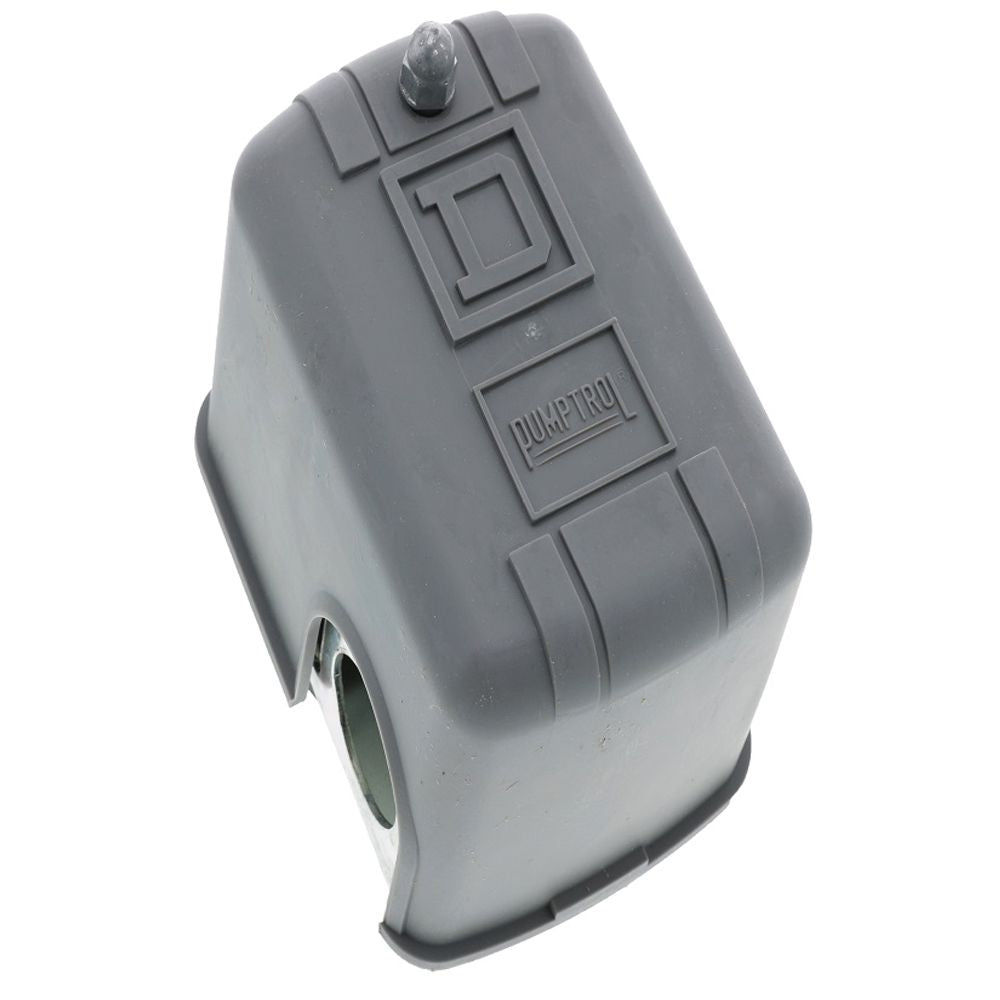

Square D Pumptrol 9013FSG2J24Q8 Well Tank Pressure Switch 40-60 psi

Part Number: 9013FSG2J24Q81

Alt. Part Number: 9013FSG2J24Q8, 9013FS

In Stock

out of stock

In Stock

$29.99


The Square D Pumptrol 9013FSG Electromechanical Pressure Switches are the most trusted brand in residential, commercial and industrial pumping applications. They provide proven reliability in an easy, simple, compact installation. The universally accepted and recognized design is easy to wire, features drift proof cut-in and cut-out settings, and has visible vertical contacts which are easy to inspect. They are designed to control electrically driven water pumps such as circulators, submersibles, and boosters.
The Square D Pumptrol 9013FSG2J24Q8 has a factory set cut-in/cut-out pressure of 10 and 60 PSI. Designed for durability, this switch has a life span of more than 300,000 cycles. This product is UL (file E12158) and CSA (file LR25490) listed, and meets NSF/ANSI standard 61 Annex G.

Specifications:
  • Pressure Setting: 40-60 psi
  • Screw-clamp Terminals, Clamping Capacity: 10 AWG (5.261 mm²)
  • Fluid Connection Type: 0.25 inch NPSF internal
  • Enclosure: NEMA 1
  • Diaphragm: Nitrile (Buna-N) diaphragm
  • Flange:Plastic
  • Terminal Block Type:4 terminals
  • Operating Rate:10 cyc/mn
  • Insulation Voltage:575 V conforming to UL 508
Features and Benefits:
  • Pulsation Plug: Pulsation plugs are available to control pressure, due to increased start up pressure, generated by the high speed jet pump motors or by valves prone to a surge in pressure.
  • Bayonet Pressure Connector:  Expensive shielded electrical cable between the jet pump motor and controller can be eliminated by mounting the pressure switch directly on the jet pump motor and utilizing a barbed bayonet (straight or 90° elbow) fluid connection.
  • Manual On/Off Switch: The 9013 series offers an optional on/off lever for the pressure switch, allowing you to manually turn on and off your pump system for extended periods of time, such as when you're away or have remote locations not regularly in use.
  • Automatic Low Pressure/Water Cut-off: If system pressure is lost for any reason, a low water condition for example, the automatic low pressure/water cut-off feature will open the contacts, turning off the pump.


Weight & Dimensions

Weight (lbs)

1

Details

Diaphragm Materials

Buna-N

Rating

NEMA 1, 575 VAC

Pressure Setting

40/60 psi

Warranty & Certifications

Certifications

UL Listed; CSA Certified; NSF 61, Annex G


Square





The Square D Pumptrol 9013FSG Electromechanical Pressure Switches are the most trusted brand in residential, commercial and industrial pumping applications. They provide proven reliability in an easy, simple, compact installation. The universally accepted and recognized design is easy to wire, features drift proof cut-in and cut-out settings, and has visible vertical contacts which are easy to inspect. They are designed to control electrically driven water pumps such as circulators, submersibles, and boosters.
The Square D Pumptrol 9013FSG2J24Q8 has a factory set cut-in/cut-out pressure of 10 and 60 PSI. Designed for durability, this switch has a life span of more than 300,000 cycles. This product is UL (file E12158) and CSA (file LR25490) listed, and meets NSF/ANSI standard 61 Annex G.

Specifications:
  • Pressure Setting: 40-60 psi
  • Screw-clamp Terminals, Clamping Capacity: 10 AWG (5.261 mm²)
  • Fluid Connection Type: 0.25 inch NPSF internal
  • Enclosure: NEMA 1
  • Diaphragm: Nitrile (Buna-N) diaphragm
  • Flange:Plastic
  • Terminal Block Type:4 terminals
  • Operating Rate:10 cyc/mn
  • Insulation Voltage:575 V conforming to UL 508
Features and Benefits:
  • Pulsation Plug: Pulsation plugs are available to control pressure, due to increased start up pressure, generated by the high speed jet pump motors or by valves prone to a surge in pressure.
  • Bayonet Pressure Connector:  Expensive shielded electrical cable between the jet pump motor and controller can be eliminated by mounting the pressure switch directly on the jet pump motor and utilizing a barbed bayonet (straight or 90° elbow) fluid connection.
  • Manual On/Off Switch: The 9013 series offers an optional on/off lever for the pressure switch, allowing you to manually turn on and off your pump system for extended periods of time, such as when you're away or have remote locations not regularly in use.
  • Automatic Low Pressure/Water Cut-off: If system pressure is lost for any reason, a low water condition for example, the automatic low pressure/water cut-off feature will open the contacts, turning off the pump.

Weight & Dimensions

Weight (lbs)

1

Details

Diaphragm Materials

Buna-N

Rating

NEMA 1, 575 VAC

Pressure Setting

40/60 psi

Warranty & Certifications

Certifications

UL Listed; CSA Certified; NSF 61, Annex G
