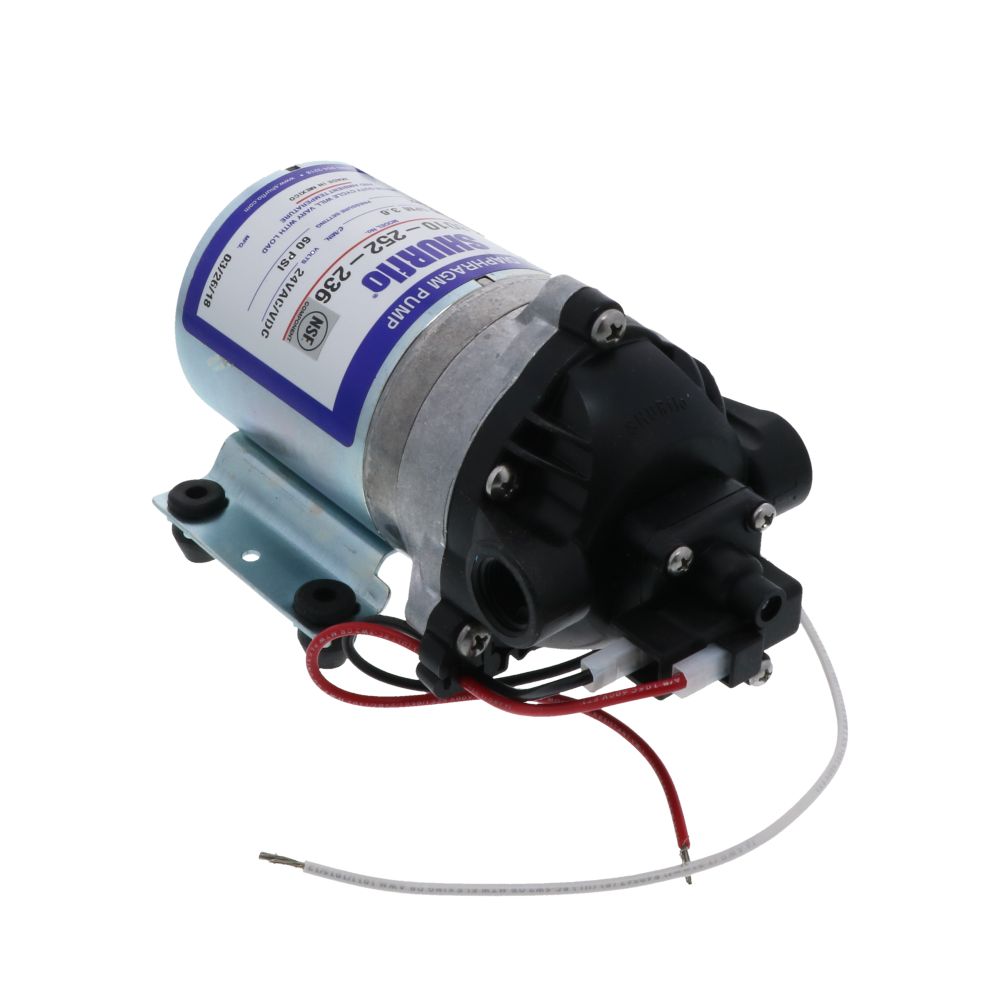

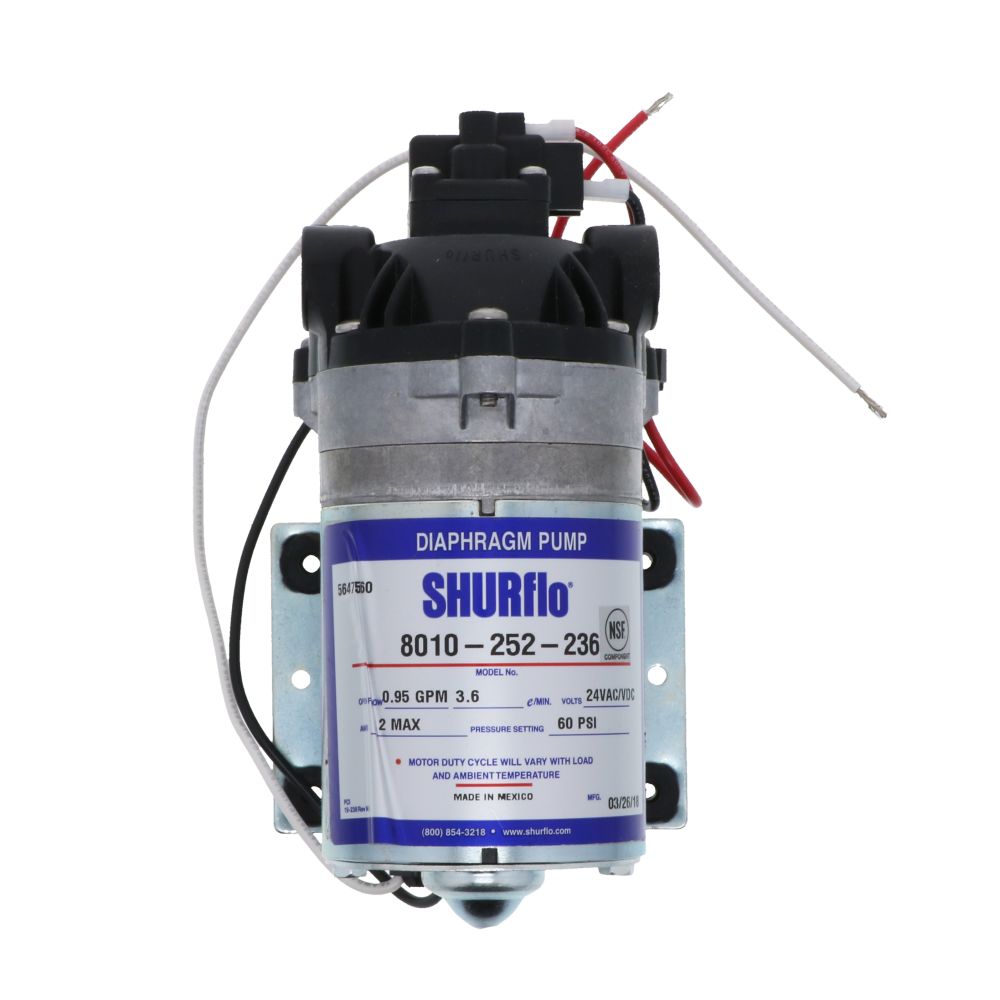

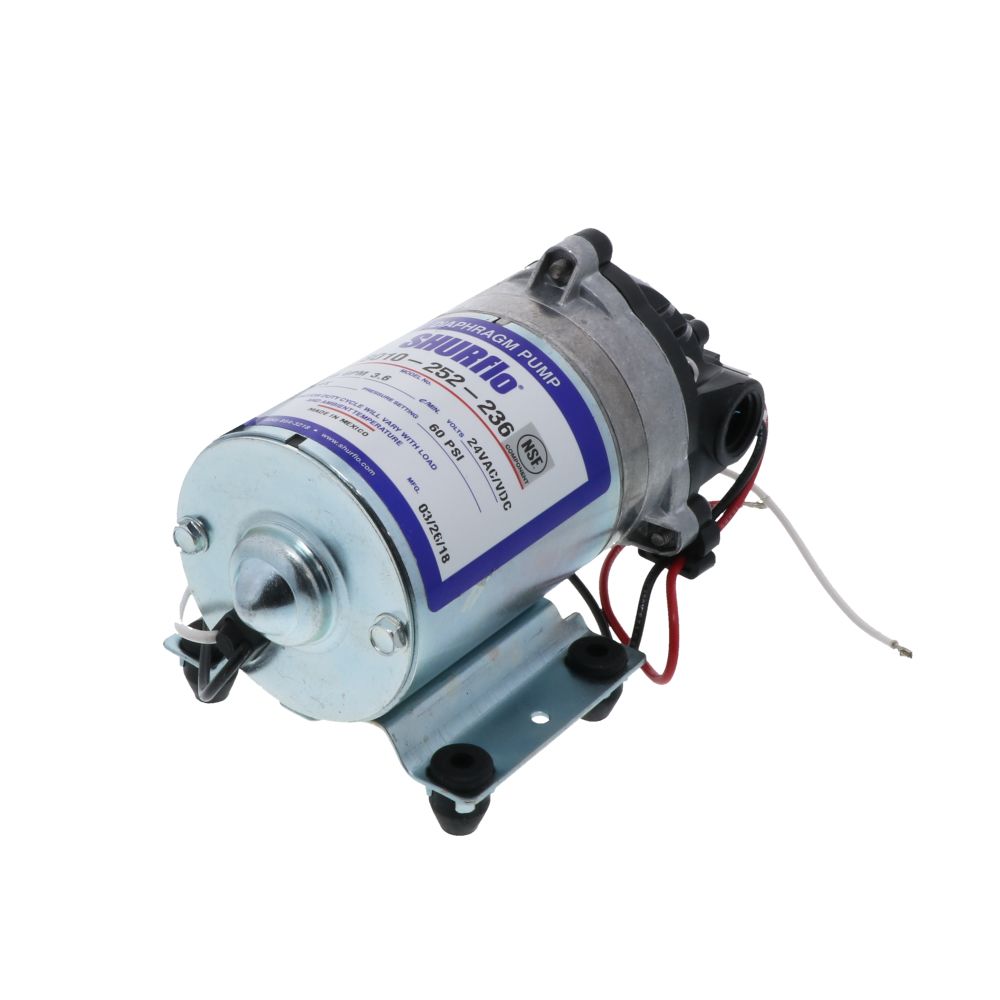

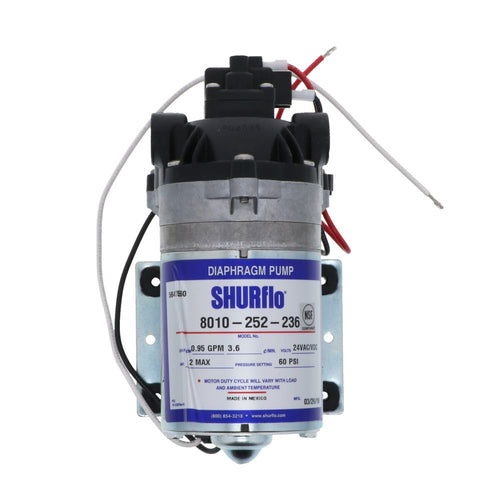

SHURflo 8010-252-236 Delivery Pump 0.9 gpm 60 psi 24V

Part Number: 8010-252-236

In Stock

out of stock

In Stock

$98.60

The SHURflo 8010-252-236 Delivery Pump is ideal in applications that require high pressure and a flow rate of 0.9 GPM and low amp draw.  The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.

Additional Specification:
  • 0.9 GPM flow rate
  • Demand Switch
  • Can run dry without damage
  • Self priming up 7 vertical feet
  • 3/8" NPT female ports
  • Santoprene diaphragm
  • NSF listed
  • Can operate on 24V AC or 24V DC power

 Applications:
  • Water delivery
  • Soil extraction


Weight & Dimensions

Approx Height (Inches)

4.08 Inches

Approx Length (Inches)

7.56 Inches

Approx Width (Inches)

3.28 Inches

Details

Series

8000

Amps

0.82 (0 psi) - 1.98 (60 psi) Amps

Diaphragm Materials

Santoprene

Flow Rate

0.9 GPM

Housing Material

Stainless Steel

Liquid Temperature

170 Degrees Fahrenheit

Size

3/8"

Voltage

24VDC, 24VAC

Inlet Pressure

30 PSI

Suction Lift

Self prime up to 7 ft

Inlet/Outlet Connection

3/8" | FPT

Wire Option

Bare Wire

Warranty & Certifications

Certifications

NSF Listed


SHURflo

SHURflo

SHURflo
