Aquatec 5858-2LM2-B534 Series Booster Pump .66 GPM, 3/8"JG, 24VAC

5.0

(5 reviews)

Part Number: 5858-2LM2-B534 Alt. Part Number: 5853-2LM2-B534

1 3

Aquatec

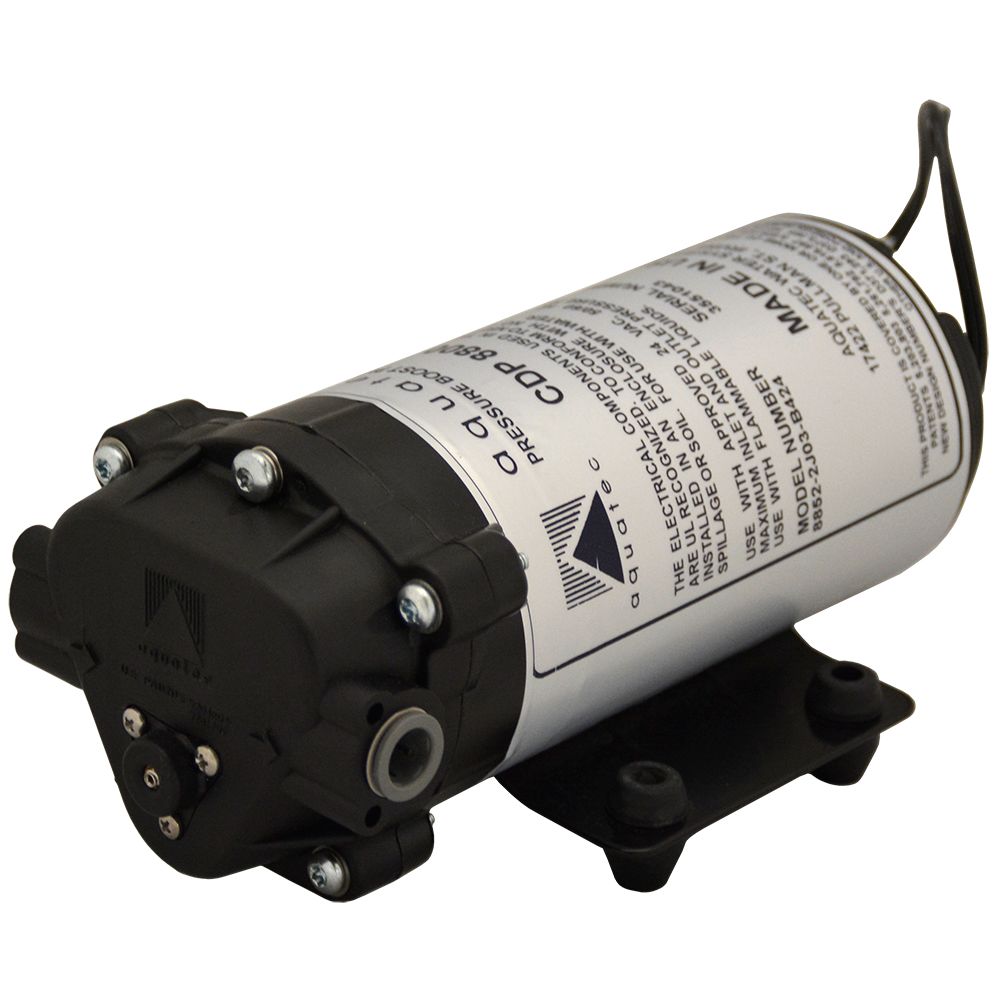

Aquatec 5858-2LM2-B534 Series Booster Pump .66 GPM, 3/8"JG, 24VAC

5.0

(5 reviews)

Part Number: 5858-2LM2-B534 Alt. Part Number: 5853-2LM2-B534

MSRP: $157.65

$103.30

Quantity

Unit Price

Price

Savings

$103.30

—

$101.58

$203.16

$99.85

$599.14

$98.13

$1,177.62

Product variants

You May Also Need

Optional Accessory
Inline T-Strainer 1/2" HB x 1/2" HB with 50 Mesh SS Filter Screen

Regular price From $19.99
Optional Accessory

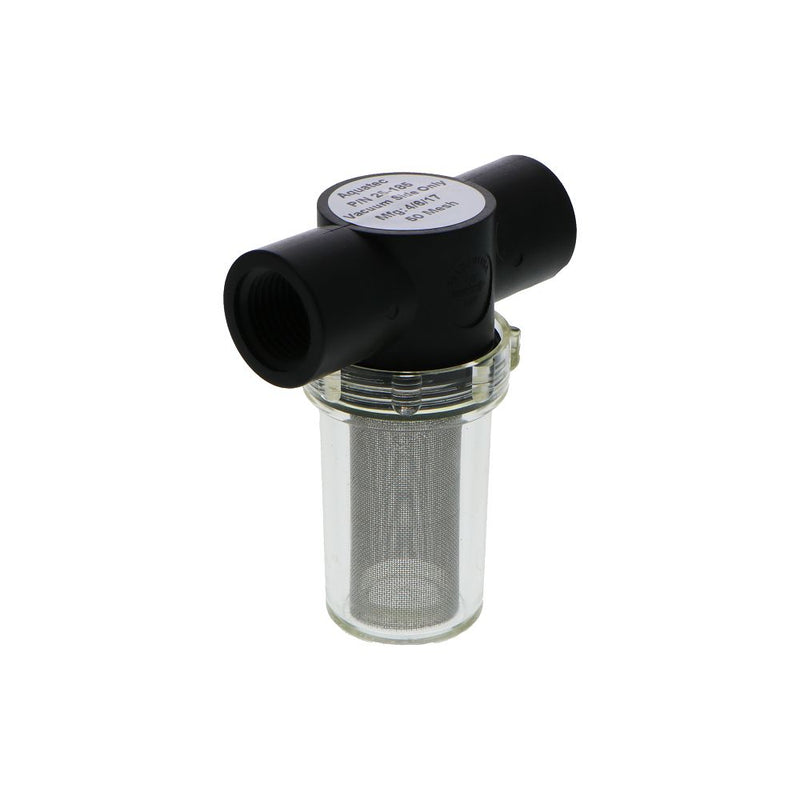

50 Mesh Stainless Steel High Flow In-Line Strainer, Clear Twist-Off Bowl, w/ 1/2" FNPT Ports

Regular price From $19.64

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. This pump features a bypass that is preset to 130 PSI.

Features:

3-chamber construction
Closed impervious diaphragm
Asymmetrical manifold
ByPass Default is set to 130 PSI
Highest structural integrity
Seven point clamping
Engineered composite plastics
Corrosion resistant metal
Multiple porting options

Benefits:

Adjustable switch and bypass settings
Self-priming, auto-purging
Near silent operation at lower flows
Highly efficient
Minimal pulsations
7 year design life
Runs dry without damage

Specifications

Product Details
Amps	2.15 Amps @ 80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Inlet Pressure	60 PSI
Liquid Temperature	Max 170 °F
Motor Rpm	2100 RPM
Power Source	Cord/Pressure Switch Wires
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	5800
Suction Lift	Self prime up to 7 ft
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	8.5 in.
Shipping Width	5 in.
Shipping Height	4.75 in.
Product Weight & Dimensions
Product Height	3.6"
Product Length	8.46"
Product Width	4"
Product Weight (lbs)	6.1

Product Details
Amps	2.15 Amps @ 80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Inlet Pressure	60 PSI
Liquid Temperature	Max 170 °F
Motor Rpm	2100 RPM
Power Source	Cord/Pressure Switch Wires
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	5800
Suction Lift	Self prime up to 7 ft
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Weight (lbs)	6.1

Product Details
Amps	2.15 Amps @ 80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Inlet Pressure	60 PSI
Liquid Temperature	Max 170 °F
Motor Rpm	2100 RPM
Power Source	Cord/Pressure Switch Wires
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	5800
Suction Lift	Self prime up to 7 ft
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	10 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	6.1

Product Details
Amps	2.15 Amps @ 80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Inlet Pressure	60 PSI
Liquid Temperature	Max 170 °F
Motor Rpm	2100 RPM
Power Source	Cord/Pressure Switch Wires
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	5800
Suction Lift	Self prime up to 7 ft
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	23 in.
Shipping Width	17 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	6.1

Downloads

Aquatec 5858-2LM2-B534 Series Booster Pump .66 GPM, 3/8

Reviews (5)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

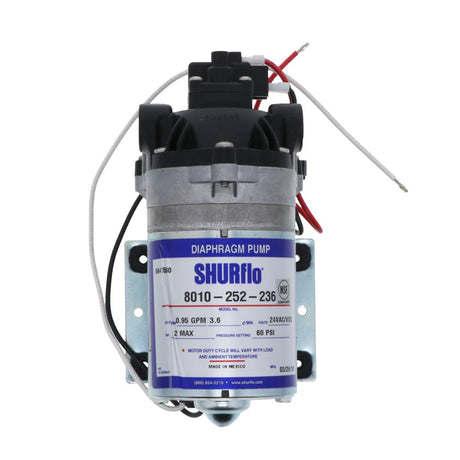

Facet	Aquatec Aquatec 5858-2LM2-B534 Series Booster Pump .66 GPM, 3/8"JG, 24VAC 5.0 Regular price From $103.30 Very low stock Part #: 5858-2LM2-B534 Save up to 5% with bulk pricing Current Product	SHURflo SHURflo 8010-252-236 Delivery Pump 0.9 gpm 60 psi 24V 5.0 Regular price From $183.71 Very low stock Part #: 8010-252-236 View details	Aquatec Aquatec Pump Mounting Bracket Powder Coated Steel 5.0 Regular price From $5.99 Part #: 25-150 Save up to 5% with bulk pricing View details	Aquatec Aquatec 25-033 Universal Plastic Pump Mounting Bracket 3.4 Regular price From $11.99 Part #: 25-033 Save up to 5% with bulk pricing View details
