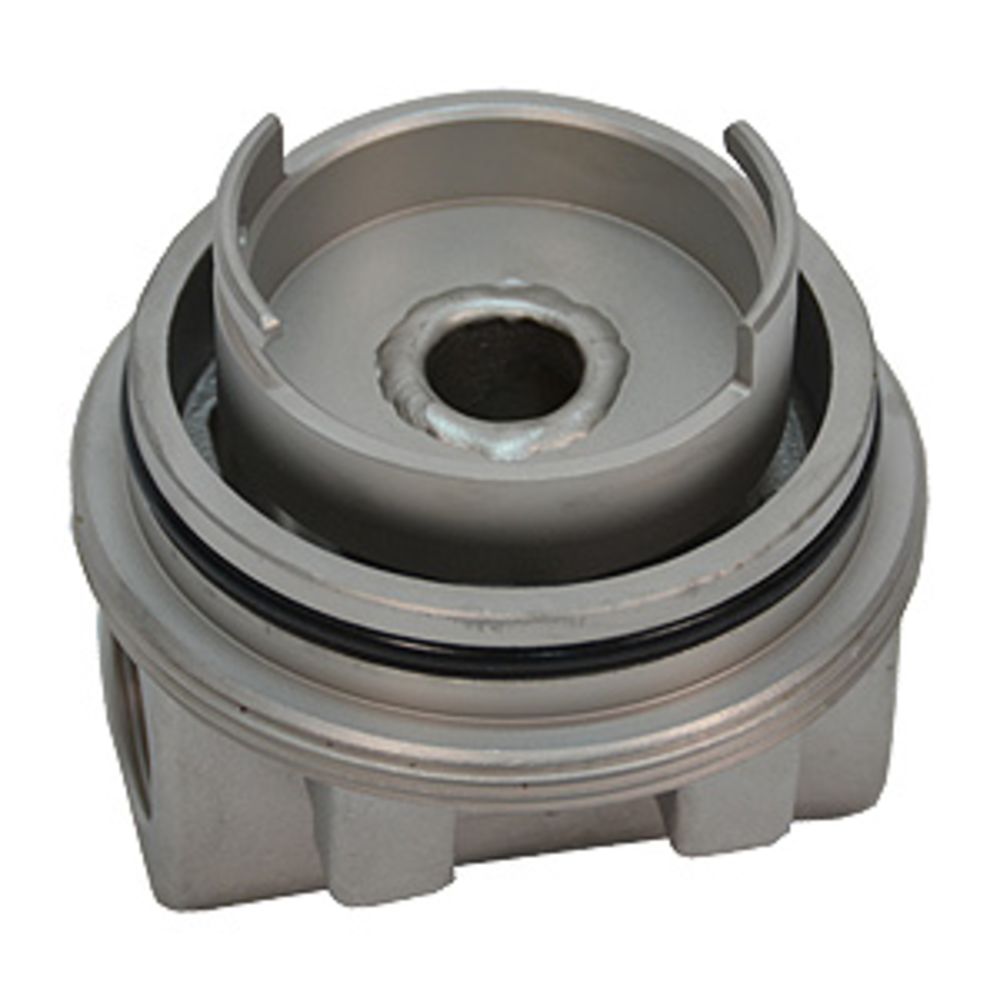

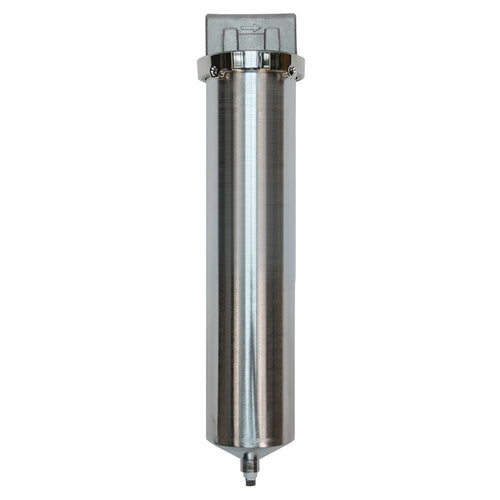

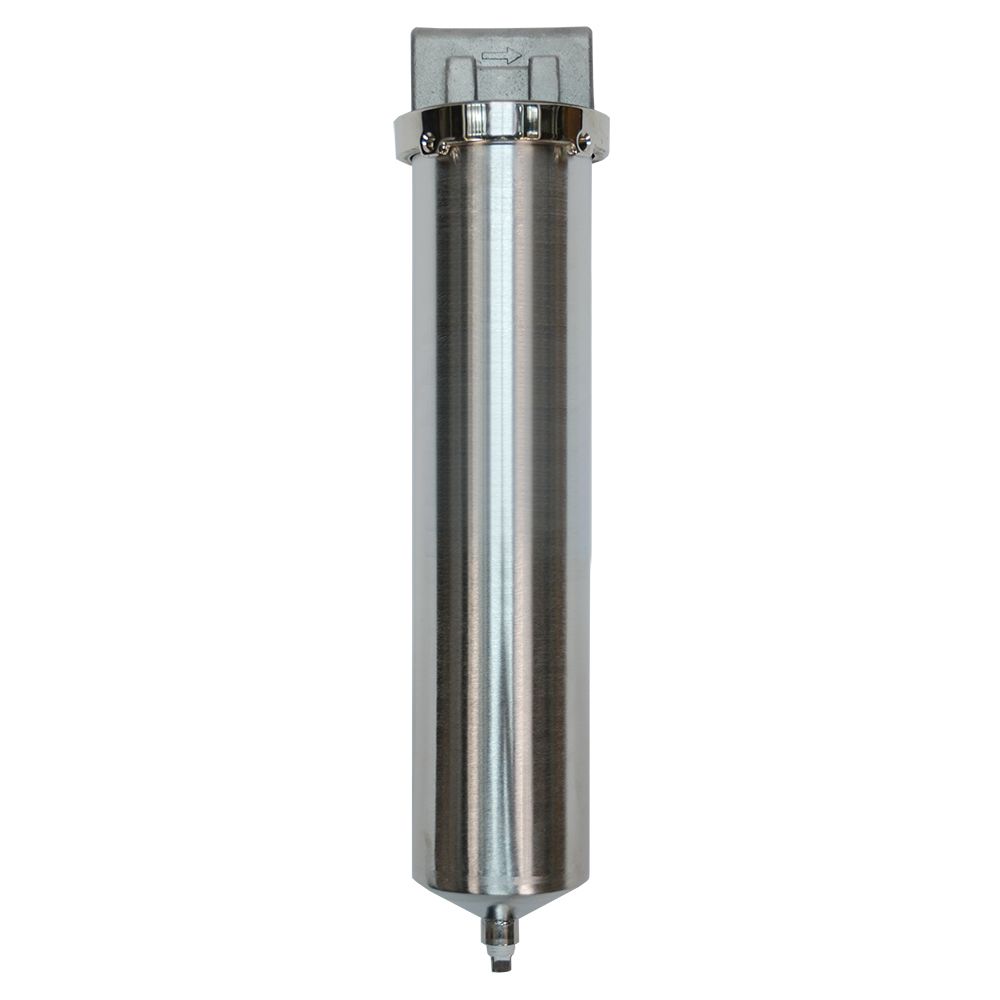

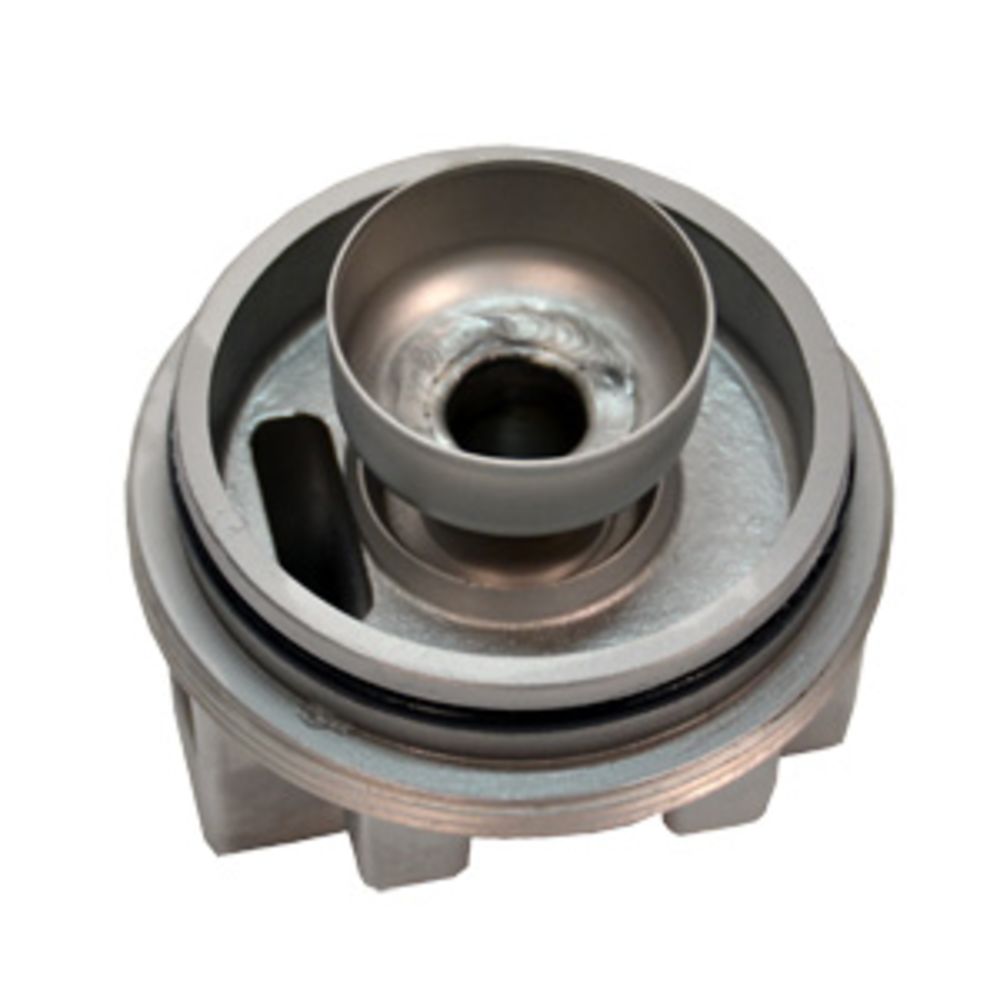

Shelco CSF-786 Single Cartridge Filter Housing with Ring Nut Closure

Part Number: CSF-786-222

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure SFC1 Single Filter Cup Housing as a substitute.


Shelco CSF-786 Series Stainless Steel Single Cartridge Filter Housings with Ring Nut Closure accept a single 9-3/4"-10" SOE cartridge and can have flow rates up to 7 gpm. The ring nut closure allows quick change-outs and secure sealing.

Specifications:
  • Designed for high purity commercial or industrial filter applications
  • Heavy-duty 316L stainless steel construction from maximum durability
  • Electro-polished sump suitable for a wide range of process requirements
  • Ring nut closure for quick, easy change-outs and secure sealing
  • Accepts 9-3/4" to 10" SOE cartridges with 222 or 226 style connectors
  • Flow rates up to 7 gallons per minute
  • Inlet/Outlet: 3/4" FPT
  • Includes mounting bracket kit and rod for opening and closing
Applications:
  • Coolants
  • Chemicals
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

NOTE: Standard option CSF series housings are stocked and available for immediate shipment. Customized housings require 2-3 weeks to manufacture. For more information on returning customized items, see our Returns Policy.




Weight & Dimensions

Approx Height (Inches)

17-7/16"

Details

Cap Color

Stainless Steel

Cap Material

316 Stainless Steel

Closure Type

Ring Nut

Color / Finish

Stainless Steel

Drain Size

1/4" MPT

Housing Material

316 Stainless Steel

Gaskets

Buna-N (FDA grade)

Material Of Construction

316 Stainless Steel

Max Flow Rate

7 GPM

Max Operating Pressure

300 PSI

O Rings

Buna-N

Origin

USA

Size

3/4", 1"

Inlet/Outlet Connection

3/4" FPT, 1" FPT


Shelco





Shelco CSF-786 Series Stainless Steel Single Cartridge Filter Housings with Ring Nut Closure accept a single 9-3/4"-10" SOE cartridge and can have flow rates up to 7 gpm. The ring nut closure allows quick change-outs and secure sealing.

Specifications:
  • Designed for high purity commercial or industrial filter applications
  • Heavy-duty 316L stainless steel construction from maximum durability
  • Electro-polished sump suitable for a wide range of process requirements
  • Ring nut closure for quick, easy change-outs and secure sealing
  • Accepts 9-3/4" to 10" SOE cartridges with 222 or 226 style connectors
  • Flow rates up to 7 gallons per minute
  • Inlet/Outlet: 3/4" FPT
  • Includes mounting bracket kit and rod for opening and closing
Applications:
  • Coolants
  • Chemicals
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

NOTE: Standard option CSF series housings are stocked and available for immediate shipment. Customized housings require 2-3 weeks to manufacture. For more information on returning customized items, see our Returns Policy.



NOTE: This item is discontinued. We recommend the Neo-Pure SFC1 Single Filter Cup Housing as a substitute.

Weight & Dimensions

Approx Height (Inches)

17-7/16"

Details

Cap Color

Stainless Steel

Cap Material

316 Stainless Steel

Closure Type

Ring Nut

Color / Finish

Stainless Steel

Drain Size

1/4" MPT

Housing Material

316 Stainless Steel

Gaskets

Buna-N (FDA grade)

Material Of Construction

316 Stainless Steel

Max Flow Rate

7 GPM

Max Operating Pressure

300 PSI

O Rings

Buna-N

Origin

USA

Size

3/4", 1"

Inlet/Outlet Connection

3/4" FPT, 1" FPT
