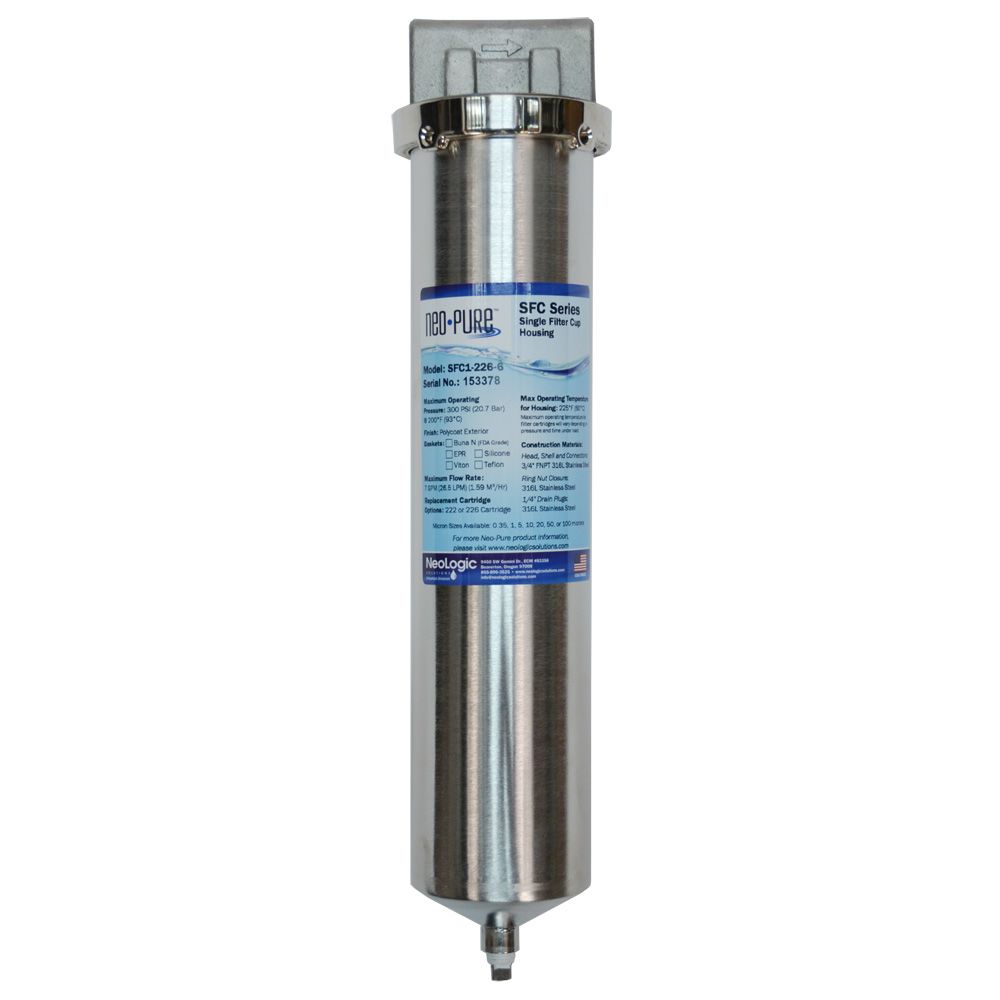

Neo-Pure SFC1 Stainless Steel Single Cup Filter Housing for 9-3/4" to 10" 222 or 226 connector cartridges provides exceptional filtration with for flow rates up to 7 gpm. The ring nut closure allows quick change-outs and secure sealing.
Features:
- Ideal for high purity commercial or industrial filter applications
- Heavy-duty 316L stainless steel construction from maximum durability
- Electro-polished sump suitable for a wide range of process requirements

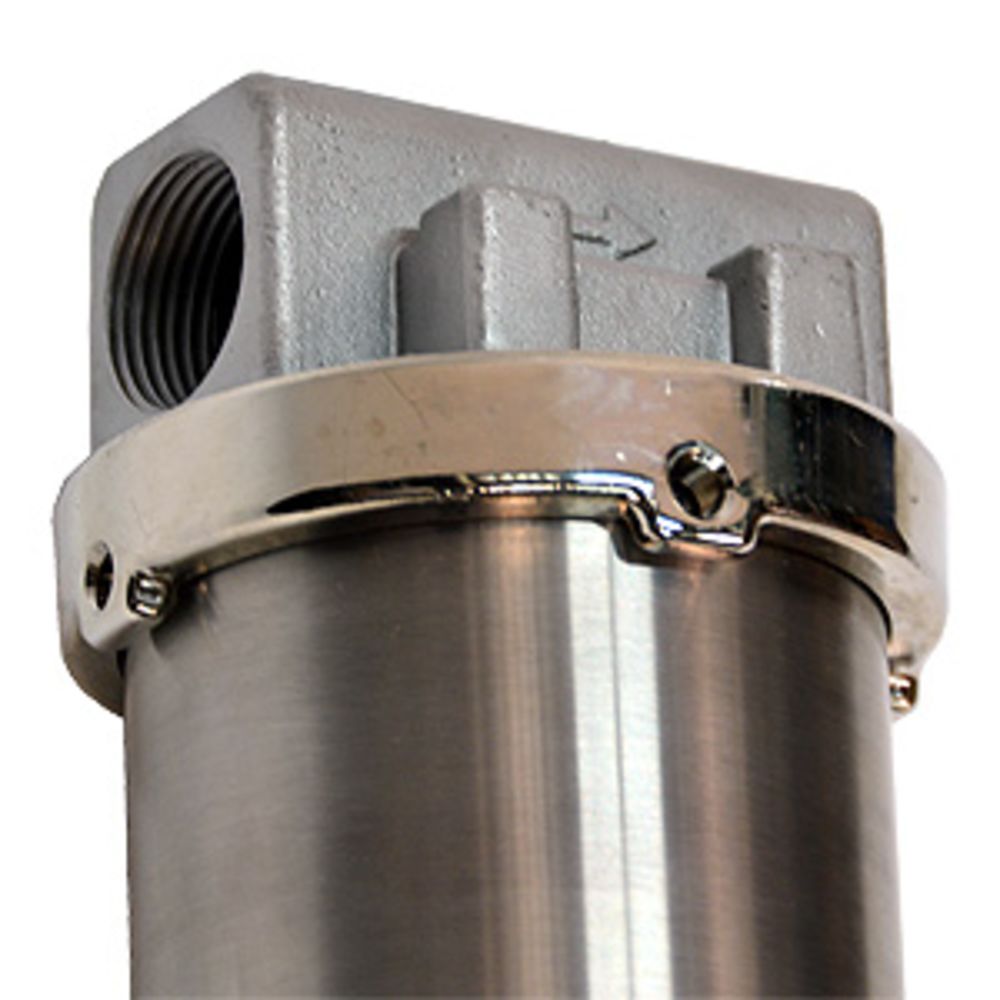

- Ring nut closure for quick, easy change-outs and secure sealing
- Accepts 9-3/4" to 10" SOE cartridges with 222 or 226 style connectors
- Flow rates up to 7 gallons per minute
- Inlet/Outlet: 3/4" FPT
- Includes mounting bracket kit and rod for opening and closing
- Coolants
- Chemicals
- Electronics
- Food and Beverage
- Oil and Gas
- Paints, Inks, and Coatings
- Paper and Pulp
- Water
NOTE: Ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.
Compatible with: Graver Technologies | SCB10222075DOE-B
Weight & Dimensions
Approx Height (Inches) | 17-7/16" Inches |
Approx Length (Inches) | 9-3/4 - 10 Inches |
Details
Body Material | 316L Stainless Steel |
Cap Color | Stainless Steel |
Cap Material | 316 Stainless Steel |
Closure Type | Ring Nut Closure - Stainless Steel |
Color / Finish | Stainless Steel |
Drain Size | 1/4" |
Housing Material | 316 Stainless Steel |
Inlet/Outlet Size | 3/4", 1" |
Material Of Construction | 316 Stainless Steel |
Max Flow Rate | 7 Gallons Per Minute |
Max Operating Pressure | 300 PSI |
Max Operating Temperature | 200 Degrees Fahrenheit |
Mounting Options | Mounting Bosses |
Number Of Cartridges | 1 |
O Rings | Buna-N |
Origin | USA |
