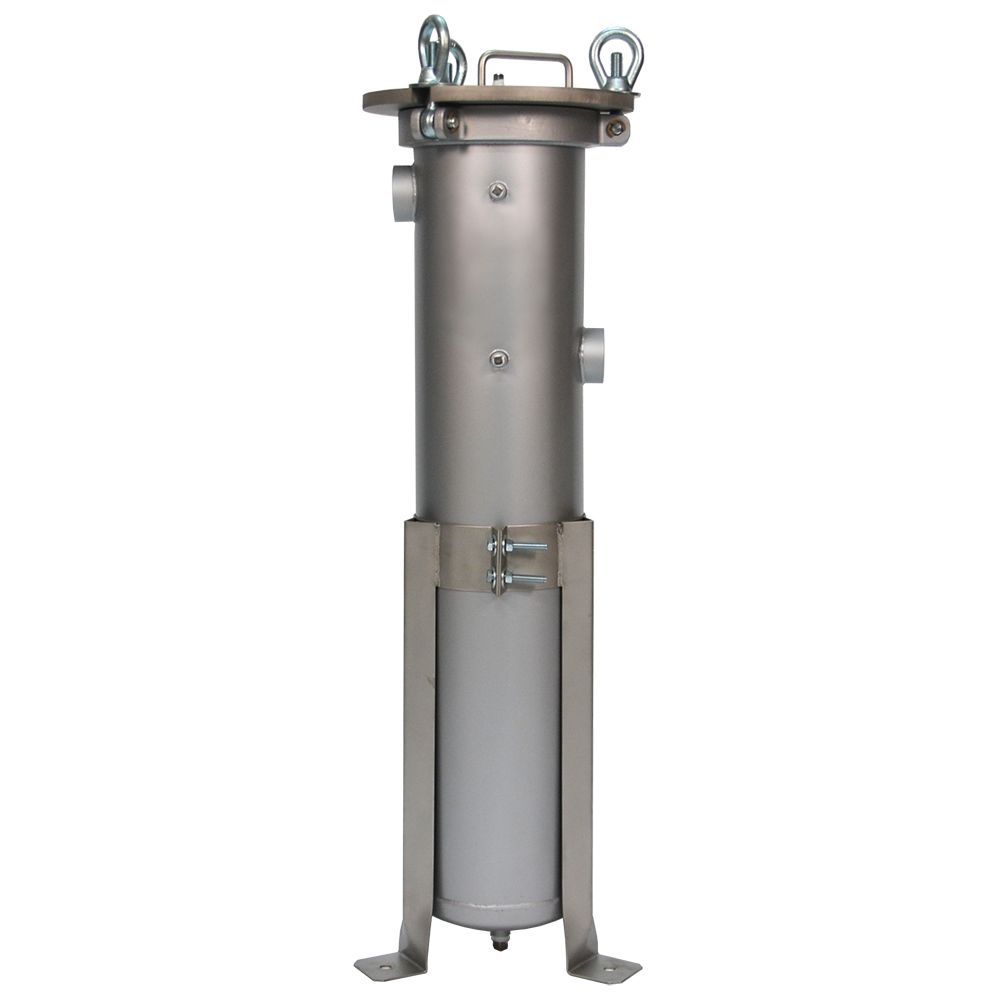

The Shelco BFS-2SB Stainless Steel Single #2 Bag Filter Housing provides exceptional water filtration by utilizing a single standard #2 bag filter for flow rates up to 150 gpm. The swing bolt closure allows for secure sealing and quick and easy filter bag changes.
Features:
- Accepts standard bag #2 filters for easy replacement and excellent filtration
- Designed for commercial and industrial filter applications
- Swing bolt closure for quick, easy change-outs and secure sealing
- Heavy-duty 304L stainless steel construction for maximum durability
- Protective poly-coat finish
- Inlet/Outlet: 2" FNPT
- Flow rates up to 150 gallons per minute
- All stainless steel internals
- Coolants
- Oil
- Food & Beverage
- Water
- Pulp & Paper
- Inks/Paints/Coatings
- Electronics
- Chemicals
NOTE: Standard option BF series housings are stocked and available for immediate shipment. Customized housings require 2-3 weeks to manufacture. For more information on returning customized items, see our Returns Policy .
Weight & Dimensions
Approx Length (Inches) | #2 Filter Bags |
Details
Body Material | 304L Stainless Steel |
Cap Color | Stainless Steel |
Cap Material | 304 Stainless Steel |
Closure Type | Swing Bolts - Zinc Plated Steel |
Color / Finish | Stainless Steel |
Drain Size | 1/2" |
Gaskets | Buna N (FDA grade) |
Housing Material | 304 Stainless Steel |
Inlet/Outlet Size | 2" FNPT |
Material Of Construction | 304 Stainless Steel |
Max Flow Rate | 150 Gallons Per Minute |
Max Operating Pressure | 150 psig @ 300°F PSI |
Number Of Cartridges | 1 |
Origin | USA |
Type | Bag Vessel |
Vent Size | 1/4" NPT |
