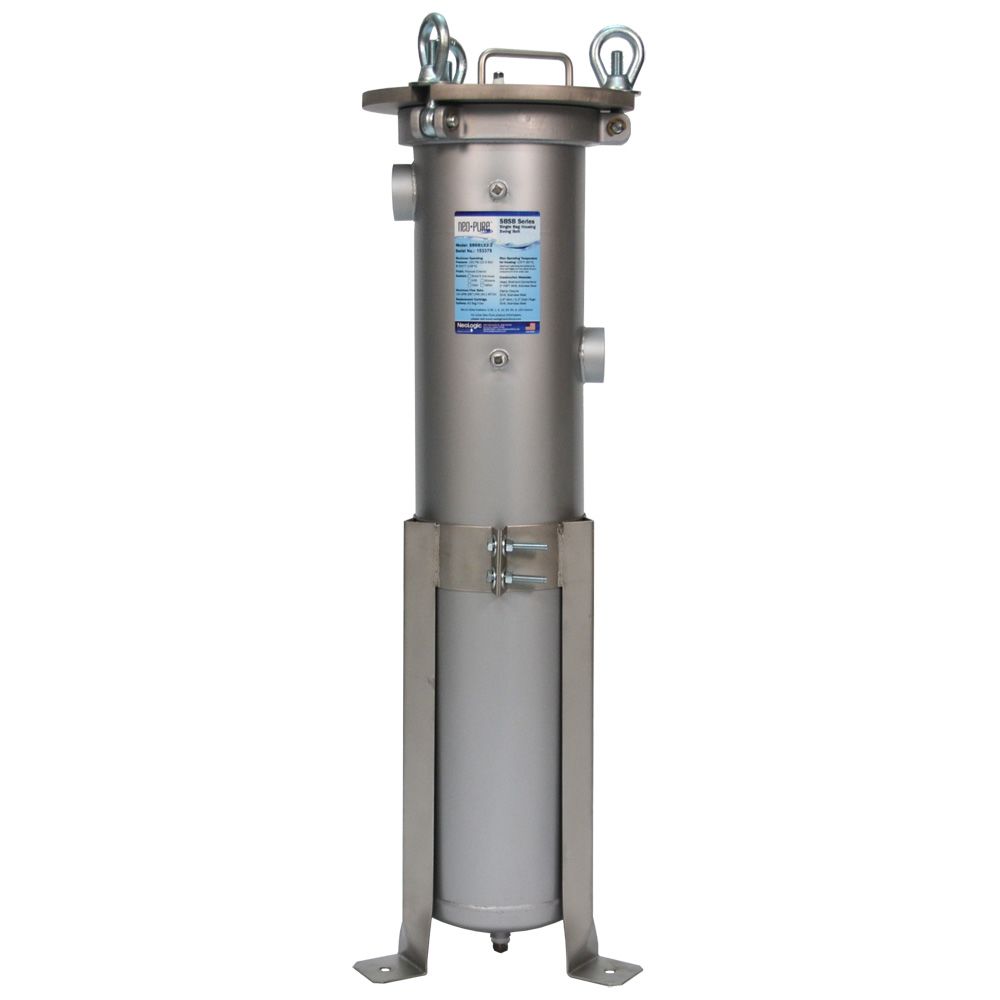

Neo-Pure SBSB2 Standard Bag #2 Swing Bolt Filter Housing

Part Number: SBSB2-304L-2

In Stock

out of stock

In Stock

$1,133.30


Neo-Pure Stainless Steel SBSB2 #2 Bag Housing provides excellent filtration with a single standard bag filter for flow rates up to 150 gpm. The swing bolt clamp allows quick filter bag change-outs and secure seali
Features:
  • Designed For Many Types Of Applications. The Neo-Pure Stainless Steel SBSB2 #2 Bag Housing designed for commercial and industrial filter applications.

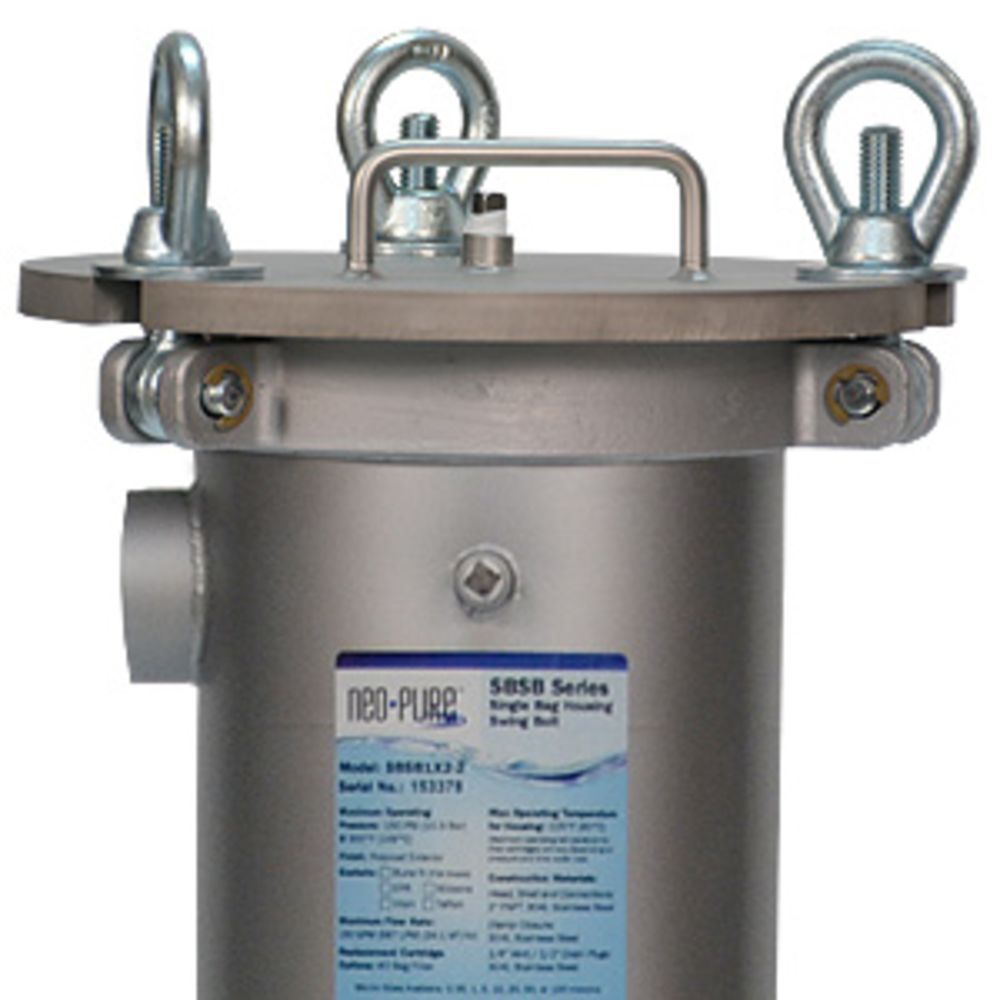

  • Swing Bolt Clamp Closure. The Neo-Pure Stainless Steel SBSB2 #2 Bag Housing features a swing bolt clamp closure for quick, easy change-outs, and secure sealing.
  • Accepts Standard Bag #2 Filters. The Neo-Pure Stainless Steel SBSB2 uses #2 bag filters for excellent filtration.
  • Heavy-duty Stainless Steel Construction. The Neo-Pure Stainless Steel SBSB2 #2 Bag Housing features heavy-duty 304L or 316L stainless steel construction for maximum durability.
Specifications:

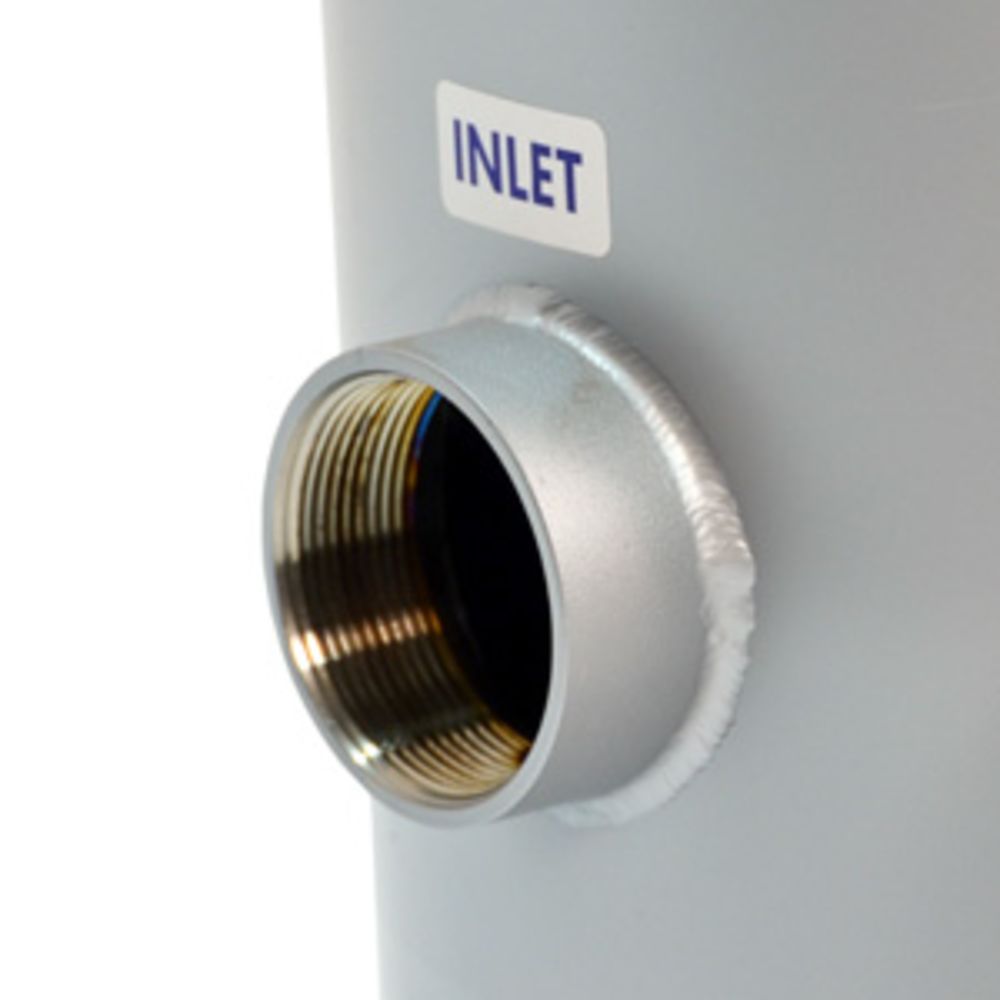

  • Inlet/Outlet: 2" FNPT
  • Protective poly-coat finish
  • All stainless steel internals
  • Flow rates up to 150 gallons per minute

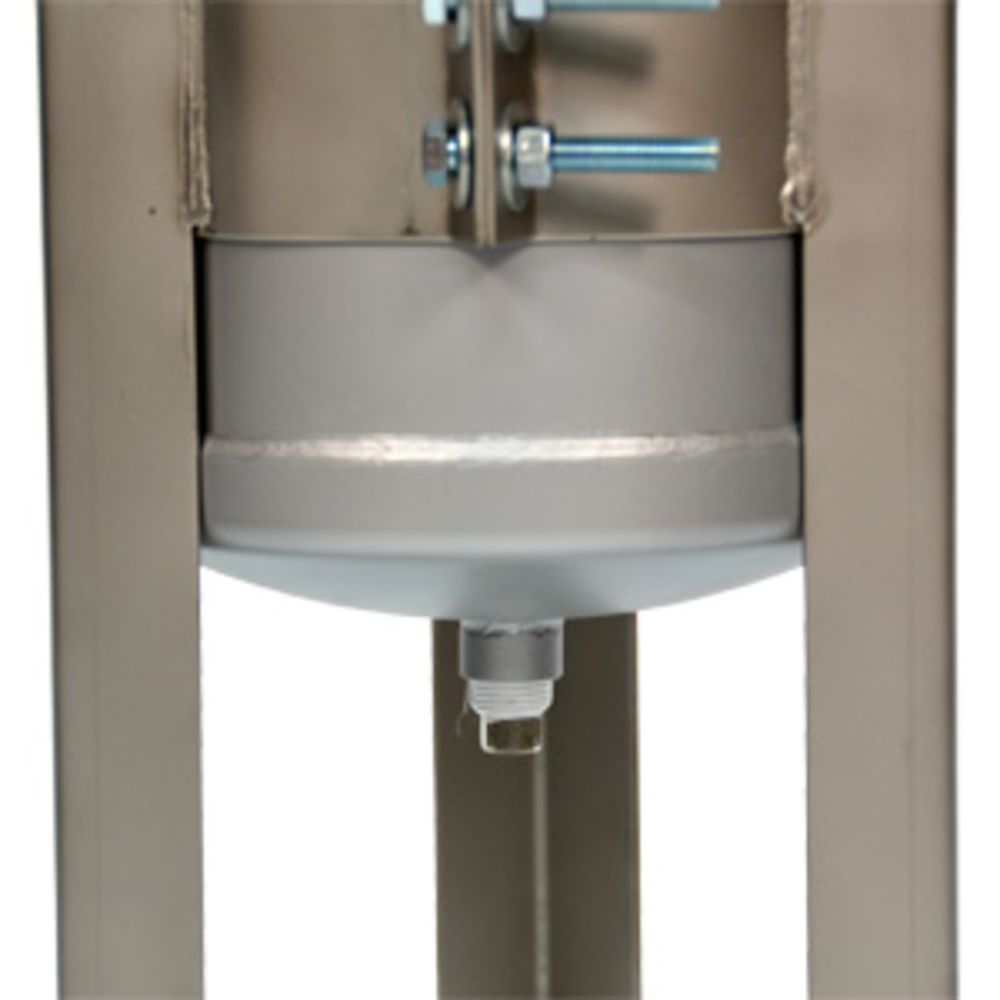

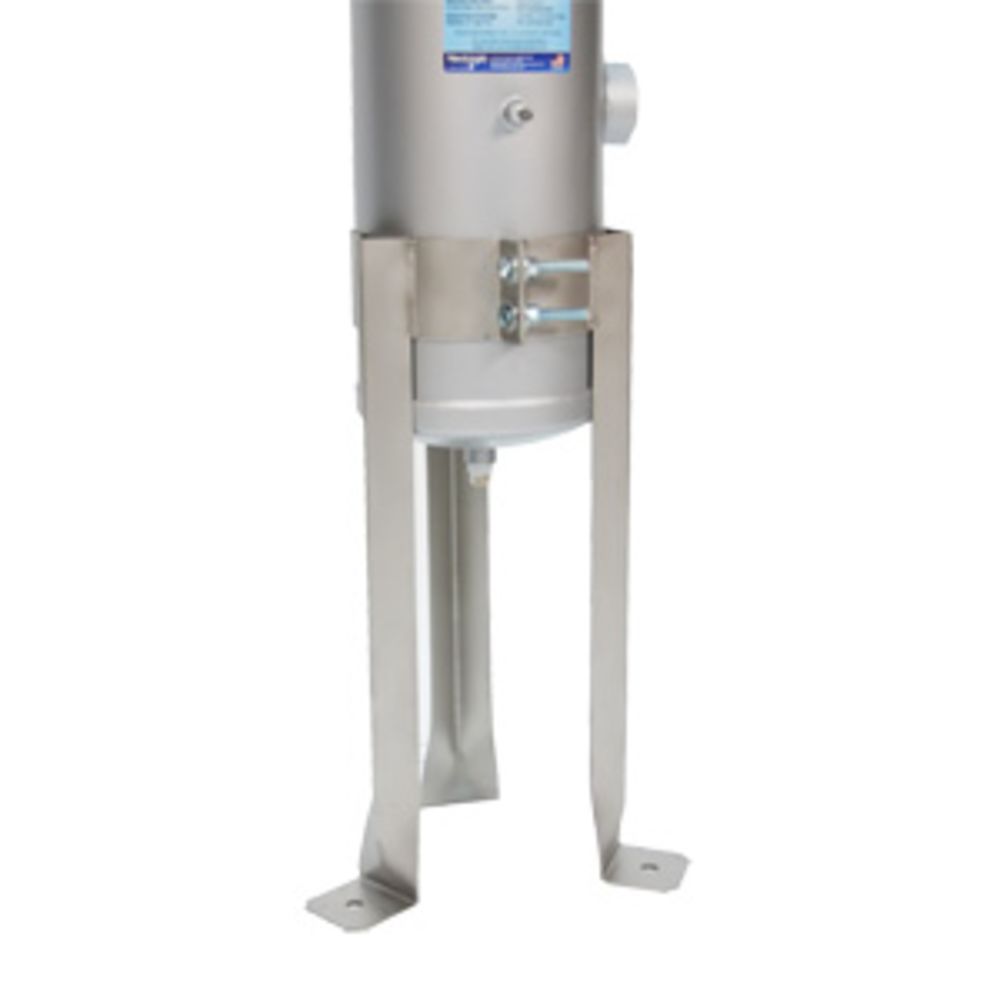

  • Standard version comes with adjustable mounting legs
  • Neo-Pure SB Series Single Bag Housings Specifications
NOTE: Standard option SBSB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.


Applications
  • Chemicals
  • Coolants
  • Food and Beverage
  • Electronics
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

Compatible with: Harmsco® Compatible | HSB-2


Weight & Dimensions

Approx Height (Inches)

39.48 Inches

Details

Body Material

304L Stainless Steel

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Closure Type

Swing Bolts - Zinc Plated Steel

Color / Finish

Stainless Steel

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

2" FNPT

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

150 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

300 Degrees Fahrenheit

Number Of Cartridges

1

Origin

USA

Type

Bag Vessel

Vent Size

1/4" NPT


Neo-Pure
