Shelco

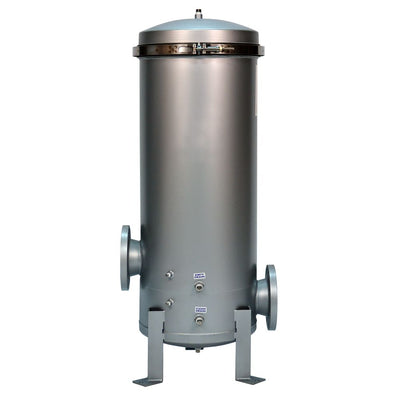

Shelco 22FOS3 Multi-Cartridge Filter Housings

Part Number: 22FOS3C-304-4F-MLGP-B

In Stock

out of stock

In Stock

$3,895.00


Shelco 22FOS3 Multi-Cartridge Filter Housings hold twenty-two 30" cartridges providing excellent filtration for up to 462 gallons per minute. The V-band clamp or swing bolt closure also ensure secure sealing and quick filter changes.Neo-Pure BMC Multi Cartridge Housing Replacement Filters

Applications:
  • Coolants
  • Power
  • Electronics
  • Chemicals
  • Water
  • Pulp & Paper
  • Inks/Paints/Coatings
  • Oil/Gas
  • Food & Beverage
  • Desalination

Features:
  • Heavy-duty 304L stainless steel construction for maximum durability
  • Holds twenty-two 30" cartridges for optimal filtration flow
  • V-band clamp or swing bolt closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Inlet/Outlet: 4" RF Flange
  • Flow rates up to 462 gallons per minute
  • All stainless steel internals
  • Shelco 22FOS Series Multi-Cartridge Filter Housing Specifications

NOTE: Standard option 22FOS series housings are stocked and available for immediate shipment. Customized housings require 2-3 weeks to manufacture. For more information on returning customized items, see our Returns Policy.


Weight & Dimensions

Approx Height (Inches)

50-3/16 Inches

Approx Length (Inches)

30"

Details

Body Material

304L Stainless Steel

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Closure Type

V-band clamp - Stainless Steel, Swing Bolts - Zinc Plated Steel

Color / Finish

Stainless Steel

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

4" flange

Material Of Construction

304 Stainless Steel

Max Flow Rate

462 Gallons Per Minute

Max Operating Pressure

150 psig @ 300°F PSI

Number Of Cartridges

22

Origin

USA


Shelco





Shelco 22FOS3 Multi-Cartridge Filter Housings hold twenty-two 30" cartridges providing excellent filtration for up to 462 gallons per minute. The V-band clamp or swing bolt closure also ensure secure sealing and quick filter changes.Neo-Pure BMC Multi Cartridge Housing Replacement Filters

Applications:
  • Coolants
  • Power
  • Electronics
  • Chemicals
  • Water
  • Pulp & Paper
  • Inks/Paints/Coatings
  • Oil/Gas
  • Food & Beverage
  • Desalination

Features:
  • Heavy-duty 304L stainless steel construction for maximum durability
  • Holds twenty-two 30" cartridges for optimal filtration flow
  • V-band clamp or swing bolt closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Inlet/Outlet: 4" RF Flange
  • Flow rates up to 462 gallons per minute
  • All stainless steel internals
  • Shelco 22FOS Series Multi-Cartridge Filter Housing Specifications

NOTE: Standard option 22FOS series housings are stocked and available for immediate shipment. Customized housings require 2-3 weeks to manufacture. For more information on returning customized items, see our Returns Policy.

Weight & Dimensions

Approx Height (Inches)

50-3/16 Inches

Approx Length (Inches)

30"

Details

Body Material

304L Stainless Steel

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Closure Type

V-band clamp - Stainless Steel, Swing Bolts - Zinc Plated Steel

Color / Finish

Stainless Steel

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

4" flange

Material Of Construction

304 Stainless Steel

Max Flow Rate

462 Gallons Per Minute

Max Operating Pressure

150 psig @ 300°F PSI

Number Of Cartridges

22

Origin

USA
