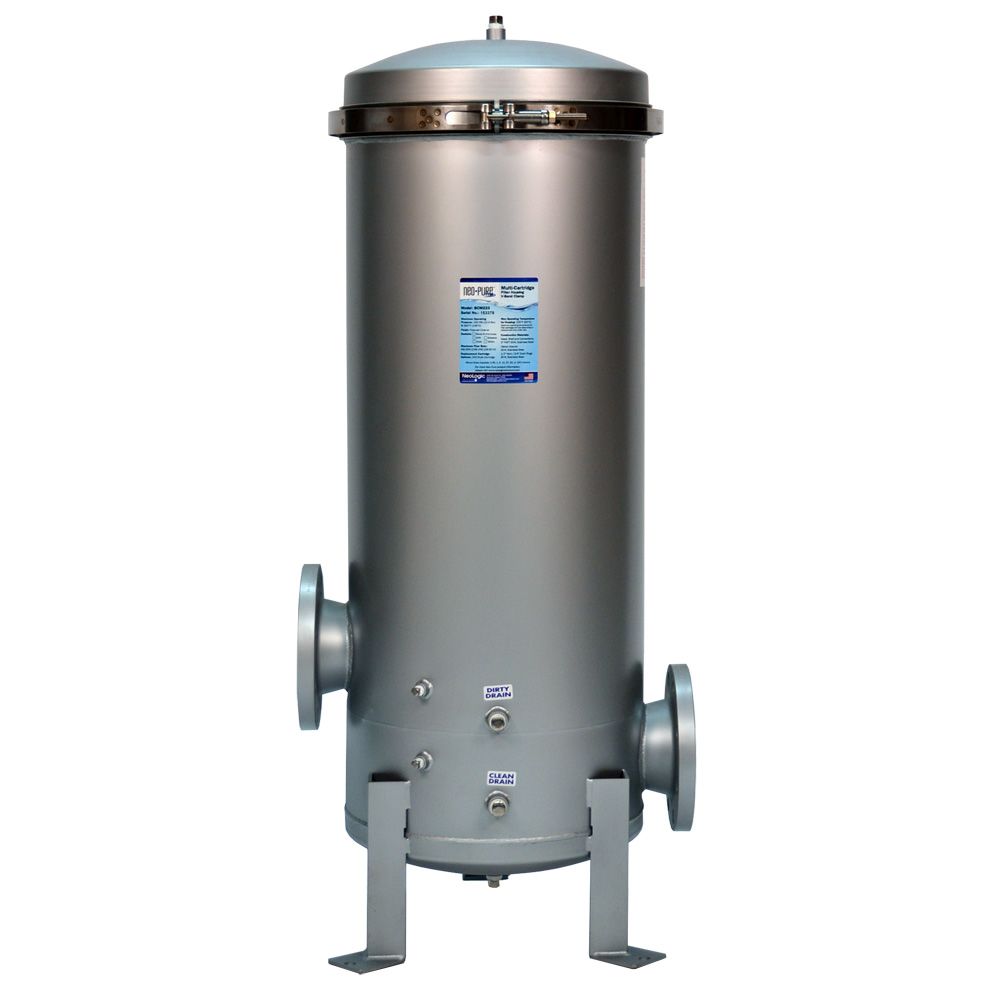

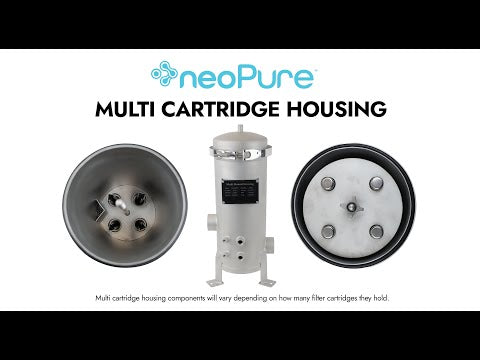

Neo-Pure BCM22 30" Multi-Cartridge Stainless Steel Housing

Part Number: BCM22X3

In Stock

out of stock

In Stock

$3,678.47

The Neo-Pure BCM22 Multi-Cartridge Stainless Steel Housing utilizes twenty-two 30" cartridges providing top-of-the-line filtration for up to 462 gallons per minute. The V-band clamp and swing bolt closure also allows quick change-outs and secure sealing.Neo-Pure BMC Multi Cartridge Housing Replacement Filters

Features:
  • Accepts twenty-two 30" cartridges for optimal filtration flow
  • Heavy-duty 304L stainless steel construction for maximum durability

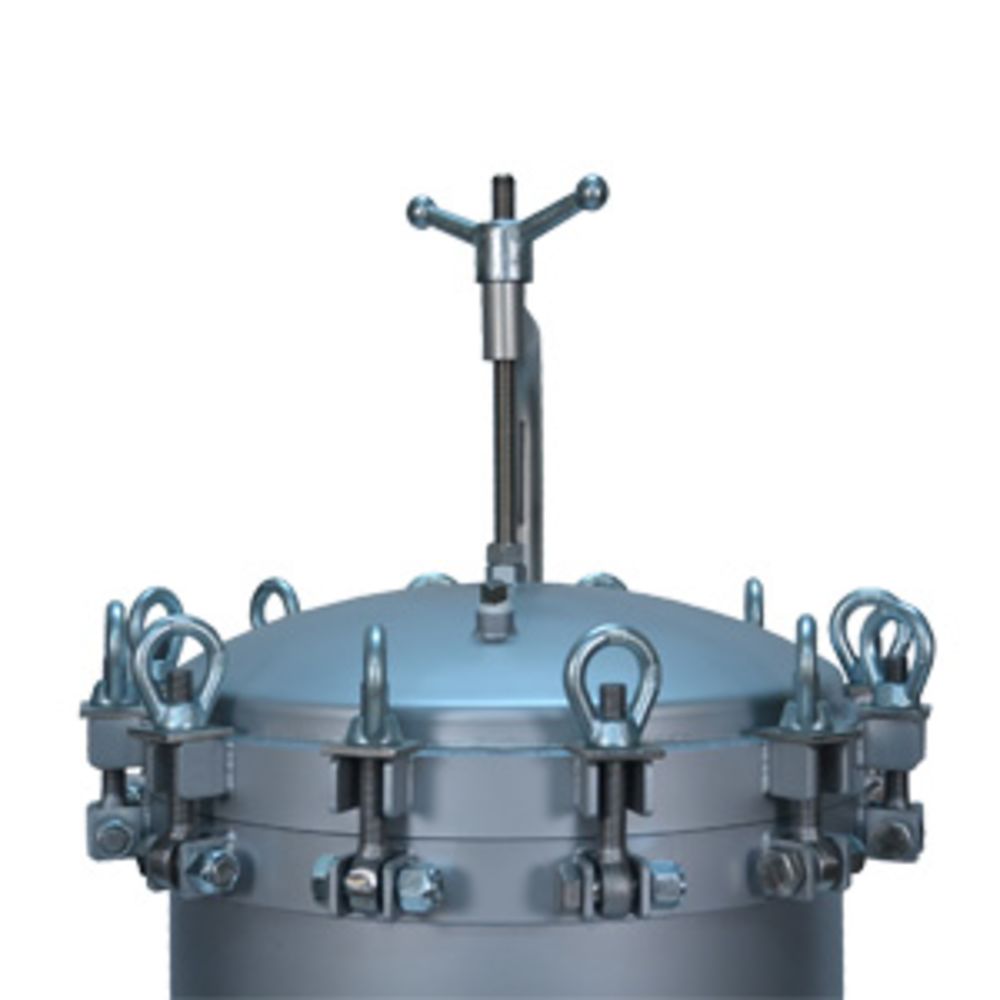

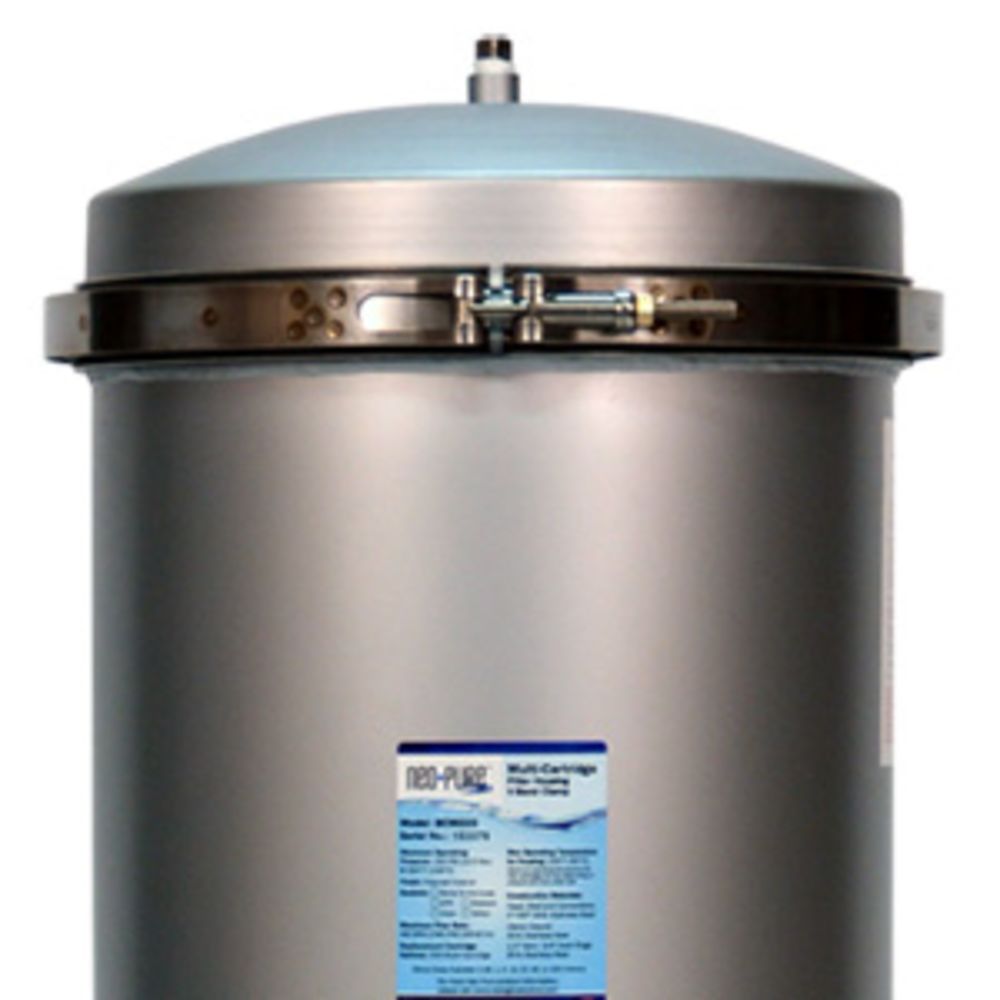

  • V-band clamp or swing bolt closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 462 gallons per minute

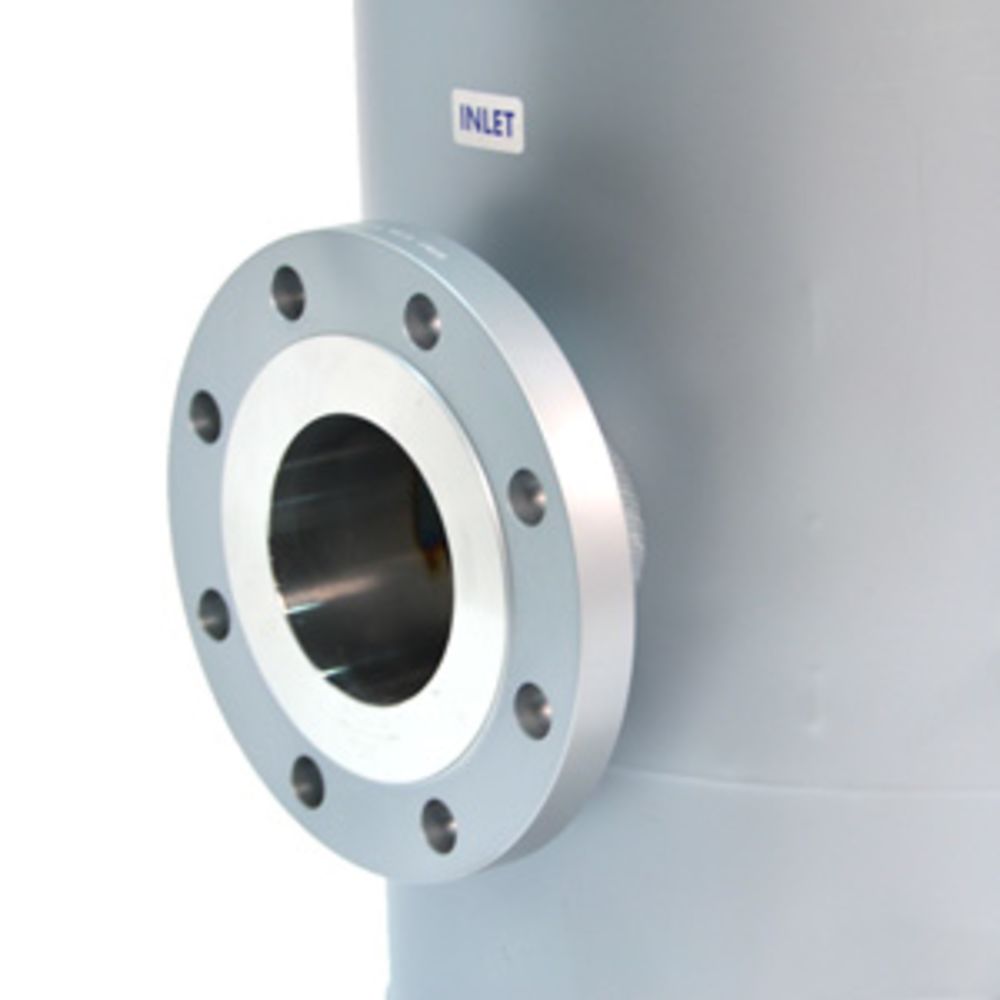

  • Inlet/Outlet: 4" RF Flange
  • All stainless steel internals
  • Standard version comes with gauge ports and mounting legs
Applications:
  • Chemicals
  • Cooling Tower Filtration
  • Desalination Prefiltration
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Power
  • Water

Notes:
* The SBM22X3-316L-3FL features a 3" flange

** Standard option BCM22 series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.



Compatible with:
Harmsco® CompatibleHBC-22-3

Details

Body Material

304L Stainless Steel

Closure Type

V-Band Clamp, Swing Bolts

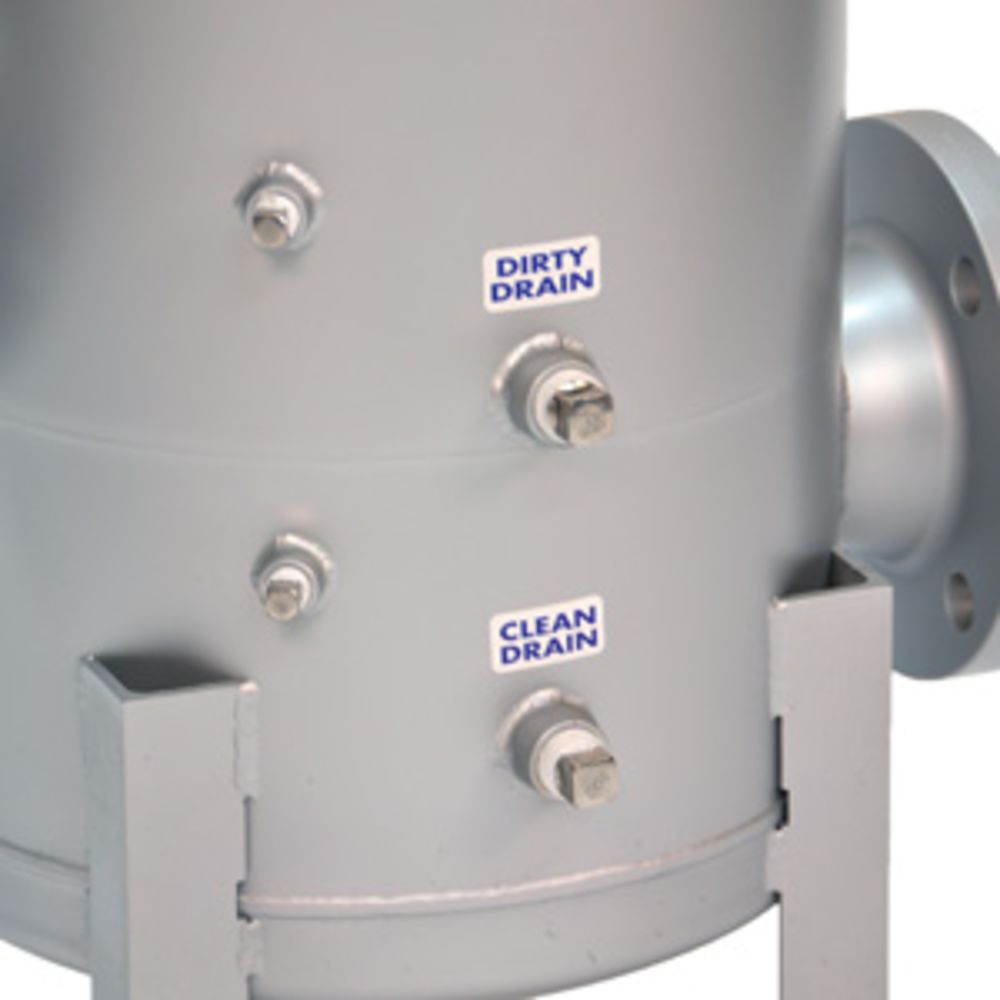

Drain Size

3/4" FPT

Inlet/Outlet Connection

3" Flange, 4" Flange

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

462 GPM

Max Pressure (Psi)

150

Max Temp (°F)

225

Number Of Cartridges

22

Size

3", 4"

Vent Size

1/2" NPT

Connection Type

Flange

Origin

USA
