Rusco

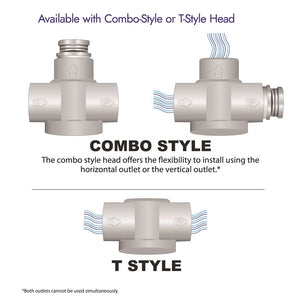

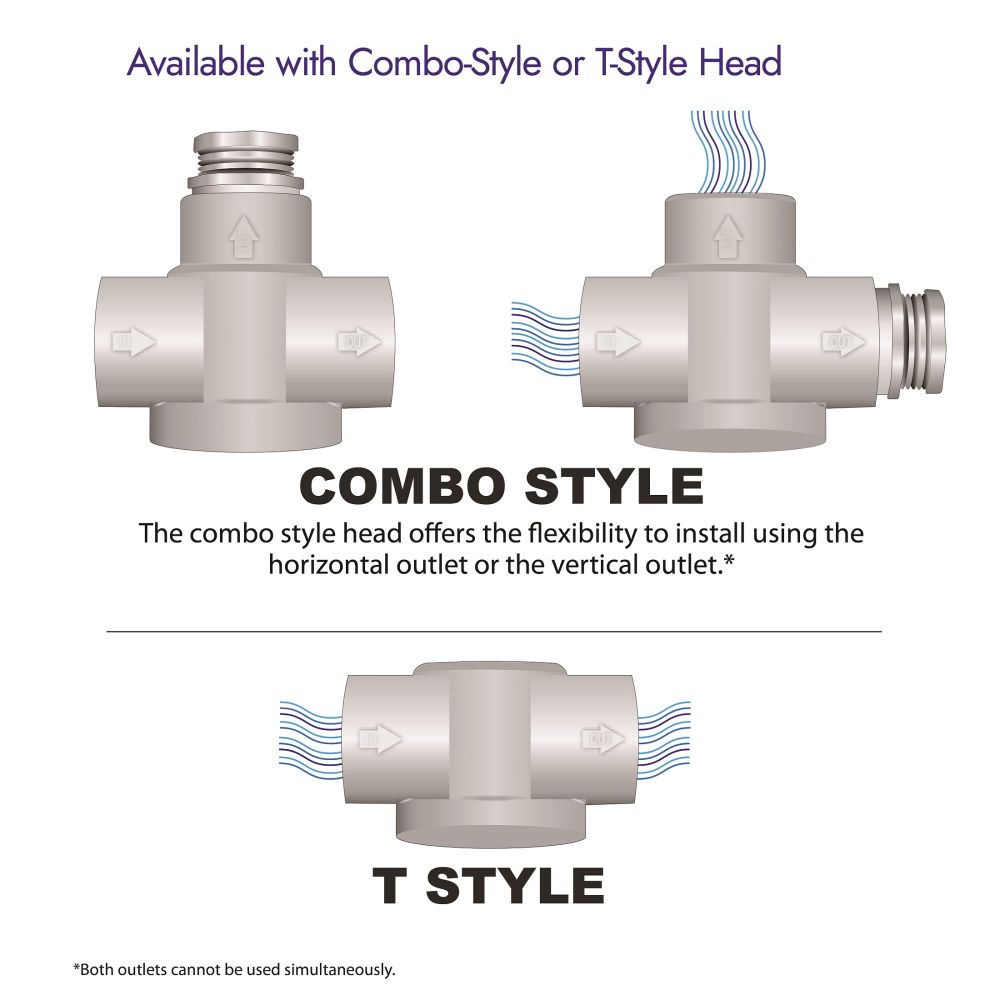

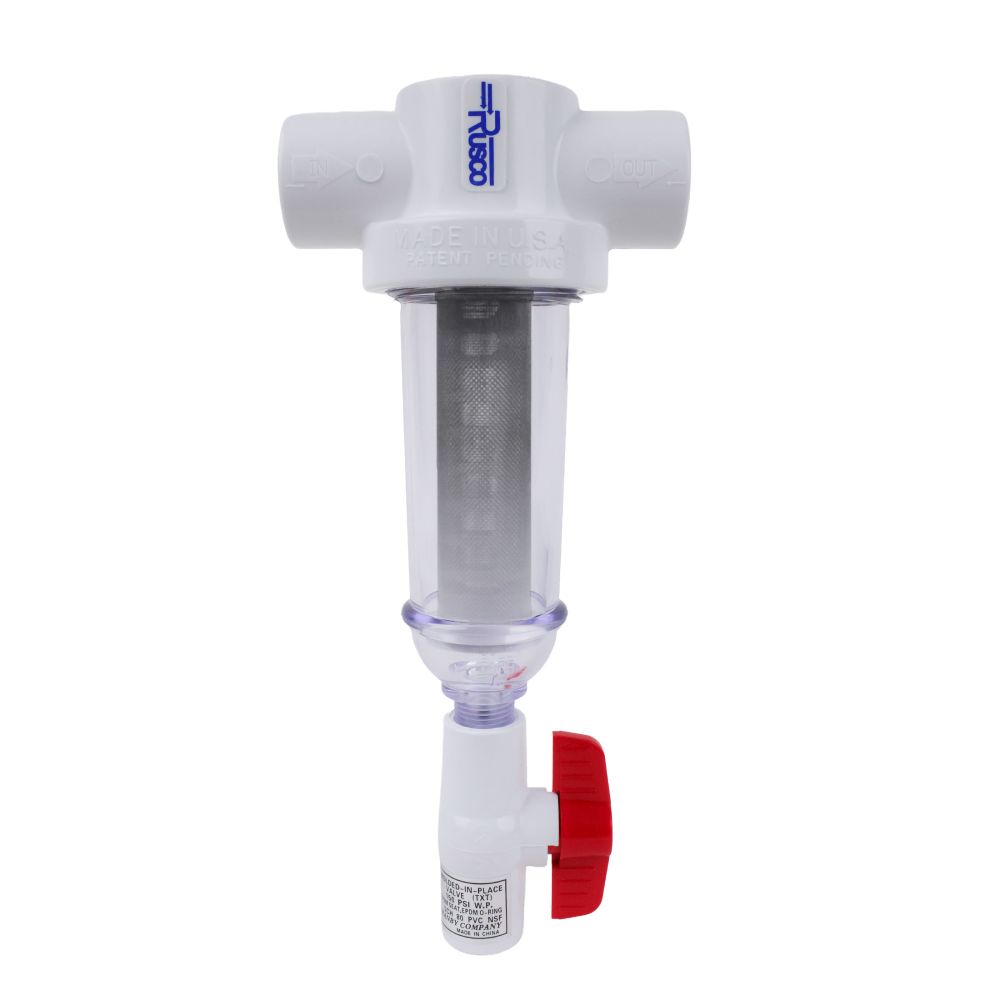

Rusco Spin Down Filter SS Screen T Style 3/4" FPT

Part Number: 3/4-30SS-F

In Stock

out of stock

In Stock

$61.05

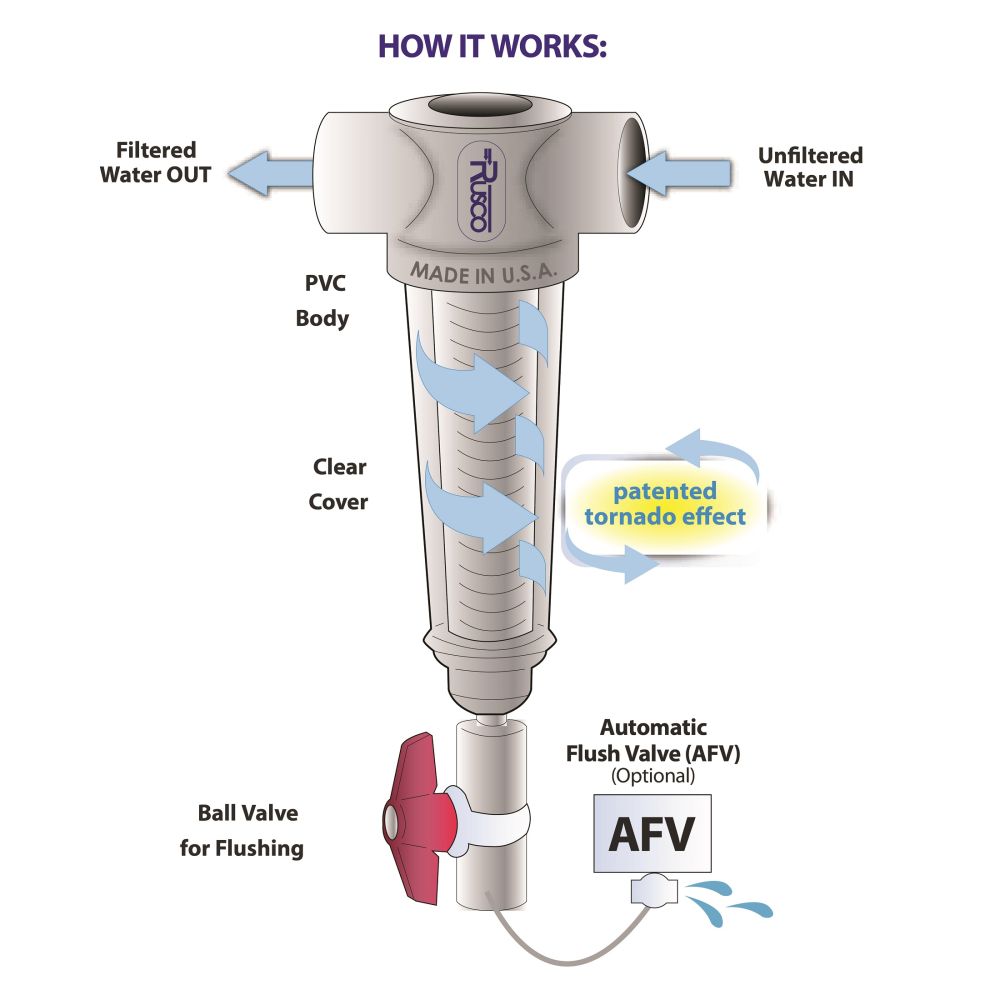

Rusco 3/4" FPT Spin Down Sediment Filter System with Stainless Steel Filter Screen is more durable than PE screens and make solid particle removal simple and economical. The benefit of the 3/4" FPT Spin Down filter system is its ability to be cleaned and reused. The 3/4" Spin-Down Sediment Filter by Rusco has a clear cover that can be easily removed for total of filter and stainless steel filter screen cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Rusco Spin Down Filter SS Screen - 3/4" FPT Benefits:
  • The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful back-washing required
  • Small size takes little space
  • Screen sizes can be easily changed if required

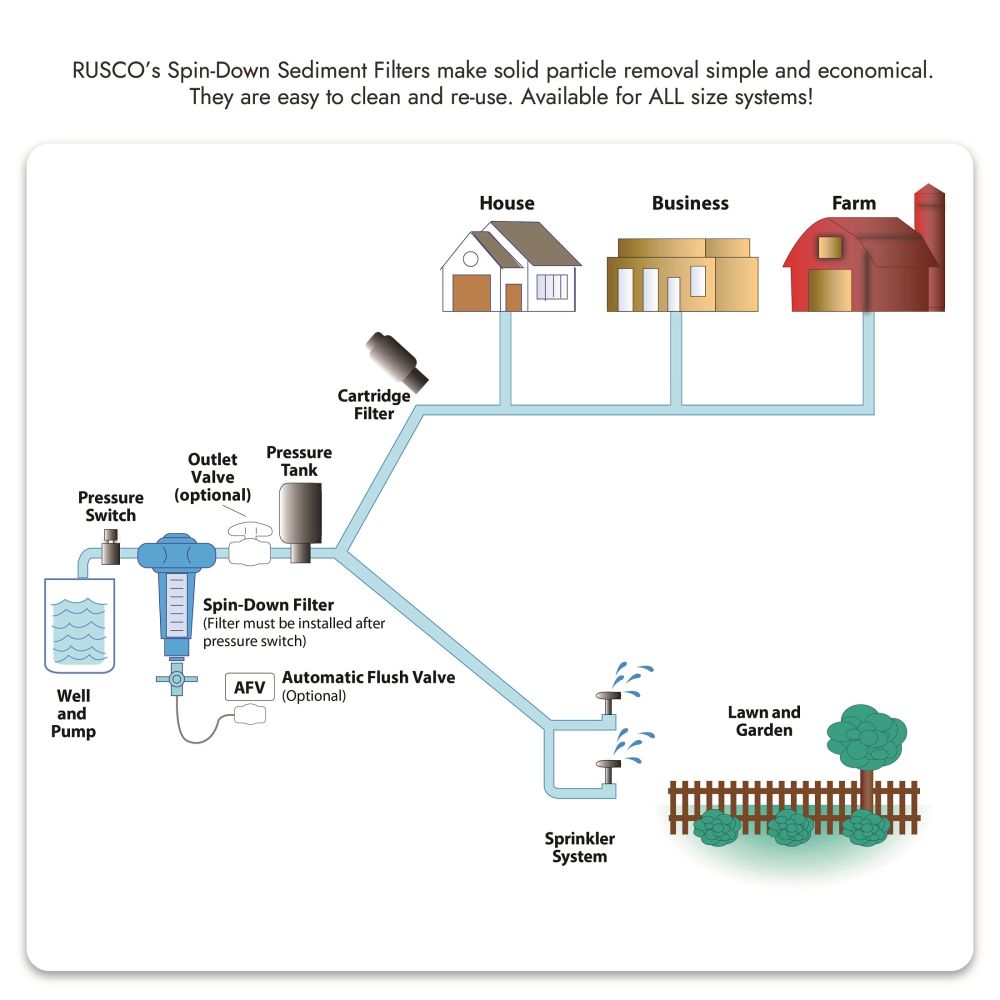

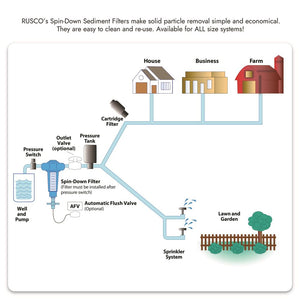

  • Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis


Details

Screen Material

Stainless Steel Screen

Housing Resistance

Fresh Water Only

Body Material

PVC

Cartridge Style

Spin Down Screen, Stainless Steel

Diameter

.021, .010, .006, .004, .0029

Flow Rate

1-25 GPM

Housing Material

High Impact Polymer Resin

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

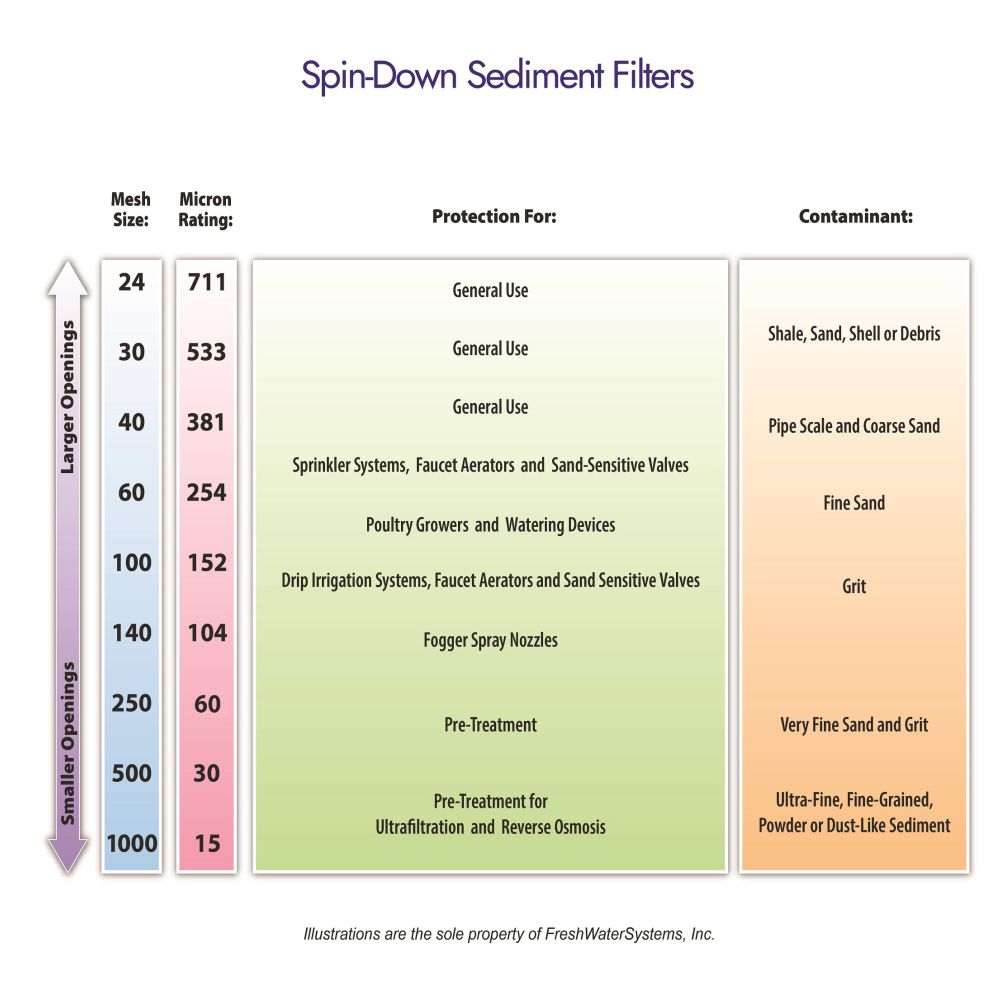

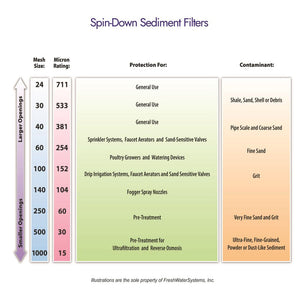

Mesh Size

30, 60, 100, 140, 200

Micron Rating (Nominal)

533, 254, 152, 104, 74

O Rings

EPDM

Size

3/4"

Inlet/Outlet Connection

3/4" | FPT
