Rusco

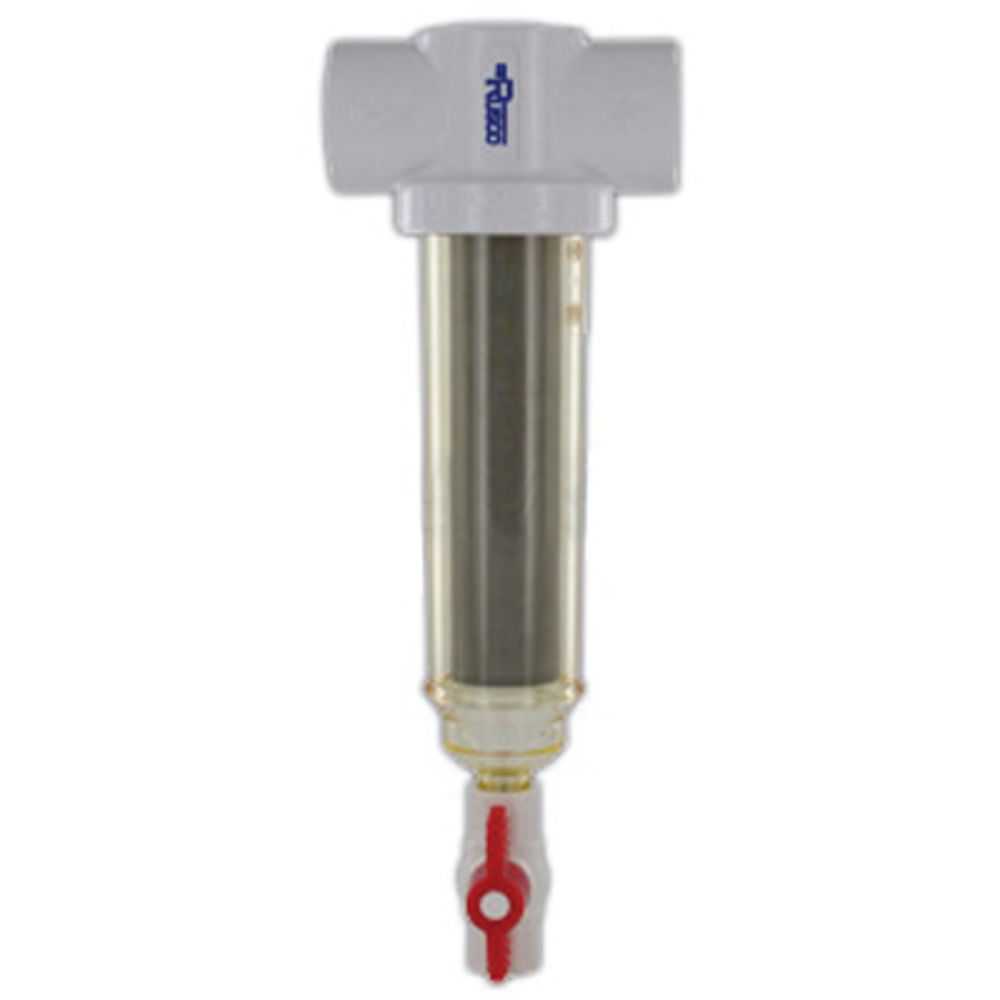

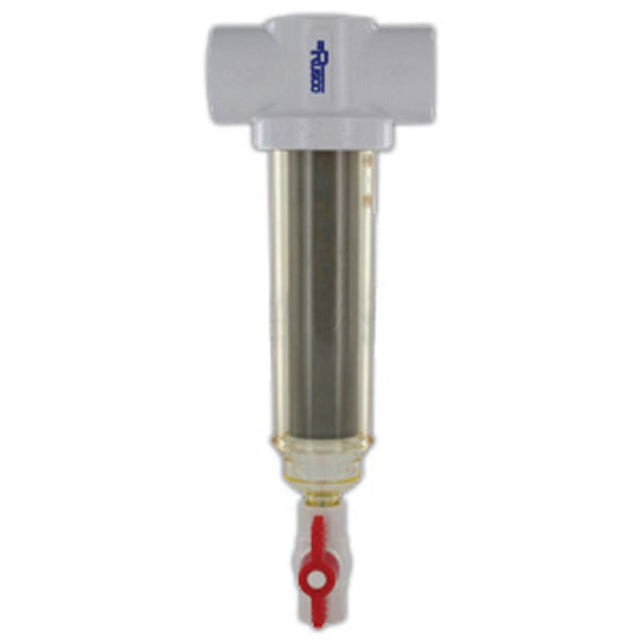

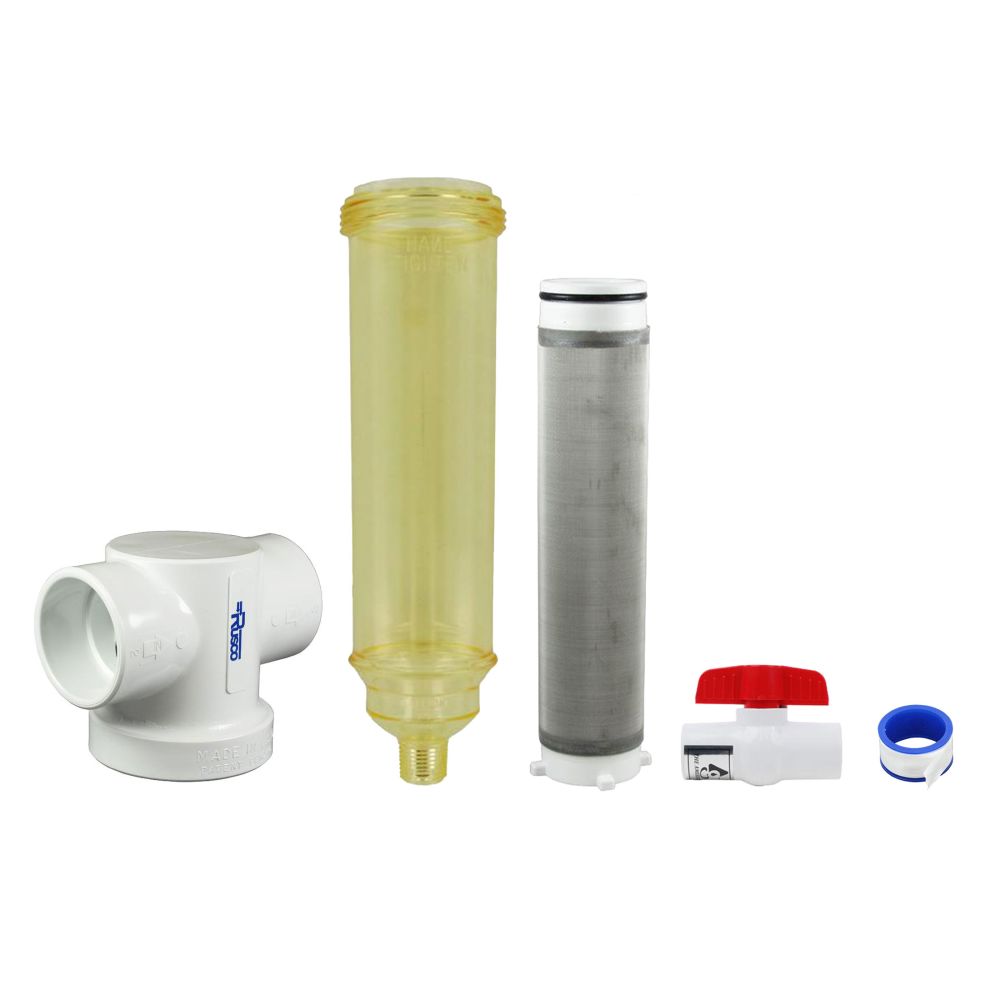

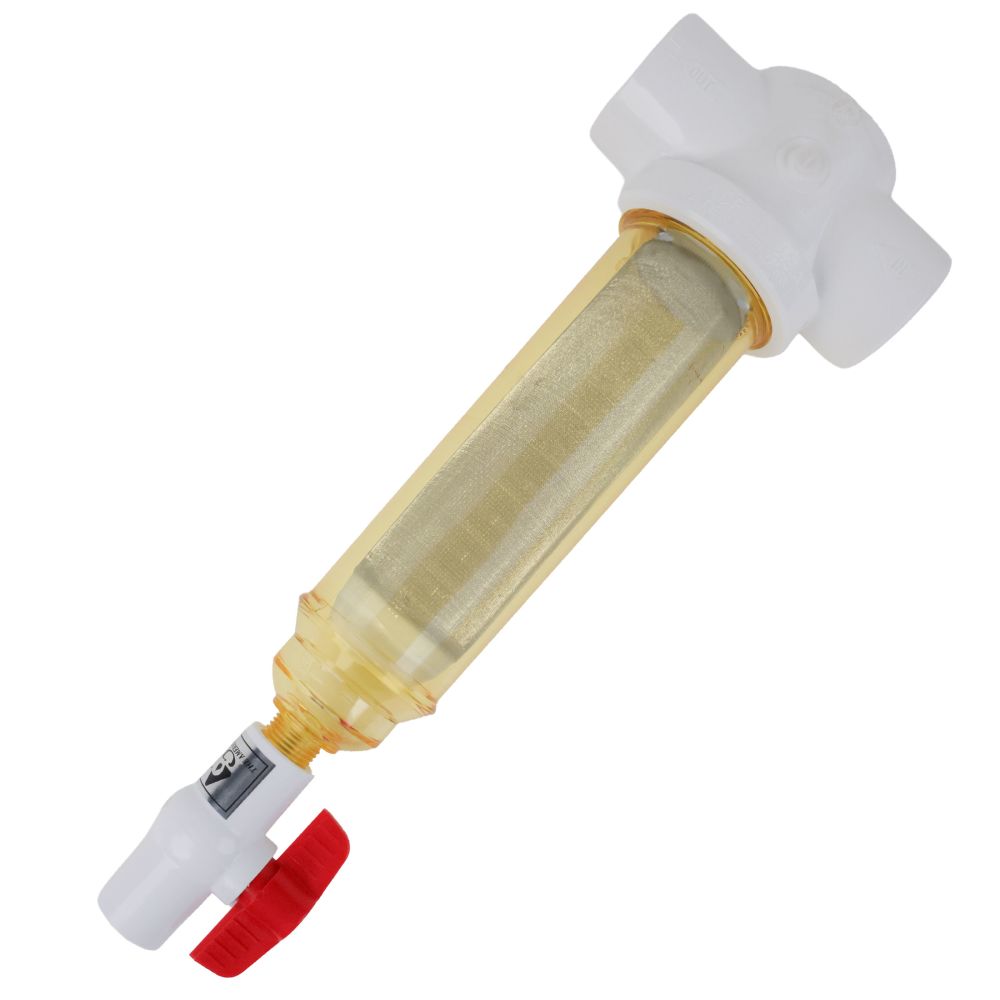

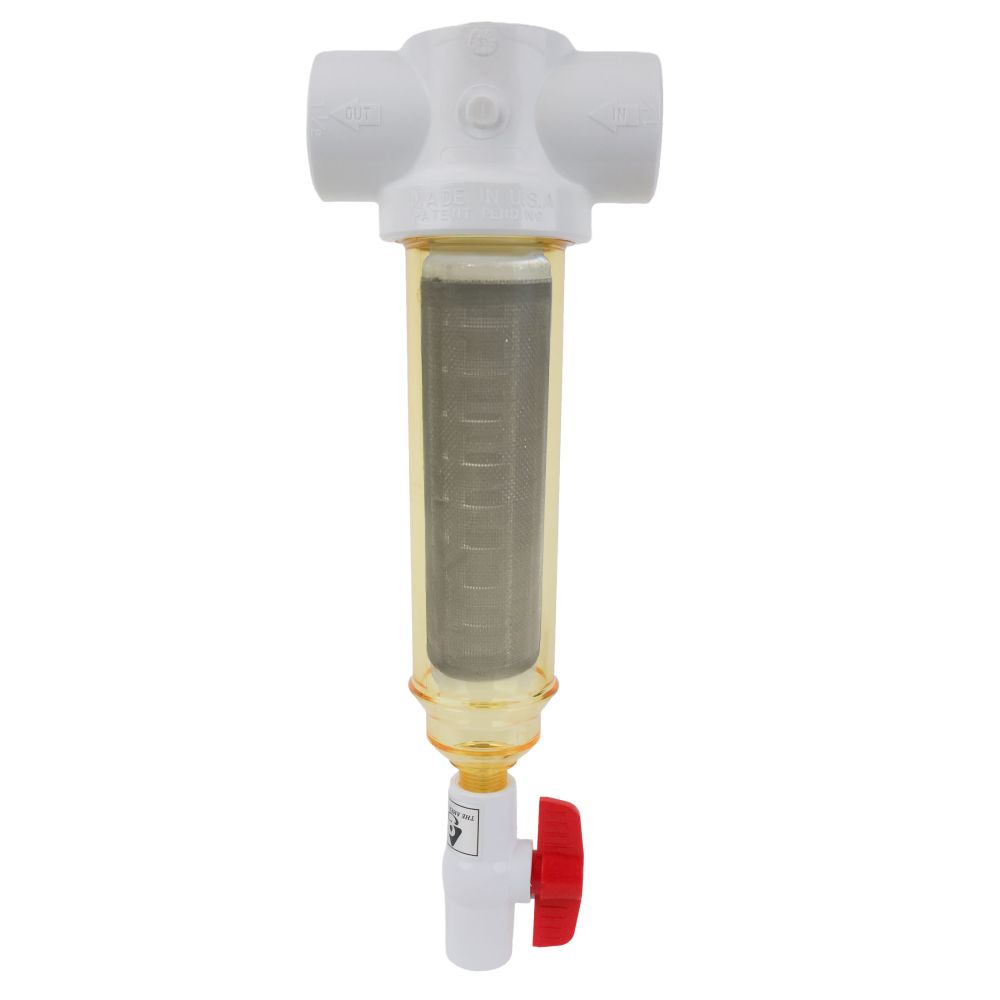

Rusco Chemically Resistant Spin Down Filter T Style 2" SS

Part Number: 2-30SSCR-F

In Stock

out of stock

In Stock

$173.16

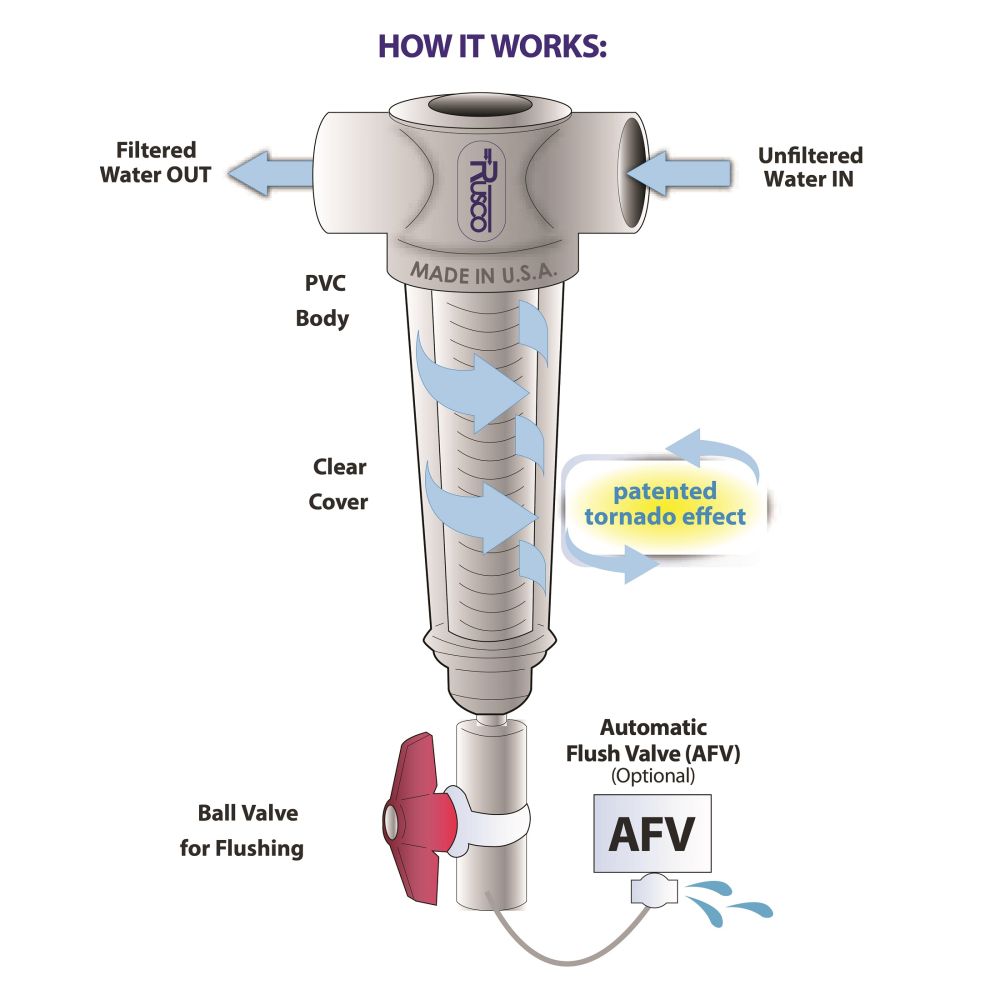

RUSCO’s 2" Stainless Steel Screen Chemical Resistant Spin-Down sediment filter is more durable than PE screens and system make solid particle removal simple and economical. The benefit of the chemically resistant 2" Spin-Down filter is its housing & head are made from chemical resistant materials for contaminated water, and its ability to be cleaned and reused. The 2" Chemically resistant Rusco Spin-Down Sediment Filter has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Benefits:
  • The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required

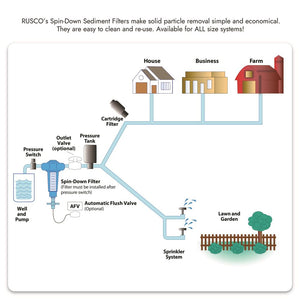

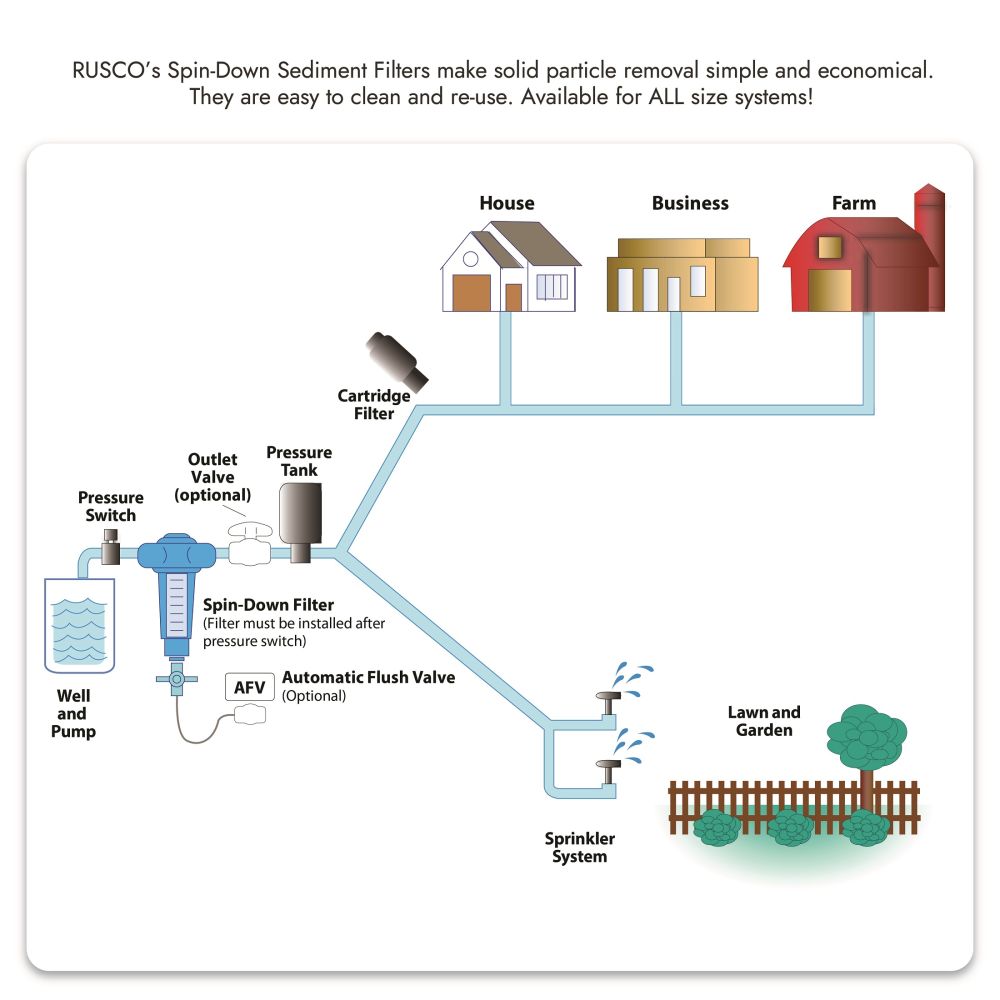

  • Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis




Details

Body Material

PVC

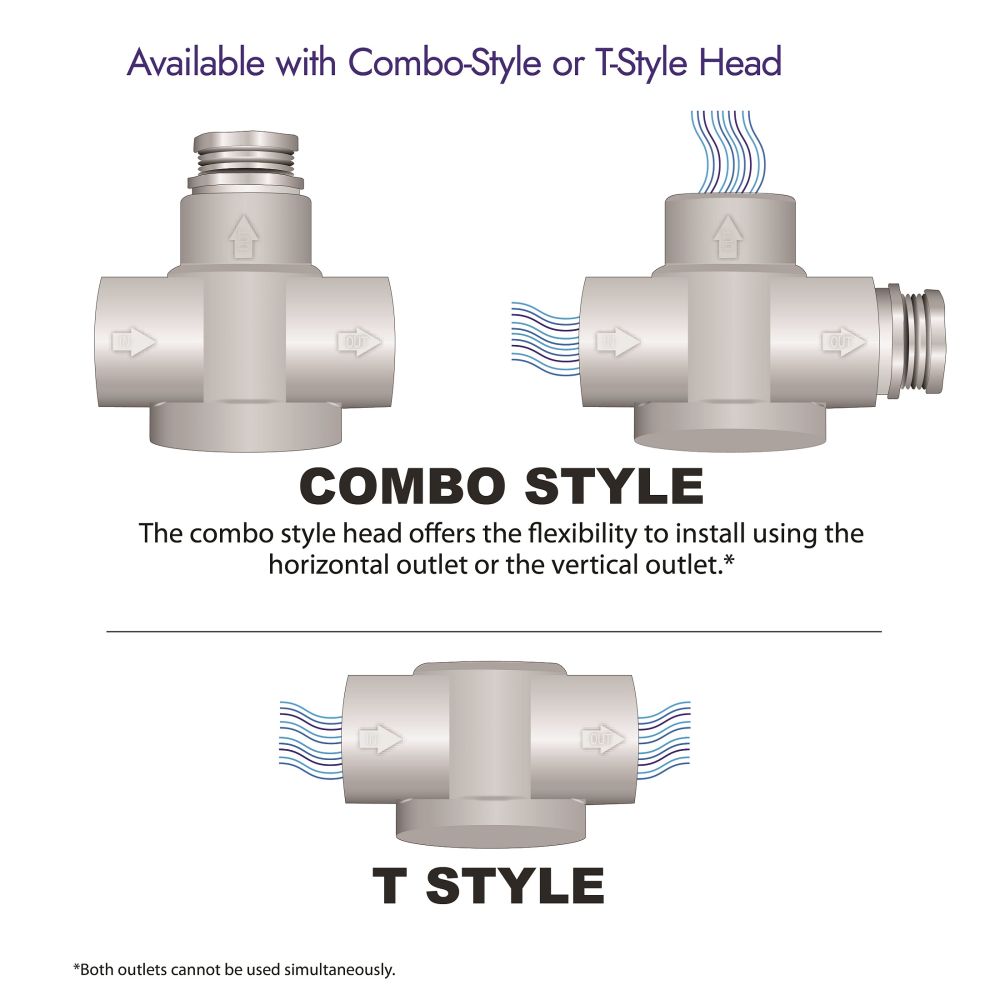

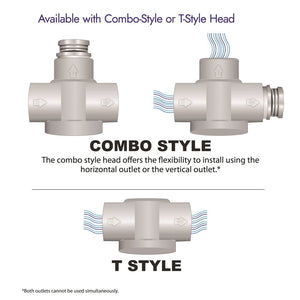

Head Style

T-Style

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Inlet/Outlet Connection

2" Slip

Max Pressure (Psi)

150

Max Temp (°F)

100

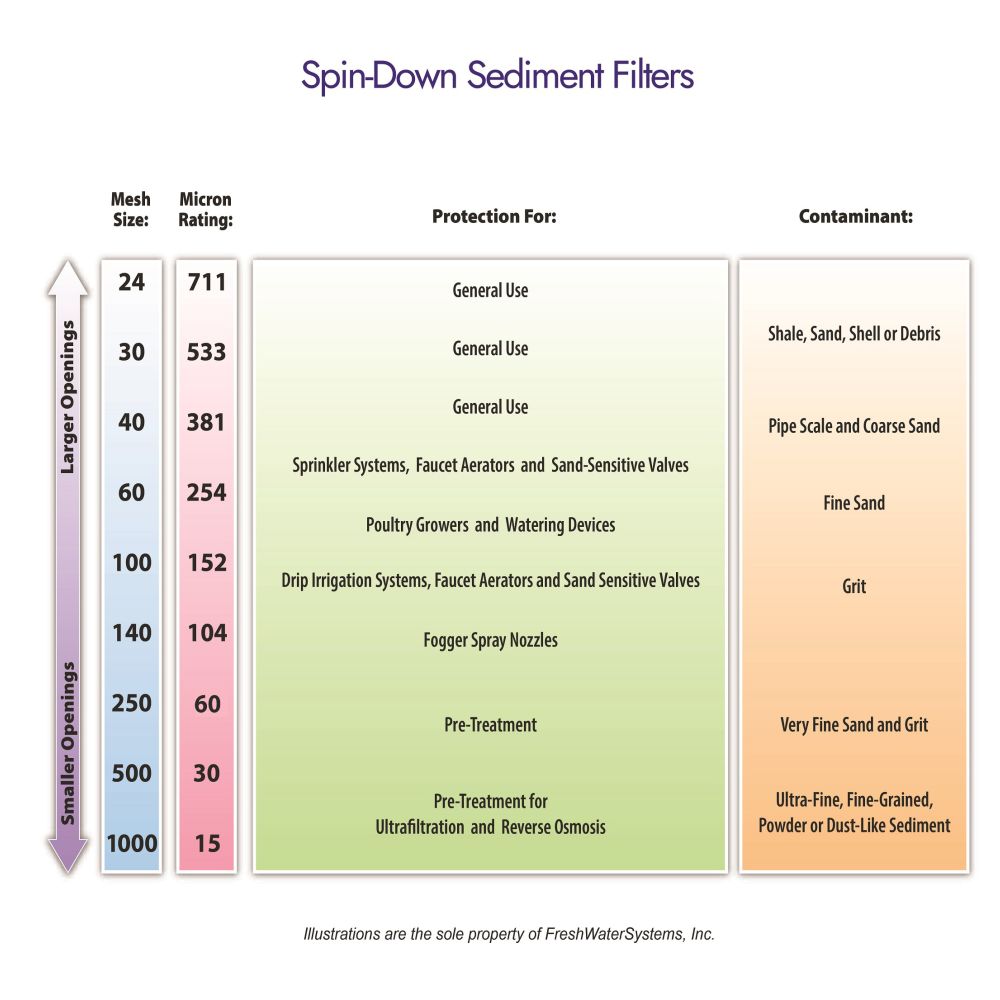

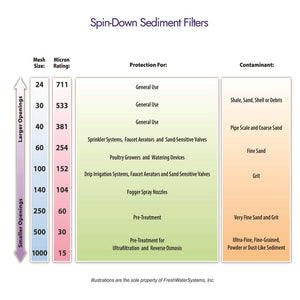

Mesh Size

30, 60, 100, 140, 200

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

O-Rings

EPDM

Screen Opening

.021, .010, .006, .004, .0029

Cartridge Style

Spin-down

Connection Type

Slip

Contaminants Reduced

Sediment/Dirt/Rust

Filter Type

Rusco Spin-Down & Sediment Traps

Flow Rate

18-100 GPM

Media Type

Chemical Resistant Stainless Steel

Micron Rating

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

Port Size

2"

Screen Material

Stainless Steel

Sub-Type

T-Style System

Top Style

T-Style

Type

Standard
