Parker

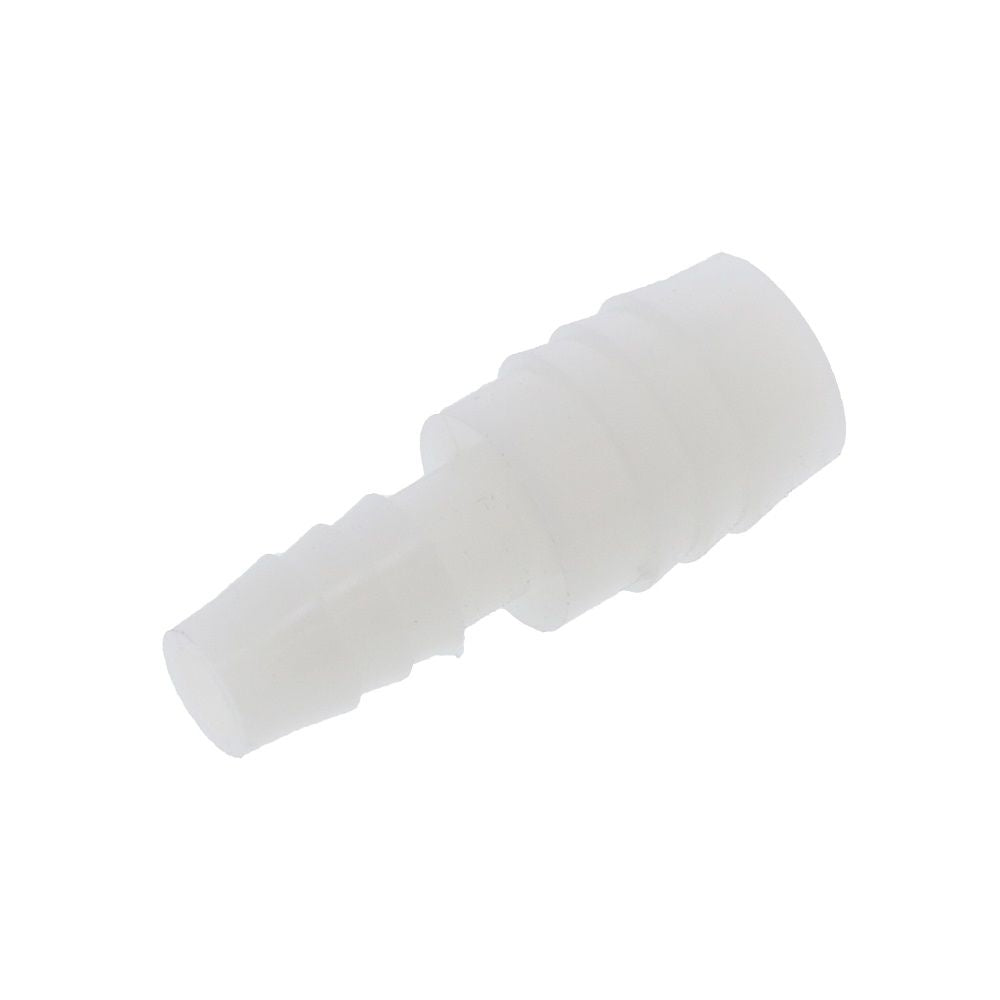

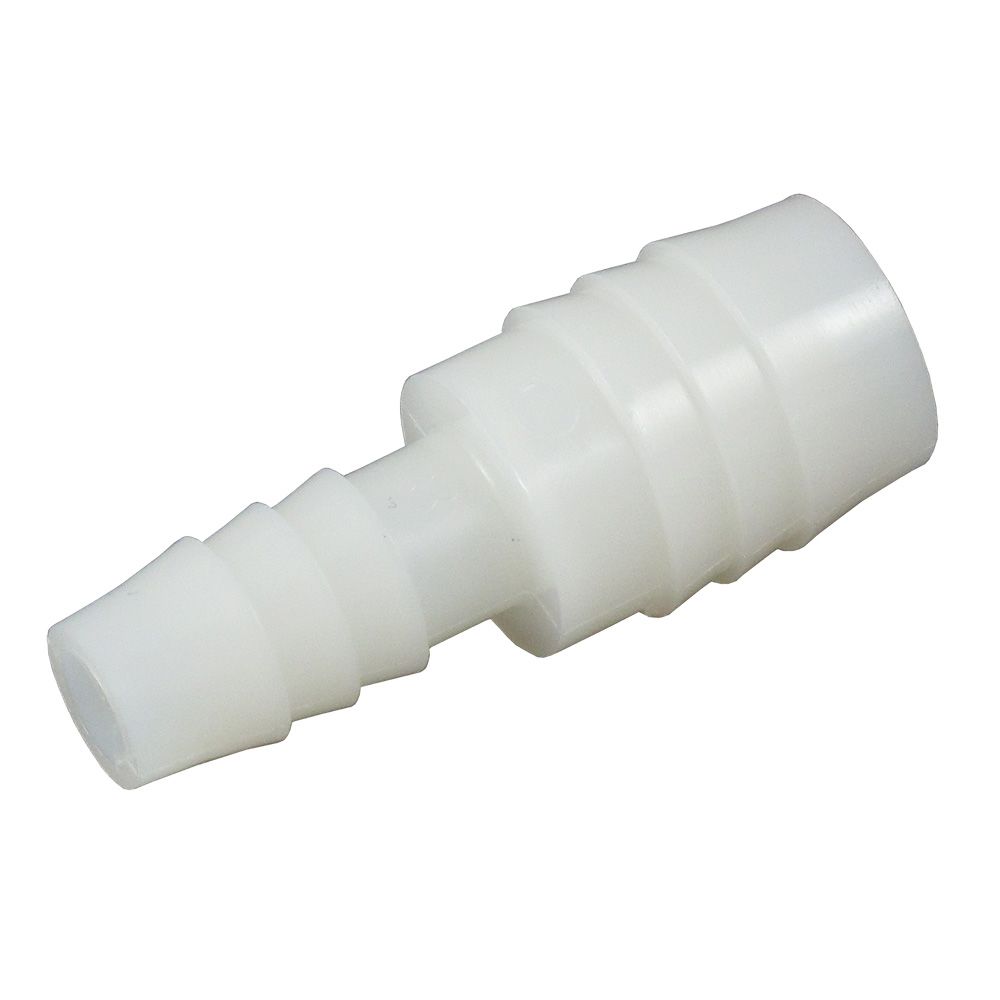

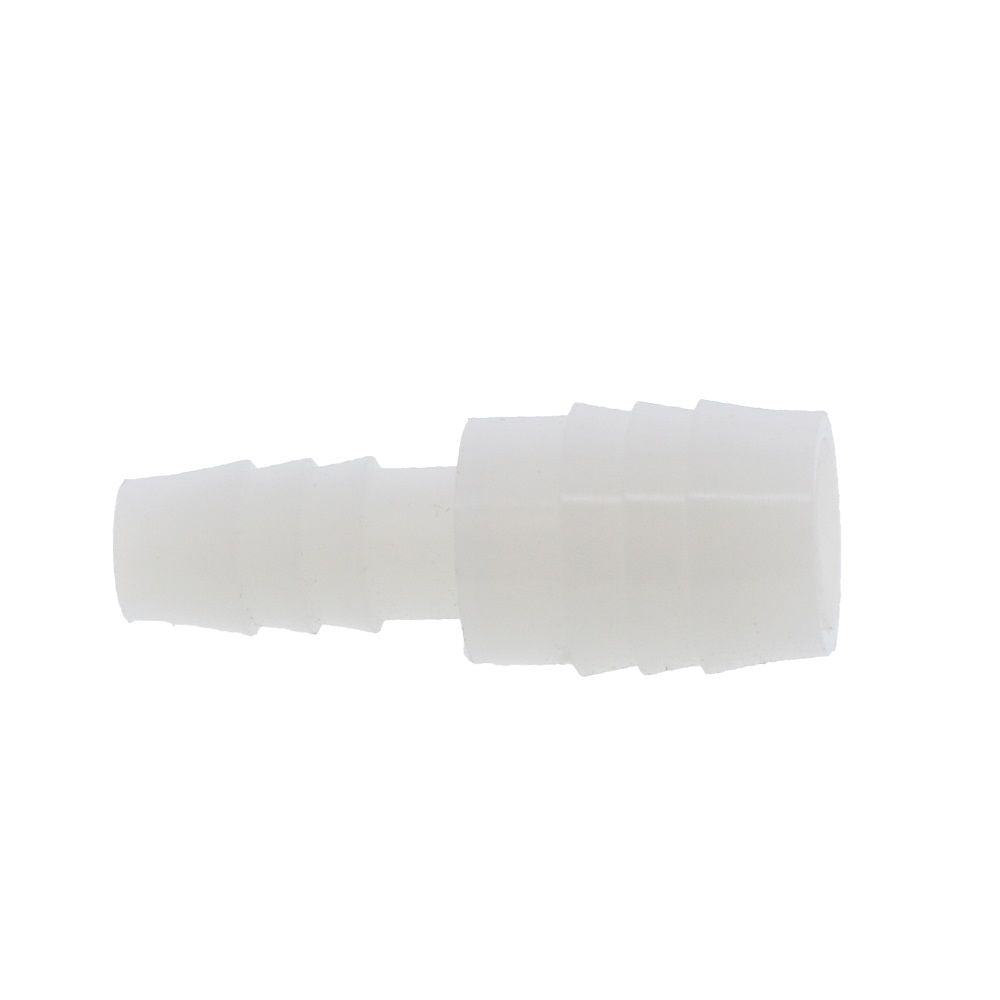

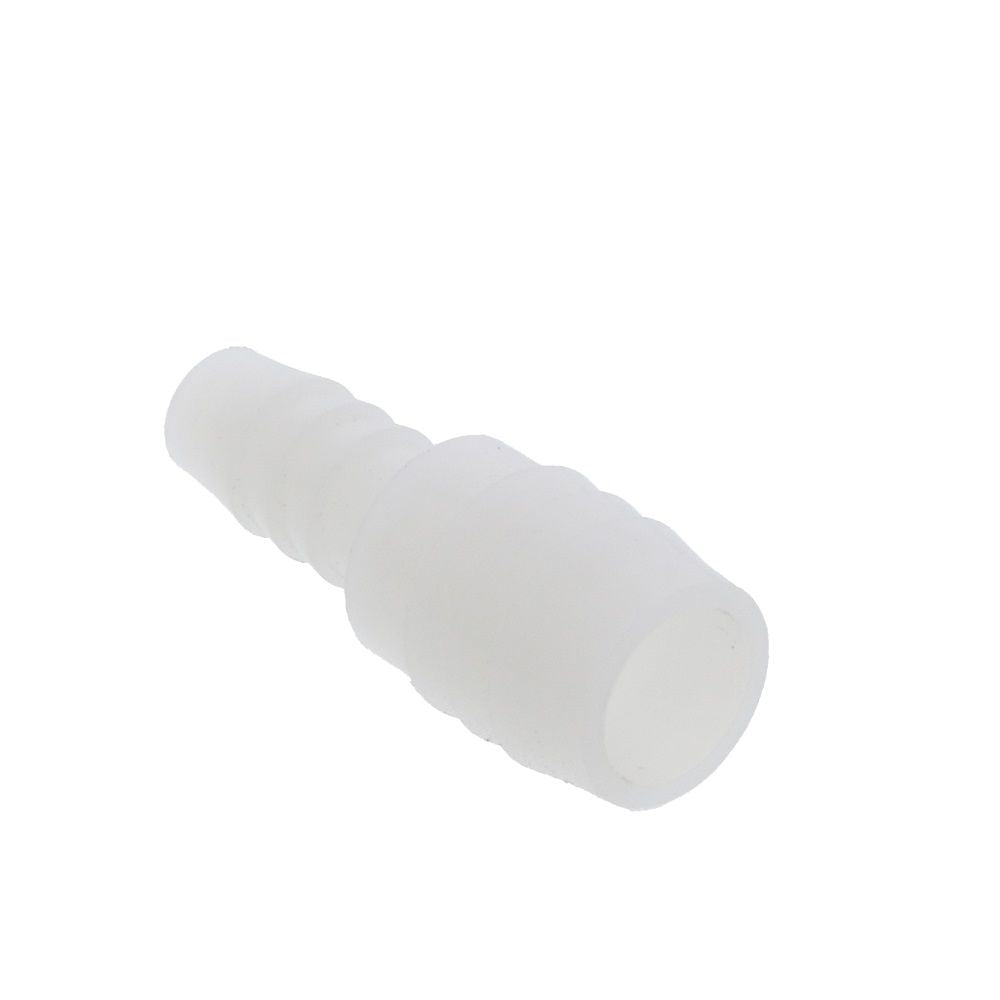

Reducer Barb Connector Natural Nylon - 5/8 ID x 3/8 ID

Part Number: UCB-1006NN

In Stock

out of stock

In Stock

$0.94

Nylon resin is a lubricated version 6/6 nylon made by the polymerization of hexamethylenediamine and adipic acid, each containing six carbon atoms. The 6/6 formulations have the highest melting point and dry-as-molded strength and stiffness of the melt processible nylon homopolymers. They combine strength, moderate stiffness, high service temperature, and toughness. The formulations are particularly resistant to repeated impact, have low coefficients of friction and have an excellent resistance to abrasion. They resist fuels, lubricants and many chemicals, but are attacked by phenols, strong acids and oxidizing agents. Acceptable sterilization methods include ethylene oxide or autoclave, see sterilization chart for details.

Specifications:
  • Material: Natural Nylon "NN", opaque cream colored in appearance
  • Temp Range: –50°F min to 275°F max
  • Pressure: 150psi at 70°F
  • Configurations: Available in 1/16" barb to 1" barb
  • Approvals: FDA




Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.75

Weight (lbs)

0.000625

Width (inches)

0.5

Details

Application

Water; Beverage

Barb Size

5/8" ID; 3/8" ID

Body Material

Nylon

Color / Finish

White

Max Pressure (Psi)

125

Max Temp (°F)

200

Min Pressure (Psi)

0

Min Temp (°F)

-40

Mounting Options

Free Floating

Series

Par-Barb

Warranty & Certifications

Certifications

NSF 51; FDA Approved



Nylon resin is a lubricated version 6/6 nylon made by the polymerization of hexamethylenediamine and adipic acid, each containing six carbon atoms. The 6/6 formulations have the highest melting point and dry-as-molded strength and stiffness of the melt processible nylon homopolymers. They combine strength, moderate stiffness, high service temperature, and toughness. The formulations are particularly resistant to repeated impact, have low coefficients of friction and have an excellent resistance to abrasion. They resist fuels, lubricants and many chemicals, but are attacked by phenols, strong acids and oxidizing agents. Acceptable sterilization methods include ethylene oxide or autoclave, see sterilization chart for details.

Specifications:
  • Material: Natural Nylon "NN", opaque cream colored in appearance
  • Temp Range: –50°F min to 275°F max
  • Pressure: 150psi at 70°F
  • Configurations: Available in 1/16" barb to 1" barb
  • Approvals: FDA



Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.75

Weight (lbs)

0.000625

Width (inches)

0.5

Details

Application

Water; Beverage

Barb Size

5/8" ID; 3/8" ID

Body Material

Nylon

Color / Finish

White

Max Pressure (Psi)

125

Max Temp (°F)

200

Min Pressure (Psi)

0

Min Temp (°F)

-40

Mounting Options

Free Floating

Series

Par-Barb

Warranty & Certifications

Certifications

NSF 51; FDA Approved
