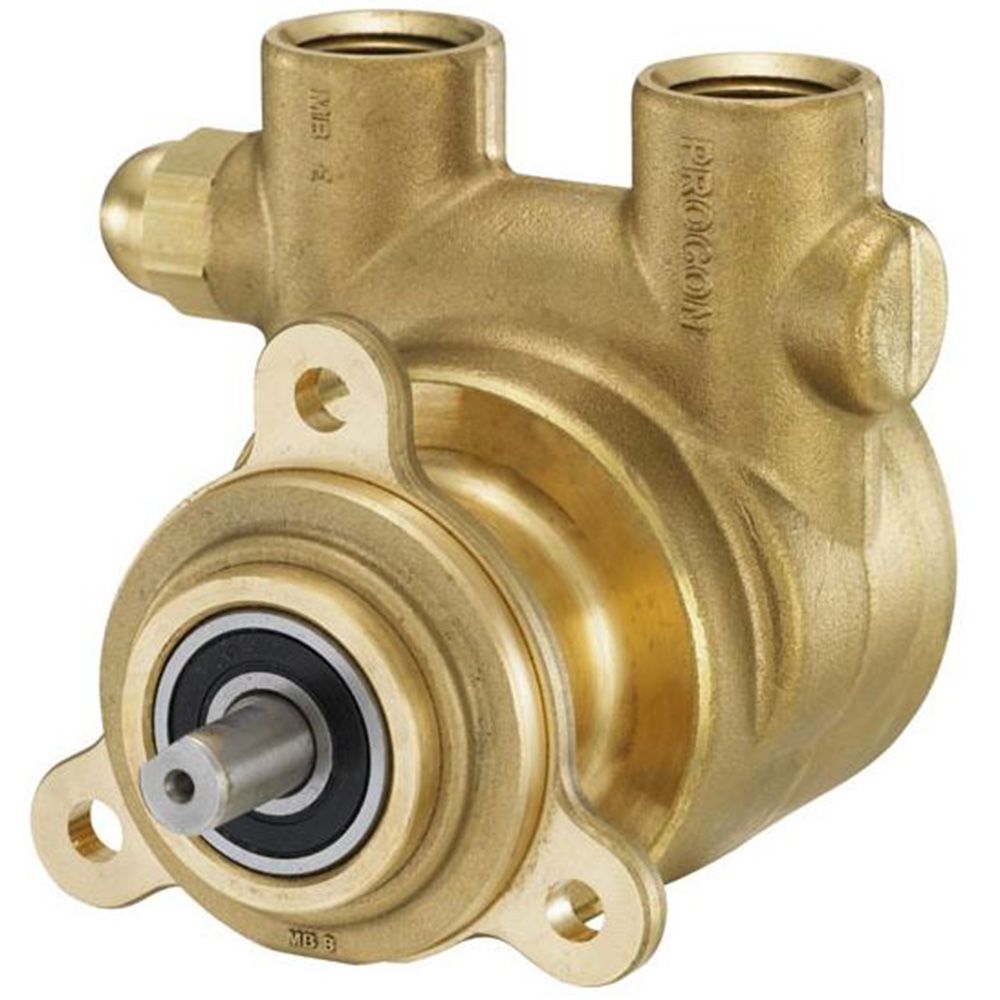

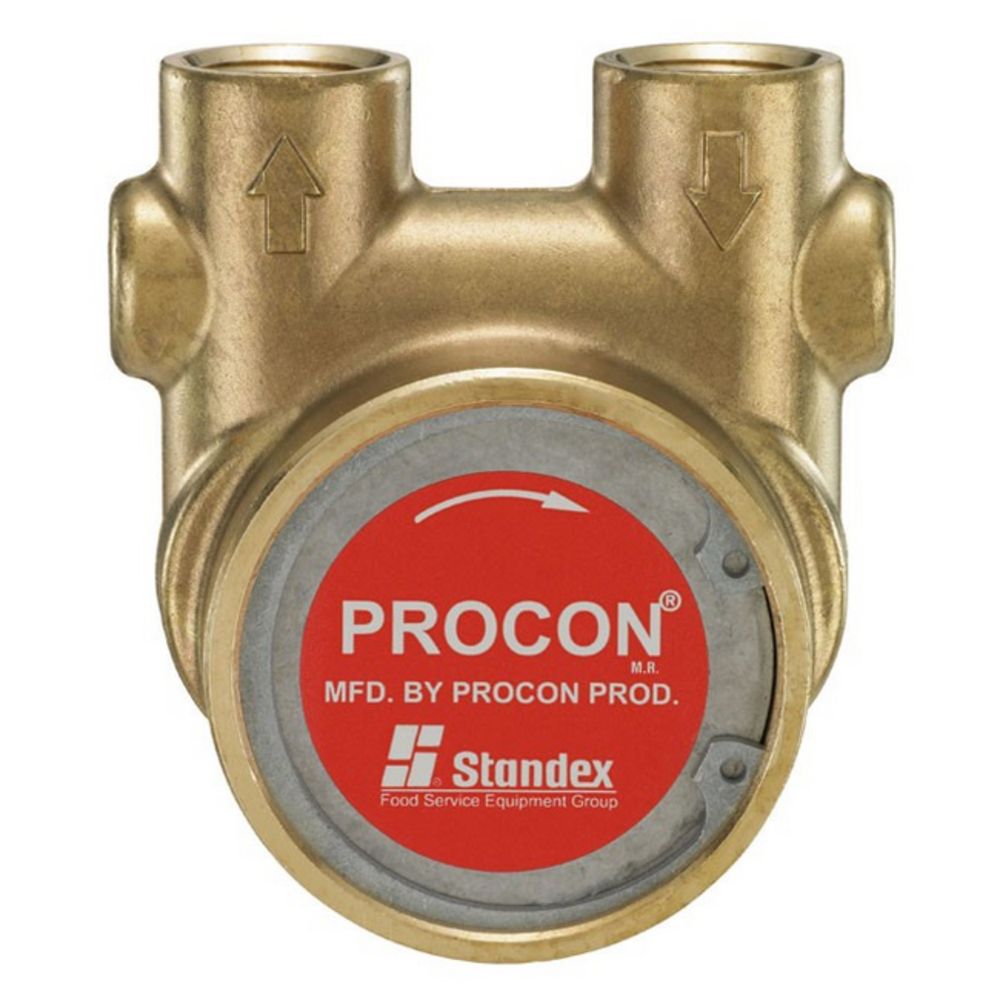

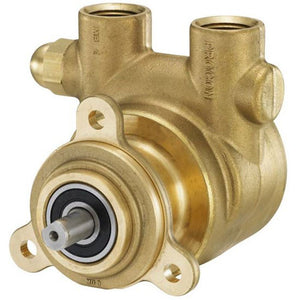

Pump Vane Procon Brass 1/2" NSF, 240 GPH, no psi setting, Nitrile Seal, Bolt On
Part Number: 114E240F11XX
Alt. Part Number: 104E240F11XX
Product image 1
Product image 2
Your price:
Choose
Single
Pack of 4
Pack of 9
similar items
The Procon Pump NSF Brass 240 GPH 1/2" NPT w/ Single Flat Drive (Bolt On) rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a single flat drive. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 114E240F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 114E240F11XX pump is designed to be bolted directly to the motor.

Additional Specifications:
  • Capacity: 240 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 1/2" NPT Inlet and Outlet
  • Single Flat Drive
