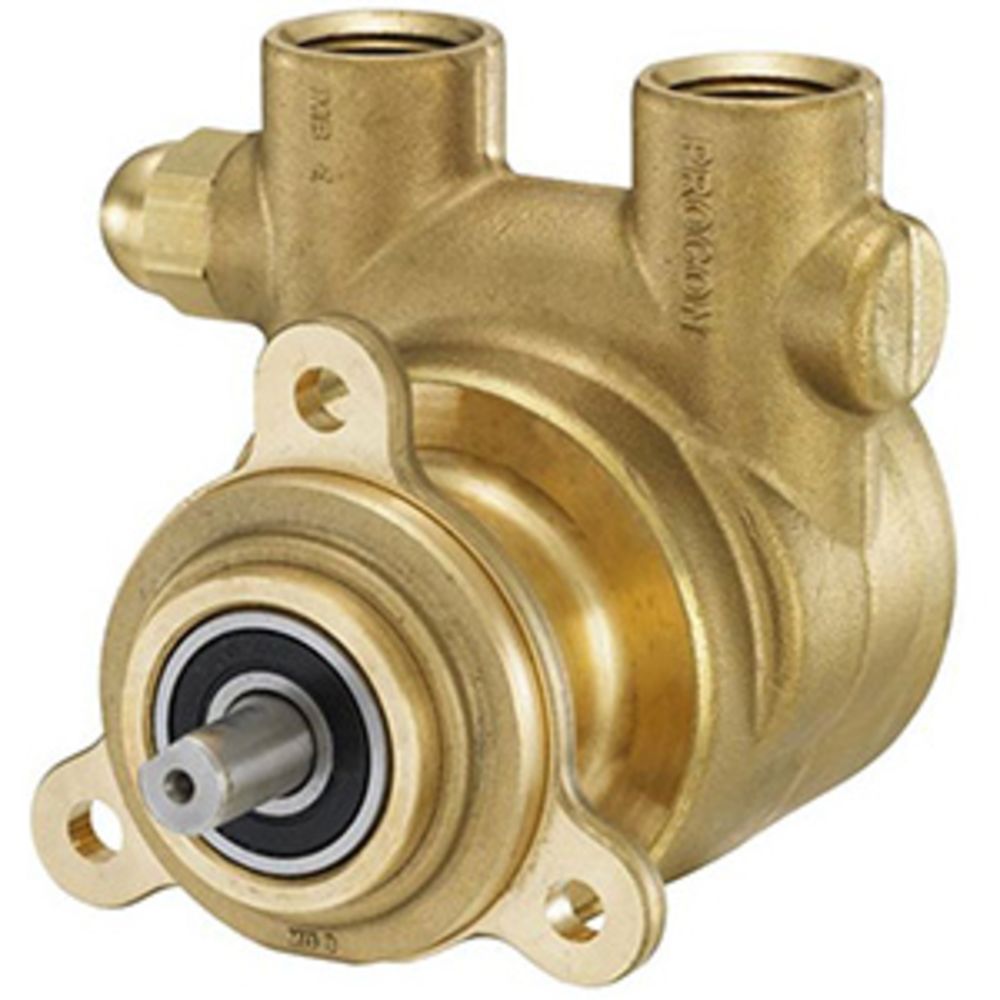

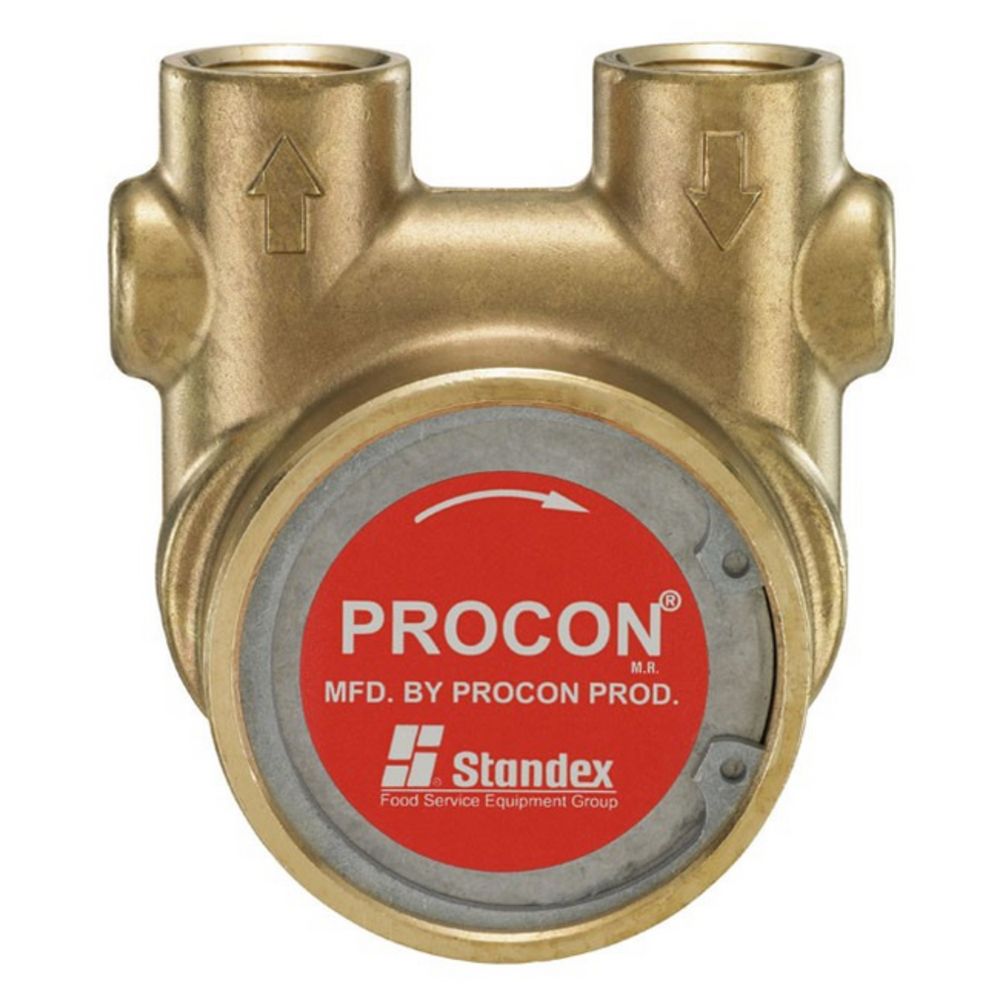

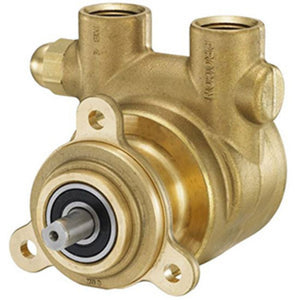

Procon Pump Brass w/ Single Flat Drive 240 GPH 1/2" NPT

Part Number: 104E240F11XX

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Procon Pump Brass NSF w/ Single Flat Drive 240 GPH 1/2" NPT Bolt On...


Procon 104E240F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 60 gallons per hour. The seal configuration for the 104E240F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The 104E240F11XX pump is designed to be directly bolt mounted to the motor.

Additional Specifications:
  • Capacity: 240 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 1/2" NPT Inlet and Outlet
  • Single Flat Drive




Details

Series

4

Flow Rate

240 GPH

Mounting Options

Bolt-On

Size

1/2"

Direction

Clockwise

Elastomer Type

Buna-N

Max Outlet Pressure

250 PSI

Nominal Speed Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise

Self Priming (Water)

6 ft max. lift

Inlet/Outlet Connection

1/2" MPT


Procon

Procon

Procon

Procon





Procon 104E240F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 60 gallons per hour. The seal configuration for the 104E240F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The 104E240F11XX pump is designed to be directly bolt mounted to the motor.

Additional Specifications:
  • Capacity: 240 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 1/2" NPT Inlet and Outlet
  • Single Flat Drive



NOTE: This item is discontinued. We recommend the Procon Pump Brass NSF w/ Single Flat Drive 240 GPH 1/2" NPT Bolt On as a substitute.
