Procon

Procon Pump Brass With 1143 Bronze Coupling 240 GPH 1/2 NPT 225 PSI Relief

Part Number: 104B240F11BA225

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

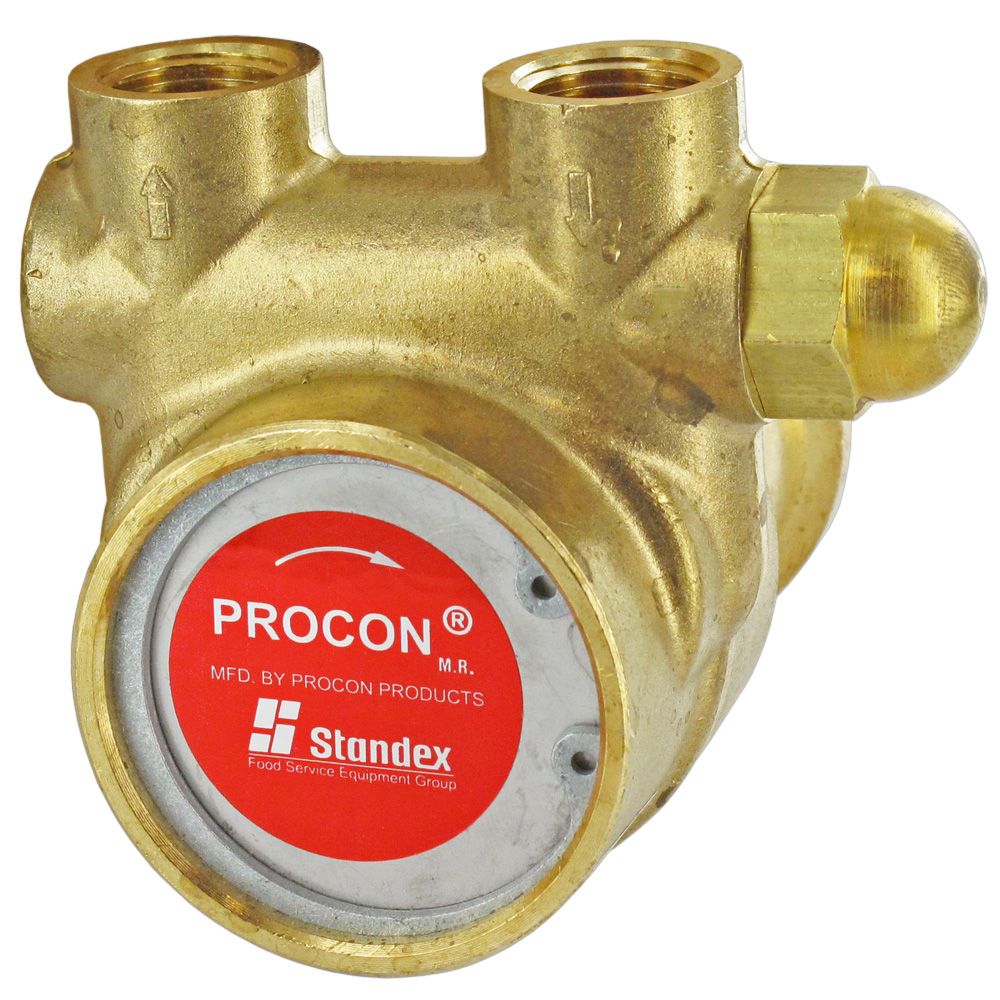

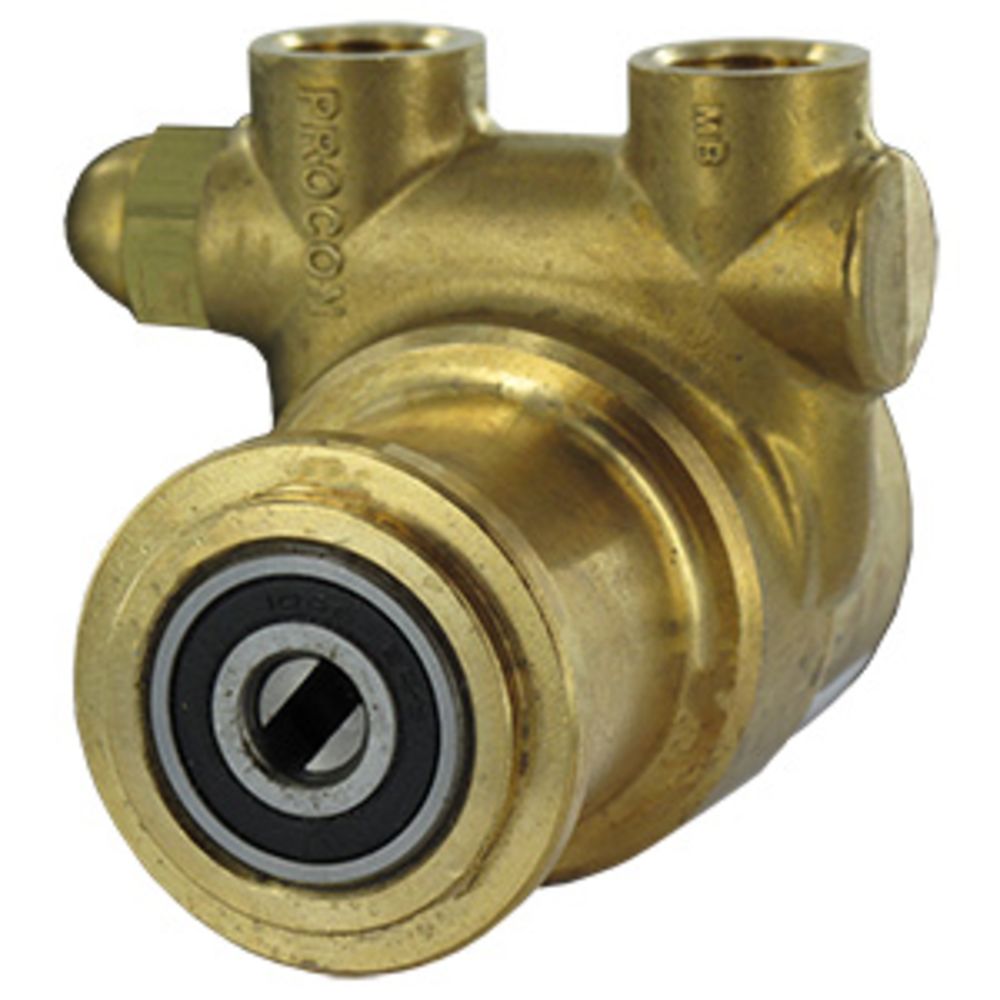

Procon 104B240F11BA225 rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a .188" double flat drive and 1143 bronze coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 104B240F11BA225 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve setting for this pump is 225 PSI. The 104B240F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 240 GPH
  • Nominal Speed: 1725 RPM
  • Relief Valve: 225 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 1/2" NPT Inlet and Outlet
  • Bronze Coupler





Details

Flow Rate

240 GPH

Mounting Options

Bolt-On

Operating Pressure Range

151-250 PSI

Size

1/2"

Elastomer Type

Buna-N

Max Outlet Pressure

250 PSI

Nominal Speed Rpm

1725

Pressure Relief Valve Setting

225 PSI

Rotation / Slinger / Passivation / Strainer

Clockwise

Self Priming (Water)

6ft. max lift

Inlet/Outlet Connection

1/2" MPT


Procon

Procon

Procon

Procon




Procon 104B240F11BA225 rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a .188" double flat drive and 1143 bronze coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 104B240F11BA225 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve setting for this pump is 225 PSI. The 104B240F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 240 GPH
  • Nominal Speed: 1725 RPM
  • Relief Valve: 225 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 1/2" NPT Inlet and Outlet
  • Bronze Coupler




NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Details

Flow Rate

240 GPH

Mounting Options

Bolt-On

Operating Pressure Range

151-250 PSI

Size

1/2"

Elastomer Type

Buna-N

Max Outlet Pressure

250 PSI

Nominal Speed Rpm

1725

Pressure Relief Valve Setting

225 PSI

Rotation / Slinger / Passivation / Strainer

Clockwise

Self Priming (Water)

6ft. max lift

Inlet/Outlet Connection

1/2" MPT
