Procon Pump NSF Brass 240 GPH 1/2" NPT - 225 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

Part Number: 114B240F11BA225

1 3

Procon

Procon Pump NSF Brass 240 GPH 1/2" NPT - 225 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

Part Number: 114B240F11BA225

MSRP: $477.83

$171.99

Quantity

Unit Price

Price

Savings

$171.99

31%

$251.53

$1,006.14

—

$163.39

$1,470.51

35%

Product variants

You May Also Need

Optional Accessory
Procon V-Band Clamp

Regular price From $2.05
Optional Accessory
Procon 3045 Coupler 7/16 x 5/8 Bolt-On 56C for Series 2, 3, 4 & 5

Regular price From $45.99
Optional Accessory
Procon mtg bracket for bolt-on 56C for Series 2, 3, 4 & 5

Regular price From $42.95
Optional Accessory
Procon 1143 Bronze Coupling Slotted Rotor C/O

Regular price From $12.65

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

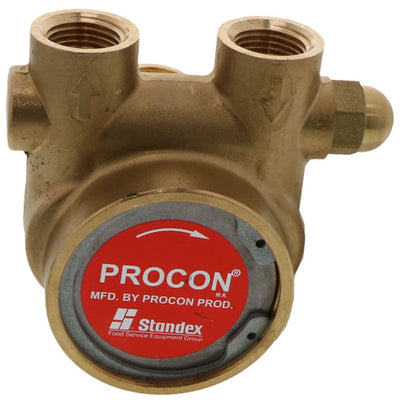

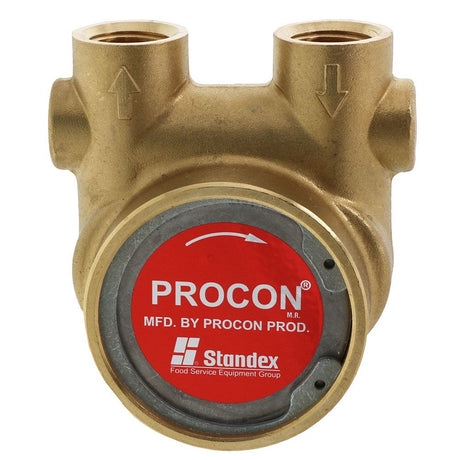

The Procon Pump NSF Brass 240 GPH 1/2" NPT - 225 psi PRV w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT, with an intergral strainer, and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 114B240F11BA225 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The default pressure relief valve setting for this pump is 225 PSI. The 114B240F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

Capacity: 240 GPH
Nominal Speed: 1725 RPM
Relief Valve: 225 PSI
Rotation: Clockwise
Weight: 2.5 lbs
Port Size: 1/2" NPT Inlet and Outlet with intergral strainer
Double Flat Drive: .188"

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Inlet Connection	1/2" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	240
Pump Max Pressure (Psi)	250
Seal / O-Ring Material	Buna-N (Nitrile)
Series	4
Size	1/2"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	3.75
Product Length	4.5
Product Width	3.75
Product Weight (lbs)	4

Product Details
Body Material	Brass
Direction	Clockwise
Inlet Connection	1/2" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	240
Pump Max Pressure (Psi)	250
Seal / O-Ring Material	Buna-N (Nitrile)
Series	4
Size	1/2"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	8.75 in.
Shipping Height	6.25 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	8.5
Product Length	13
Product Width	8.5
Product Weight (lbs)	21

Product Details
Body Material	Brass
Direction	Clockwise
Inlet Connection	1/2" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	240
Pump Max Pressure (Psi)	250
Seal / O-Ring Material	Buna-N (Nitrile)
Series	4
Size	1/2"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	36
