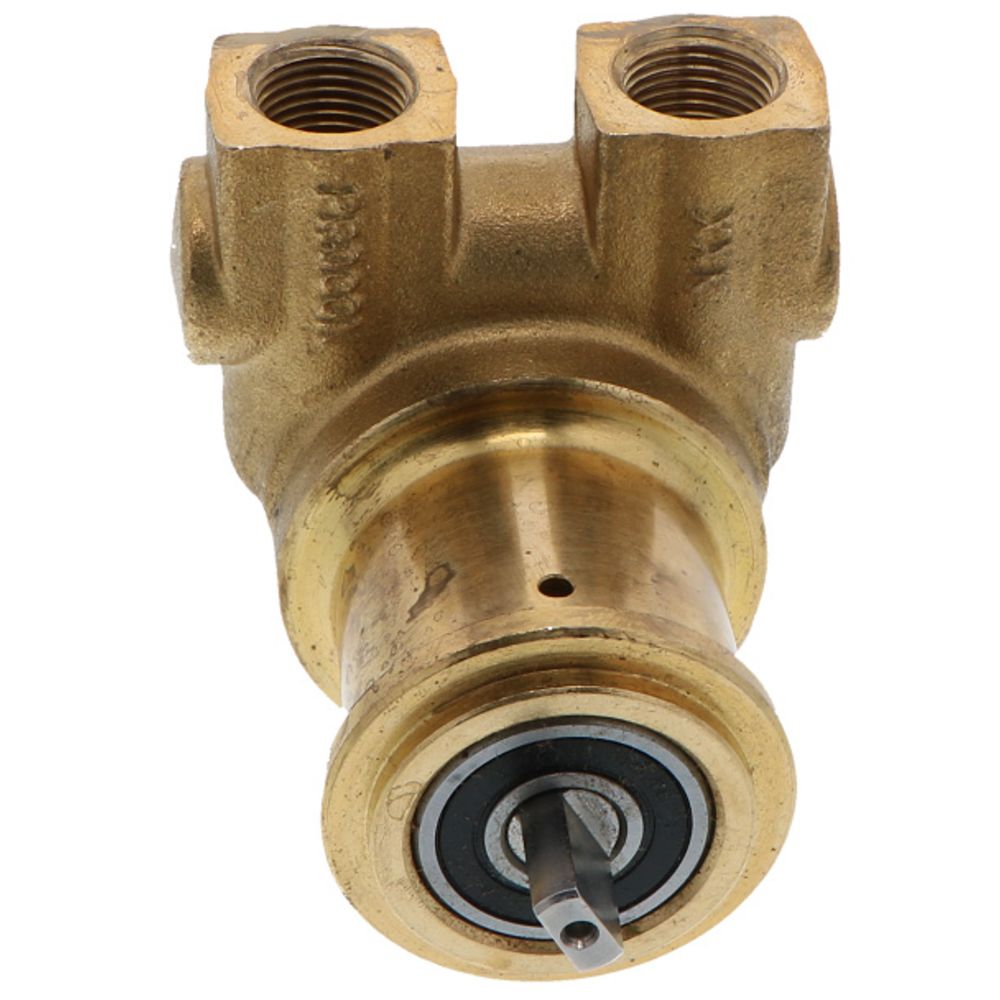

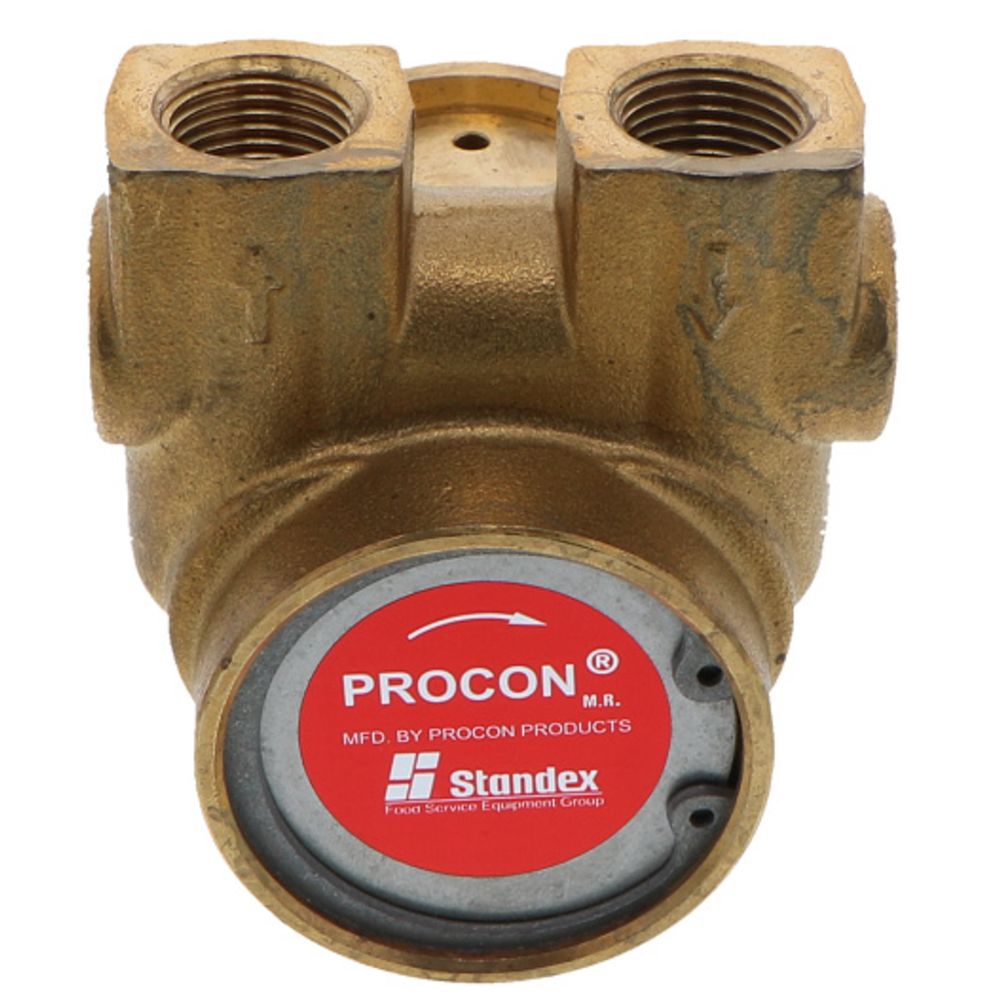

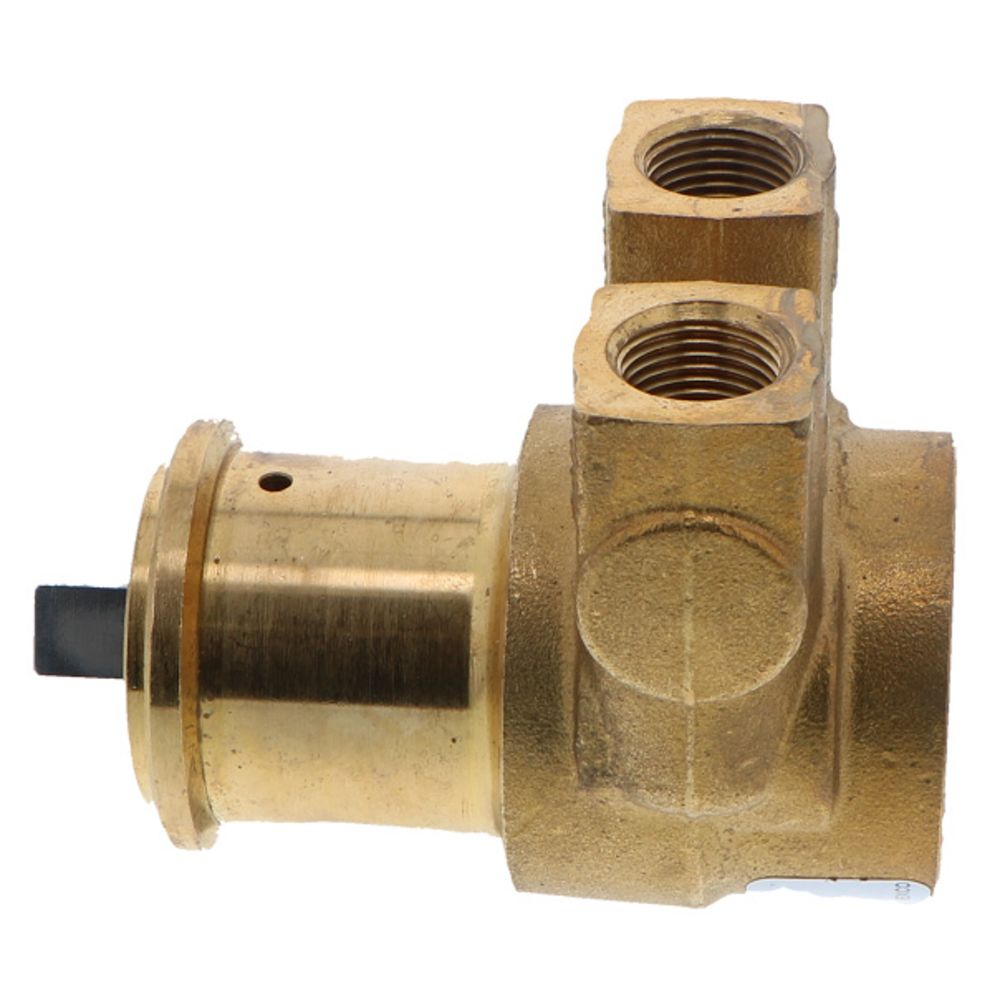

Procon Pump Brass w/ .188" Double Flat Drive 80 GPH 3/8" NPT

Part Number: 102A080R12XX

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Procon 102A080R12XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass and has a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The seal configuration for the 102A080R12XX uses Flourocarbon Type 21 which will prevent leakage.

Features:
The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102A080R12XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 80 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Double Flat Drive: .188"




Weight & Dimensions

Dimensions

SPCL Clearance (1x) Liner & BRGS

Weight (lbs)

3.7

Details

Body Material

Brass

Direction

Clockwise

Elastomer Type

Fluorocarbon

Flow Rate

80 GPH

Inlet/Outlet Connection

3/8" MPT

Max Outlet Pressure

250 PSI

Mounting Options

Clamp On

Nominal Speed - Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

6 ft. max. lift

Series

2

Size

3/8"

Warranty & Certifications

Certifications

Non-Food Grade


Procon

Procon

Procon

Procon




Procon 102A080R12XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass and has a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The seal configuration for the 102A080R12XX uses Flourocarbon Type 21 which will prevent leakage.

Features:
The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102A080R12XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 80 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Double Flat Drive: .188"



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Dimensions

SPCL Clearance (1x) Liner & BRGS

Weight (lbs)

3.7

Details

Body Material

Brass

Direction

Clockwise

Elastomer Type

Fluorocarbon

Flow Rate

80 GPH

Inlet/Outlet Connection

3/8" MPT

Max Outlet Pressure

250 PSI

Mounting Options

Clamp On

Nominal Speed - Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

6 ft. max. lift

Series

2

Size

3/8"

Warranty & Certifications

Certifications

Non-Food Grade
