Colder Products

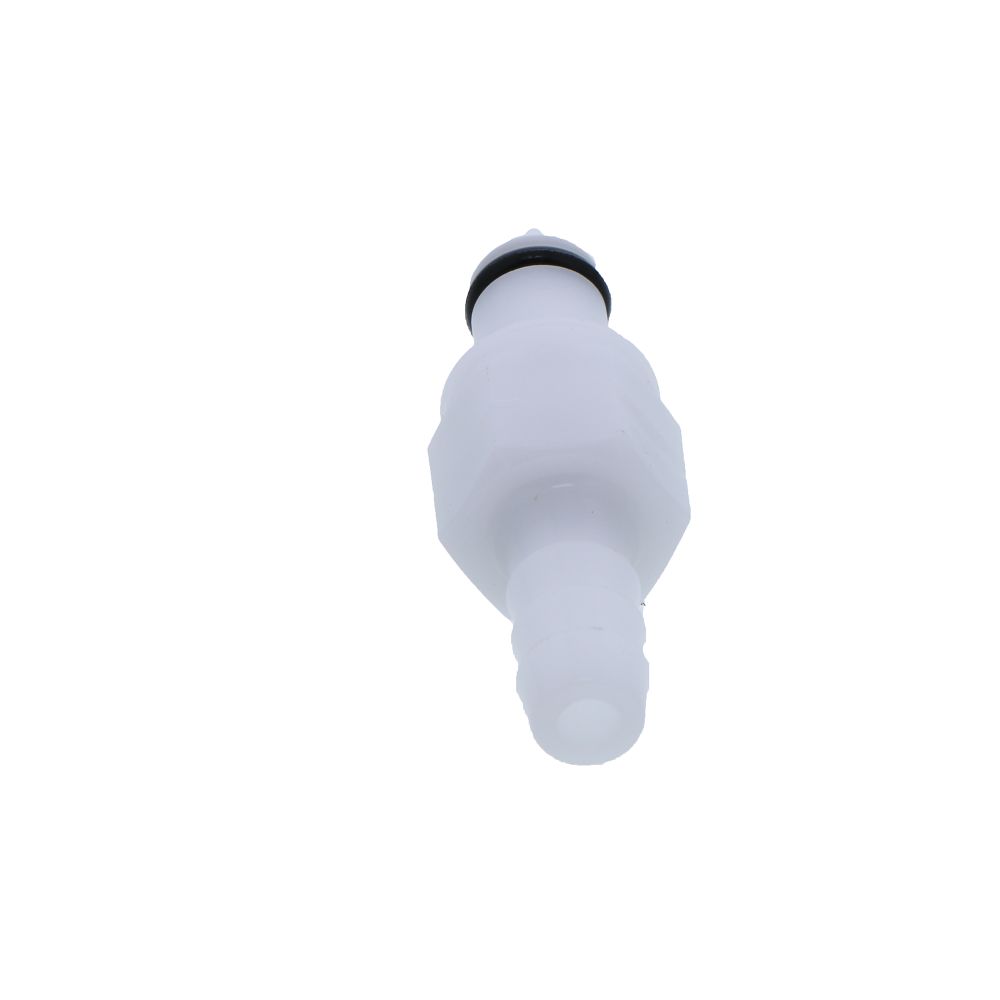

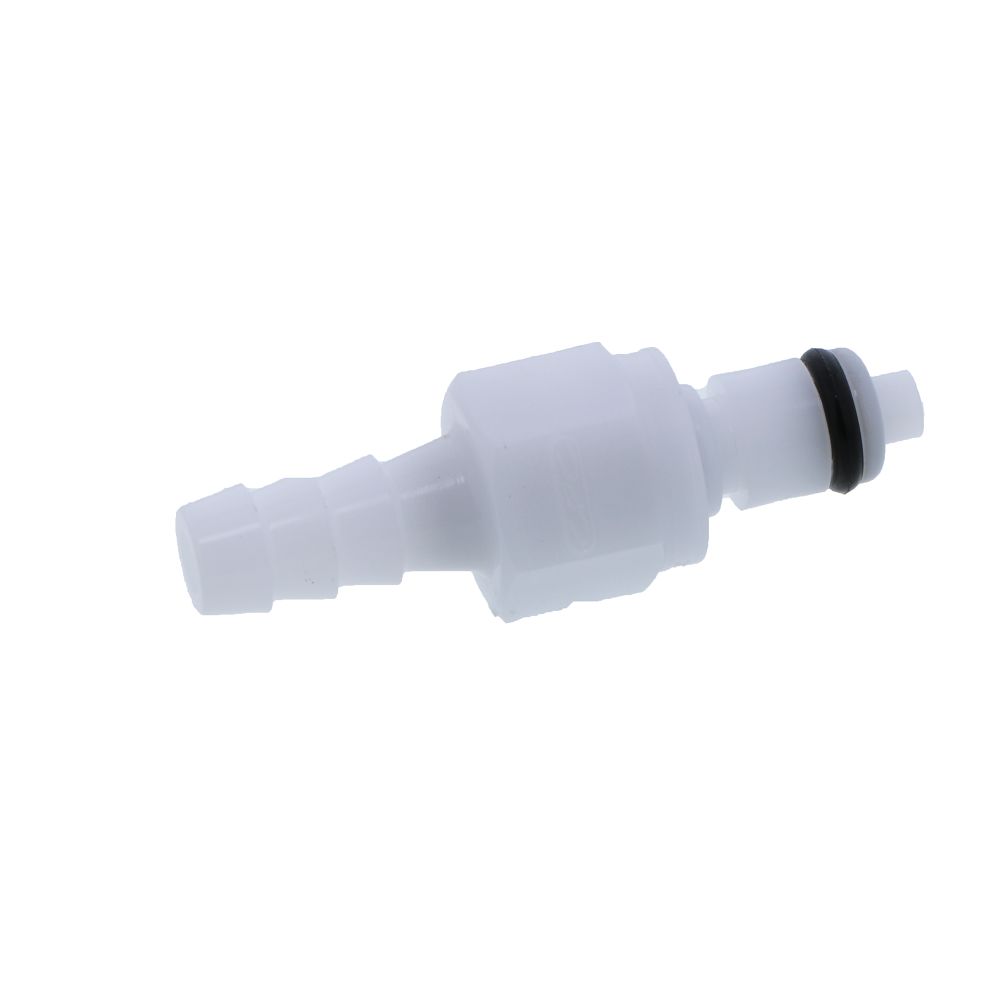

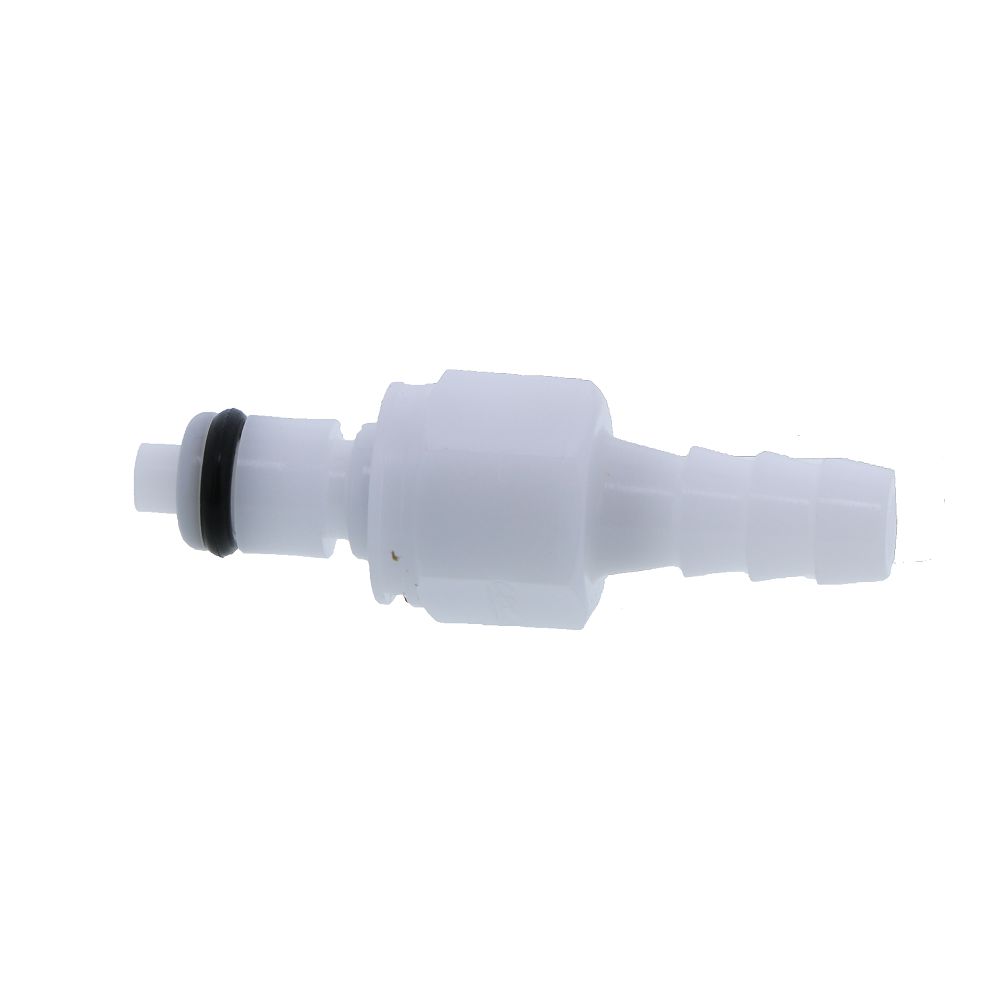

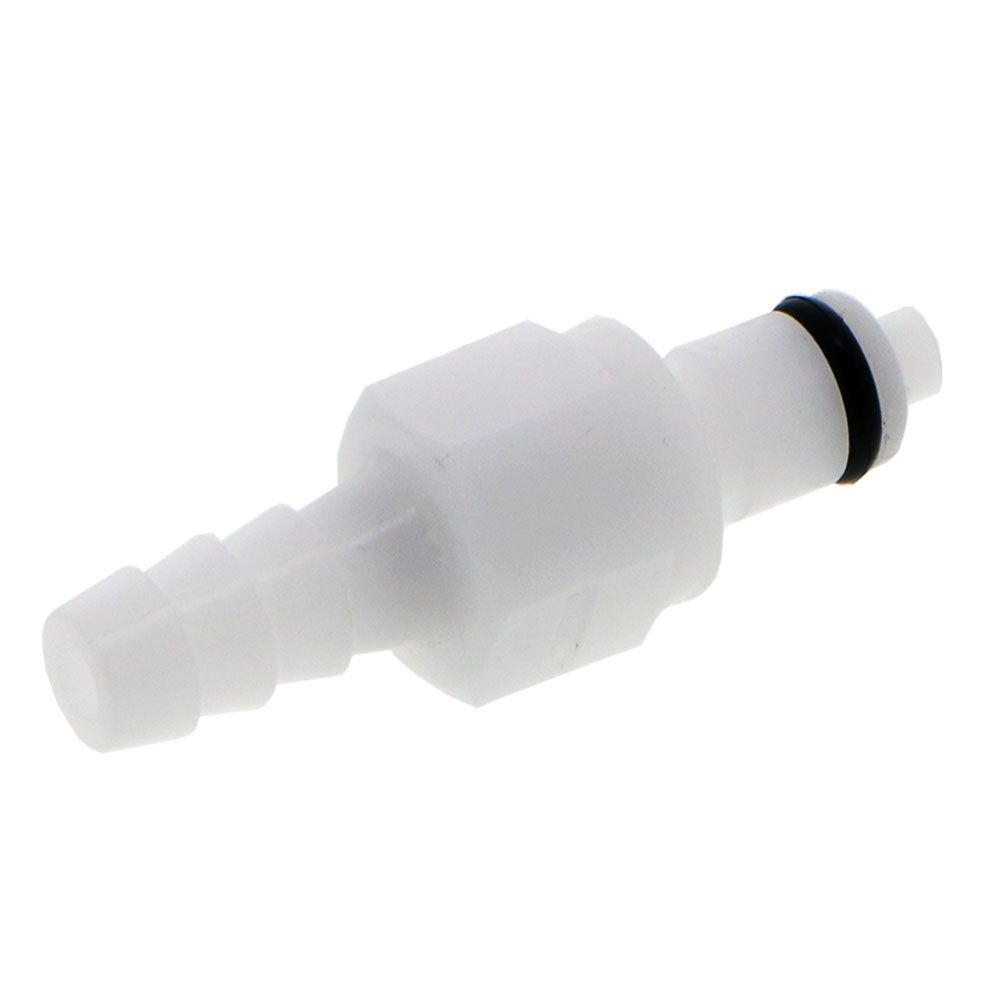

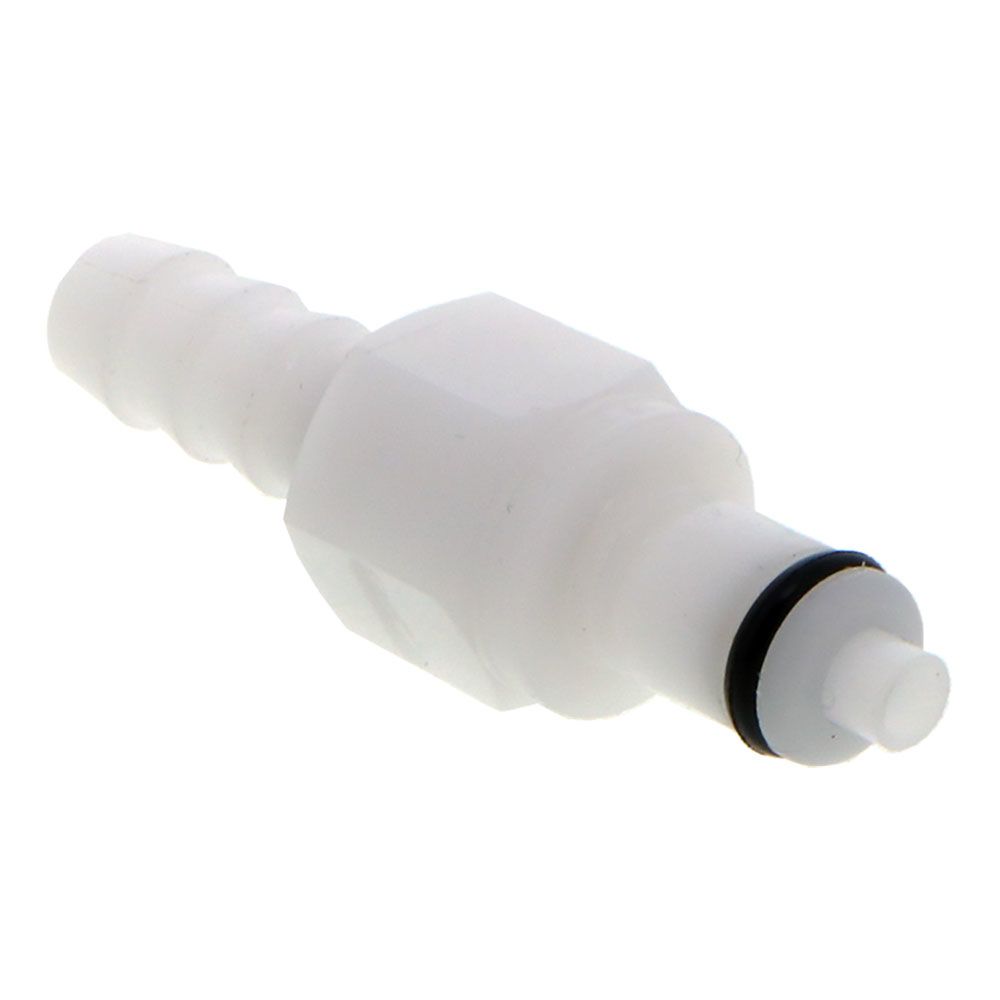

PMCD2204 Valved In-Line Hose Barb Coupling Insert 1/4 ID Barb

Part Number: PMCD2204

In Stock

out of stock

In Stock

$5.56

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units

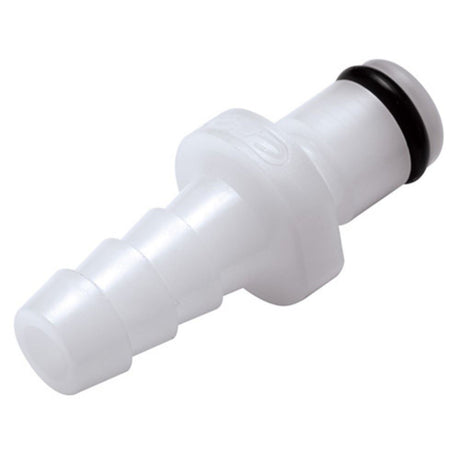

  • NSF Listed Version (part # 10800) Available Upon Request




Weight & Dimensions

Height (inches)

1.75

Length (inches)

1.75

Weight (lbs)

0.0625

Width (inches)

0.5

Details

Application

Water

Barb Size

1/4" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

PMC

Spring

316 stainless steel

Valve Type

Valved

Color / Finish

white

Origin

USA

Type

Coupling Insert


PMCD2204
