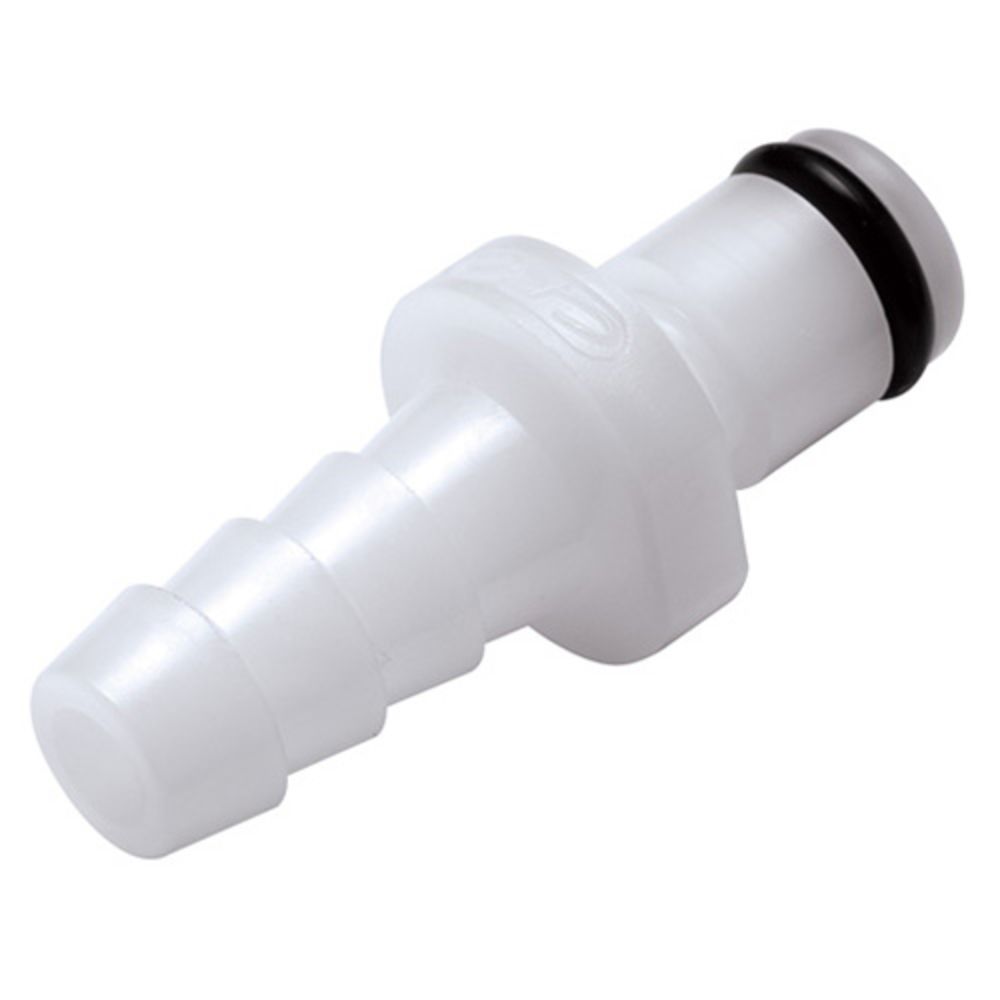

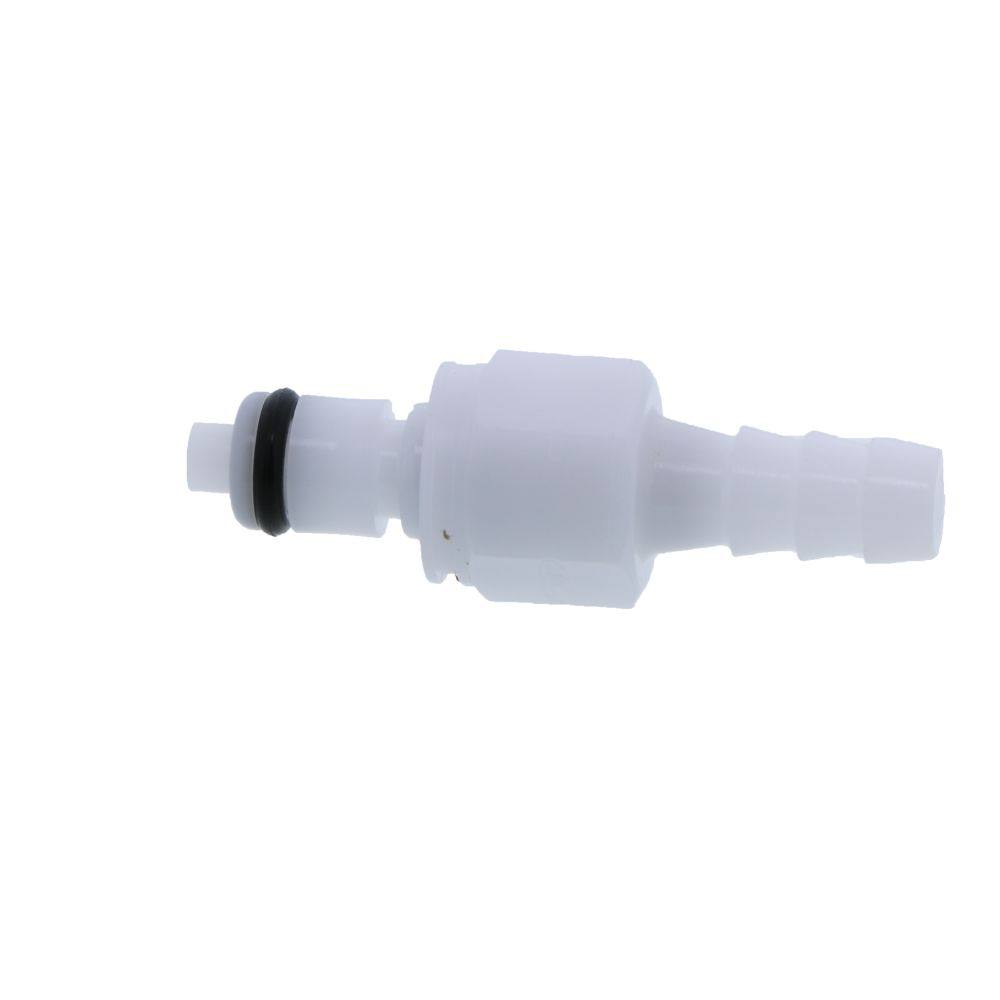

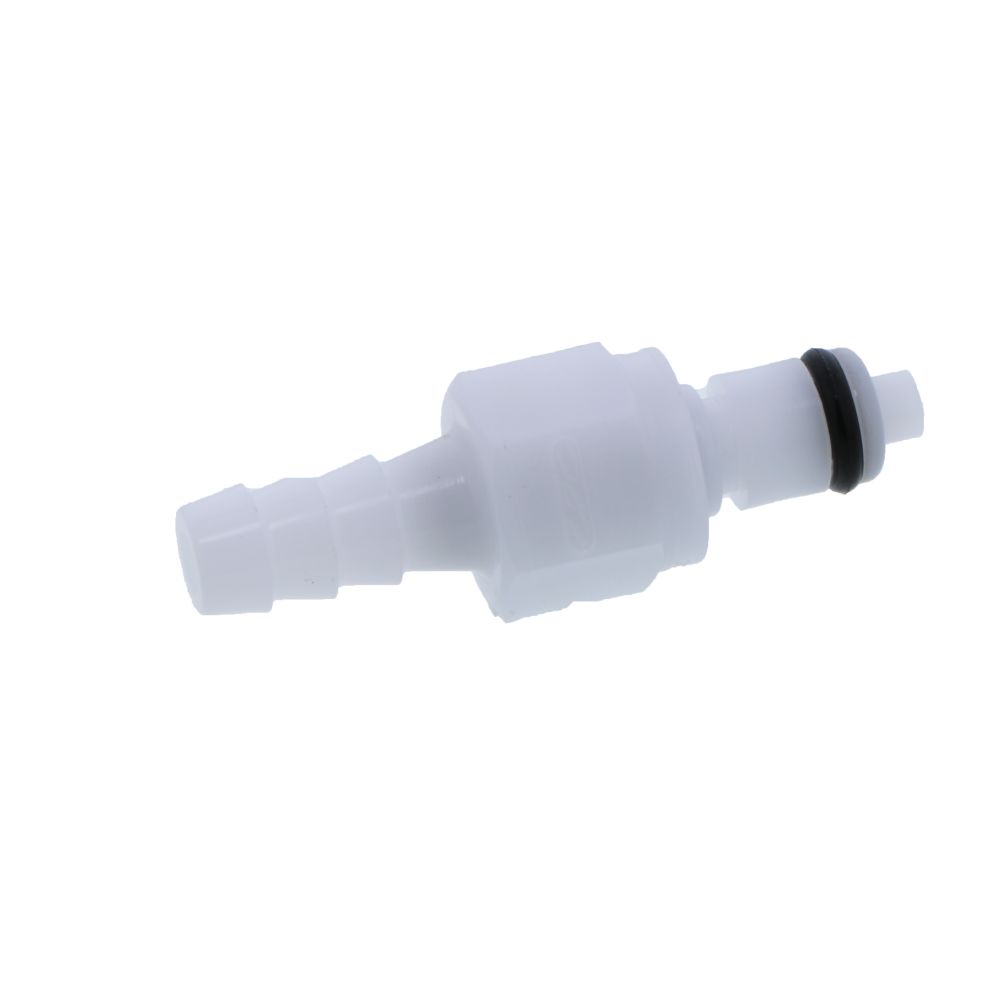

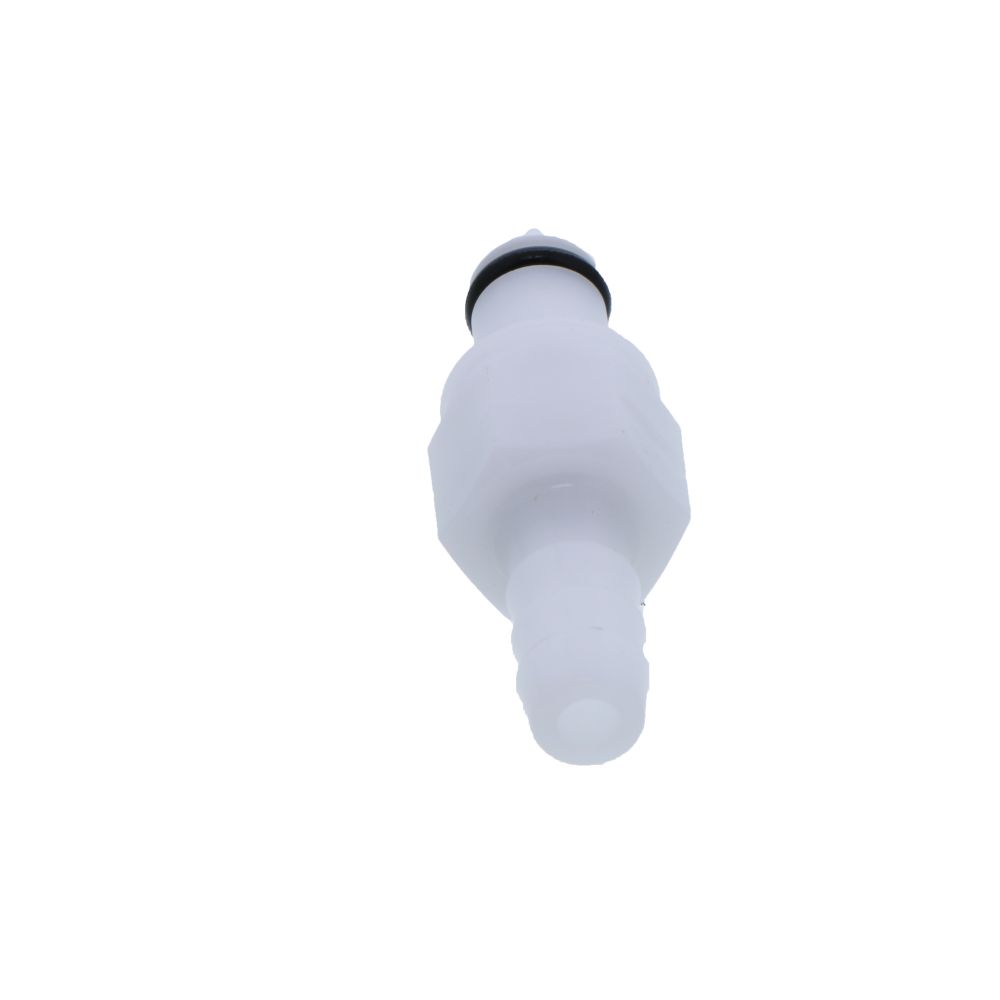

10800 NSF Valved In-Line Hose Barb Coupling Insert 1/4 ID Barb

Colder PMC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PMC Series features the Colder thumb latch making them easier to use than ball-and-sleeve connector designs.

Specifications:

Material: Acetal
Material Finish: Natural
Color: White
Valve Option: Valved
Mounting Option: Free Floating
Temperature Range: -40°F to 180°F
Pressure Range:Vacuum to 120 psi, 8.3 bar
Seal Options: FDA BUNA-N
Valve Spring: 316 Stainless Steel

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	2
Seal Material	FDA Buna-N
Series	PMC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	0.5 in.
Shipping Width	0.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Height	0.375
Product Length	0.5
Product Width	0.375
Product Weight (lbs)	0.3

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	2
Seal Material	FDA Buna-N
Series	PMC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	2 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Weight (lbs)	0.2

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Seal Material	FDA Buna-N
Series	PMC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Product Weight & Dimensions
Product Weight (lbs)	15
