Colder Products

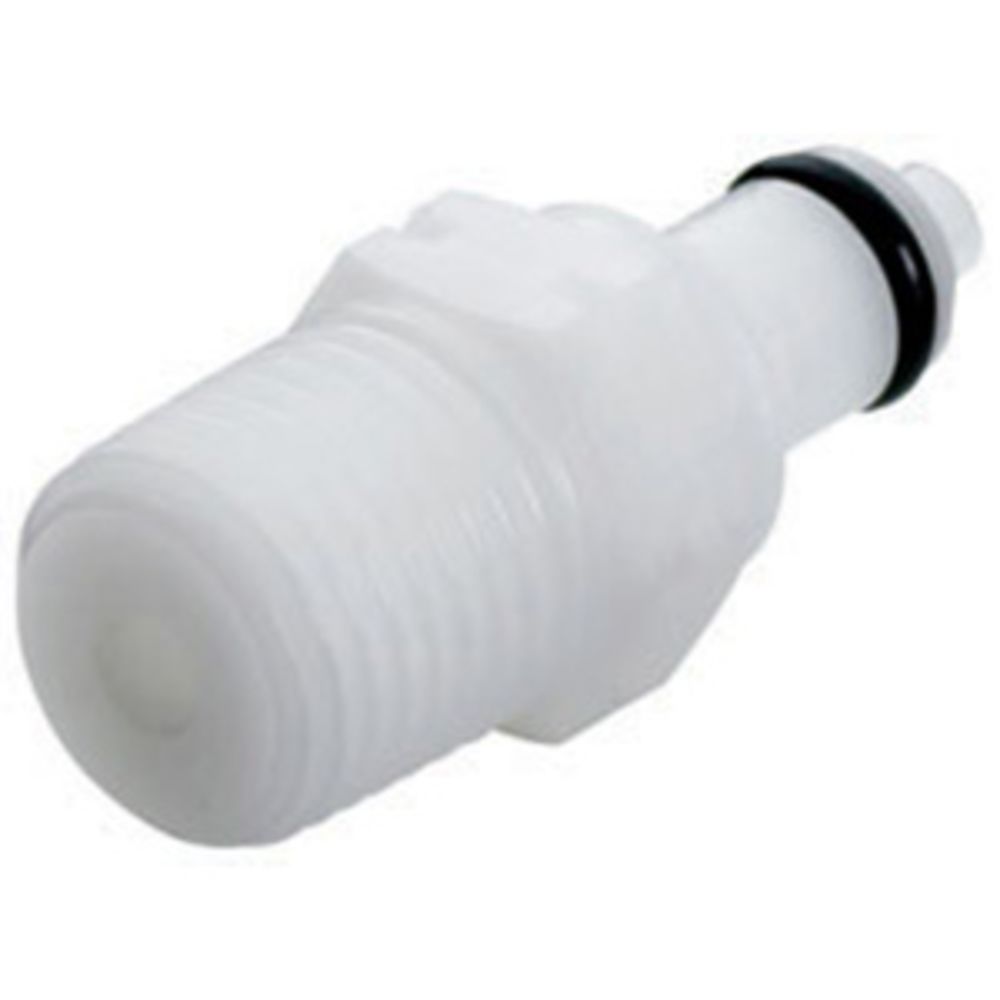

PMC2404BSPT Non-Valved Coupling Insert 1/4 BSPT

Part Number: PMC2404BSPT

In Stock

out of stock

In Stock

$2.92

PMC Series couplings have a 1/4" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: 1/4" BSPT Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 13500) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" BSP

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PMC

Size

1/4"

Spring

316 Stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

BSP

Type

Coupling Insert


PMC2404BSPT




PMC Series couplings have a 1/4" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: 1/4" BSPT Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 13500) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" BSP

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PMC

Size

1/4"

Spring

316 Stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

BSP

Type

Coupling Insert
