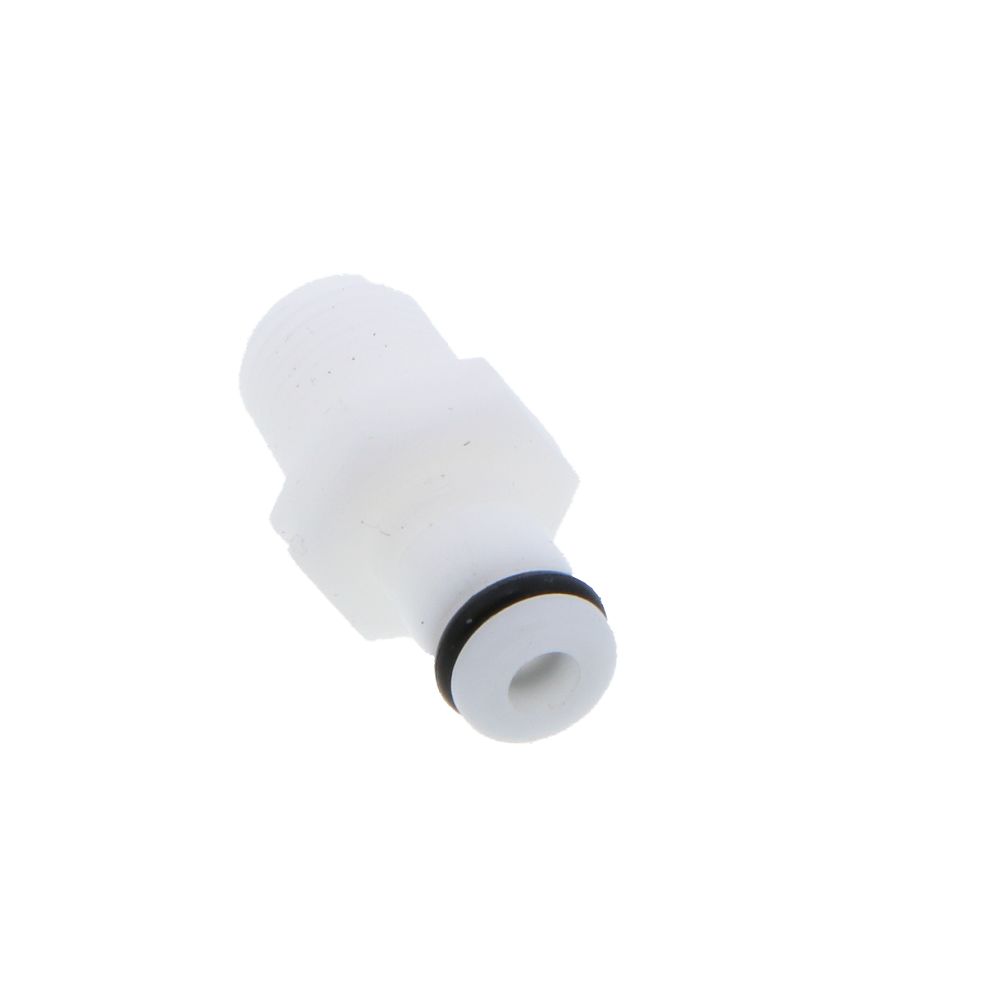

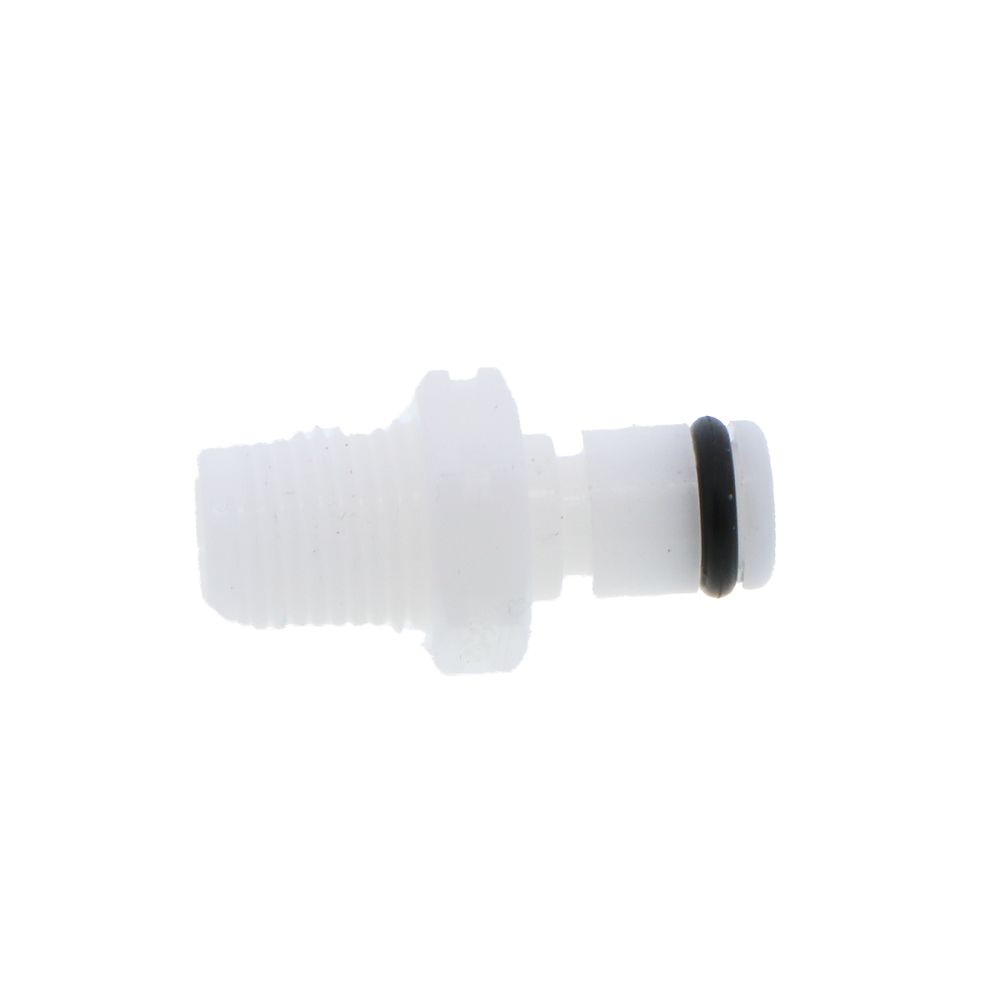

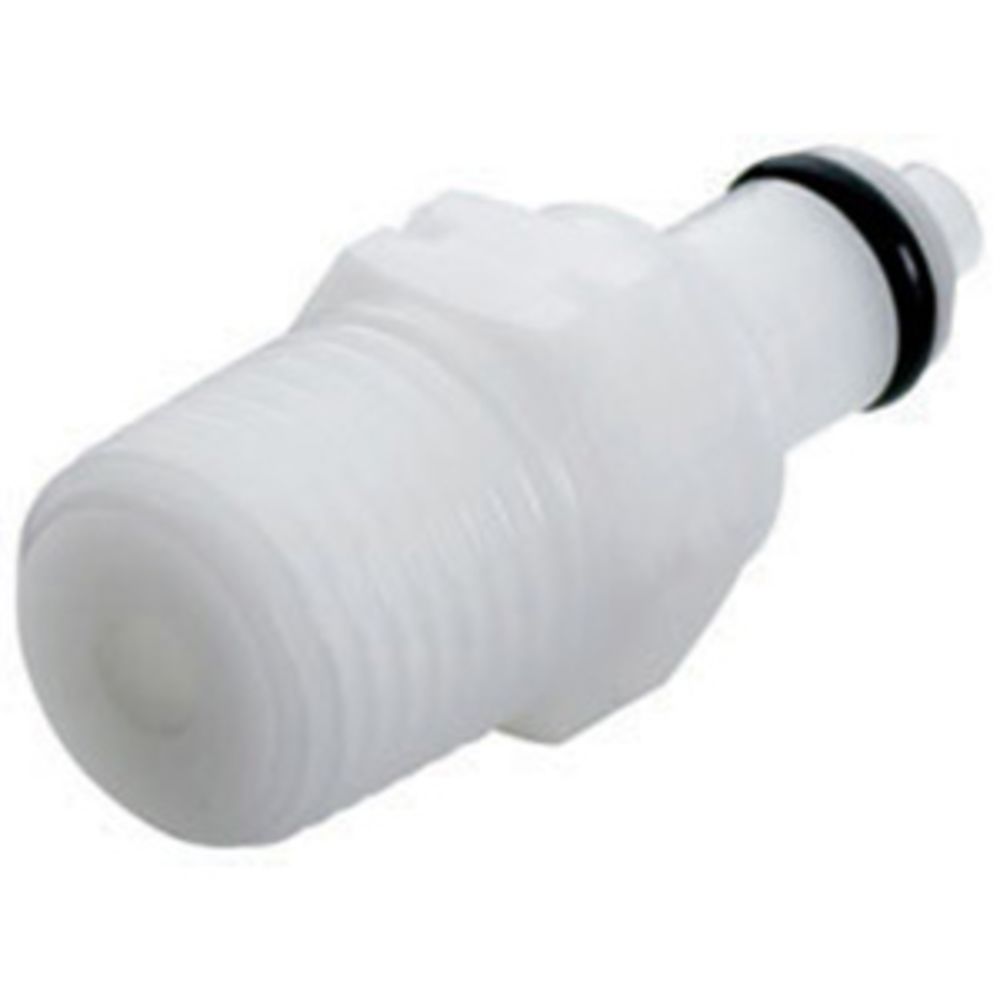

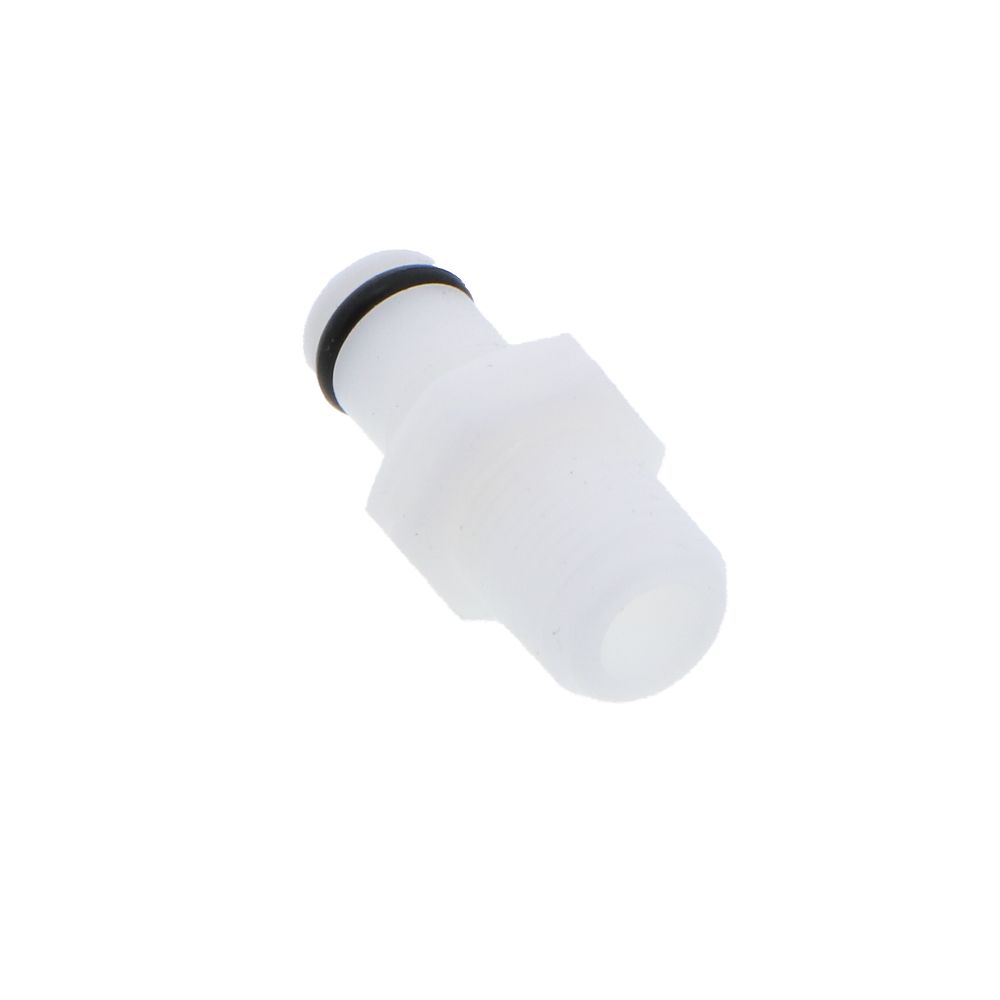

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.
Specifications:
Specifications:
- MaterialAcetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Tubing Size: 1/8" BSPT Thread
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 180ºF
- Seal Options: Buna-N
- Available in Bags of 25 units
- NSF Listed Version (part # 13500) Available Upon Request
Details
Application | Water |
Body Material | Acetal Copolymer |
Inlet/Outlet Connection | 1/8" BSP |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Thread |
Seal Material | Buna-N |
Series | PMC |
Size | 1/8" |
Valve Type | Non-Valved |
Color / Finish | White |
Connection Type | BSP |
Origin | USA |
Type | Coupling Insert |
PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.
Specifications:
- MaterialAcetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Tubing Size: 1/8" BSPT Thread
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 180ºF
- Seal Options: Buna-N
- Available in Bags of 25 units
- NSF Listed Version (part # 13500) Available Upon Request
Details
Application | Water |
Body Material | Acetal Copolymer |
Inlet/Outlet Connection | 1/8" BSP |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Thread |
Seal Material | Buna-N |
Series | PMC |
Size | 1/8" |
Valve Type | Non-Valved |
Color / Finish | White |
Connection Type | BSP |
Origin | USA |
Type | Coupling Insert |
