Colder Products

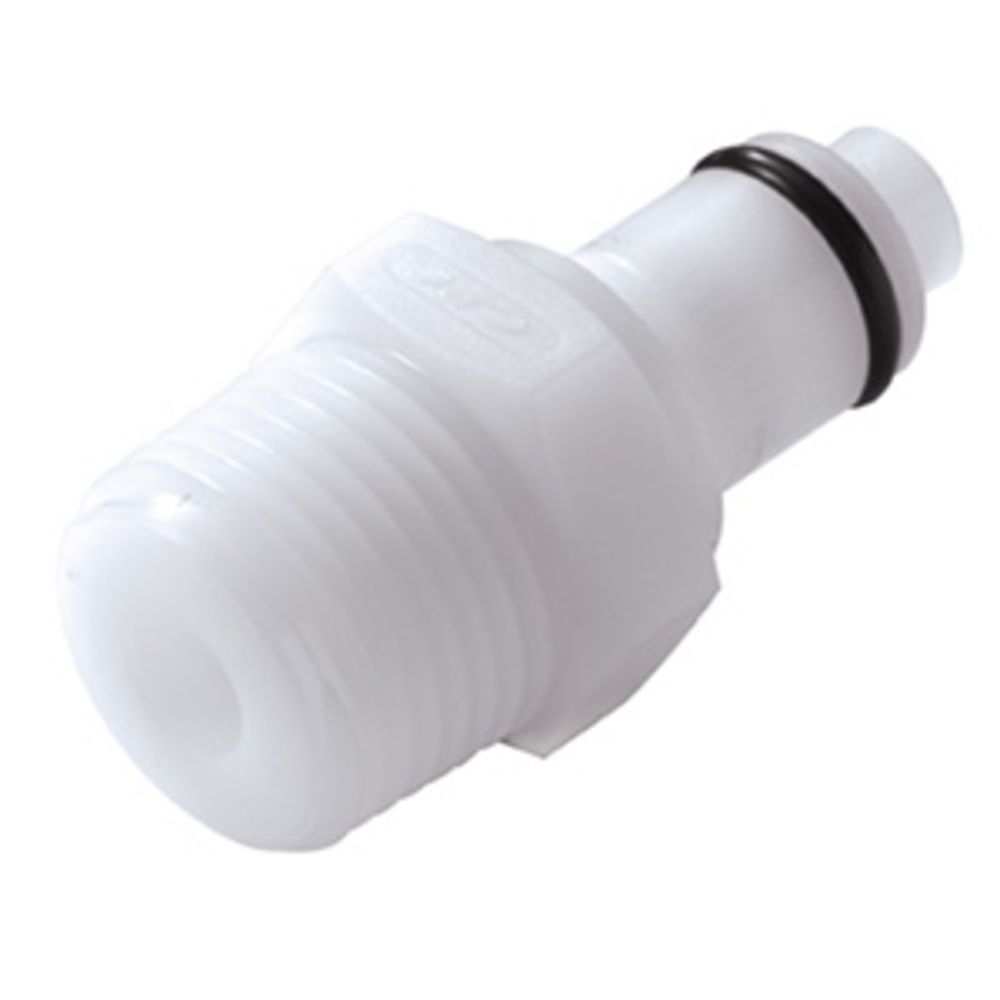

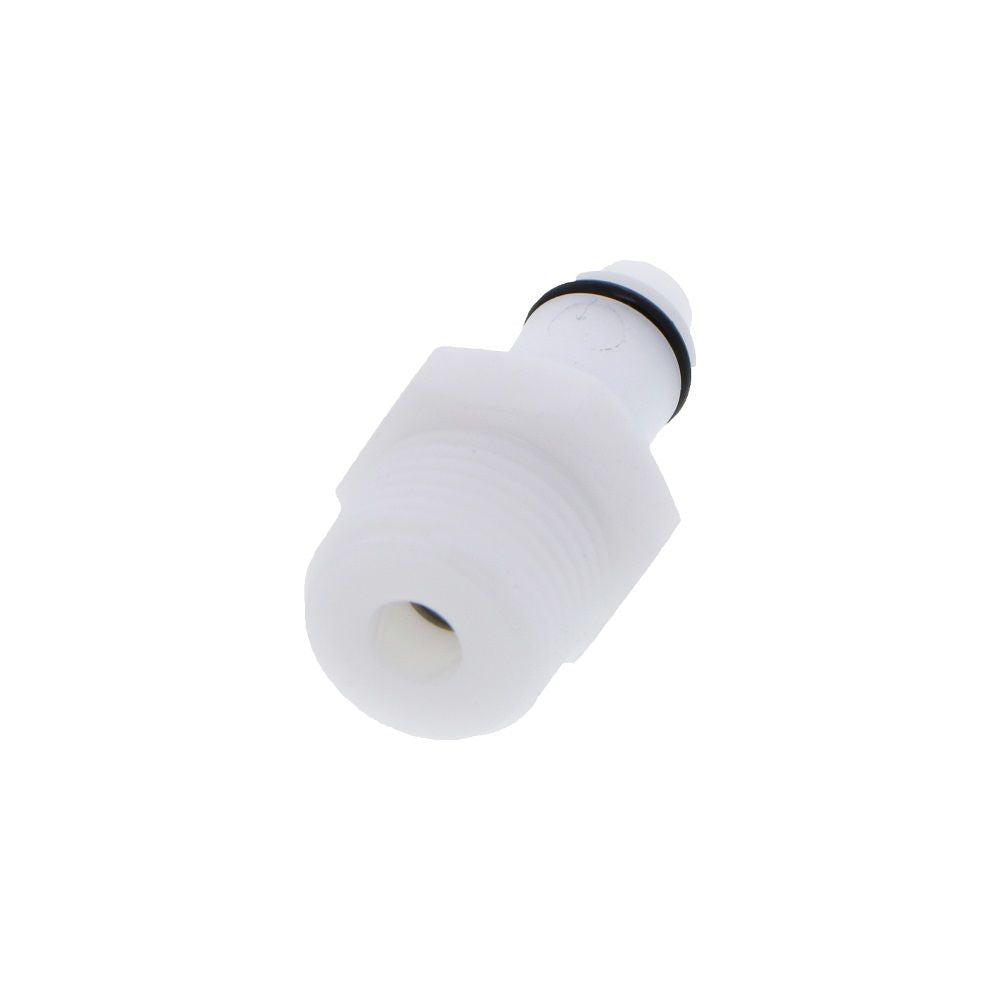

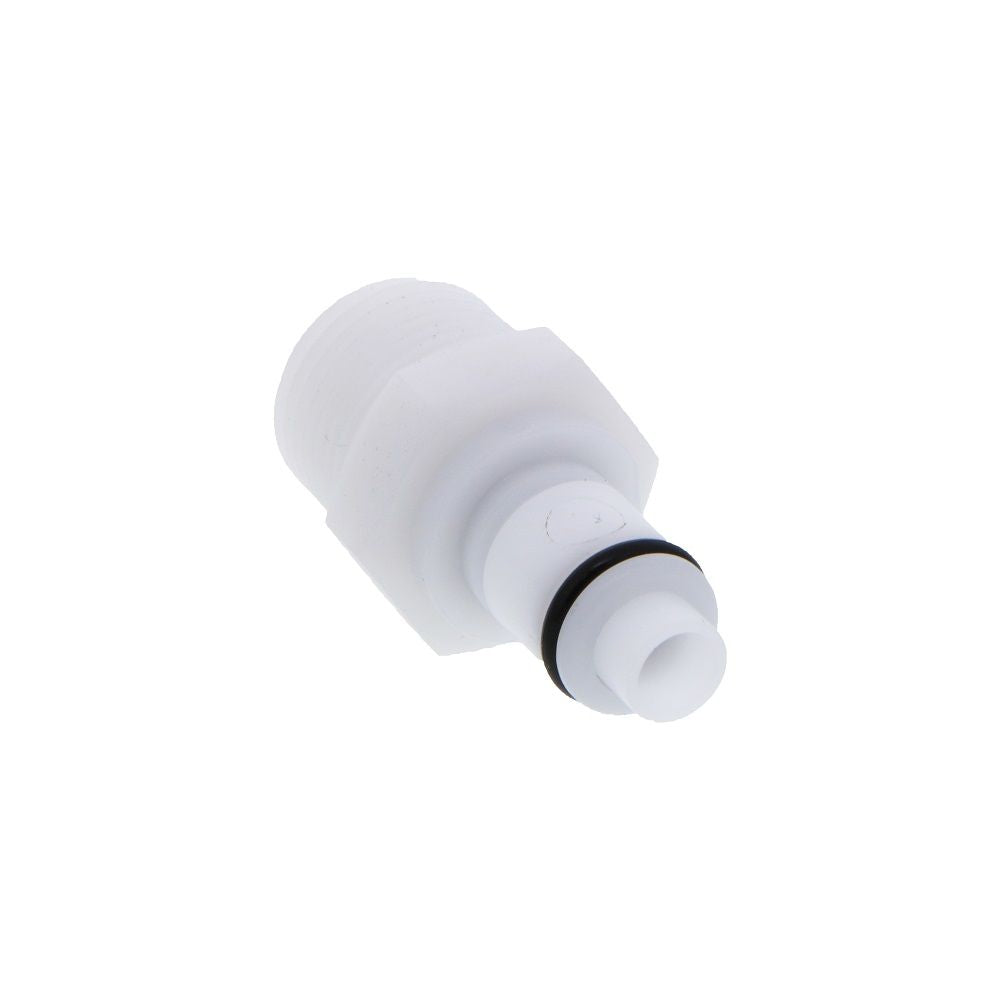

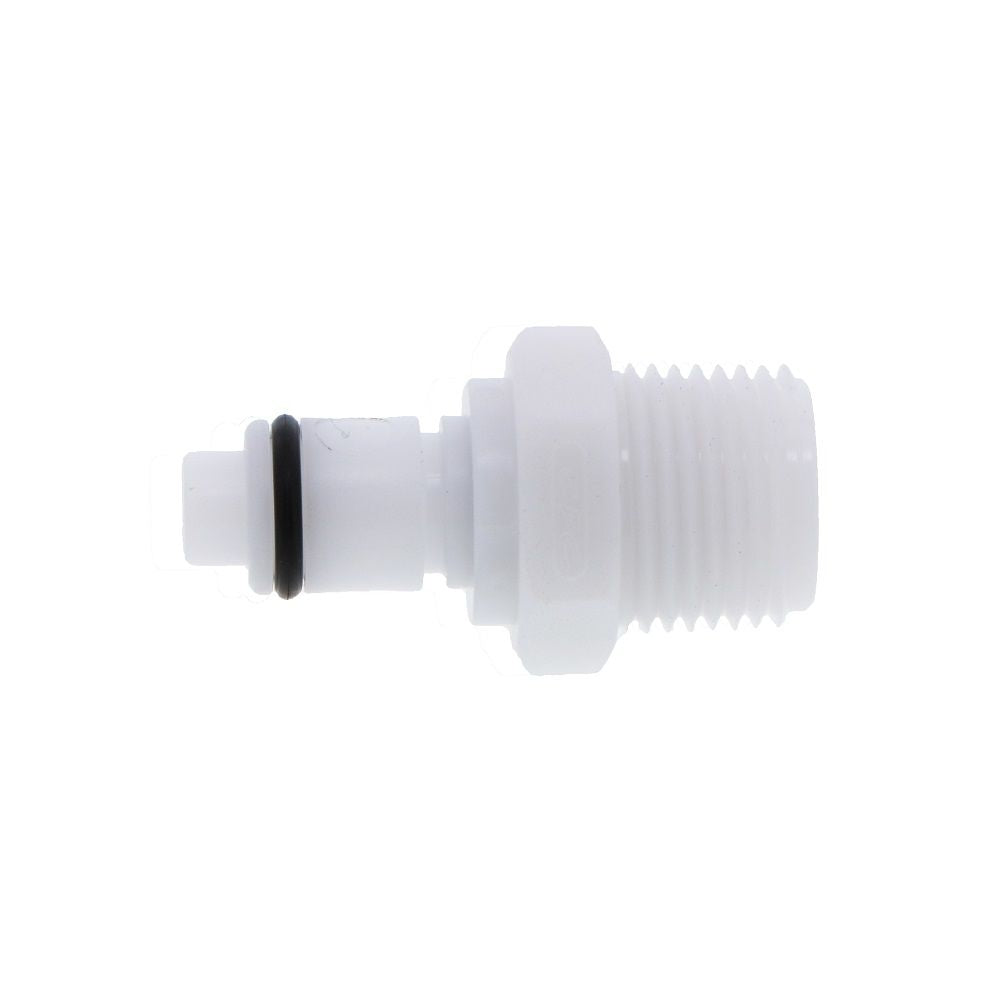

PLCD24006 Valved Male Thread Coupling Insert 3/8 NPT

Part Number: PLCD24006

In Stock

out of stock

In Stock

$5.39

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

 Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 22200) Available Upon Request


Details

Series

PLC

Thread Connection

3/8" | NPT

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Thread

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved


PLCD24006




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

 Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 22200) Available Upon Request

Details

Series

PLC

Thread Connection

3/8" | NPT

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Thread

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

Documentation
PLCD24006
