Colder Products

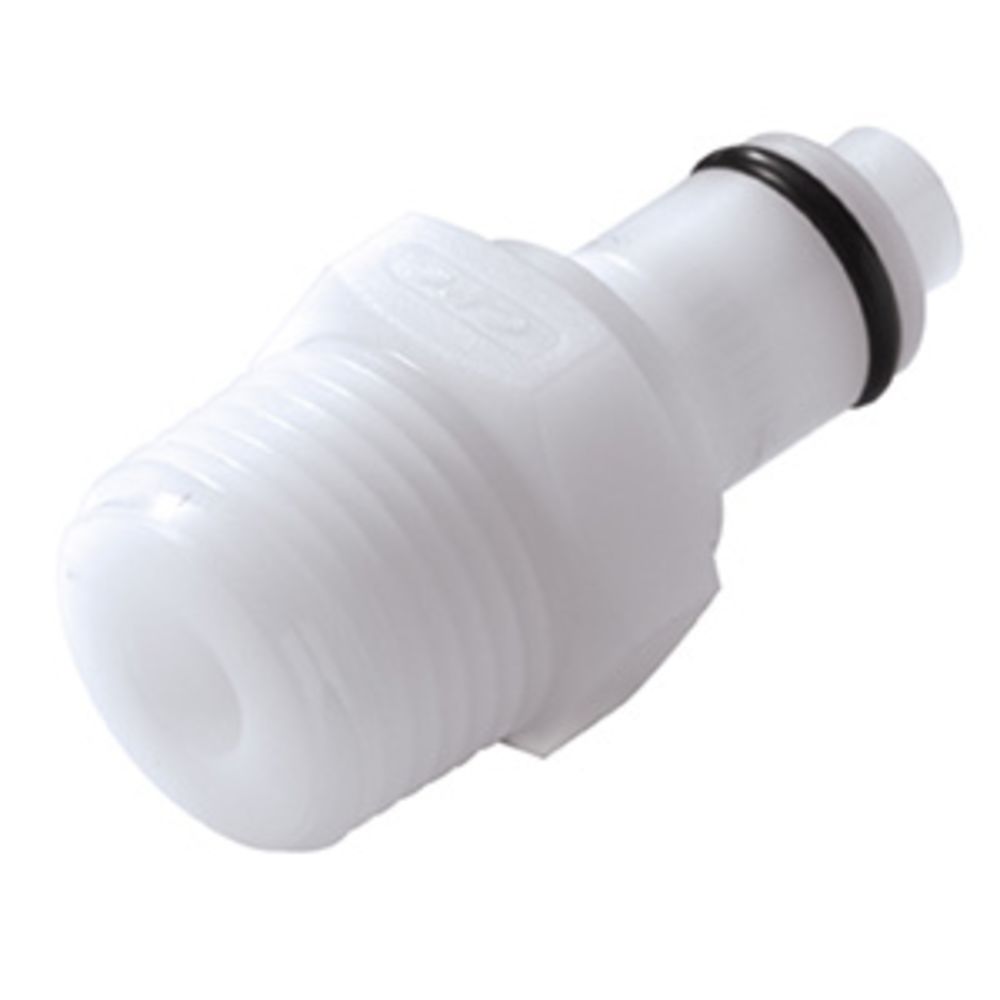

22200 NSF Valved Coupling Insert 3/8 NPT

Part Number: 22200

Alt. Part Number: PLCD24006 (Non-NSF)

In Stock

out of stock

In Stock

$7.13

Colder PLC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PLC Series offers the largest selection of sizes and configurations and has been proven worldwide in thousands of applications.

Specifications:
  • Material: Acetal
  • Material Finish: Natural
  • Color: White
  • Valve Option: Valved
  • Mounting Option: Thread
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)




Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

FDA Buna-N

Series

PLC

Size

3/8"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Natural

Connection Type

Male (MPT)

Type

Coupling Insert

Warranty & Certifications

Certifications

NSF 169


22200




Colder PLC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PLC Series offers the largest selection of sizes and configurations and has been proven worldwide in thousands of applications.

Specifications:
  • Material: Acetal
  • Material Finish: Natural
  • Color: White
  • Valve Option: Valved
  • Mounting Option: Thread
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)



Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

FDA Buna-N

Series

PLC

Size

3/8"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Natural

Connection Type

Male (MPT)

Type

Coupling Insert

Warranty & Certifications

Certifications

NSF 169
