Colder Products

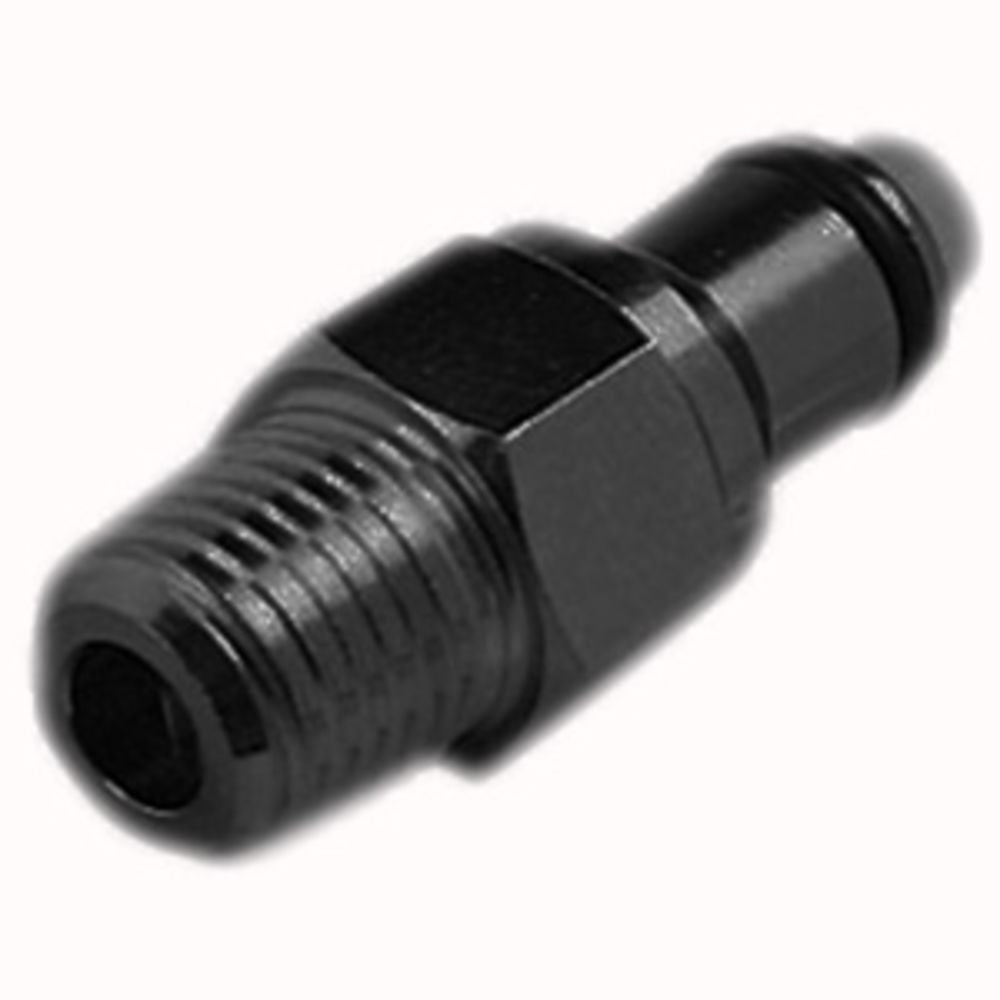

PLCD24004VB Valved Male Thread Black Coupling Insert 1/4 NPT Viton O-ring

Part Number: PLCD24004VB

In Stock

out of stock

In Stock

This item is discontinued. We recommend the PLCD24004V Valved Male Thread Coupling Insert 1/4 NPT Viton O-ring as a substitute.

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

 Specifications:
  • Material: Acetal
  • Color: Black
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Viton
  • Available in Bags of 25 units
  • NSF Listed Version (part # 22000) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

FKM (Viton)

Series

PLC

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Black

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert


PLCD24004VB




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

 Specifications:
  • Material: Acetal
  • Color: Black
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Viton
  • Available in Bags of 25 units
  • NSF Listed Version (part # 22000) Available Upon Request



NOTE: This item is discontinued. We recommend the PLCD24004V Valved Male Thread Coupling Insert 1/4 NPT Viton O-ring as a substitute.

Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

FKM (Viton)

Series

PLC

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Black

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert
