Colder Products

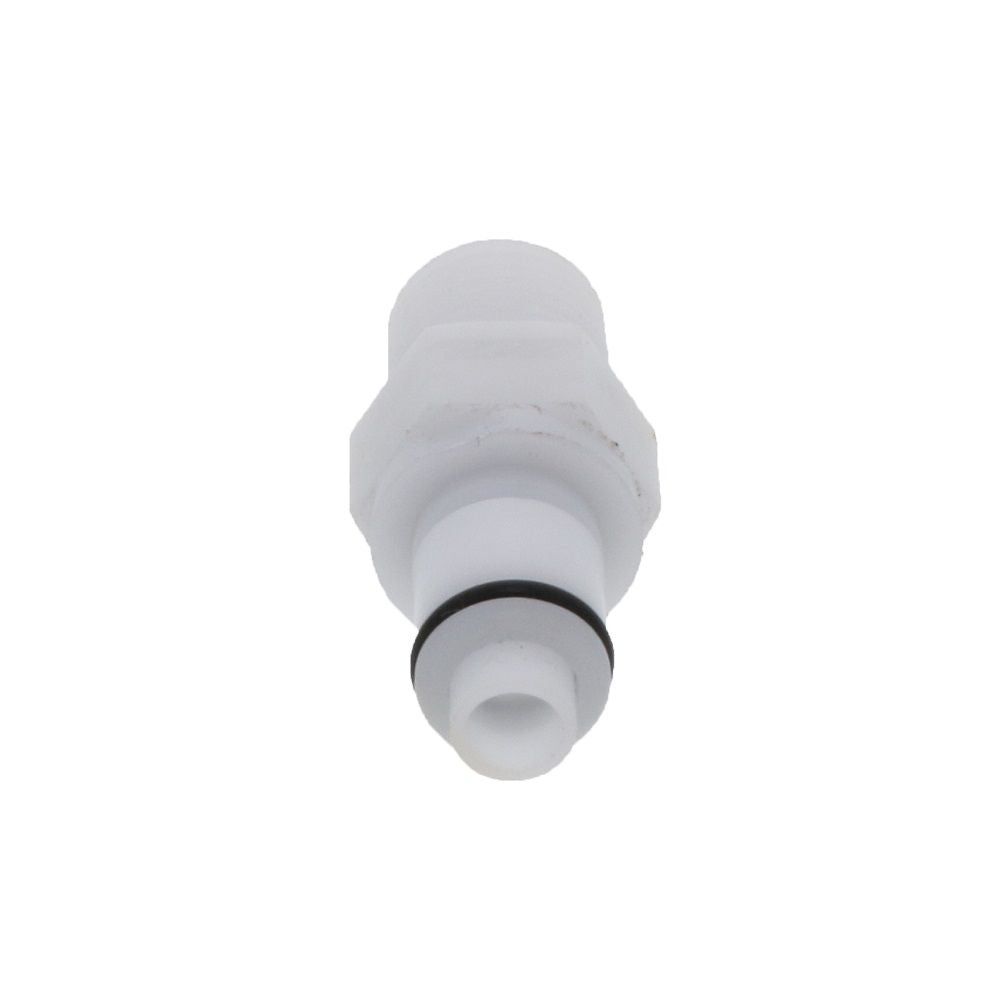

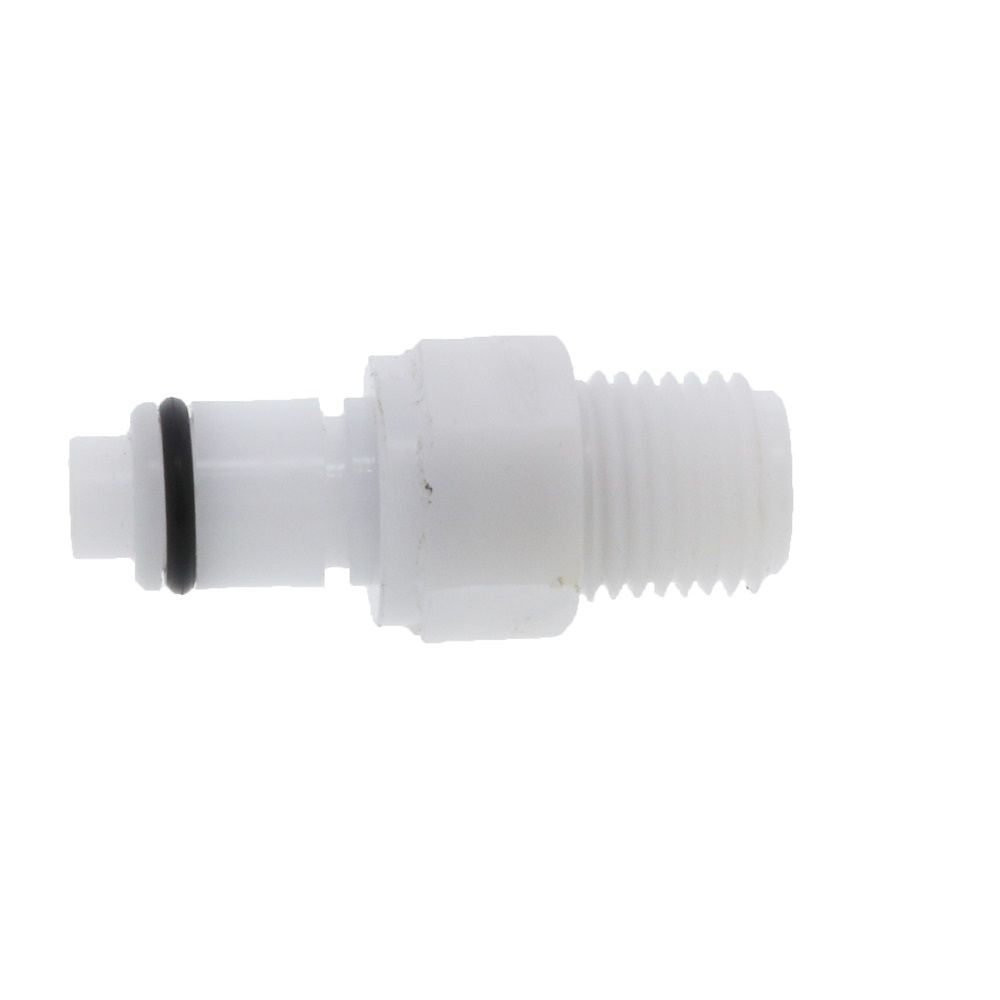

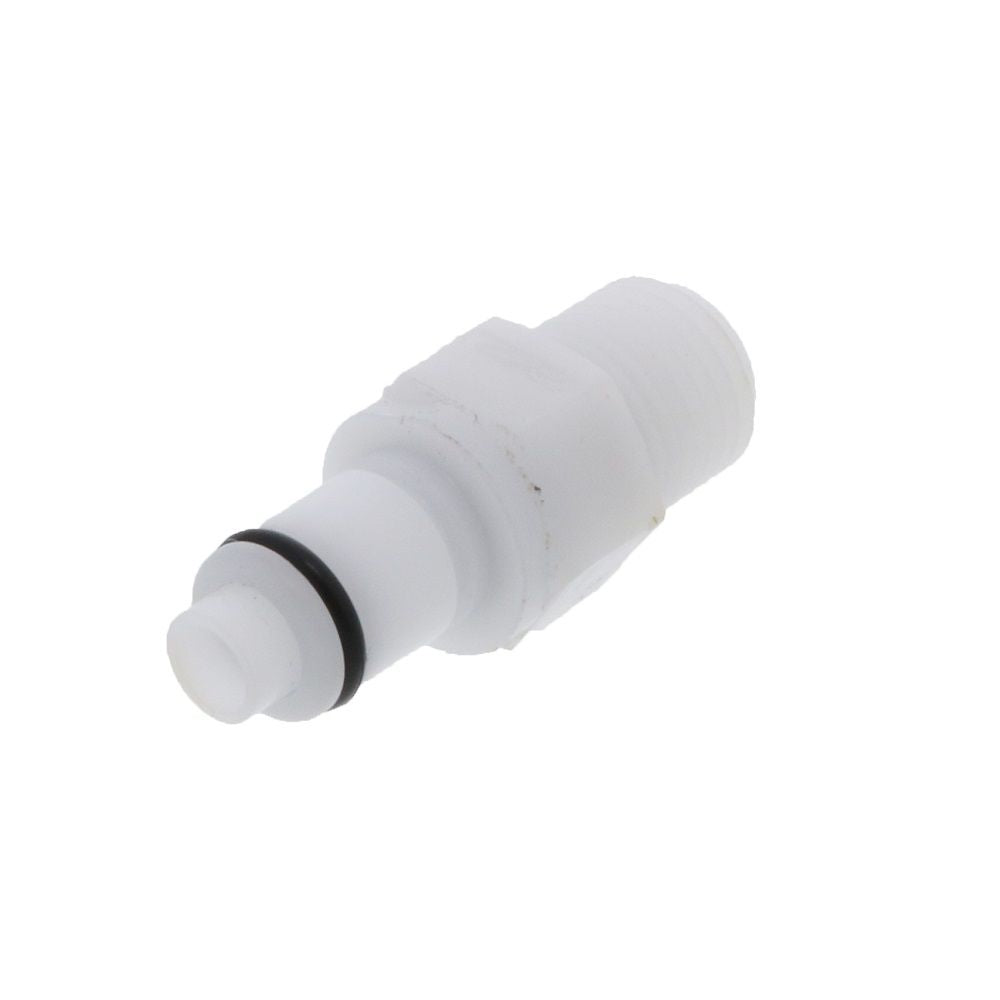

PLCD24004V Valved Male Thread Coupling Insert 1/4 NPT Viton O-ring

Part Number: PLCD24004V

In Stock

out of stock

In Stock

$6.58

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Viton
  • Available in Bags of 25 units
  • NSF Listed Version (part # 22000) Available Upon Request



Compatible with:

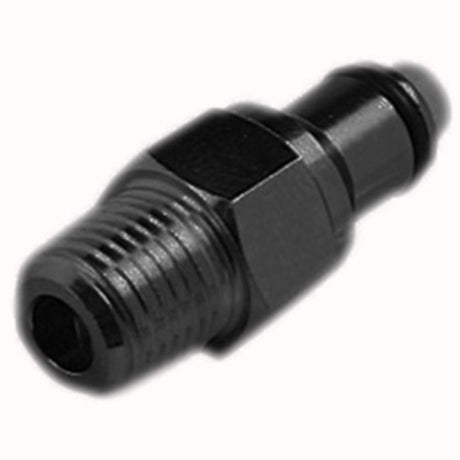

ColderPLCD24004VB

Weight & Dimensions

Length (inches)

0.63

Height (inches)

0.22

Width (inches)

0.63

Weight (lbs)

0.000625

Details

Series

PLC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Thread

Origin

USA

Seal Material

FKM (Viton)

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" MPT


PLCD24004V




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Viton
  • Available in Bags of 25 units
  • NSF Listed Version (part # 22000) Available Upon Request



Compatible with:
ColderPLCD24004VB

Weight & Dimensions

Length (inches)

0.63

Height (inches)

0.22

Width (inches)

0.63

Weight (lbs)

0.000625

Details

Series

PLC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Thread

Origin

USA

Seal Material

FKM (Viton)

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" MPT
