Colder Products

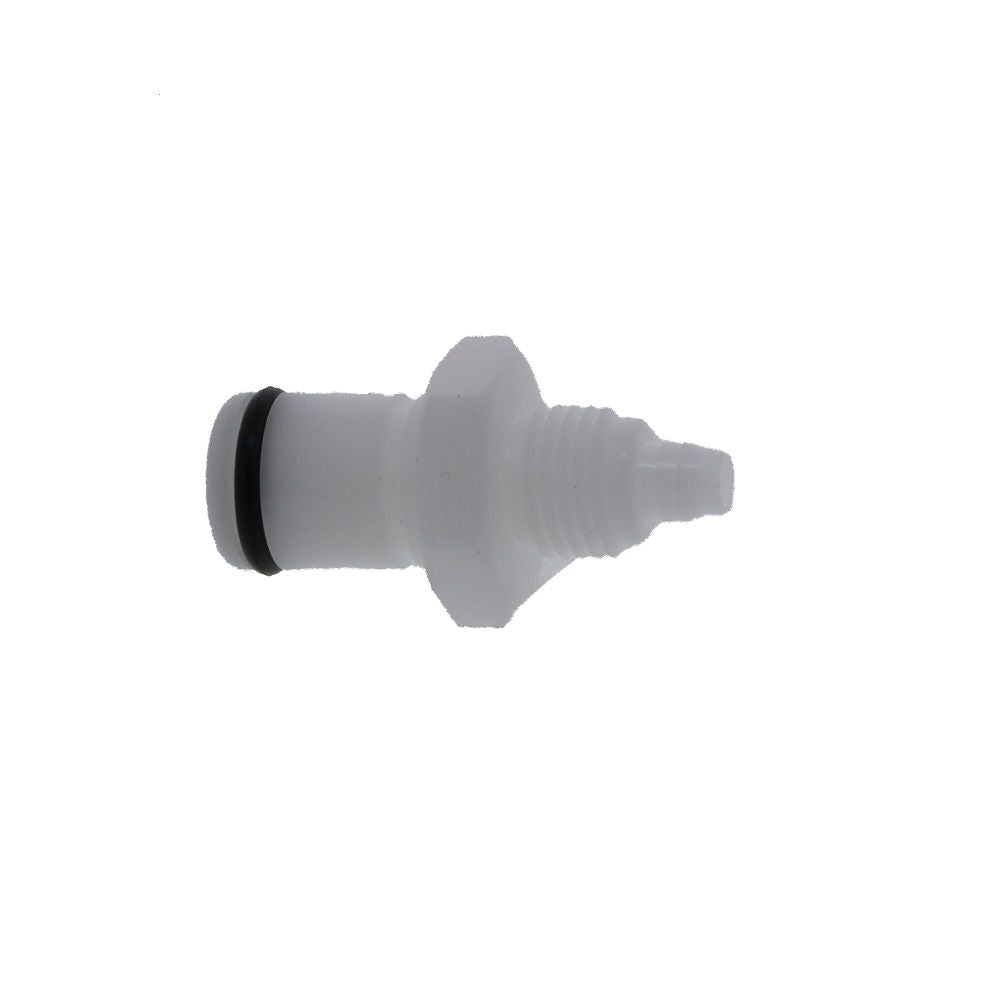

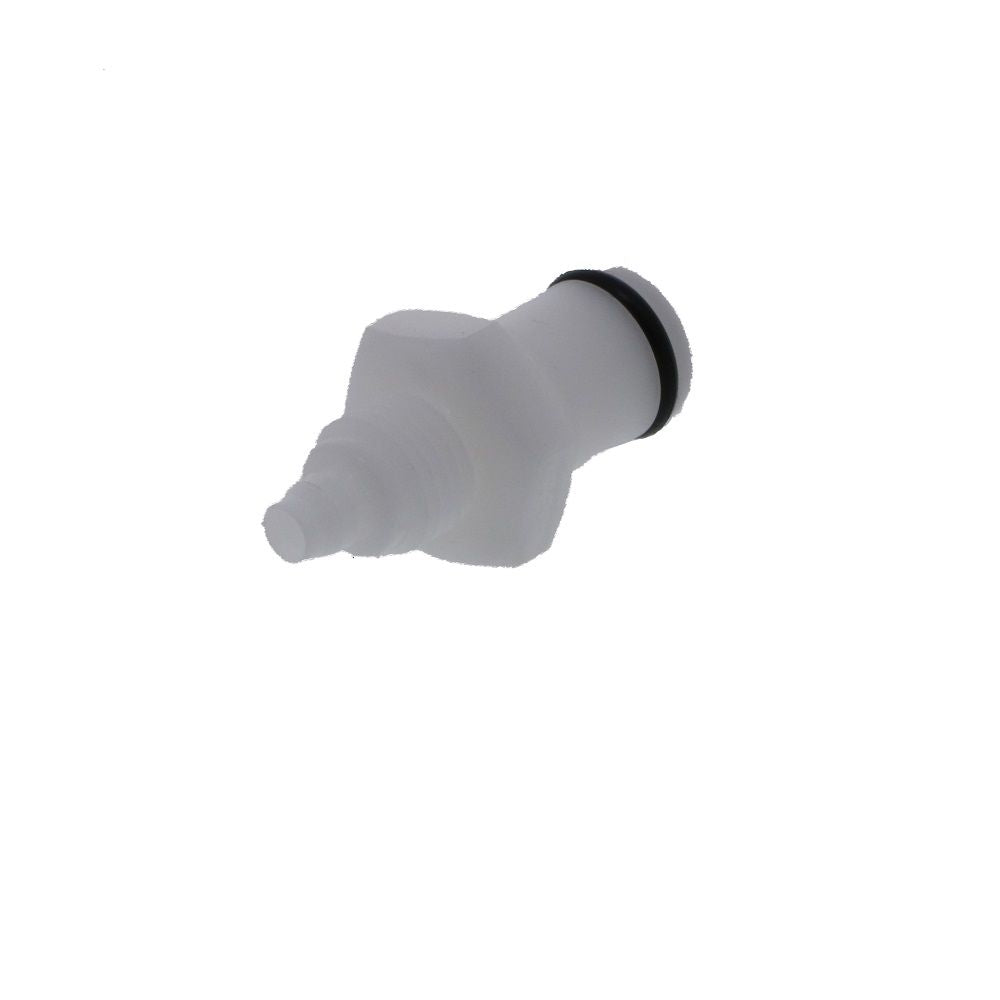

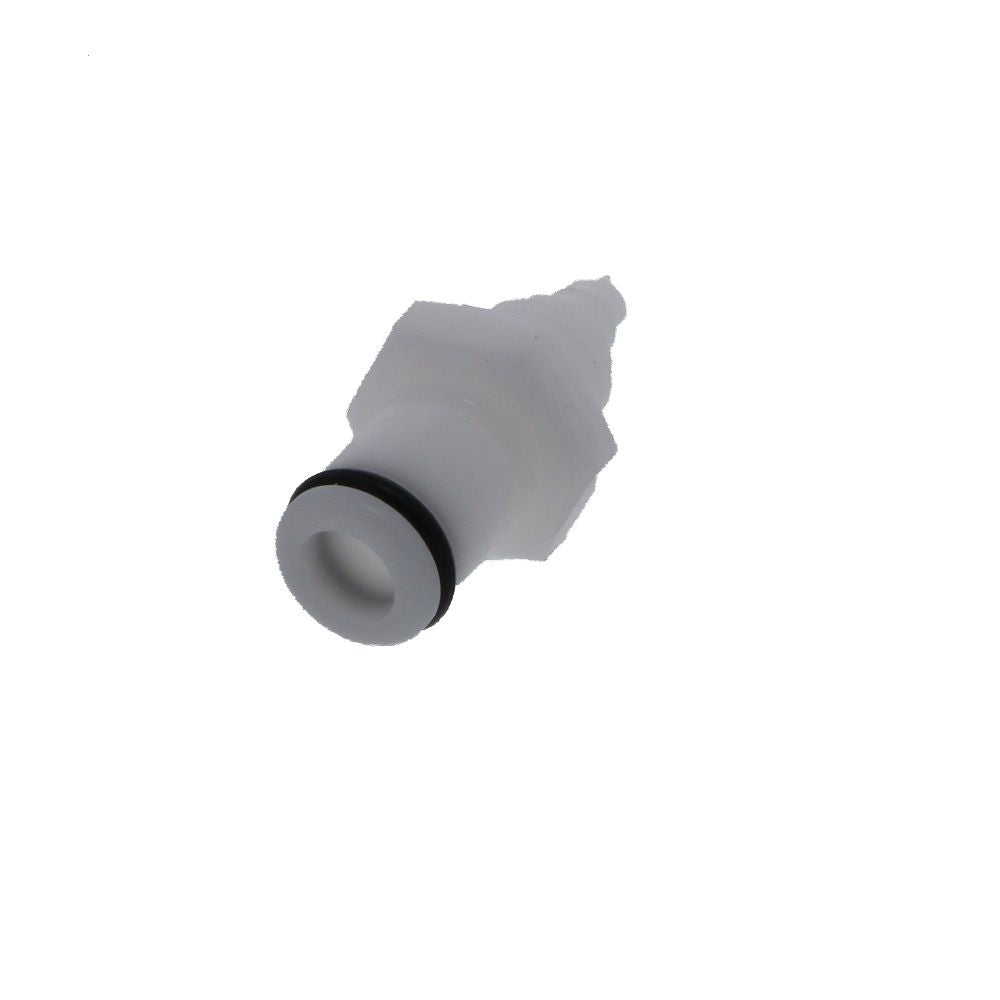

PLC20004 In-Line PTF Coupling Insert 1/4 PTF

Part Number: PLC20004

In Stock

out of stock

In Stock

$5.13

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Tubing Size: .17" ID, 1/4" OD
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units

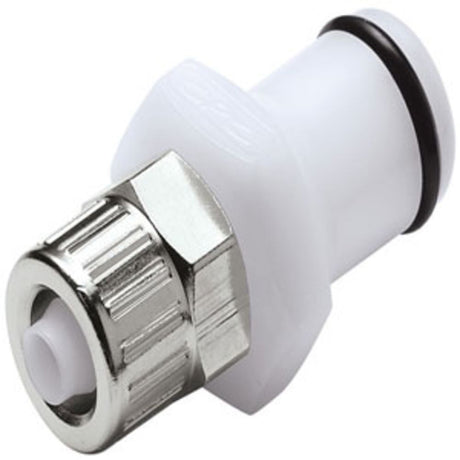

  • NSF Listed Version (part # 23300) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

1/4" OD

Seal Material

Buna-N

Series

PLC

Size

1/4"

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Female (FPT)

Type

Coupling Insert


PLC20004




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Tubing Size: .17" ID, 1/4" OD
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 23300) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

1/4" OD

Seal Material

Buna-N

Series

PLC

Size

1/4"

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Female (FPT)

Type

Coupling Insert

Documentation
PLC20004
